N2XS(FL)H Medium Voltage Power Cable(6/10kV, 12/20kV, 18/30kV)
The N2XS(FL)H Medium Voltage Power Cable is designed for reliable and fire-safe power transmission in medium voltage systems rated at 6/10kV, 12/20kV, and 18/30kV. The cable features a copper conductor insulated with XLPE and is equipped with a flame-retardant laminated aluminum foil screen, which provides effective electromagnetic shielding and moisture protection.
An LSZH outer sheath is applied to minimize smoke emission and eliminate halogen gases in the event of fire, enhancing safety in confined or populated installations. Manufactured in accordance with IEC standards, the N2XS(FL)H cable offers low dielectric loss, high thermal stability, and long service life. Its optimized construction ensures dependable electrical performance while meeting stringent fire safety and environmental requirements.
-
Voltage Rating(Uo/U)
6/10 (12) KV
12/20 (24)KV
18/30 (36)KV -
Test Voltage
21kV AC 50Hz (5 mins)
42kV AC 50Hz (5 mins)
63kV AC 50Hz (5 mins) - Temperature Rating -40°C to +60°C
- Conductor Operating Temperature +90°C
- Short Circuit Temp up to 5 sec 250°C
- Minimum Bending Radius 15 x overall diameter
Construction
Technical Specifications
Quality Control
Application
Construction

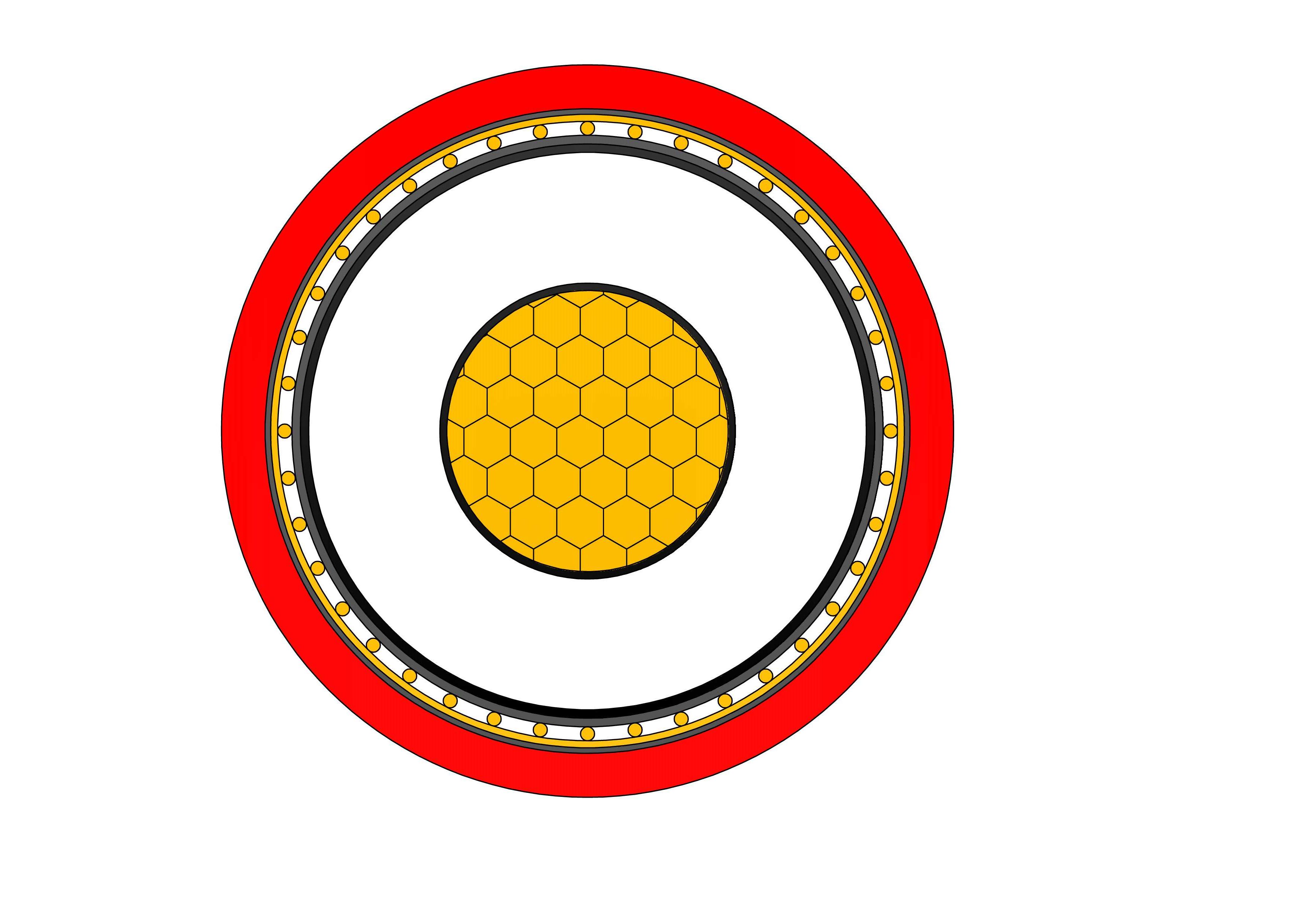

N2XS(FL)H Medium Voltage Power Cable Constrution
Conductor
Class 2 Stranded Copper
Insulation
XLPE (Cross-Linked Polyethylene)
Conductor Screen
Semi-conductive material
Insulation Screen
Semi-conductive material
Longitudinal Waterblocking
Semi-conductive swellable tape
Screen
Copper Wires and Copper Tape
Longitudinal Waterblocking
Swellable Tapes
Outer Sheath
LSZH (Low Smoke Zero Halogen)
Sheath Color
Red/Black
Manufacturer Standard
IEC 60502-2, IEC 60228
UV Resistant
ISO 4892-3
Abrasion and Tear Resistant
EN 60229-4.1
Impact rated to
AG2 EN 60364 - 5.51
Radial Waterblocking
Al/PET (Aluminium/Polyester) tape tightly bonded to sheath
Flame retardant
IEC 60332-3-24 Cat C, IEC 60332-1-2
Low Smoke Zero Halogen
IEC 60754-1/2, IEC 61034-2
Technical Specifications
N2XS(FL)H Medium Voltage Power Cable(6/10kV, 12/20kV, 18/30kV)
N2XS(FL)H 6/10 (12) KV
N2XS(FL)H 12/20 (24)KV
N2XS(FL)H 18/30 (36)KV
|
No. Of Cores |
Nominal Cross Sectional Area |
Nominal Conductor Diameter |
Number Wires Conductor |
NOM. Thickness Semi-Con. Layer |
Nominal Insulation Thickness |
Minimum Insulation Thickness |
Nominal Diameter Over Insulation |
||
| Conductor | Screen | Inner | Outer | ||||||
| mm2 | mm2 | mm | mm | mm | mm | mm | mm | mm | |
| 1 | 50 | 16 | 8.10 | 10×2.62 | 0.50 | 0.40 | 3.40 | 2.96 | 16.3 |
| 1 | 70 | 16 | 9.70 | 14×2.62 | 0.50 | 0.40 | 3.40 | 2.96 | 17.9 |
| 1 | 95 | 16 | 11.4 | 19×2.62 | 0.50 | 0.40 | 3.40 | 2.96 | 19.6 |
| 1 | 120 | 16 | 12.65 | 19×2.97 | 0.50 | 0.40 | 3.40 | 2.96 | 20.9 |
| 1 | 150 | 25 | 14.4 | 19×3.20 | 0.50 | 0.40 | 3.40 | 2.96 | 22.7 |
| 1 | 185 | 25 | 15.75 | 27×2.62 | 0.50 | 0.40 | 3.40 | 2.96 | 24.1 |
| 1 | 240 | 25 | 18.2 | 48×2.62 | 0.50 | 0.40 | 3.40 | 2.96 | 26.8 |
| 1 | 300 | 25 | 20.5 | 61×2.62 | 0.50 | 0.40 | 3.40 | 2.96 | 28.9 |
| 1 | 400 | 35 | 23.0 | 61×2.97 | 0.50 | 0.40 | 3.40 | 2.96 | 31.7 |
| 1 | 500 | 35 | 26.0 | 61×3.29 | 0.50 | 0.40 | 3.40 | 2.96 | 34.7 |
| 1 | 630 | 35 | 30.2 | 61×3.80 | 0.50 | 0.40 | 3.40 | 2.96 | 38.9 |
|
No. Of Cores |
Nominal Cross Sectional Area |
Nominal Conductor Diameter |
Number Wires Conductor |
NOM. Thickness Semi-Con. Layer |
Nominal Insulation Thickness |
Minimum Insulation Thickness |
Nominal Diameter Over Insulation |
||
| Conductor | Screen | Inner | Outer | ||||||
| mm2 | mm2 | mm | mm | mm | mm | mm | mm | mm | |
| 1 | 50 | 16 | 8.10 | 10×2.62 | 0.50 | 0.40 | 5.50 | 4.85 | 16.3 |
| 1 | 70 | 16 | 9.70 | 14×2.62 | 0.50 | 0.40 | 5.50 | 4.85 | 17.9 |
| 1 | 95 | 16 | 11.4 | 19×2.62 | 0.50 | 0.40 | 5.50 | 4.85 | 19.6 |
| 1 | 120 | 16 | 12.65 | 19×2.97 | 0.50 | 0.40 | 5.50 | 4.85 | 20.9 |
| 1 | 150 | 25 | 14.4 | 19×3.20 | 0.50 | 0.40 | 5.50 | 4.85 | 22.7 |
| 1 | 185 | 25 | 15.75 | 27×2.62 | 0.50 | 0.40 | 5.50 | 4.85 | 24.1 |
| 1 | 240 | 25 | 18.2 | 48×2.62 | 0.50 | 0.40 | 5.50 | 4.85 | 16.8 |
| 1 | 300 | 25 | 20.5 | 61×2.62 | 0.50 | 0.40 | 5.50 | 4.85 | 18.9 |
| 1 | 400 | 35 | 23.0 | 61×2.97 | 0.50 | 0.40 | 5.50 | 4.85 | 31.7 |
| 1 | 500 | 35 | 26.0 | 61×3.29 | 0.50 | 0.40 | 5.50 | 4.85 | 34.7 |
| 1 | 630 | 35 | 30.2 | 61×3.80 | 0.50 | 0.40 | 5.50 | 4.85 | 38.9 |
|
No. Of Cores |
Nominal Cross Sectional Area |
Nominal Conductor Diameter |
Number Wires Conductor |
NOM. Thickness Semi-Con. Layer |
Nominal Insulation Thickness |
Minimum Insulation Thickness |
Nominal Diameter Over Insulation |
||
| Conductor | Screen | Inner | Outer | ||||||
| mm2 | mm2 | mm | mm | mm | mm | mm | mm | mm | |
| 1 | 50 | 16 | 8.10 | 10×2.62 | 0.50 | 0.40 | 8.00 | 7.1 | 25.1 |
| 1 | 70 | 16 | 9.70 | 14×2.62 | 0.50 | 0.40 | 8.00 | 7.1 | 26.7 |
| 1 | 95 | 16 | 11.4 | 19×2.62 | 0.50 | 0.40 | 8.00 | 7.1 | 28.4 |
| 1 | 120 | 16 | 12.7 | 19×2.97 | 0.50 | 0.40 | 8.00 | 7.1 | 29.7 |
| 1 | 150 | 25 | 14.5 | 19×3.20 | 0.50 | 0.40 | 8.00 | 7.1 | 31.5 |
| 1 | 185 | 25 | 15.9 | 27×2.62 | 0.50 | 0.40 | 8.00 | 7.1 | 32.9 |
| 1 | 240 | 25 | 18.6 | 48×2.62 | 0.50 | 0.40 | 8.00 | 7.1 | 35.6 |
| 1 | 300 | 25 | 20.7 | 61×2.62 | 0.50 | 0.40 | 8.00 | 7.1 | 37.7 |
| 1 | 400 | 35 | 23.5 | 61×2.97 | 0.50 | 0.40 | 8.00 | 7.1 | 40.5 |
| 1 | 500 | 35 | 26.5 | 61×3.29 | 0.50 | 0.40 | 8.00 | 7.1 | 43.5 |
| 1 | 630 | 35 | 30.2 | 61×3.80 | 0.50 | 0.40 | 8.00 | 7.1 | 47.7 |
Quality Control
N2XS(FL)H Medium Voltage Power Cable(6/10kV, 12/20kV, 18/30kV)
Raw Material Test
Raw Material Test is the initial quality control stage for the N2XS(FL)H Medium Voltage Power Cable. Copper conductors are tested for electrical conductivity, tensile strength, elongation, and surface cleanliness. XLPE insulation compounds undergo dielectric strength testing, thermal aging evaluation, and impurity analysis. Laminated aluminum foil materials used for screening are inspected for thickness consistency, adhesion quality, and corrosion resistance. LSZH sheath compounds are tested for flame retardancy, smoke density, and halogen-free properties. Only raw materials that fully comply with IEC standards and internal technical specifications are approved for production.
Process inspection
Process Inspection ensures controlled manufacturing quality of the N2XS(FL)H Medium Voltage Power Cable throughout all production steps. Conductor stranding is monitored for correct lay length, compactness, and roundness. XLPE insulation extrusion and cross-linking are continuously controlled to achieve uniform insulation thickness and electrical integrity. Application of the laminated aluminum foil screen is inspected for continuous coverage and proper bonding. LSZH outer sheath extrusion is checked for dimensional accuracy and surface quality. In-process electrical and dimensional checks are performed to prevent defects prior to final testing.
Finished Product
Finished Product Test validates the electrical, mechanical, and fire safety performance of the N2XS(FL)H Medium Voltage Power Cable before shipment. Electrical tests include conductor resistance measurement, insulation resistance testing, and partial discharge testing. High-voltage withstand tests confirm insulation reliability at rated voltage levels. Mechanical tests assess sheath integrity and bending performance. Additional flame retardancy and smoke emission tests verify LSZH sheath compliance. Visual inspection ensures correct marking, construction, and packaging.
Application
Used in power plants, substations, tunnels, underground utility networks, industrial facilities, and infrastructure projects requiring fire-safe medium voltage cables.
Technical Advantages
● 30+ years of manufacturing experience
● ISO and UL certified production
● Customized cable and transformer solutions
Product Packaging
Wires and Cables packaging (1)
Wires and Cables packaging (2)
Wires and Cables packaging (3)
Wires and Cables packaging (4)
Wires and Cables packaging (5)
Wires and Cables packaging (6)
Wires and Cables packaging (7)
Wires and Cables packaging (8)
Related Products
2 Chow Aluminum Conductor Duplex Overhead Service Drop Cable
2 Chow Aluminum Conductor Duplex Overhead Service Drop Cable is designed for dependable secondary overhead power distribution from utility lines to residential and light commercial service entrances. The duplex configuration consists of two stranded aluminum conductors, typically functioning as a phase conductor and a neutral messenger, providing both electrical transmission and mechanical support. The No. 2 Chow conductor size delivers balanced current-carrying capacity with controlled sag, making it suitable for short to medium service drop spans. Aluminum construction offers low weight, excellent corrosion resistance, and ease of installation in outdoor environments. Manufactured in accordance with ASTM and utility specifications, the 2 Chow Aluminum Conductor Duplex Overhead Service Drop Cable ensures uniform stranding, stable conductivity, and reliable long-term performance. It is widely used by utilities and contractors seeking a cost-effective, durable solution for overhead service drop applications.
NAYY-J and NAYY-O 0.6/1kV Low Voltage Power Cable
NAYY-J and NAYY-O are low voltage power cables designed according to IEC 60502-1 standard, suitable for fixed installation in indoor, outdoor, underground, or concrete (not subject to vibration) environments. Featuring solid or stranded aluminium conductors, PVC insulation, filler, and robust PVC outer sheath, they comply with VDE 0276-603 standards. NAYY-J includes a protective earth conductor (green/yellow), while NAYY-O does not. These unarmoured cables offer good electrical performance, mechanical strength, and resistance to moisture and chemicals. Lightweight aluminium design significantly reduces costs compared to copper. Suitable for direct burial, ducts, or indoor fixed installations where mechanical protection is not required. Flame-retardant with adequate current rating, the NAYY-J and NAYY-O 0.6/1kV Low Voltage Power Cables ensure reliable energy transmission with minimal losses. Widely applied in industrial facilities, commercial buildings, residential networks, and infrastructure projects needing cost-effective, maintenance-free low-voltage aluminium cabling worldwide.
NSSHOU O/J, NSSHOU 3E, NSSHOU 3E + ST 0.6/1 kV Cable
The NSSHOU O/J, NSSHOU 3E, and NSSHOU 3E + ST - 0.6/1kV cables are heavy-duty flexible rubber-insulated low voltage power cables manufactured according to VDE 0250 standards. Designed for extreme mechanical stress, they are ideal for underground mining, tunneling, and heavy industrial environments where durability, flexibility, and flame retardancy are essential. Featuring Class 5 flexible tinned copper conductors, robust rubber insulation (Type 3GI3), and abrasion-resistant outer sheaths (Type 5GM5), these cables ensure long service life under demanding conditions. They can be installed indoors, outdoors, or permanently submerged in water up to 100 meters, making them suitable for a wide range of fixed and dynamic applications. Optional control conductors and individual core screening are available upon request.
(N)TSCGECECWOU 8.7/15kV and 12/20kV ZH Cable
The (N)TSCGECECWOU 8.7/15kV and 12/20kV ZH cable is a flexible medium voltage power cable designed and manufactured to DIN VDE 0250 standards. Engineered for demanding mining, tunneling, and mobile equipment applications, it features EPR insulation, a halogen-free flame-retardant sheath, and a concentric copper conductor to ensure exceptional mechanical strength, EMC protection, and resistance to oil, moisture, and fire. With a robust PUR outer sheath and halogen-free materials, this cable provides high flexibility and durability for reeling and trailing systems in harsh industrial environments, making it ideal for tunnel boring machines, mining conveyors, and other heavy-duty energy supply applications.
Pigeon ACSR Conductor Cable
The ACSR Pigeon is an Aluminium Conductor Steel Reinforced (ACSR) featuring a durable galvanised steel core encased in concentrically stranded hard-drawn 1350-H19 aluminium wire layers, compliant with ASTM B232 standards. Compliant with ASTM B230, B232, and ICEA standards, this cable offers a breaking load of approximately 6,650 lbs and a current rating up to 340 amps in overhead applications. The aluminum 1350-H19 provides excellent corrosion resistance and low electrical resistance, while the steel enhances sag control over long spans. Suitable for voltages up to 230kV in distribution lines, the Pigeon ACSR Conductor Cable minimizes line losses and withstands harsh weather, including wind and ice loading. Its cost-effective design makes it popular for utility upgrades and rural electrification, ensuring reliable power delivery with minimal maintenance in overhead transmission and distribution systems worldwide.
4 Oyster Aluminum Conductor Triplex Overhead Service Drop Cable
4 Oyster Triplex Aluminum Overhead Service Drop Cable is specifically designed for overhead service applications where reliability, durability, and efficiency are crucial. This cable is comprised of two insulated phase conductors and one bare neutral messenger, constructed to deliver 120/240V service to residential or light commercial premises. Engineered for power distribution at voltages up to 600V, the conductors are insulated with black cross-linked polyethylene (XLP) for superior resistance to UV rays, weather, and mechanical wear.FAQ From Customers
-
