N2XY 0.6/1kV Low Voltage Power Cable
N2XY 0.6/1kV is a low-voltage power cable built to IEC/EN 60228 standards, ideal for fixed installations in dry or damp environments, including indoors, outdoors, and in concrete (excluding vibration zones), without the need for additional mechanical protection. Constructed with high-purity copper conductors, thermosetting XLPE insulation, and tough PVC jacket, it meets stringent IEC 60502-1 requirements. This cable provides low dielectric losses, excellent short-circuit tolerance, and strong resistance to environmental factors like water and abrasion. Perfect for fixed installations in wet or dry locations, including direct burial without armour when mechanical protection is not critical. Enhanced bending radius and flame-retardant properties facilitate safe, easy handling.
- Voltage Rating(Uo/U) 0.6/1kV
- Temperature Rating During installation: -5°C to +50ºC; Fixed Installation: -20°C to +90°C
- Minimum Bending Radius Fixed: 12 x overall diameter
Construction
Technical Specifications
Quality Control
Application
Construction

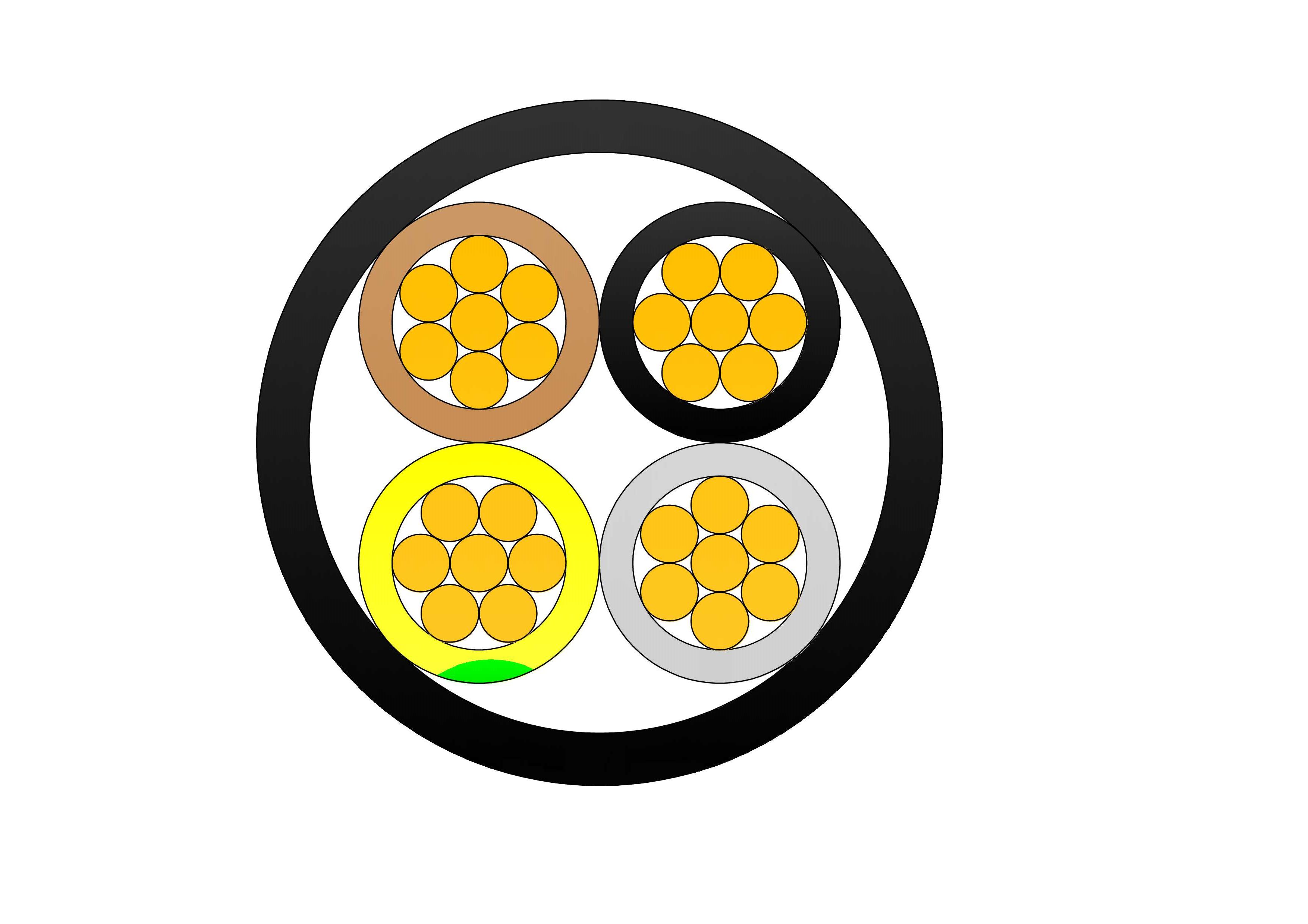

N2XY 0.6/1kV Low Voltage Power Cable Construction
Conductor
RE: Class 1 solid copper conductor
RM: Class 2 stranded circular or circular compacted
SM: Class 2 stranded sectoral shaped
RM: Class 2 stranded circular or circular compacted
SM: Class 2 stranded sectoral shaped
Insulation
XLPE (Cross-Linked Polyethylene)
Bedding
PVC (Polyvinyl Chloride)
Sheath
PVC(Polyvinyl Chloride)
Sheath Colour
Black
Manufacturer Standard
IEC 60502-1, VDE 0276-603, IEC/EN 60228
Flame retardant
IEC/EN 60332-1-2
Core Identification
3 core: Green/Yellow/Brown /Blue
4 core: Green/Yellow/Brown / Black/ Grey
5 core: Green/Yellow /Brown /Blue/ Black/ Grey
4 core: Green/Yellow/Brown / Black/ Grey
5 core: Green/Yellow /Brown /Blue/ Black/ Grey
Application
N2XY cable is suitable for fixed installation in low voltage power distribution system and can be installed indoors, in tunnels, cable trays and other places. It is commonly used in commercial buildings, industrial facilities and infrastructure projects.
Technical Specifications
N2XY 0.6/1kV Low Voltage Power Cable
N2XY Low Voltage Power Cable Technical Specifications
|
No of Cores |
Cross-Section Area |
Nominal Thickness of Insulation |
Nominal Thickness of Sheath |
Nominal Overall Diameter |
Approximate Weight |
| mm2 | mm | mm | mm | kg/km | |
| 1 | 16 | 0.7 | 1.8 | 9.8 | 216 |
| 1 | 25 | 0.9 | 1.8 | 11.5 | 318 |
| 1 | 35 | 0.9 | 1.8 | 12.6 | 415 |
| 1 | 50 | 1 | 1.8 | 14.1 | 543 |
| 1 | 70 | 1.1 | 1.8 | 15.6 | 746 |
| 1 | 95 | 1.1 | 1.8 | 17.6 | 1000 |
| 1 | 120 | 1.2 | 1.8 | 19.2 | 1239 |
| 1 | 150 | 1.4 | 1.8 | 21.2 | 1515 |
| 1 | 185 | 1.6 | 1.8 | 23.1 | 1872 |
| 1 | 240 | 1.7 | 1.8 | 25.8 | 2403 |
| 1 | 300 | 1.8 | 1.8 | 27.8 | 2974 |
| 1 | 400 | 2 | 1.9 | 31.1 | 3834 |
| 1 | 500 | 2.2 | 2 | 34.9 | 4892 |
| 1 | 630 | 2.8 | 2.8 | 46.6 | 6544 |
| 2 | 1.5 | 0.7 | 1.8 | 10.1 | 145 |
| 2 | 2.5 | 0.7 | 1.8 | 10.9 | 179 |
| 2 | 4 | 0.7 | 1.8 | 11.8 | 226 |
| 2 | 6 | 0.7 | 1.8 | 12.8 | 284 |
| 2 | 6 | 0.7 | 1.8 | 13.1 | 295 |
| 2 | 10 | 0.7 | 1.8 | 15 | 416 |
| 2 | 16 | 0.7 | 1.8 | 17 | 581 |
| 2 | 25 | 0.9 | 1.8 | 20.4 | 859 |
| 2 | 35 | 0.9 | 1.8 | 22.5 | 1109 |
| 3 | 1.5 | 0.7 | 1.8 | 10.5 | 162 |
| 3 | 2.5 | 0.7 | 1.8 | 11.4 | 205 |
| 3 | 4 | 0.7 | 1.8 | 12.4 | 265 |
| 3 | 6 | 0.7 | 1.8 | 13.4 | 338 |
| 3 | 10 | 0.7 | 1.8 | 15.8 | 505 |
| 3 | 16 | 0.7 | 1.8 | 18 | 719 |
| 3 | 25 | 0.9 | 1.8 | 21.6 | 1072 |
| 3 | 35 | 0.9 | 1.8 | 23.9 | 1403 |
| 3 | 50 | 1 | 1.8 | 23.8 | 1581 |
| 3 | 16/10 | 0.7 | 1.8 | 19.8 | 875.5 |
| 3 | 25/16 | 0.9/0.7 | 1.8 | 22.4 | 1223 |
| 3 | 35/16 | 0.9/0.7 | 1.8 | 24.3 | 1557 |
| 3 | 50/25 | 1/0.9 | 1.9 | 26.9 | 1863 |
| 3 | 70/35 | 1.1/0.9 | 2 | 30 | 2594 |
| 3 | 95/50 | 1.1/1 | 2.2 | 33.8 | 3505 |
| 3 | 120/70 | 1.2/1.1 | 2.3 | 37 | 4440 |
| 3 | 150/70 | 1.4/1.1 | 2.4 | 41.6 | 5333 |
| 3 | 185/95 | 1.6/1.1 | 2.6 | 45.8 | 6701 |
| 3 | 240/120 | 1.7/1.2 | 2.8 | 51.6 | 8674 |
| 3 | 300/150 | 1.8/1.4 | 3 | 67.2 | 10624 |
| 4 | 1.5 | 0.7 | 1.8 | 11.3 | 188 |
| 4 | 2.5 | 0.7 | 1.8 | 12.2 | 240 |
| 4 | 4 | 0.7 | 1.8 | 13.3 | 314 |
| 4 | 6 | 0.7 | 1.8 | 14.5 | 408 |
| 4 | 10 | 0.7 | 1.8 | 17.1 | 615 |
| 4 | 16 | 0.7 | 1.8 | 19.6 | 885 |
| 4 | 25 | 0.9 | 1.8 | 23.7 | 1330 |
| 4 | 35 | 0.9 | 1.8 | 26.2 | 1758 |
| 4 | 50 | 1 | 2 | 27.1 | 2082 |
| 4 | 70 | 1.1 | 2.1 | 31.4 | 2937 |
| 4 | 95 | 1.1 | 2.2 | 35 | 3955 |
| 4 | 120 | 1.2 | 2.4 | 39.3 | 4979 |
| 4 | 150 | 1.4 | 2.6 | 43.6 | 6129 |
| 4 | 185 | 1.6 | 2.7 | 48 | 7591 |
| 4 | 240 | 1.7 | 2.9 | 53.9 | 9875 |
| 4 | 300 | 1.8 | 2.6 | 68.9 | 15124 |
| 5 | 1.5 | 0.7 | 1.8 | 12.1 | 218 |
| 5 | 2.5 | 0.7 | 1.8 | 13.1 | 281 |
| 5 | 4 | 0.7 | 1.8 | 14.3 | 372 |
| 5 | 6 | 0.7 | 1.8 | 15.6 | 486 |
| 5 | 10 | 0.7 | 1.8 | 18.6 | 740 |
| 5 | 16 | 0.7 | 1.8 | 21.3 | 1071 |
| 5 | 25 | 0.9 | 1.8 | 25.9 | 1619 |
| 5 | 35 | 0.9 | 1.8 | 28.8 | 2138 |
| 5 | 50 | 1 | 2.1 | 29.4 | 2578 |
| 5 | 70 | 1.1 | 2.2 | 33.7 | 3616 |
| 5 | 95 | 1.1 | 2.4 | 38.6 | 4933 |
| 5 | 120 | 1.2 | 2.5 | 42.6 | 6153 |
| 5 | 150 | 1.4 | 2.7 | 47.7 | 7587 |
| 5 | 185 | 1.6 | 2.9 | 52.8 | 9454 |
| 5 | 240 | 1.7 | 3.1 | 58.7 | 12242 |
| 7 | 1.5 | 0.7 | 1.8 | 12.9 | 260 |
| 7 | 2.5 | 0.7 | 1.8 | 14 | 342 |
| 7 | 4 | 0.7 | 1.8 | 15.4 | 461 |
| 10 | 1.5 | 0.7 | 1.8 | 15.6 | 357 |
| 10 | 2.5 | 0.7 | 1.8 | 17.2 | 475 |
| 10 | 4 | 0.7 | 1.8 | 19 | 646 |
| 12 | 1.5 | 0.7 | 1.8 | 16.1 | 394 |
| 12 | 2.5 | 0.7 | 1.8 | 17.6 | 528 |
| 14 | 1.5 | 0.7 | 1.8 | 16.8 | 436 |
| 14 | 2.5 | 0.7 | 1.8 | 18.5 | 592 |
| 16 | 4 | 0.7 | 1.8 | 23 | 971 |
| 19 | 1.5 | 0.7 | 1.8 | 18.4 | 543 |
| 19 | 2.5 | 0.7 | 1.8 | 20.3 | 746 |
| 24 | 1.5 | 0.7 | 1.8 | 21.2 | 675 |
| 24 | 2.5 | 0.7 | 1.8 | 23.4 | 931 |
| 30 | 1.5 | 0.7 | 1.8 | 22.3 | 788 |
| 30 | 2.5 | 0.7 | 1.8 | 26.3 | 1164 |
| 40 | 1.5 | 0.7 | 1.8 | 24.6 | 995 |
| 40 | 2.5 | 0.7 | 1.9 | 27.5 | 1416 |
Quality Control
N2XY 0.6/1kV Low Voltage Power Cable
Raw Material Test
For the N2XY 0.6/1kV Low Voltage Power Cable, raw material testing commences with copper ingot/rod certification for oxygen-free grade and elongation. XLPE granules are analyzed for crosslinking agent presence, contamination screening, and thermal stability via TGA and hot set pre-trials. PVC compounds face hardness, tensile strength after aging, and migration risk assessments. Semiconducting materials are verified for resistivity. The structured process: receipt documentation review, random sampling, physical/mechanical testing (yield, elongation), chemical composition confirmation using spectroscopy, accelerated aging simulation, and material release decision. This thorough evaluation secures defect-free inputs, providing the foundation for the N2XY 0.6/1kV Low Voltage Power Cable's electrical stability, insulation quality, and environmental resistance.
Process inspection
Process inspection in N2XY 0.6/1kV Low Voltage Power Cable manufacturing involves continuous monitoring. Copper drawing and stranding check diameter tolerance and surface defects. Insulation extrusion monitors bonding and eccentricity with capacitance gauges. Sheath application includes online high-frequency spark testing and thickness uniformity. Multi-core laying verifies core positioning and filler distribution. Color coding and printing durability are assessed. Critical steps: pre-production compound drying verification, line speed/temperature control, real-time dimension scanning, hot set sampling for crosslinking uniformity, and immediate corrective actions for defects. This multi-point quality assurance ensures the N2XY 0.6/1kV Low Voltage Power Cable maintains precise construction, reliable insulation, and full IEC compliance throughout production.
Finished Product
Completed N2XY 0.6/1kV Low Voltage Power Cable is subjected to strict acceptance tests. Mandatory routines: DC conductor resistance, high-potential AC test in water if required, insulation resistance, and thickness checks. Mechanical tests include elongation at break, bending, and impact resistance. Heat aging, shrinkage, and ozone exposure assessments follow. The sequential process: reel sampling, test setup with conditioning, gradual parameter application (voltage/temperature), timed hold phase, recovery inspection, re-measurement of properties, and documentation. Additional verifications cover flame propagation control and marking permanence. Passing all ensures the N2XY 0.6/1kV Low Voltage Power Cable's durability, safety, and efficiency for low-voltage fixed installations.
Application
Ideal for low-voltage power distribution in factories, office buildings, shopping centers, and residential areas. Commonly installed underground in ducts, on trays, or directly buried where no additional mechanical protection is needed for reliable energy supply.
Technical Advantages
● 30+ years of manufacturing experience
● ISO and UL certified production
● Customized cable and transformer solutions
Product Packaging
Wires and Cables packaging (1)
Wires and Cables packaging (2)
Wires and Cables packaging (3)
Wires and Cables packaging (4)
Wires and Cables packaging (5)
Wires and Cables packaging (6)
Wires and Cables packaging (7)
Wires and Cables packaging (8)
