NA2X2Y Cables

NA2X2Y cable is a low-voltage power cable with an aluminum conductor, XLPE (cross-linked polyethylene) insulation, and a PE (polyethylene) outer sheath, designed for fixed installations in power distribution systems. It complies with IEC 60502-1 and is rated for 0.6/1kV. Thanks to its robust PE sheath, NA2X2Y cable provides excellent mechanical protection and high resistance to moisture, UV radiation, and chemicals—making it particularly suitable for outdoor and underground installation in solar photovoltaic (PV) projects. It is commonly used for connecting inverters, combiner boxes, transformers, and the main AC distribution network in solar farms.

Standard IEC 60502-1, IEC60228

UV Resistant Standard ISO4892

Halogen Free Standard IEC 60754

Water Resistant Standard AD7

Nominal Voltage DC 1.8kV

Voltage Rating Uo/U(Um =1.2kV) 0.6/1kV

Working Temperature -40℃ to +90℃

System Frequency Range(Hz) 49-61

Send Email Chat Now

Construction

Technical Specifications

Quality Control

Application

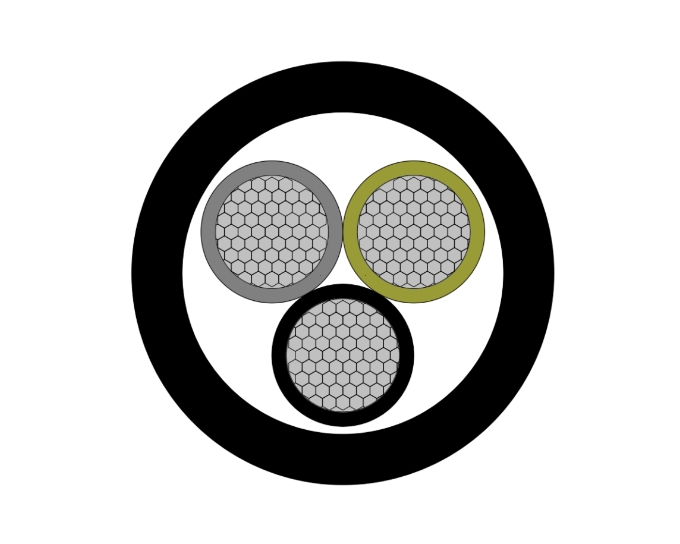

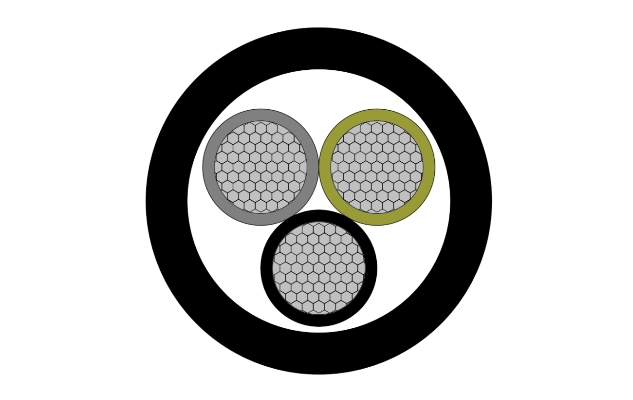

Construction

NA2X2Y Cable Conductor

Conductor

Class 2 Stranded Plain Aluminium Circular Compact Conductor
3&4 core: Sector Shaped for sizes≥50 mm²

Insulation

XLPE(Cross linked Polyethylene)

Sheath

MDPE(Medium Density Polyethylene)

Sheath Color

Black

Technical Specifications

NA2X2Y Cables

Dimension

Electrical Characteristics

No. of Cores	Nominal Cross Sectional Area	Nominal Insulation Thickness	Nominal Sheath Thickness	Nominal Overall Diameter	Nominal Weight
	mm²	mm	mm	mm	kg/km
1	16	0.7	1.4	8.5	85
1	25	0.9	1.4	10	120
1	35	0.9	1.4	11.1	155
1	50	1.0	1.4	12.8	200
1	70	1.1	1.4	14.4	275
1	95	1.1	1.5	16.1	350
1	120	1.2	1.5	17.7	440
1	150	1.4	1.6	20.3	545
1	185	1.6	1.6	21.6	655
1	240	1.7	1.7	24.4	835
1	300	1.8	1.8	27.2	1040
1	400	2.0	1.9	30.3	1320
1	500	2.2	2	33.9	1660
1	630	2.4	2.2	38.6	2160
1	800	2.6	2.3	44	2800
1	1000	2.8	2.4	49.2	3445
2	70	1.1	1.8	27.5	760
2	95	1.1	2	30.9	975
2	120	1.2	2.1	34.1	1215
2	150	1.4	2.2	39.5	1555
2	185	1.6	2.3	42.3	1880
2	240	1.7	2.5	47.9	2380
2	300	1.8	2.7	53.5	2970
2	400	2	2.9	59.7	3780
3	70	1.1	1.9	25.9	885
3	95	1.1	2	29.2	1090
3	120	1.2	2.1	32.4	1375
3	150	1.4	2.3	35.5	1690
3	185	1.6	2.4	39.5	2085
3	240	1.7	2.8	44.6	2650
3	300	1.8	2.8	49.5	3255
3	400	2	3.1	56.7	4290
4	70	1.1	2	30.2	1090
4	95	1.1	2.1	32.7	1390
4	120	1.2	2.3	36.8	1775
4	150	1.4	2.4	41.3	2190
4	185	1.6	2.6	46.3	2725
4	240	1.7	2.8	52.1	3460
4	300	1.8	3	57.7	4275
4	400	2	3.3	66.1	5660

No. of Cores	Nominal Cross Sectional Area	Maximum Conductor DC Resistance at 20℃	Maximum Conductor AC Resistance at Operating Temp. And 50Hz	Conductor S.C.C. For 1sec	Current Rating
No. of Cores	Nominal Cross Sectional Area	Maximum Conductor DC Resistance at 20℃		Conductor S.C.C. For 1sec	Laid in ground	Laid in duct	Laid in free air
	mm²	Ω/Km	Ω/Km	kA	A	A	A
1	16	1.91	2.435	1.49	100	69	84
1	25	1.2	1.53	2.34	129	91	113
1	35	0.868	1.107	3.27	155	110	140
1	50	0.641	0.817	4.68	184	133	172
1	70	0.443	0.565	6.55	225	165	220
1	95	0.32	0.408	8.9	269	200	271
1	120	0.253	0.323	11.24	307	230	317
1	150	0.206	0.283	14.05	344	261	366
1	185	0.164	0.209	17.33	390	302	428
1	240	0.125	0.159	22.48	438	355	513
1	300	0.1	0.128	28.11	513	408	598
1	400	0.0778	0.099	37.48	587	475	705
1	500	0.0605	0.077	46.85	671	555	832
1	630	0.0499	0.06	59.03	764	643	974
1	800	0.0397	0.047	74.96	862	740	1137
1	1000	0.0291	0.037	93.7	963	842	1318
2	70	0.443	0.565	6.55	255	187	247
2	95	0.32	0.408	8.90	305	225	303
2	120	0.253	0.323	11.24	348	260	353
2	150	0.206	0.283	14.05	390	295	404
2	185	0.164	0.209	17.33	441	338	467
2	240	0.125	0.159	22.48	513	400	555
2	300	0.1	0.128	28.11	582	459	643
2	400	0.0778	0.089	37.48	666	533	751
3	70	0.443	0.565	6.55	207	150	199
3	95	0.32	0.408	8.90	249	182	245
3	120	0.253	0.323	11.24	284	209	286
3	150	0.206	0.263	14.05	317	237	324
3	185	0.164	0.209	17.33	359	272	375
3	240	0.125	0.159	22.48	417	321	446
3	300	0.1	0.128	28.11	471	367	514
3	400	0.0778	0.099	37.48	541	430	606
4	70	0.443	0.565	6.55	213	157	211
4	95	0.32	0.408	8.90	254	188	256
4	120	0.253	0.323	11.24	289	217	299
4	150	0.206	0.263	14.05	325	247	342
4	185	0.164	0.209	17.33	368	285	397
4	240	0.125	0.159	22.48	427	335	471
4	300	0.1	0.128	28.11	483	384	543
4	400	0.0778	0.099	37.48	555	449	639

Quality Control

NA2X2Y Cables

Raw Material Test

Raw material testing for NA2X2Y Cables begins with aluminum rod inspection for electrical grade purity, elongation, and surface quality per IEC standards. XLPE insulation compound is analyzed for density, melt flow index, antioxidant content, and contamination using OIT and microscopy. PE sheath granules undergo weathering resistance, carbon black dispersion, and environmental stress cracking tests. Fillers and tapes are verified for compatibility. Samples are subjected to tensile strength, elongation, and accelerated aging simulations. The step-by-step process: incoming batch verification, sampling protocol, chemical composition analysis via spectrometry, mechanical property testing (before/after aging), UV/moisture pre-exposure checks, and material approval. Only qualified materials proceed, ensuring the NA2X2Y Cables' conductivity, insulation integrity, and exceptional outdoor durability foundation.

Process inspection

During the production of NA2X2Y Cables, process inspection maintains high-quality standards. Aluminum stranding is monitored for compactness and diameter tolerance using laser gauges. XLPE insulation extrusion ensures uniform thickness and concentricity with online capacitance monitoring. PE sheath extrusion includes real-time spark testing and eccentricity verification. Core assembly checks twisting and bedding distribution. Surface marking permanence and UV-resistant black color are inspected. Key steps: material pre-drying confirmation, extrusion parameter logging (temperature, pressure), intermediate hot set tests for crosslinking degree, defect detection/correction, and post-extrusion cooling control. This continuous monitoring guarantees the NA2X2Y Cables achieve void-free insulation, robust sheath adhesion, and full compliance with IEC 60502-1 throughout manufacturing.

Finished Product

The finished NA2X2Y Cables undergo comprehensive testing for performance validation. Routine tests include conductor resistance, AC voltage withstand (3.5kV), insulation resistance, and thickness measurement. Mechanical tests cover cold impact, bending, and abrasion resistance. Long-term tests assess UV aging, water absorption, and heat shrinkage. The process steps: sample preparation with terminations, voltage ramp-up and hold, environmental chamber cycling (UV/heat/moisture), post-exposure electrical/mechanical re-testing, and visual inspection. Additional verifications include flame retardancy and marking durability. Only cables passing all criteria are approved, confirming the NA2X2Y Cables' superior moisture protection, mechanical strength, and reliable operation in low-voltage underground and outdoor applications.

Application

NA2X2Y Cables are ideal for direct burial in utility networks, industrial parks, renewable energy projects, and infrastructure developments. Perfect for underground power distribution in wet soils, coastal areas, and locations requiring high resistance to environmental stress and mechanical damage.

Renewable Energy

Power & Energy Industry

Transport Sector

Real Estate & Construction

Infrastructure & Municipal Industry

Data Centers

Mining and Oil & Gas Industry

Industrial Manufacturer

Technical Advantages

● 30+ years of manufacturing experience
● ISO and UL certified production
● Customized cable and transformer solutions

Conductor Stranded Work Shop

CCV Production Line

CCV production 01

Partical Voltage Test Labtoary

Auto-Winding Machine

Oil Chromatography Test Machine

Auto-core cutting machine

Basic Insulation Level Test Labtoary

Auto Laser Cutting Machine

Automatic Desanding Machine

Automatic Dryer Machine

Product Packaging

Wires and Cables packaging (1)

Wires and Cables packaging (2)

Wires and Cables packaging (3)

Wires and Cables packaging (4)

Wires and Cables packaging (5)

Wires and Cables packaging (6)

Wires and Cables packaging (7)

Wires and Cables packaging (8)

Related Products

Instrumentation Cables—XLPE Insulated, Overall Screened, Wire Armoured PVC Sheathed Cables(CU/XLPE/OSCR/SWA/PVC)

Engineered for thermal resilience and electromagnetic shielding, the Instrumentation Cables—XLPE Insulated, Overall Screened, Wire Armoured PVC Sheathed Cables (CU/XLPE/OSCR/SWA/PVC) excel in high-temperature environments. Stranded copper conductors ensure low resistance and flexibility, with XLPE insulation providing 90°C continuous rating and 250°C short-circuit tolerance. Overall screening via aluminum/polyester tape and drain wire mitigates EMI/RFI, preserving signal quality. SWA armour protects against mechanical damage, while PVC sheath adds flame resistance and waterproofing. Meeting BS EN 50288-7 and BS EN 50288-1 standards, these multi-pair cables transmit analogue/digital signals with low capacitance in demanding circuits. Suitable for ducts, trays, direct burial, or outdoor exposures, they boost system integrity and reduce interruptions in heat-intensive areas. With enhanced dielectric properties and attenuation control, this CU/XLPE/OSCR/SWA/PVC offers dependable, maintenance-reducing solutions for professionals in petrochemical, power, and industrial sectors.

Chat Now View More

FAQ From Customers

What are the advantages of power cables and overhead lines?

(1) Reliable operation, because it is installed in a hidden place such as underground, it is less damaged by external forces, has less chance of failure, and the power supply is safe, and it will not cause harm to people;
(2) The maintenance workload is small and frequent inspections are not required;
(3) No need to erect towers;
(4) Help improve power factor.

Which aspects should be considered when choosing the cross section of a power cable?

(1) The long-term allowable working current of the cable;
(2) Thermal stability once short circuited;
(3) The voltage drop on the line cannot exceed the allowable working range.

What are the measures for cable fire prevention?

(1) Use flame-retardant cables;
(2) Use fireproof cable tray;
(3) Use fireproof paint;
(4) Fire partition walls and fire baffles are installed at cable tunnels, mezzanine exits, etc.;
(5) Overhead cables should avoid oil pipelines and explosion-proof doors, otherwise local pipes or heat insulation and fire prevention measures should be taken.

What should be paid attention to during the transportation and handling of cables?

(1) During transportation, loading and unloading, cables and cable reels should not be damaged. It is strictly forbidden to push the cable reels directly from the vehicle. Generally, cables should not be transported and stored flat.
(2) Before transporting or rolling the cable reel, ensure that the cable reel is firm, the cable is wound tightly, the oil pipe between the oil-filled cable and the pressure oil tank should be fixed without damage, the pressure oil tank should be firm, and the pressure indication should meet the requirements.

What inspections should be carried out for the acceptance of cable lines?

(1) The cable specifications should meet the regulations, the arrangement should be neat, no damage, and the signs should be complete, correct and clear;
(2) The fixed bending radius of the cable, the related distance and the wiring of the metal sheath of the single-core power cable should meet the requirements;
(3) The cable terminal and the middle head should not leak oil, and the installation should be firm. The oil pressure of the oil-filled cable and the meter setting should meet the requirements;
(4) Good grounding;
(5) The color of the cable terminal is correct, and the metal parts such as the bracket are completely painted;
(6) There should be no debris in the cable trench, tunnel, and bridge, and the cover should be complete.

How many projects can cable engineering be divided into?

(1) Construction site transportation: including the loading and unloading, transportation and empty vehicle return journey of engineering materials from the warehouse to the construction site.
(2) Local engineering: including road excavation, tunnel, trench construction, etc.
(3) Laying engineering: including laying, intermediate head production, lift cover plate, buried pipe, school tide, tractor head production, etc.
(4) Two-end engineering: including the production and installation of support, suspension bridge and its foundation, the production of terminal heads, the installation of oil pressure and signal devices, and the electrical performance testing of various types.
(5) Stopping works: including the production of oil-filled cable stop heads, the installation of fuel supply tanks, automatic drainage and signal devices, etc.
(6) Grounding engineering: including installation of insulation joints, transposition boxes, protectors, and grounding boxes.

What tests and inspections should be carried out on power cables before laying?

Before laying, check whether the type, specification and length of the cable meet the requirements and whether there is external force damage. Low-voltage cables use a 1000V megohmmeter to remotely measure the insulation resistance, and the resistance is generally not less than 10MΩ. High-voltage cables use a 2500V megger to measure the resistance. Generally not less than 400MΩ.

What are the factors that determine the long-term allowable current carrying capacity of the cable?

(1) The long-term allowable working temperature of the cable;
(2) The heat dissipation performance of the cable itself;
(3) The condition of the cable installation and the heat dissipation conditions of the surrounding environment.

According to the difference of insulation and protective layer, what are the main types of commonly used low-voltage power cables?

(1) Oil-impregnated paper insulated lead-clad (or aluminum-clad) power cable;
(2) Non-drip oil-impregnated paper insulated power cable;
(3) PVC insulated and sheathed power cable;
(4) Cross-linked PVC insulated and PE sheathed power cable;
(5) Cross-linked PVC insulated and sheathed power cable;
(6) Rubber insulated power cables.

What are the requirements for the fire blocking of cable holes?

For larger cable penetration holes, such as the cable penetration floor, etc., when using fireproof blocking materials to block, according to the actual situation, first coat four to six layers of fireproof paint on the cable surface, the length is about 1.5m below the hole, and then use fire-resistant The material is processed into a board-supporting fire-proof blocking material with a certain strength to ensure that it is firm after being blocked and is easy to disassemble and assemble when the cable is replaced. The plugging is dense and non-porous to effectively block smoke and fire.

What are the main properties of the insulation material of the power cable?

(1) High breakdown strength;
(2) Low dielectric loss;
(3) Very high insulation resistance;
(4) Excellent discharge resistance;
(5) It has certain flexibility and mechanical strength;
(6) Long-term insulation performance is stable.

What are the regulations for cable protection tubes?

(1) When the cable needs to be laid through a protective pipe, the inner diameter of the pipe should not be less than 1.5 times the outer diameter of the cable, and the inner diameter of the concrete pipe, clay pipe, asbestos, and cement pipe should not be less than 100mm;
(2) The bending radius of the cable tube should meet the requirements of the bending radius of the cable inserted;
(3) Each pipe should not exceed three elbows at most, and there should be no more than two right-angle bends.

How to measure the outer diameter of the cable sheath?

At five evenly distributed points on the circumference of the sheath, measure the outer diameter of the sheath and its average value. The average outer diameter is the outer diameter of the sheath.

How to connect copper core cables with different cross-sections?

Copper core cables with different cross-sections can be connected by open-back weak copper pipes and connected by soldering, or pure copper rods can be connected into copper pipes according to different cross-sectional requirements and connected by crimping.

What are the insulating materials used to make cable terminal heads or intermediate joints?

There are insulating glue, insulating tape, insulating tube, insulating gloves, insulating resin, etc.

1 2 3
