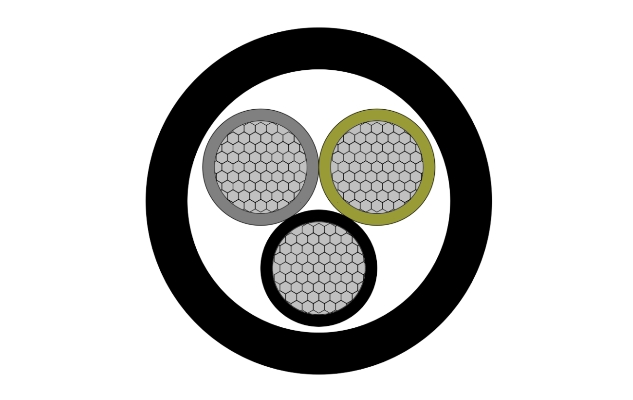

NA2XH Cables
NA2XH Cables is a low-voltage, halogen-free power cable with an aluminum conductor, XLPE (cross-linked polyethylene) insulation, and an LSZH (Low Smoke Zero Halogen) outer sheath. It is designed according to IEC 60502-1 and rated for 3.6kV applications. Lightweight aluminum reduces installation and material costs while maintaining excellent electrical performance and thermal stability. Resistant to moisture and mechanical stress, NA2XH Cables are suitable for indoor, outdoor, and direct burial applications.
- Standard IEC 60502-1, IEC 60228,
- Generally Standard HD 604 5G
- Flame Retardant Standard IEC 60332-1-2
- Low Smoke Standard IEC 61034-1/2, IEC60754-1/2
- Halogen Free Standard IEC 61034-1/2, IEC60754-1/2
- UV Resistant Standard ISO 4892
- Ozone Resistant Standard EN 50396 Resistant to oils, greases
- Voltage Rating U0/U(Um) 1.8/3(3.6)kV
- Working Temperature -40℃ to +90℃
- System Frequency Range(Hz) 49-61
Construction
Technical Specifications
Quality Control
Application
Construction

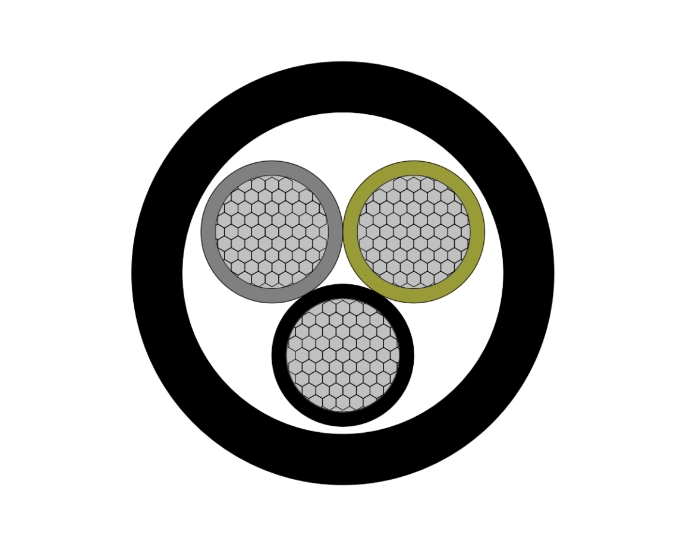

NA2XH Cables Conductor
Conductor
Class 2 Stranded Plain Aluminium Circular Compact Conductor
Insulation
XLPE(Cross linked Polyethylene)
Sheath
LSZH (Low Smoke Zero Halogen)
Sheath Color
Black
Technical Specifications
NA2XH Cables
Dimension
Electrical Characteristics
| No. of Cores | Nominal Cross Sectional Area | Nominal Insulations Thickness | Nominal Sheath Thickness | Nominal Outer Diameter | Nominal Weight |
| mm² | mm | mm | mm | kg/km | |
| 1 | 16 | 2 | 1.4 | 14 | 240 |
| 1 | 25 | 2 | 1.4 | 15.1 | 285 |
| 1 | 35 | 2 | 1.4 | 16.2 | 330 |
| 1 | 50 | 2 | 1.4 | 17.5 | 390 |
| 1 | 70 | 2 | 1.5 | 19.3 | 490 |
| 1 | 95 | 2 | 1.5 | 20.8 | 580 |
| 1 | 120 | 2 | 1.6 | 22.4 | 690 |
| 1 | 150 | 2 | 1.6 | 24.6 | 810 |
| 1 | 185 | 2 | 1.7 | 25.7 | 940 |
| 1 | 240 | 2 | 1.8 | 28.3 | 1140 |
| 1 | 300 | 2 | 1.8 | 30.6 | 1355 |
| 1 | 400 | 2 | 1.9 | 33.5 | 1660 |
| 1 | 500 | 2.2 | 2 | 38.2 | 2135 |
| 1 | 630 | 2.4 | 2.2 | 42.5 | 2700 |
| 1 | 800 | 2.6 | 2.3 | 47.9 | 3420 |
| 1 | 1000 | 2.8 | 2.4 | 54.8 | 4255 |
| Nominal Cross-Sectional Area |
Maximum Conductor DC Resistance at 20°C |
Maximum Conductor AC Resistance 50Hz |
Current Carrying Capacity | ||
| Laid in ground | Laid in duct | Laid in free air | |||
| mm² | Ω/km | Ω/km | A | A | A |
| 16 | 1.91 | 2.435 | 106 | 77 | 89 |
| 25 | 1.2 | 1.53 | 136 | 99 | 117 |
| 35 | 0.868 | 1.107 | 163 | 119 | 143 |
| 50 | 0.641 | 0.817 | 192 | 142 | 174 |
| 70 | 0.443 | 0.565 | 236 | 176 | 220 |
| 95 | 0.32 | 0.408 | 281 | 213 | 269 |
| 120 | 0.253 | 0.323 | 321 | 245 | 315 |
| 150 | 0.206 | 0.263 | 359 | 277 | 360 |
| 185 | 0.164 | 0.209 | 408 | 318 | 417 |
| 240 | 0.125 | 0.159 | 474 | 375 | 498 |
| 300 | 0.1 | 0.128 | 536 | 430 | 578 |
| 400 | 0.0778 | 0.099 | 613 | 497 | 680 |
| 500 | 0.0605 | 0.077 | 699 | 579 | 801 |
| 630 | 0.469 | 0.06 | 795 | 670 | 936 |
| 800 | 0.0367 | 0.047 | 897 | 769 | 1090 |
| 1000 | 0.0291 | 0.037 | 999 | 878 | 1260 |
Quality Control
NA2XH Cables
Raw Material Test
For NA2XH Cables, raw material testing starts with aluminum conductor certification for electrical and mechanical specifications. XLPE granules are evaluated for contamination, thermal stability, and crosslinking agents via microscopy and TGA. LSZH compounds face rigorous halogen-free verification, smoke opacity pre-tests, and corrosivity checks per IEC standards. The structured process: receipt inspection, random sampling, physical/mechanical testing (tensile, elongation), chemical analysis with ion chromatography, accelerated aging and fire simulation trials, and final release approval. This comprehensive screening secures premium inputs, establishing the base for the NA2XH Cables' conductivity, dielectric strength, and exceptional low-smoke zero-halogen characteristics.
Process inspection
Process inspection during NA2XH Cables manufacturing involves continuous quality monitoring. Conductor stranding checks strand uniformity and surface quality. XLPE insulation extrusion monitors bonding and wall thickness using X-ray systems. LSZH sheath application includes online high-voltage spark testing and diameter control. Assembly stages verify core arrangement and filler distribution. Printing and color consistency are assessed for durability. Critical steps: pre-extrusion material dryness verification, parameter stabilization, real-time capacitance eccentricity checks, gel fraction sampling, and immediate defect removal protocols. This multi-point assurance maintains the NA2XH Cables' precise geometry, reliable insulation, and compliance with LSZH and IEC requirements.
Finished Product
Completed NA2XH Cables are subjected to strict factory acceptance tests. Mandatory routines: DC resistance, high-potential AC test in water, insulation thickness, and sheath integrity. Fire performance tests include smoke production measurement, acidity of gases, and single/bundled flame tests. Mechanical evaluations cover impact and cold bending. The sequential process: reel sampling, environmental conditioning, gradual parameter application, timed exposure monitoring, recovery phase inspection, property re-measurement, and documentation. Additional verifications ensure marking permanence and flexibility. Passing all confirms the NA2XH Cables' fire safety, low emission profile, durability, and suitability for low-voltage critical applications.
Application
Ideal for power supply in metro systems, data centers, theaters, hotels, and educational facilities. Commonly installed indoors, in ducts, or underground where regulations demand low smoke zero halogen cables to minimize risk in populated or confined spaces.
Technical Advantages
● 30+ years of manufacturing experience
● ISO and UL certified production
● Customized cable and transformer solutions
Product Packaging
Wires and Cables packaging (1)
Wires and Cables packaging (2)
Wires and Cables packaging (3)
Wires and Cables packaging (4)
Wires and Cables packaging (5)
Wires and Cables packaging (6)
Wires and Cables packaging (7)
Wires and Cables packaging (8)
