NA2XY 0.6/1 (1.2)kV Low Voltage Power Cable
NA2XY 0.6/1 (1.2)kV is a low-voltage power cable manufactured according to IEC 60502-1, suitable for fixed installation in indoor and outdoor environments, including underground and concrete installations where mechanical stress is minimal.
- Voltage Rating Uo/U (Um) 0.6/1 (1.2)kV
- Nominal Voltage DC (core-earth/core-core) 1.8/1.8kV
- Test Voltage 4kV
- Temperature Rating Flexed: 5°C to +70°C ; Fixed: -35°C to +70°C
- Maximum Short Circuit Temperature +250°C (max 5 seconds)
- Minimum Bending Radius Single core: 15 x overall diameter ; Multi-core: 12 x overall diameter
Construction
Technical Specifications
Quality Control
Application
Construction

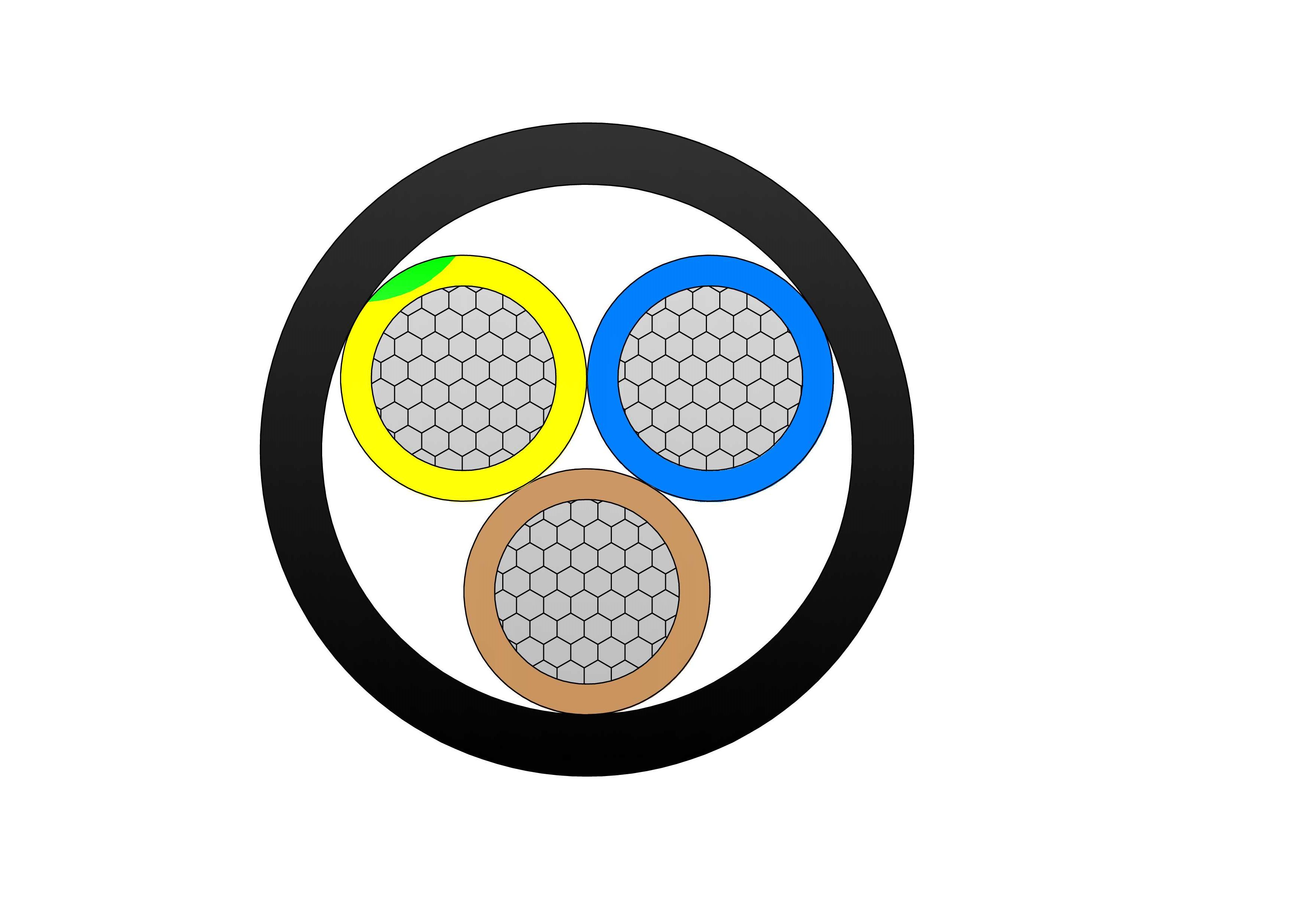

NA2XY 0.6/1 (1.2)kV Low Voltage Power Cable Construction
Conductor
Class 2 stranded Aluminium* conductor
Insulation
XLPE (Cross-Linked Polyethylene)
Sheath
PVC(Polyvinyl Chloride)
Sheath Colour
Black
Manufacturer Standard
IEC 60502-1, VDE 0276-603
Flame retardant
IEC/EN 60332-1-2
Core Identification
NA2XY-J: 3 core: /Blue /Brown /Green/Yellow
4 core: Brown /Black /Grey /Green/Yellow
NA2XY-O: 2 core: Blue /Brown
3 core: Brown /Black /Grey
4 core: Brown /Black /Grey /Blue
4 core: Brown /Black /Grey /Green/Yellow
NA2XY-O: 2 core: Blue /Brown
3 core: Brown /Black /Grey
4 core: Brown /Black /Grey /Blue
Application
NA2XY cable is suitable for fixed installation in industrial and civil buildings and can be used in indoor, outdoor, underground, and other places not directly affected by mechanical forces.
Technical Specifications
NA2XY 0.6/1 (1.2)kV Low Voltage Power Cable
NA2XY Low Voltage Power Cable Technical Specifications
| No of Cores | Nominal Cross Section Area |
Nominal Thickness of insulation |
Nominal Thickness Of Outer Sheath |
Nominal Overall Diameter |
Approximate Weight |
|
| Phase Conductor | Earth Conductor | |||||
| mm2 | mm | mm | mm | kg/km | ||
| 1 | 95 | - | 1.1 | 1.5 | 16.5 | 390 |
| 1 | 120 | - | 1.2 | 1.8 | 17.7 | 465 |
| 1 | 150 | - | 1.4 | 1.8 | 20.1 | 580 |
| 1 | 185 | - | 1.6 | 1.8 | 22.1 | 715 |
| 1 | 240 | - | 1.7 | 1.8 | 25.0 | 905 |
| 1 | 300 | - | 1.8 | 1.8 | 27.5 | 1120 |
| 1 | 400 | - | 2 | 1.9 | 31.4 | 1440 |
| 1 | 500 | - | 2.2 | 2 | 34.6 | 1770 |
| 3 | 630 | - | 2.4 | - | 37.0 | 2180 |
| 3 | 70 | 35 | 1.1 | 1.9 | 33.0 | 1450 |
| 3 | 95 | 50 | 1.1 | 2.1 | 37.3 | 1910 |
| 3 | 120 | 70 | 1.2 | 2.2 | 41.5 | 2410 |
| 3 | 150 | 70 | 1.4 | 2.3 | 49.0 | 3535 |
| 3 | 185 | 95 | 1.6 | 2.5 | 51.0 | 3810 |
| 3 | 240 | 120 | 1.7 | 2.7 | 58.0 | 4880 |
| 4 | 300 | 150 | 1.8 | 2.8 | 64.2 | 5610 |
| 4 | 16 | 16 | 0.9 | 1.8 | 22.4 | 675 |
| 4 | 25 | 16 | 0.9 | 1.8 | 26.0 | 910 |
| 4 | 35 | 16 | 0.9 | 1.8 | 28.7 | 1120 |
| 4 | 50 | 25 | 1 | 1.8 | 33.0 | 1475 |
| 4 | 70 | 35 | 1.1 | 1.9 | 38.0 | 1985 |
| 4 | 95 | 50 | 1.1 | 2.1 | 23.0 | 2580 |
| 4 | 120 | 70 | 1.2 | 2.2 | 47.2 | 3175 |
| 4 | 150 | 70 | 1.4 | 2.3 | 54.2 | 4035 |
| 4 | 185 | 95 | 1.6 | 2.5 | 59.4 | 4945 |
| 4 | 240 | 120 | 1.7 | 2.7 | 68.1 | 6425 |
Quality Control
NA2XY 0.6/1 (1.2)kV Low Voltage Power Cable
Raw Material Test
NPC has always chosen raw material suppliers who have a good reputation, possess stable supply capabilities and have passed international quality system certifications (such as ISO 9001). And establish a long-term cooperative relationship with it, forming a stable and reliable raw material supply chain.
We will ensure that all raw materials are subject to strict inspection procedures upon entry to the factory, and can only be stored in the warehouse after they have been confirmed to meet the standards.
Process inspection
NPC has strict quality control procedures for each process in the cable production process.
Process documents: Develop detailed process flow and operation instructions to clarify the operating specifications and quality standards of each process.
Equipment calibration: Regularly calibrate key equipment such as wire drawing machines, stranding machines, extruders, and diameter gauges to ensure that the accuracy meets the requirements.
First piece confirmation: Before each batch of production, the first piece is trial-produced to confirm that the process parameters, product dimensions, electrical performance, etc. meet the standards before mass production can be carried out.
Finished Product
Inspectors conduct ex-factory inspections on cables according to relevant standards and corresponding product inspection specifications to ensure that each ex-factory product complies with the process regulations.
Application
NA2XY cable is suitable for fixed installation in industrial and civil buildings and can be used indoors, outdoors, underground, and in other places not directly affected by mechanical forces.
Technical Advantages
● 30+ years of manufacturing experience
● ISO and UL certified production
● Customized cable and transformer solutions
