NA2XY-J/O Aluminium XLPE PVC-0.6/1kV Cable
NA2XY-J/O Aluminium XLPE PVC-0.6/1kV Cable is a low-voltage power cable featuring aluminum conductors, XLPE (cross-linked polyethylene) insulation, and a PVC (polyvinyl chloride) outer sheath. It is manufactured in accordance with IEC60502-1 standards and is rated for 0.6/1kV. This cable is a cost-effective alternative to copper conductor cables, offering good electrical and mechanical performance for fixed power distribution systems. Flame-retardant and environmentally robust, the Cable supports industrial, commercial, and residential projects with reliable, long-lasting power transmission.
- Standards IEC60502-1, VDE0276-803
- Flame Retardant Standard IECEN 60332-1-2
- Nominal Voltage DC 1.8/1.8kV
- Voltage Rating Uo/U(Um =1.2kV) 0.6/1kV
- Working Temperature -40℃ to +90℃
- System Frequency Range(Hz) 49-61
Construction
Technical Specifications
Quality Control
Application

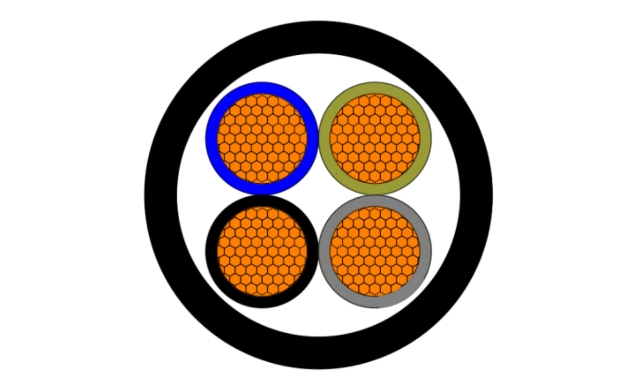

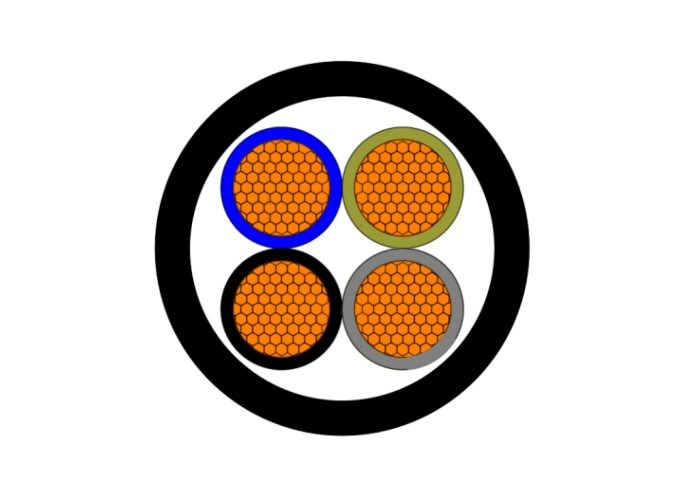

Construction
NA2XY-J/O Cable Aluminium XLPE PVC-0.6/1kV Conductor
Conductor
Class 2 stranded Aluminium conductor
Insulation
XLPE (Cross-Linked Polyethylene)
Sheath
PVC (Polyvinyl Chloride)
Sheath Color
Black
Core Identification
NA2XY- J: 3 core: Blue, Brown, Green/Yellow
4 core: Brown, Black, Grey, Green/Yellow
NA2XY-O: 2 core: Blue, Brown
3 core: Brown, Black,Grey
4 core: Brown, Black, Grey, Blue
4 core: Brown, Black, Grey, Green/Yellow
NA2XY-O: 2 core: Blue, Brown
3 core: Brown, Black,Grey
4 core: Brown, Black, Grey, Blue
Technical Specifications
NA2XY-J/O Aluminium XLPE PVC-0.6/1kV Cable
Dimension
| No. of Cores | Nominal Cross Sectional Area | Nominal Thickness of Insulation | Nominal Thickness of Sheath | Nominal Overall Diameter | Nominal Weight |
| mm² | mm | mm | mm | kg/km | |
| 1 | 95 | 1.1 | 1.5 | 16.5 | 390 |
| 1 | 120 | 1.2 | 1.8 | 17.7 | 465 |
| 1 | 150 | 1.4 | 1.8 | 20.1 | 580 |
| 1 | 185 | 1.6 | 1.8 | 22.1 | 715 |
| 1 | 240 | 1.7 | 1.8 | 25.0 | 905 |
| 1 | 300 | 1.8 | 1.8 | 27.5 | 1120 |
| 1 | 400 | 2 | 1.9 | 31.4 | 1440 |
| 1 | 500 | 2.2 | 2 | 34.6 | 1770 |
| 1 | 630 | 2.4 | - | 37.0 | 2180 |
| 3 | 70 | 1.1 | 1.9 | 33.0 | 1450 |
| 3 | 95 | 1.1 | 2.1 | 37.3 | 1910 |
| 3 | 120 | 1.2 | 2.2 | 41.5 | 2410 |
| 3 | 150 | 1.4 | 2.3 | 49.0 | 3535 |
| 3 | 185 | 1.6 | 2.5 | 51.0 | 3810 |
| 3 | 240 | 1.7 | 2.7 | 58.0 | 4880 |
| 3 | 300 | 1.8 | 2.8 | 64.2 | 5610 |
| 4 | 16 | 0.9 | 1.8 | 22.4 | 675 |
| 4 | 25 | 0.9 | 1.8 | 26.0 | 910 |
| 4 | 35 | 0.9 | 1.8 | 28.7 | 1120 |
| 4 | 50 | 1 | 1.8 | 33.0 | 1475 |
| 4 | 70 | 1.1 | 1.9 | 38.0 | 1985 |
| 4 | 95 | 1.1 | 2.1 | 23.0 | 2680 |
| 4 | 120 | 1.2 | 2.2 | 47.2 | 3175 |
| 4 | 150 | 1.4 | 2.3 | 54.2 | 4035 |
| 4 | 185 | 1.6 | 2.5 | 58.4 | 4945 |
| 4 | 240 | 1.7 | 2.7 | 68.1 | 6245 |
| 4 | 300 | 1.8 | 2.8 | 75.1 | 7910 |
Quality Control
NA2XY-J/O Aluminium XLPE PVC-0.6/1kV Cable
Raw Material Test
Raw material testing for the NA2XY-J/O Aluminium XLPE PVC 0.6/1kV Cable commences with aluminum rod inspection for alloy purity, conductivity, and surface defects per IEC standards. XLPE compound is evaluated for density, melt flow index, antioxidant content, and contamination via OIT and microscopy. PVC sheath material undergoes thermal stability, plasticizer level, and hardness testing. Fillers and bedding compounds are checked for compatibility. Samples face elongation, tensile strength, and accelerated aging. The step-by-step process: incoming batch verification, sampling per protocol, chemical analysis using spectrometry, mechanical property testing (before/after aging), electrical resistivity measurement, and approval/rejection decision. Only qualified materials advance.
Process inspection
During production of the NA2XY-J/O Aluminium XLPE PVC 0.6/1kV Cable, process inspection maintains strict quality control. Aluminum drawing/stranding is monitored for diameter tolerance and compactness with laser gauges. Insulation extrusion ensures uniform thickness and concentricity using online capacitance monitoring. Sheath application includes real-time spark testing and eccentricity checks. Core laying (for multi-core) verifies twisting and filler distribution. Marking permanence and surface quality are inspected. Key steps: material pre-drying confirmation, extrusion parameter stabilization (temperature, speed), intermediate wall thickness sampling, hot set testing for crosslinking degree, and immediate defect correction.
Finished Product
The finished NA2XY-J/O Aluminium XLPE PVC 0.6/1kV Cable is subjected to comprehensive testing. Routine tests include conductor resistance, AC voltage withstand (3.5kV), partial discharge (≤5pC), and insulation/sheath thickness verification. Flame retardancy (IEC 60332), cold impact, and bending tests confirm mechanical strength. Long-term moisture and heat aging assessments are conducted. The process steps: sample preparation, voltage ramp-up with monitoring, timed hold phase, environmental chamber cycling, post-exposure electrical/mechanical re-testing, and visual inspection. Additional checks cover shrinkage, ozone resistance, and core identification. Only cables passing all criteria are approved, validating the NA2XY-J/O Aluminium XLPE PVC 0.6/1kV Cable's safety, durability, and performance in low-voltage applications.
Application
NA2XY-J/O Aluminium XLPE PVC 0.6/1kV Cable is perfect for underground power supply in residential developments, commercial buildings, industrial zones, and infrastructure projects. Widely used for direct burial, cable ducts, and trays requiring cost-effective, maintenance-free low-voltage distribution.
Technical Advantages
● 30+ years of manufacturing experience
● ISO and UL certified production
● Customized cable and transformer solutions
Product Packaging
Wires and Cables packaging (1)
Wires and Cables packaging (2)
Wires and Cables packaging (3)
Wires and Cables packaging (4)
Wires and Cables packaging (5)
Wires and Cables packaging (6)
Wires and Cables packaging (7)
Wires and Cables packaging (8)
Related Products
954 MCM RAIL ACSR Conductor Cable
The ACSR CAA 954 MCM 45/7F RAIL is a robust Aluminium Conductor Steel Reinforced (ACSR) cable designed to meet the demanding requirements of modern overhead transmission and distribution systems. It consists of 45 hard-drawn 1350-H19 aluminium strands concentrically wound around 7 galvanized steel strands, forming a high-capacity conductor with a reliable strength-to-conductivity ratio. Manufactured in accordance with ASTM B232, the RAIL configuration is ideal for long-span installations where increased tensile strength and environmental durability are essential. The galvanized steel core, coated to Class A or B standards, provides corrosion resistance and mechanical reinforcement against environmental stressors like wind, ice loading, and mechanical tension. This ACSR design supports efficient power delivery across overhead transmission networks, while also serving as a dependable solution for primary and secondary distribution lines. Suitable for voltages up to 230kV in distribution lines, the Rail ACSR Conductor Cable minimizes line losses and withstands harsh weather, including wind and ice loading.
4 Crab Aluminum Conductor Triplex Overhead Service Drop Cable Wire
4 Crab Triplex Aluminum Overhead Service Drop Cable is designed for reliable utility power delivery from pole-mounted transformers to the service entrance at residential, commercial, or light industrial sites. It consists of two insulated phase conductors and a bare AAC (All-Aluminum Conductor) messenger serving as both a neutral and mechanical support. Built for overhead single-phase service drops, it operates at voltages up to 600V and is insulated with black cross-linked polyethylene (XLP) for enhanced durability against UV, abrasion, and moisture.
FR-N20XA8E-R Triplex 12/20kV Cable Gen to NF C 33-226 - Cu/XLPE/MDPE
The NF C 33-226 Cu-XLPE-MDPE Triplex 12/20kV Cable is a high-performance three-core medium voltage power cable designed for safe and efficient three-phase power transmission. It features Class 2 stranded copper conductors, cross-linked polyethylene (XLPE) insulation, and a medium-density polyethylene (MDPE) outer sheath, providing excellent electrical conductivity, thermal stability, and mechanical protection. Manufactured in compliance with NF C 33-226, IEC 60502-2, and EN 60228, this cable is ideal for industrial parks, municipal grids, substations, and commercial power systems. It offers outstanding resistance to water (AD7) and UV radiation (ISO 4892), and is halogen-free (IEC/EN 60754-1) for enhanced safety and environmental protection. With a rated voltage of 12/20 (24)kV and maximum conductor temperature of 90°C, the Triplex design ensures efficient load balancing and stable power delivery in medium-voltage networks.
556.5 MCM DOVE ACSR Conductor Cable
The ACSR CAA 556.5 MCM 26/7F DOVE is a high-capacity, steel-reinforced aluminium conductor designed for the efficient and reliable delivery of electrical power across overhead transmission and distribution lines. Its structure features 26 hard-drawn 1350-H19 aluminium strands wrapped around 7 galvanized steel strands, forming a strong, concentric-lay stranded design. Manufactured in accordance with ASTM B232, this conductor brings together the lightweight, conductive benefits of aluminium with the mechanical strength and durability of galvanized steel. The steel core, treated with Class A or B galvanization, offers essential corrosion protection, especially in harsh weather environments or long-span installations. The DOVE configuration is a popular industry standard for medium- to high-voltage overhead systems, offering excellent performance where long spans and high tension loads are involved. Its optimized aluminium-to-steel ratio makes it well-suited for utility transmission networks, helping reduce line losses while ensuring structural integrity.
N2XRY 0.6/1kV Low Voltage Power Cable
N2XRY 0.6/1kV are low voltage power cables designed according to BS 5467 standard, suitable for fixed installation in indoor, outdoor, underground, Cable ducts ,conduits or concrete (not subject to vibration) environments,with additional mechanical protection due to steel wire armouring. Constructed with high-purity copper conductors, thermosetting XLPE insulation, PVC inner bedding, double galvanized steel tape armour, and tough PVC outer sheath, it meets IEC 60502-1 requirements. The STA armour delivers superior resistance to compression, impacts, and penetration, suitable for direct burial without conduits. Excellent electrical properties, reduced losses, and high overload capacity ensure optimal performance. Flame-retardant and environmentally stable, the N2XRY 0.6/1kV Low Voltage Power Cable is favored for factories, commercial developments, renewable energy sites, and infrastructure needing reliable, maintenance-free low-voltage cabling in challenging terrains.
NSSHOU O/J, NSSHOU 3E, NSSHOU 3E + ST 0.6/1 kV Cable
The NSSHOU O/J, NSSHOU 3E, and NSSHOU 3E + ST - 0.6/1kV cables are heavy-duty flexible rubber-insulated low voltage power cables manufactured according to VDE 0250 standards. Designed for extreme mechanical stress, they are ideal for underground mining, tunneling, and heavy industrial environments where durability, flexibility, and flame retardancy are essential. Featuring Class 5 flexible tinned copper conductors, robust rubber insulation (Type 3GI3), and abrasion-resistant outer sheaths (Type 5GM5), these cables ensure long service life under demanding conditions. They can be installed indoors, outdoors, or permanently submerged in water up to 100 meters, making them suitable for a wide range of fixed and dynamic applications. Optional control conductors and individual core screening are available upon request.FAQ From Customers
-
What are the advantages of power cables and overhead lines?(1) Reliable operation, because it is installed in a hidden place such as underground, it is less damaged by external forces, has less chance of failure, and the power supply is safe, and it will not cause harm to people; (2) The maintenance workload is small and frequent inspections are not required; (3) No need to erect towers; (4) Help improve power factor.
-
Which aspects should be considered when choosing the cross section of a power cable?(1) The long-term allowable working current of the cable; (2) Thermal stability once short circuited; (3) The voltage drop on the line cannot exceed the allowable working range.
-
What are the measures for cable fire prevention?(1) Use flame-retardant cables; (2) Use fireproof cable tray; (3) Use fireproof paint; (4) Fire partition walls and fire baffles are installed at cable tunnels, mezzanine exits, etc.; (5) Overhead cables should avoid oil pipelines and explosion-proof doors, otherwise local pipes or heat insulation and fire prevention measures should be taken.
-
What should be paid attention to during the transportation and handling of cables?(1) During transportation, loading and unloading, cables and cable reels should not be damaged. It is strictly forbidden to push the cable reels directly from the vehicle. Generally, cables should not be transported and stored flat. (2) Before transporting or rolling the cable reel, ensure that the cable reel is firm, the cable is wound tightly, the oil pipe between the oil-filled cable and the pressure oil tank should be fixed without damage, the pressure oil tank should be firm, and the pressure indication should meet the requirements.
-
What inspections should be carried out for the acceptance of cable lines?(1) The cable specifications should meet the regulations, the arrangement should be neat, no damage, and the signs should be complete, correct and clear; (2) The fixed bending radius of the cable, the related distance and the wiring of the metal sheath of the single-core power cable should meet the requirements; (3) The cable terminal and the middle head should not leak oil, and the installation should be firm. The oil pressure of the oil-filled cable and the meter setting should meet the requirements; (4) Good grounding; (5) The color of the cable terminal is correct, and the metal parts such as the bracket are completely painted; (6) There should be no debris in the cable trench, tunnel, and bridge, and the cover should be complete.
