NAYBY 0.6/1kV Low Voltage Power Cable
NAYBY 0.6/1kV are low voltage power cables designed according to DIN VDE 0276 standard, suitable for fixed installation in indoor, outdoor, underground, cable ducts, or concrete (not exposed to vibration), with steel tape armoring providing additional mechanical protection. Featuring stranded or solid aluminium conductors, PVC insulation, filler, and robust PVC outer sheath, it complies with VDE 0276-603 and IEC standards. This unarmoured cable offers good electrical properties, mechanical strength, and resistance to moisture and chemicals. Lightweight aluminium design reduces installation and material costs compared to copper equivalents. Suitable for direct burial, ducts, or indoor fixed installations where mechanical protection is not critical. Flame-retardant with adequate current-carrying capacity, the NAYBY 0.6/1kV Low Voltage Power Cable ensures reliable performance with minimal losses.
- Voltage Rating(Uo/U) 0.6/1kV
-
Temperature Rating
Fixed installation: -5°C to +70°C (PVC sheath)
Conductor max operating temp: +90°C - Minimum Bending Radius Fixed installation: 12 × overall diameter
Construction
Technical Specifications
Quality Control
Application
Construction

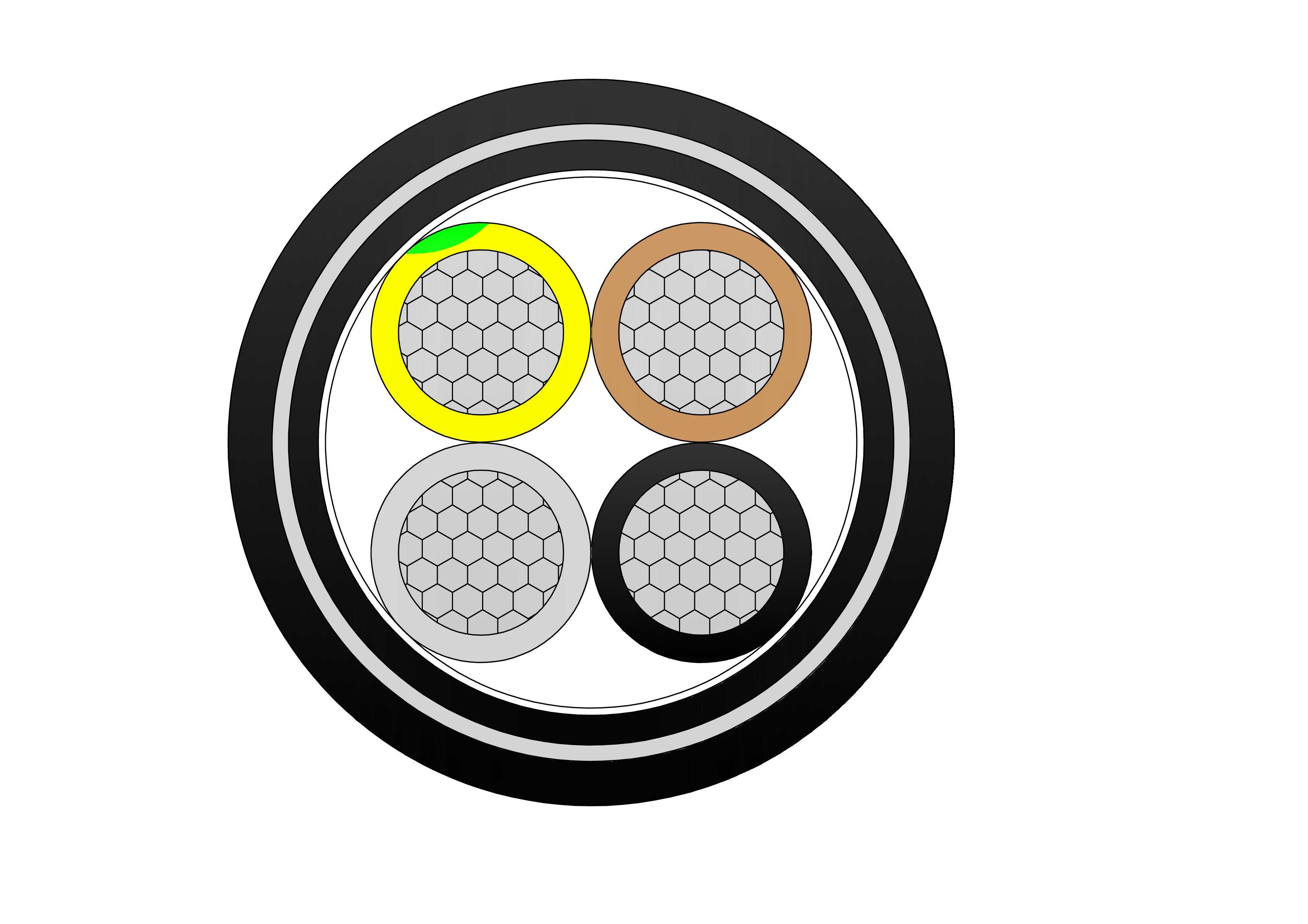

NAYBY 0.6/1kV Low Voltage Power Cable Construction
Conductor
Class 2 stranded aluminum (AL)
Insulation
XLPE (Cross-Linked Polyethylene)
Bedding
PVC (Polyvinyl Chloride)
Armour
STA (Steel Tape Armour)
Sheath
PVC (Polyvinyl Chloride)
Sheath Colour
Black or as requested
Manufacturer Standard
DIN VDE 0276-603, IEC 60502-1, IEC 60228
Flame retardant
DIN VDE 0482-332-1-2 / IEC 60332-1-2
Core Identification
2 core: Blue / Brown
3 core: Brown / Black / Grey
4 core: Blue / Brown / Black / Grey
5 core: Green/Yellow / Blue / Brown / Grey
3 core: Brown / Black / Grey
4 core: Blue / Brown / Black / Grey
5 core: Green/Yellow / Blue / Brown / Grey
Application
NAYBY cables are used for fixed installation in industrial and civil power distribution networks, suitable for indoor, outdoor, underground, and duct installations, especially where moderate mechanical protection is required.
Technical Specifications
NAYBY 0.6/1kV Low Voltage Power Cable
NAYBY Low Voltage Power Cable Technical Specifications
|
No of Cores |
Nominal Cross Section Area |
Nominal Thickness of insulation |
Nominal Thickness of Sheath |
Nominal Overall Diameter |
Approximate Weight |
| mm2 | mm | mm | mm | kg/km | |
| 1 | 16 | 1.0 | 1.4 | 11.0 | 215 |
| 1 | 25 | 1.2 | 1.4 | 12.5 | 315 |
| 1 | 50 | 1.4 | 1.4 | 14.5 | 495 |
| 1 | 70 | 1.4 | 1.4 | 15.5 | 635 |
| 1 | 95 | 1.6 | 1.5 | 17.5 | 840 |
| 1 | 120 | 1.6 | 1.6 | 18.8 | 1000 |
| 1 | 150 | 1.8 | 1.6 | 20.5 | 1210 |
| 1 | 185 | 2.0 | 1.8 | 22.5 | 1450 |
| 1 | 240 | 2.2 | 1.8 | 24.5 | 1820 |
| 3 | 16 | 1.0 | 1.8 | 19.5 | 720 |
| 3 | 25 | 1.2 | 1.8 | 22.0 | 1000 |
| 3 | 50 | 1.4 | 2.0 | 28.0 | 1650 |
| 3 | 70 | 1.4 | 2.0 | 30.5 | 1950 |
| 3 | 95 | 1.6 | 2.2 | 34.5 | 2450 |
| 3 | 120 | 1.6 | 2.2 | 36.0 | 2950 |
| 3 | 150 | 1.8 | 2.4 | 39.0 | 3400 |
Quality Control
NAYBY 0.6/1kV Low Voltage Power Cable
Raw Material Test
For the NAYBY 0.6/1kV Low Voltage Power Cable, raw material testing begins with aluminium ingot/rod certification for alloy composition and electrical conductivity. PVC resins undergo viscosity, K-value, and monomer residue analysis. Stabilisers and plasticisers are quantified for migration risk. Conductor rods face elongation and bend tests. Insulation/sheath compounds are tested for dielectric strength and thermal endurance pre-extrusion. The step-by-step process: receipt documentation review, random sampling, physical/mechanical testing, chemical verification, accelerated aging trials, and material release. This rigorous evaluation establishes a defect-free foundation for the NAYBY 0.6/1kV Low Voltage Power Cable's conductivity, insulation reliability, and environmental performance in low-voltage systems.
Process inspection
Process inspection in NAYBY 0.6/1kV Low Voltage Power Cable production involves multi-point quality checks. Aluminium stranding monitors compactness and surface defects. Core insulation extrusion ensures even coverage and adhesion with real-time thickness gauges. Filling and assembly stages verify core positioning and tape application. Outer sheath extrusion includes spark testing and eccentricity measurement. Printing durability and color consistency are inspected. Critical steps: pre-extrusion compound mixing verification, line speed/temperature control, in-process voltage testing, sampling for cross-section analysis, and immediate defect removal. This ensures the NAYBY 0.6/1kV Low Voltage Power Cable achieves uniform construction, reliable insulation, and full VDE/IEC compliance.
Finished Product
Completed NAYBY 0.6/1kV Low Voltage Power Cable is rigorously tested before dispatch. Key routines: DC resistance measurement, AC voltage test, insulation and sheath thickness checks, and continuity verification. Flame test (vertical), cold bend, and impact resistance confirm mechanical properties. Long-duration heat and moisture tests assess aging. The sequential process: reel sampling, test setup with water bath/oven, parameter application (voltage/temperature), timed exposure, recovery inspection, electrical/mechanical re-measurement, and documentation. Additional checks cover outer diameter and weight. Passing all verifies the NAYBY 0.6/1kV Low Voltage Power Cable's safety, robustness, and efficiency for low-voltage power transmission in fixed applications.
Application
Primarily used for buried low-voltage connections in utility-scale projects, agricultural fields, industrial estates, and metropolitan networks. Suitable for direct burial or ducts requiring lightweight, cost-effective aluminium PVC cables with good moisture resistance.
Technical Advantages
● 30+ years of manufacturing experience
● ISO and UL certified production
● Customized cable and transformer solutions
Product Packaging
Wires and Cables packaging (1)
Wires and Cables packaging (2)
Wires and Cables packaging (3)
Wires and Cables packaging (4)
Wires and Cables packaging (5)
Wires and Cables packaging (6)
Wires and Cables packaging (7)
Wires and Cables packaging (8)
