NYY-J / NYY-O 0.6/1kV Low Voltage Power Cable
NYY-J / NYY-O 0.6/1kV are low voltage power cables designed according to VDE 0276 standard, suitable for fixed installation in indoor, outdoor, and underground, cable ducts or concrete (not exposed to mechanical stress or vibration). It uses copper conductors to deliver stable electrical performance and features a durable outer sheath that protects against mechanical damage, moisture, and chemical exposure.
NYY-J cables incorporate a protective earth conductor for enhanced safety, while NYY-O cables are supplied without an earth conductor for specific system designs. Designed for a rated voltage of 0.6/1kV and manufactured in compliance with IEC requirements, the cable is suitable for indoor and outdoor use, including installation in ducts, concrete, or underground. Its balanced construction supports long-term reliability, easy installation, and low maintenance costs in demanding operating environments.
- Voltage Rating(Uo/U) 0.6/1kV
-
Temperature Rating
Fixed: -15ºC to +70ºC
Flexed: -5ºC to +50ºC - Minimum Bending Radius Fixed: 12 x overall diameter
Construction
Technical Specifications
Quality Control
Application
Construction

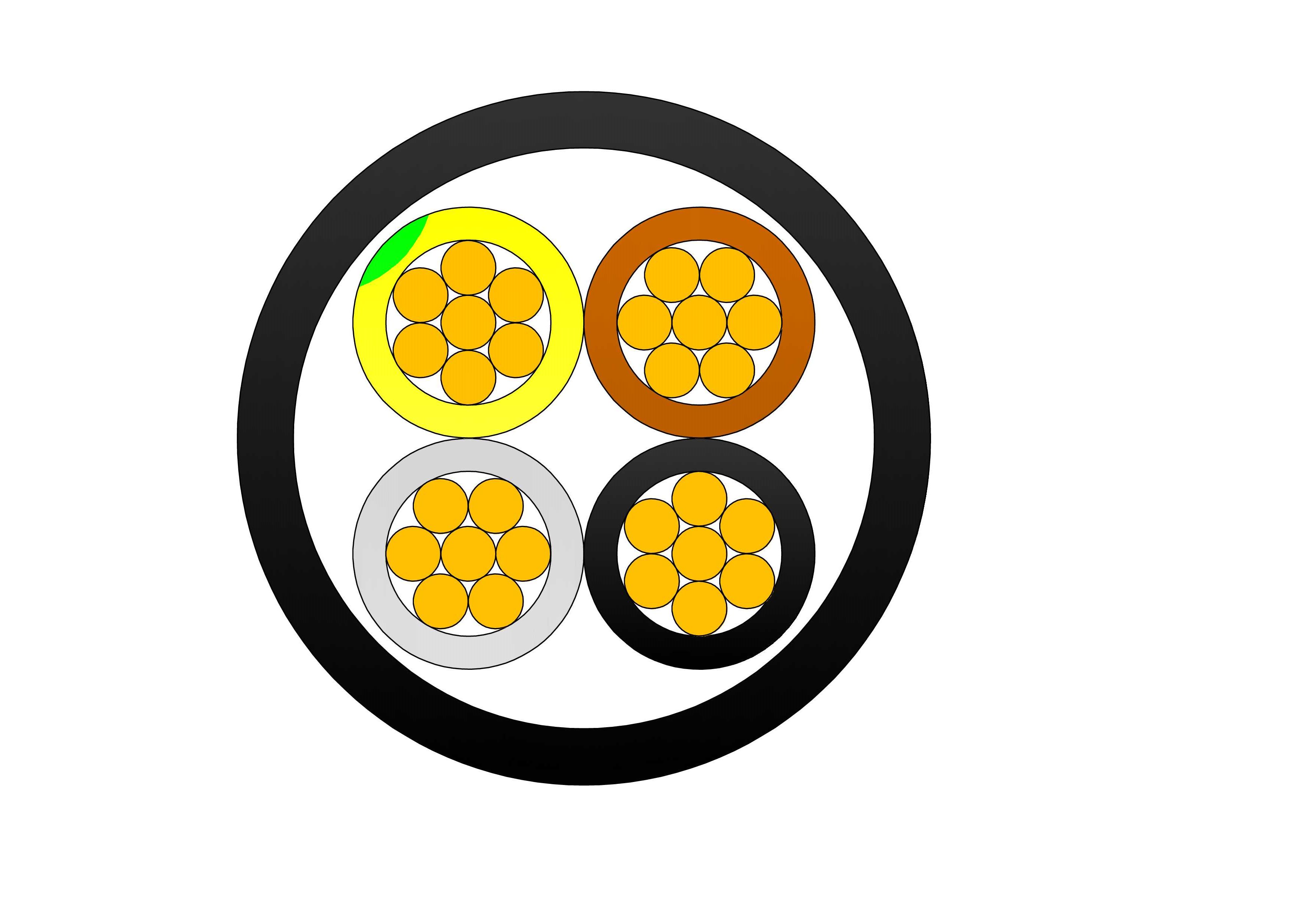

NYY-J / NYY-O 0.6/1kV Low Voltage Power Cable Construction
Conductor
RE: Class 1 solid copper conductor
RM: Class 2 stranded copper conductor
RM: Class 2 stranded copper conductor
Insulation
XLPE (Cross-Linked Polyethylene)
Filler
PVC (Polyvinyl Chloride)
Sheath
PVC(Polyvinyl Chloride)
Sheath Colour
Black
Note： NYY-O (without Green/Yellow earth conductor) is also available
Note： NYY-O (without Green/Yellow earth conductor) is also available
Manufacturer Standard
IEC 60502-1, VDE 0276-603, HD 603, IEC 60228
Flame retardant
IEC/EN 60332-1-2
Core Identification
2 core: Brown /Blue
3 core: Brown /Blue/Green/Yellow
4 core: Brown / Black/ Grey/ Green/Yellow
5 core: Green/Yellow /Brown /Blue/ Black/ Grey
7 core and above: Green/Yellow/ Black with/White numbers
3 core: Brown /Blue/Green/Yellow
4 core: Brown / Black/ Grey/ Green/Yellow
5 core: Green/Yellow /Brown /Blue/ Black/ Grey
7 core and above: Green/Yellow/ Black with/White numbers
Application
NYY-J/NYY-O cables are suitable for fixed installation in indoor, outdoor, underground, and concrete environments (but not suitable for vibration environments). They are widely used in industrial power distribution, building power supply, and power transmission systems in municipal engineering.
Technical Specifications
NYY-J / NYY-O 0.6/1kV Low Voltage Power Cable
NYY-J / NYY-O Low Voltage Power Cable Technical Specifications
| No of Cores |
Nominal Cross Section Area |
Conductor Type |
Nominal Thickness of insulation |
Nominal Thickness of Sheath |
Nominal Overall Diameter |
Approximate Weight |
| mm2 | mm | mm | mm | kg/km | ||
| 1 | 2.5 | RE | 0.8 | 1.4 | 6.15 | 62 |
| 1 | 4 | RE | 1 | 1.4 | 7.5 | 85 |
| 1 | 6 | RE | 1 | 1.4 | 7.5 | 108 |
| 1 | 10 | RM | 1 | 1.4 | 8.6 | 155 |
| 1 | 16 | RM | 1 | 1.4 | 9.6 | 218 |
| 1 | 25 | RM | 1.2 | 1.4 | 11.1 | 318 |
| 1 | 35 | RM | 1.2 | 1.4 | 12.1 | 414 |
| 1 | 50 | RM | 1.4 | 1.4 | 13.7 | 552 |
| 1 | 70 | RM | 1.4 | 1.4 | 15.5 | 750 |
| 1 | 95 | RM | 1.6 | 1.5 | 17.6 | 1020 |
| 1 | 120 | RM | 1.6 | 1.6 | 19.3 | 1259 |
| 1 | 150 | RM | 1.8 | 1.6 | 21 | 1546 |
| 1 | 185 | RM | 2 | 1.7 | 23.2 | 1913 |
| 1 | 240 | RM | 2.2 | 1.8 | 26.2 | 2471 |
| 1 | 300 | RM | 2.4 | 2 | 29.2 | 3097 |
| 1 | 400 | RMv | 2.6 | 2 | 33.8 | 4100 |
| 1 | 500 | RMv | 2.8 | 2.1 | 38 | 5200 |
| 2 | 1.5 | RE | 0.8 | 1.8 | 10 | 147 |
| 2 | 2.5 | RE | 0.8 | 1.8 | 10.7 | 179 |
| 2 | 4 | RM | 1 | 1.8 | 13 | 268 |
| 2 | 6 | RM | 1 | 1.8 | 14.2 | 337 |
| 2 | 10 | RM | 1 | 1.8 | 16.2 | 472 |
| 2 | 16 | RM | 1 | 1.8 | 18.2 | 644 |
| 3 | 1.5 | RE | 0.8 | 1.8 | 10.4 | 166 |
| 3 | 2.5 | RE | 0.8 | 1.8 | 11.3 | 212 |
| 3 | 4 | RE | 1 | 1.8 | 13.1 | 299 |
| 3 | 6 | RM | 1 | 1.8 | 15 | 402 |
| 3 | 10 | RM | 1 | 1.8 | 17.1 | 570 |
| 3 | 16 | RM | 1 | 1.8 | 19.2 | 789 |
| 3 | 25 | RM | 1.2 | 1.8 | 22.1 | 1141 |
| 3 | 35 | RM | 1.2 | 1.8 | 24.1 | 1462 |
| 3 | 50 | RM | 1.4 | 1.8 | 27.6 | 1964 |
| 3 | 70 | RM | 1.6 | 2.1 | 36.3 | 3635 |
| 3 | 95 | RM | 1.6 | 2.2 | 40 | 4488 |
| 4 | 1.5 | RE | 0.8 | 1.8 | 11.6 | 198 |
| 4 | 2.5 | RE | 0.8 | 1.8 | 12.1 | 252 |
| 4 | 4 | RM | 1 | 1.8 | 15.1 | 391 |
| 4 | 6 | RM | 1 | 1.8 | 16.5 | 465 |
| 4 | 10 | RM | 1 | 1.8 | 18.6 | 702 |
| 4 | 16 | RM | 1 | 1.8 | 21.1 | 992 |
| 4 | 25 | RM | 1.2 | 1.8 | 24.2 | 1431 |
| 4 | 35 | RM | 1.2 | 1.8 | 26.6 | 1861 |
| 4 | 50 | RM | 1.4 | 1.9 | 30.9 | 2535 |
| 4 | 70 | RM | 1.4 | 2.1 | 35.1 | 3441 |
| 4 | 95 | RM | 1.6 | 2.2 | 40.4 | 4691 |
| 4 | 120 | RM | 1.6 | 2.4 | 44.2 | 5757 |
| 4 | 150 | RM | 1.8 | 2.5 | 48.5 | 7095 |
| 4 | 185 | RM | 2 | 2.7 | 53.9 | 8810 |
| 4 | 240 | RM | 2.2 | 2.9 | 61.1 | 11400 |
| 5 | 1.5 | RE | 10.8 | 1.8 | 12 | 232 |
| 5 | 2.5 | RE | 0.8 | 1.8 | 13.1 | 302 |
| 5 | 4 | RM | 1 | 1.8 | 16.6 | 477 |
| 5 | 6 | RM | 1 | 1.8 | 18.2 | 618 |
| 5 | 10 | RM | 1 | 1.8 | 20.3 | 853 |
| 5 | 16 | RM | 1 | 1.8 | 23.1 | 1212 |
| 5 | 25 | RM | 0.8 | 1.8 | 26.6 | 280 |
| 7 | 1.5 | RE | 1 | 1.8 | 16.6 | 477 |
| 7 | 2.5 | RE | 0.8 | 1.8 | 14.1 | 368 |
| 12 | 1.5 | RE | 0.8 | 1.8 | 16.6 | 475 |
| 12 | 2.5 | RE | 0.8 | 1.8 | 18.2 | 628 |
| 14 | 1.5 | RE | 0.8 | 1.8 | 17.1 | 515 |
| 19 | 1.5 | RE | 0.8 | 1.8 | 18.9 | 648 |
| 19 | 2.5 | RE | 0.8 | 1.8 | 20.3 | 843 |
| 27 | 1.5 | RE | 0.8 | 1.8 | 22.6 | 895 |
Quality Control
NYY-J / NYY-O 0.6/1kV Low Voltage Power Cable
Raw Material Test
Raw Material Test establishes the quality foundation for the NYY-J / NYY-O 0.6/1kV Low Voltage Power Cable. Copper conductors are verified for conductivity, dimensional accuracy, and mechanical strength. PVC insulation materials are tested for dielectric performance, thermal stability, and resistance to aging. Outer sheath compounds undergo abrasion, tensile, and environmental resistance testing. For NYY-J designs, protective earth conductor materials are separately inspected. Only qualified raw materials are released for manufacturing to ensure consistent cable quality.
Process inspection
Process Inspection ensures controlled production of the NYY-J / NYY-O 0.6/1kV Low Voltage Power Cable. Conductor preparation and stranding are inspected for uniform structure. PVC insulation extrusion is monitored for correct thickness and surface quality. Core identification and assembly are checked to match NYY-J or NYY-O specifications. Sheath extrusion is continuously controlled to ensure mechanical protection and dimensional compliance. Routine in-process tests confirm production stability.
Finished Product
Finished Product Test confirms the safety and reliability of the NYY-J / NYY-O 0.6/1kV Low Voltage Power Cable before delivery. Electrical tests include conductor resistance and insulation resistance measurement. Voltage testing verifies insulation strength. Mechanical and visual inspections ensure correct construction, labeling, and overall workmanship. Voltage withstand tests confirm insulation reliability at rated voltage. Mechanical tests assess sheath robustness and flexibility. Visual inspection ensures proper marking, core identification, and packaging prior to shipment.
Application
Used in industrial plants, commercial buildings, power distribution networks, infrastructure projects, and underground installations requiring reliable low voltage power transmission.
Technical Advantages
● 30+ years of manufacturing experience
● ISO and UL certified production
● Customized cable and transformer solutions
