Photovoltaic Solar H1Z2Z2-K Cable
H1Z2Z2-K is a single-core DC 1500V cable specially designed for photovoltaic systems. It is widely used for connections between solar panels and inverters in solar power installations. Compliant with EN 50618 and IEC 62930 standards, it is suitable for indoor and outdoor use, both in fixed and mobile installations, and can withstand harsh environmental conditions. For installations where fire, smoke emissions, and toxic fumes create a potential risk to life and equipment, Water resistant to AD8.
- Flame Retardant Standard IEC/EN 60332-1-2
- Low Smoke Standard DIN EN 61034-1+2 / IEC 61034-1+2
- Halogen Free Standard DIN EN 60754-1 / IEC 60754-1
- Ozone and UV Resistant Standard EN60811-403, EN50396, ENISO4892-1/3
- Water Resistant Standard AD8
- Voltage Rating(Uo/U) AC: 1000/1000V DC: 1500/1500V
- Maximum Voltage(Umax) 1800V
- Test Voltage 6.5kV AC
- Temperature Rating Fixed: -40℃ to + 90℃
- Minimum Bending Radius 5 x Overall Diameter
- Maximum Conductor Temperature +120℃
Construction
Technical Specifications
Quality Control
Application

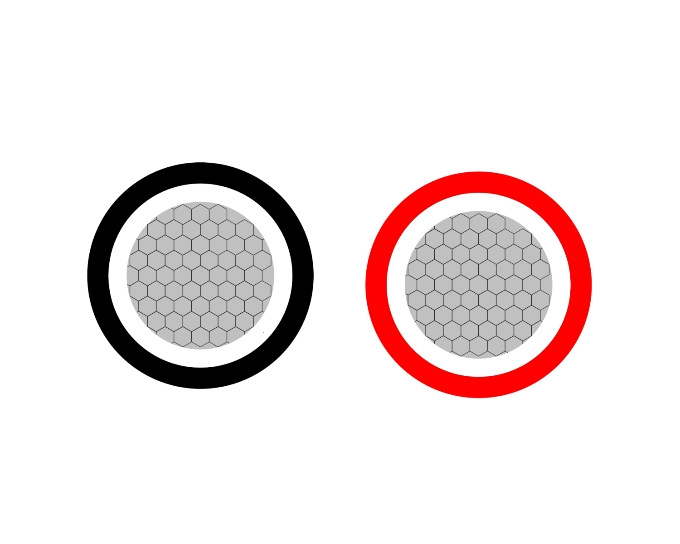

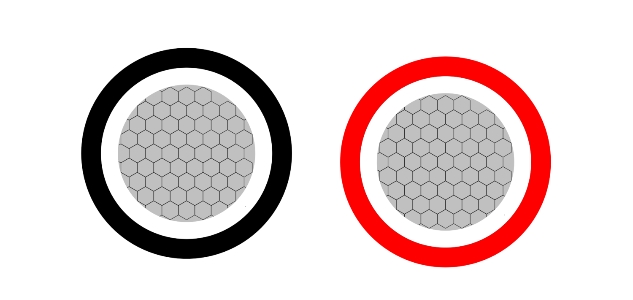

Construction

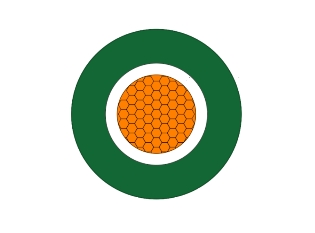

Photovoltaic Solar H1Z2Z2-K CableConductor
Conductor
Class 5 flexible tinned copper conductor
Insulation
Halogen-free cross-linked compound
Sheath
Halogen-free cross-linked, flame-retardant compound
Sheath Color
Black, Red, Other colors available on customer request
Technical Specifications
Photovoltaic Solar H1Z2Z2-K Cable
Dimension
Electrical Characteristics
| No.Of Cores | Nominal Cross-Sectional Area | Nominal Overall Diameter | Nominal Weight | Tensile Strength In Operation |
| mm² | mm | kg/km | N | |
| 1 | 1.5 | 4.6 | 36 | 22 |
| 1 | 2.5 | 5.0 | 46 | 37 |
| 1 | 4 | 5.6 | 62 | 60 |
| 1 | 6 | 6.1 | 82 | 90 |
| 1 | 10 | 7.1 | 125 | 150 |
| 1 | 16 | 8.5 | 190 | 240 |
| 1 | 25 | 10.4 | 285 | 375 |
| 1 | 35 | 11.5 | 385 | 525 |
| 1 | 50 | 13.7 | 540 | 750 |
| 1 | 70 | 15.8 | 740 | 1050 |
| 1 | 95 | 17.3 | 965 | 1350 |
| 1 | 120 | 19.1 | 1210 | 1800 |
| 1 | 150 | 21.4 | 1495 | 2250 |
| 1 | 185 | 24.9 | 1885 | 2775 |
| 1 | 240 | 27.3 | 2395 | 3600 |
| Nominal Cross-Sectional Area |
Maximum DC Resistance of Conductor at 20°C |
Maximum DC Resistance of Conductor at 90°C |
Current Carrying Capacity | ||
| Single Cable In Air | Single Cable On Surface | Two Cables Adjacent On the Surface | |||
| mm² | Ω/km | Ω/km | A | A | A |
| 1.5 | 13.70 | 17.468 | 30 | 29 | 24 |
| 2.5 | 8.21 | 10.468 | 41 | 39 | 33 |
| 4 | 5.09 | 6.490 | 55 | 52 | 44 |
| 6 | 3.39 | 4.322 | 70 | 67 | 57 |
| 10 | 1.95 | 2.486 | 98 | 93 | 79 |
| 16 | 1.24 | 1.581 | 132 | 125 | 107 |
| 25 | 0.795 | 1.013 | 176 | 167 | 142 |
| 35 | 0.565 | 0.720 | 218 | 207 | 176 |
| 50 | 0.393 | 0.501 | 276 | 262 | 221 |
| 70 | 0.277 | 0.353 | 347 | 330 | 278 |
| 95 | 0.21 | 0.267 | 416 | 395 | 333 |
| 120 | 0.164 | 0.209 | 488 | 464 | 390 |
| 150 | 0.132 | 0.168 | 566 | 538 | 453 |
| 185 | 0.108 | 0.137 | 644 | 612 | 515 |
| 240 | 0.0817 | 0.104 | 775 | 736 | 620 |
Quality Control
Photovoltaic Solar H1Z2Z2-K Cable
Raw Material Test
Raw material testing for the Photovoltaic Solar H1Z2Z2-K Cable ensures premium quality from the outset. Tinned copper strands are inspected for conductivity, plating thickness, and adhesion using microscopy and elution tests. Halogen-free insulation and sheath compounds undergo melt flow index, density, and filler content analysis. Additives for UV stabilization are verified via FTIR spectroscopy. Samples are subjected to thermal aging, ozone resistance pre-checks, and elongation at break. Contamination screening prevents defects. The step-by-step process: incoming batch verification, sampling per EN 50618, physical/chemical property testing (tensile, hardness), environmental resistance simulation, and material approval. Only qualified raw materials advance, guaranteeing the Photovoltaic Solar H1Z2Z2-K Cable's long-term durability, safety, and performance in harsh solar environments.
Process inspection
During the manufacturing of the Photovoltaic Solar H1Z2Z2-K Cable, rigorous process inspection maintains consistency. Conductor stranding is monitored for compactness and tinning uniformity. Dual-layer extrusion of insulation and sheath is controlled for concentricity and thickness using online laser gauges. Electron-beam crosslinking degree is verified through hot set tests at multiple points. Surface quality and color coding are visually checked. Spark testing detects pinholes in real-time. Dimensional accuracy and ovality are measured continuously. Key steps: material dryness confirmation pre-extrusion, parameter stabilization (temperature, speed), intermediate sampling for gel fraction, defect marking/removal, and crosslinking dose logging. This in-line monitoring ensures the Photovoltaic Solar H1Z2Z2-K Cable achieves void-free insulation, precise geometry, and full compliance with EN 50618 standards.
Finished Product
The finished Photovoltaic Solar H1Z2Z2-K Cable undergoes comprehensive testing for certification. Routine tests include conductor resistance, high voltage withstand (6.5kV AC/15kV DC), and insulation thickness verification. Flame propagation (single/bundle), smoke density, and halogen acid gas emission confirm safety. Long-term DC voltage immersion, thermal endurance, and UV/weatherometer tests validate durability. Shrinkage, ozone, and mechanical impact checks follow EN 50618 protocols. The process steps: sample preparation, sequential voltage application with immersion, flame exposure timing, environmental chamber cycling, post-test mechanical/electrical measurement, and visual inspection. Additional verifications cover flexibility at low temperature and surface marking permanence. Only cables passing all criteria are approved, ensuring the Photovoltaic Solar H1Z2Z2-K Cable delivers reliable, safe performance in photovoltaic systems.
Application
Photovoltaic Solar H1Z2Z2-K Cable is ideal for interconnecting solar panels in ground-mounted farms, rooftop arrays, floating PV plants, and off-grid systems. Perfect for DC strings, combiner boxes to inverters, and harsh outdoor environments requiring maximum reliability.
Technical Advantages
● 30+ years of manufacturing experience
● ISO and UL certified production
● Customized cable and transformer solutions
Product Packaging
Wires and Cables packaging (1)
Wires and Cables packaging (2)
Wires and Cables packaging (3)
Wires and Cables packaging (4)
Wires and Cables packaging (5)
Wires and Cables packaging (6)
Wires and Cables packaging (7)
Wires and Cables packaging (8)
