RHZ1-2OL-AL Medium Voltage Power Cable(8.7/15kV, 12/20kV, 18/30kV)
RHZ1-2OL-AL Medium Voltage Power Cable (8.7/15kV, 12/20kV, 18/30kV) is an economical, fire-safe cable for medium voltage distribution. Featuring stranded aluminium conductors, cross-linked polyethylene (XLPE) insulation, metallic screen, and low smoke zero halogen (LSZH) outer sheath, it complies with UNE 21123-4 and CPR standards. In fire conditions, the LSZH sheath emits minimal smoke and no toxic halogen gases, ensuring safety in populated areas. Lightweight aluminium reduces costs and handling effort while providing reliable current capacity. Superior partial discharge resistance, low dielectric losses, and high thermal stability guarantee efficient, long-lasting performance. Suitable for direct burial, ducts, or indoor installations. The RHZ1-2OL-AL Medium Voltage Power Cable is widely used in utilities, hospitals, schools, tunnels, and infrastructure projects requiring cost-effective, environmentally friendly medium voltage cabling with enhanced fire safety and durability worldwide.
-
Voltage Rating(Uo/U)(Um)
8.7/15 (17.5) KV
12/20 (24)KV
18/30 (36)KV - Temperature Rating -40°C to +90°C
- Minimum Bending Radius 15 x overall diameter
Construction
Technical Specifications
Quality Control
Application
Construction

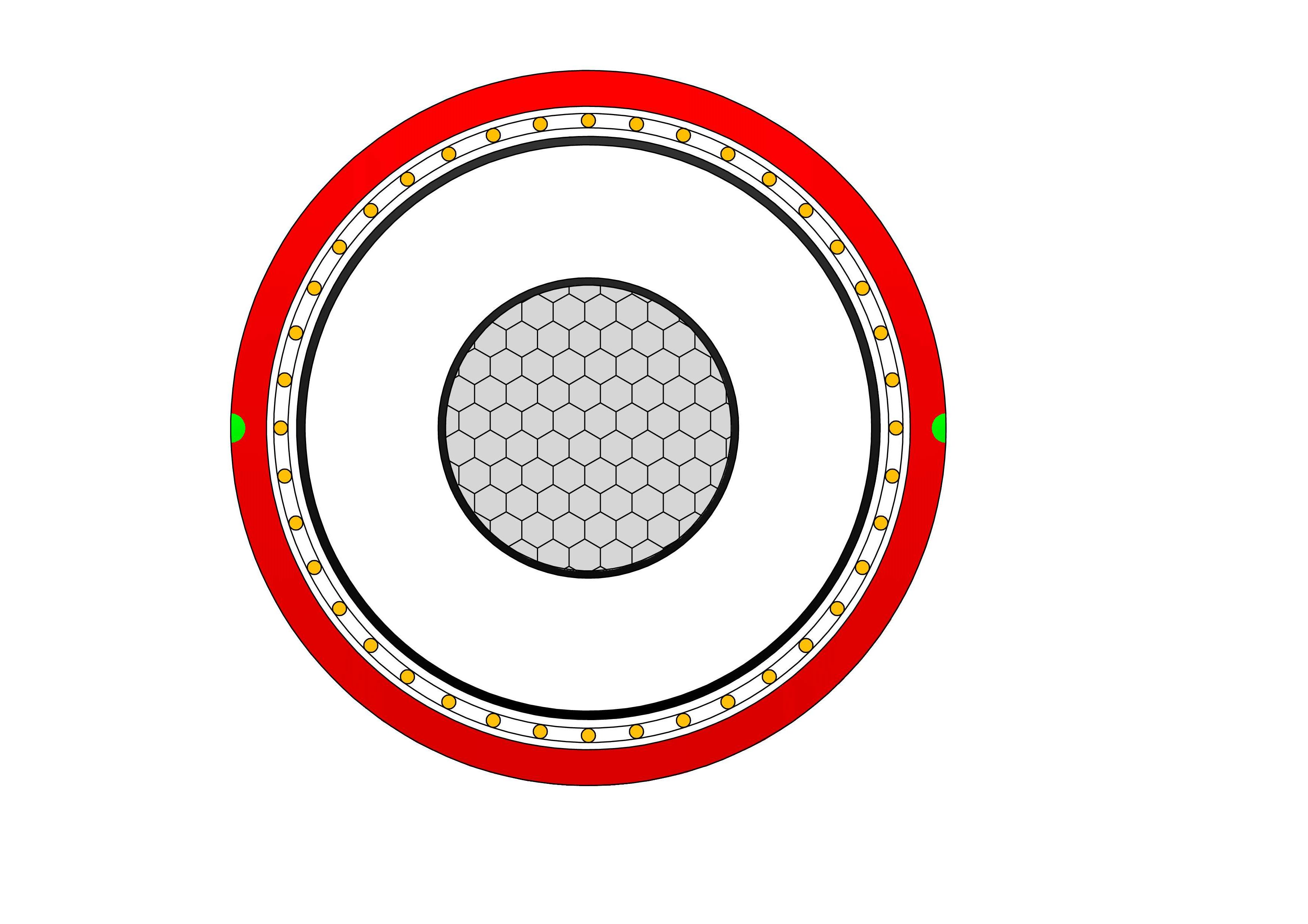

RHZ1-2OL-AL Medium Voltage Power Cable Constrution
Conductor
Class 2 stranded aluminium with longitudianal water tightness
Insulation
XLPE (Cross-Linked Polyethylene)
Conductor Screen
Semi-conductive material
Insulation Screen
Semi-conductive material
Longitudinal Waterblocking
Water-swellable tape
Screen
Copper Wires
Sheath
PO (Polylefin) DMZ1 ST7
Sheath Color
Red
Manufacturer Standard
IEC 60502-2, HD 620 10E-1
Halogen Free
IEC 60754-1/2
UV Resistant
UNE 211605, HD 605, Subclause 2.2.13
Technical Specifications
RHZ1-2OL-AL Medium Voltage Power Cable(8.7/15kV, 12/20kV, 18/30kV)
RHZ1-2OL-AL 8.7/15 (17.5) KV
RHZ1-2OL-AL 12/20 (24)KV
RHZ1-2OL-AL 18/30 (36)KV
|
No of Cores |
Nominal Cross Section Area |
Nominal Conductor Diameter |
Nominal Thickness of Insulation |
Nominal Diameter Over insulation |
Nominal Metallic Screen Cross Section |
Nominal Outer Sheath Thickness |
Nominal Outer Diameter |
Approximate Weight |
| mm2 | mm | mm | mm | mm2 | mm | mm | kg/km | |
| 1 | 50 | 8.0 | 4.5 | 18.2 | 16 | 2.5 | 28.1 | 720 |
| 1 | 95 | 11.2 | 4.5 | 21.4 | 16 | 2.5 | 31.2 | 1100 |
| 1 | 150 | 14.0 | 4.5 | 24.2 | 16 | 2.7 | 34.1 | 1440 |
| 1 | 240 | 17.9 | 4.5 | 28.1 | 16 | 3.0 | 37.8 | 1780 |
| 1 | 400 | 23.1 | 4.5 | 33.3 | 16 | 3.0 | 42.8 | 2300 |
| 1 | 630 | 29.1 | 4.5 | 39.6 | 16 | 3.0 | 50.3 | 3190 |
|
No of Cores |
Nominal Cross Section Area |
Nominal Conductor Diameter |
Nominal Thickness of Insulation |
Nominal Diameter Over insulation |
Nominal Metallic Screen Cross Section |
Nominal Outer Sheath Thickness |
Nominal Outer Diameter |
Approximate Weight |
| mm2 | mm | mm | mm | mm2 | mm | mm | kg/km | |
| 1 | 50 | 8.0 | 5.5 | 20.2 | 16 | 2.5 | 28.0 | 850 |
| 1 | 95 | 11.2 | 5.5 | 23.4 | 16 | 2.7 | 32.0 | 1100 |
| 1 | 150 | 14.0 | 5.5 | 26.2 | 16 | 3.0 | 34.0 | 1400 |
| 1 | 240 | 17.9 | 5.5 | 30.1 | 16 | 3.0 | 38.0 | 1800 |
| 1 | 400 | 23.1 | 5.5 | 35.3 | 16 | 3.0 | 43.0 | 2500 |
| 1 | 630 | 29.1 | 5.5 | 41.6 | 16 | 3.0 | 50.0 | 3500 |
|
No of Cores |
Nominal Cross Section Area |
Nominal Conductor Diameter |
Nominal Thickness of Insulation |
Nominal Diameter Over insulation |
Nominal Metallic Screen Cross Section |
Nominal Outer Sheath Thickness |
Nominal Outer Diameter |
Approximate Weight |
| mm2 | mm | mm | mm | mm2 | mm | mm | kg/km | |
| 1 | 50 | 8.0 | 5.5 | 25.2 | 16 | 2.7 | 32.0 | 900 |
| 1 | 95 | 8.0 | 5.5 | 28.4 | 16 | 3.0 | 35.0 | 1200 |
| 1 | 150 | 8.0 | 5.5 | 31.2 | 16 | 3.0 | 38.0 | 1500 |
| 1 | 240 | 8.0 | 5.5 | 35.1 | 16 | 3.0 | 43.0 | 1900 |
| 1 | 400 | 8.0 | 5.5 | 40.3 | 16 | 3.0 | 48.0 | 2750 |
| 1 | 630 | 8.0 | 5.5 | 46.6 | 16 | 3.0 | 56.0 | 3500 |
Quality Control
RHZ1-2OL-AL Medium Voltage Power Cable(8.7/15kV, 12/20kV, 18/30kV)
Raw Material Test
Raw material testing for the RHZ1-2OL-AL Medium Voltage Power Cable (8.7/15kV, 12/20kV, 18/30kV) ensures fire-safe and reliable quality. Aluminium conductors are inspected for purity, conductivity, and mechanical properties per UNE/IEC standards. XLPE insulation compound undergoes density, antioxidant content, and crosslinking analysis via OIT and DSC tests. Screen materials are checked for thickness and adhesion. LSZH sheath compound is rigorously tested for halogen content (<0.5%), smoke density, acidity, and flame-retardant additives using IEC 60754 and EN 50399 methods. Samples endure tensile strength, elongation, and accelerated aging/thermal trials. The step-by-step process: incoming batch certification, sampling protocol, chemical composition spectroscopy, mechanical/electrical property testing (before/after aging), fire performance pre-simulation, and material approval decision.
Process inspection
During the manufacturing of the RHZ1-2OL-AL Medium Voltage Power Cable (8.7/15kV, 12/20kV, 18/30kV), process inspection maintains fire safety standards. Aluminium stranding is monitored for compactness with laser gauges. Triple extrusion (conductor shield, XLPE insulation, insulation shield) ensures concentricity and thickness using online X-ray systems. The screen application verifies overlap and bonding. LSZH sheath extrusion includes real-time spark testing and diameter verification. Marking permanence and sheath color are inspected. Key steps: material pre-drying confirmation, extrusion/screening parameter logging (temperature, pressure), intermediate hot set tests for crosslinking degree, partial discharge monitoring, flame-retardant additive distribution checks, defect detection/correction, and post-process cooling control.
Finished Product
The finished RHZ1-2OL-AL Medium Voltage Power Cable (8.7/15kV, 12/20kV, 18/30kV) undergoes comprehensive testing for fire and electrical certification. Routine tests include conductor resistance, AC high voltage withstand (up to 3.5U0), partial discharge (≤5pC), screen continuity, and thickness verification. Fire safety tests cover smoke density (IEC 61034), halogen acid gas (IEC 60754), flame propagation (IEC 60332), and heat release. Type tests include impulse withstand and thermal cycling. The process steps: sample preparation with terminations, gradual voltage ramp-up, PD monitoring, fire chamber exposure with smoke/heat measurement, environmental conditioning, post-test electrical/mechanical re-measurement, and visual inspection. Additional checks cover tan delta, capacitance, and marking durability.
Application
RHZ1-2OL-AL Medium Voltage Power Cable (8.7/15kV, 12/20kV, 18/30kV) is ideal for underground and indoor medium voltage supply in hospitals, schools, airports, tunnels, shopping malls, and high-rise buildings. Perfect for areas requiring low smoke zero halogen cables to enhance occupant safety and reduce toxic emissions during fires.
Technical Advantages
● 30+ years of manufacturing experience
● ISO and UL certified production
● Customized cable and transformer solutions
Product Packaging
Wires and Cables packaging (1)
Wires and Cables packaging (2)
Wires and Cables packaging (3)
Wires and Cables packaging (4)
Wires and Cables packaging (5)
Wires and Cables packaging (6)
Wires and Cables packaging (7)
Wires and Cables packaging (8)
Related Products
ALLIANCE AAAC Conductor Cable
ALLIANCE AAAC (All Aluminum Alloy Conductor) cables are manufactured in strict compliance with international standards such as ASTM B399, IEC 61089, and BS EN 50182, making them a high-performance and reliable overhead power transmission and distribution solution. Meeting ASTM B398, B399, IEC 61089, and BS EN 50182 standards, this cable handles ampacity up to 350A at 75°C and voltages up to 33kV. The all-alloy construction avoids bimetallic corrosion, providing better resistance in harsh conditions than ACSR. Reduced weight minimizes sag and installation expenses, supporting longer spans. The Alliance AAAC Conductor Cable delivers low electrical losses, high mechanical endurance, and excellent weather tolerance. Flame-retardant variants available. Perfect for urban grids, renewable projects, and coastal setups, it provides cost-effective, low-maintenance power delivery in overhead applications globally, excelling in reliability and lifespan over conventional conductors.
3/0 Flustra Aluminum Conductor Triplex Overhead Service Drop Cable
The 3/0 Flustra Triplex Aluminum Overhead Service Drop Cable is a highly durable, weather-resistant cable designed for power distribution from utility poles to residential or light commercial buildings. This triplex cable includes two phase conductors and one bare neutral messenger, typically made of AAAC (All-Aluminum Alloy Conductor), providing both support and a current return path. With a voltage rating of 600V phase-to-phase and XLPE (Cross-Linked Polyethylene) insulation, this cable is built for high performance and reliability in aerial applications.
High Voltage Power Cable
NPC Electric High Voltage Power Cable is engineered for reliable transmission of electricity at voltages from 35kV to 500kV. Featuring copper or aluminum conductors, cross-linked polyethylene (XLPE) insulation, metallic screening, and a robust outer sheath, this cable minimizes losses and ensures long-term performance in demanding environments. Designed to meet international standards like IEC 60840 and IEC 62067, it offers excellent electrical properties, mechanical strength, and resistance to moisture, chemicals, and thermal stress. Whether for underground burial, submarine applications, or overhead lines, our High Voltage Power Cable delivers superior efficiency and safety. With low dielectric losses and high breakdown strength, it supports modern power grids, renewable energy integration, and industrial power distribution. Choose our cables for minimal maintenance, extended service life, and compliance with global safety norms.
ALUMINUM CONDUCTOR STEEL REINFORCED（ACSR）
Aluminum Conductor Steel Reinforced (ACSR) is a widely used overhead conductor consisting of concentrically stranded 1350-H19 aluminum wires surrounding a galvanized steel core. This design provides exceptional tensile strength from the steel while leveraging aluminum's high conductivity (up to 61% IACS) for efficient power transmission with minimal losses. ACSR excels in long-span applications, offering low sag and high ampacity, making it suitable for high-voltage lines where mechanical reliability is critical. Resistant to corrosion through galvanization, it withstands harsh weather, including ice and wind loads. Compliant with ASTM B232, B230, and B498 standards, ACSR comes in various configurations like single or multiple steel strands for customized strength-to-weight ratios. It's cost-effective, reducing the need for additional supports and simplifying installation on towers or poles. With proven durability, ACSR enhances grid stability and longevity, supporting global utility networks. Its recyclability promotes environmental sustainability, making it a staple for modern electrical infrastructure in rural and urban settings.
Raven ACSR Conductor Cable
The Raven ACSR Conductor Cable is a reliable overhead conductor designed for efficient power distribution. Named "Raven" for its 1/0 AWG size with 6/1 stranding (6 aluminum wires around 1 steel core), it combines lightweight aluminum for high conductivity with a galvanized steel core for tensile strength. Compliant with ASTM B230, B232, and ICEA standards, this cable offers a breaking load of approximately 3,550 lbs and a current rating up to 242 amps at 75°C in overhead applications. The aluminum 1350-H19 provides excellent corrosion resistance and low electrical resistance (0.1662 Ω/1000ft at 20°C), while the steel enhances sag control over spans up to 250m. Suitable for voltages up to 138kV in distribution lines, the Raven ACSR Conductor Cable minimizes line losses and withstands moderate weather loads, including wind and ice. Its economical design is ideal for utility upgrades, rural electrification, and grid extensions, ensuring dependable power delivery with minimal maintenance in overhead transmission and distribution systems worldwide.
N2XY 0.6/1kV Low Voltage Power Cable
N2XY 0.6/1kV is a low-voltage power cable built to IEC/EN 60228 standards, ideal for fixed installations in dry or damp environments, including indoors, outdoors, and in concrete (excluding vibration zones), without the need for additional mechanical protection. Constructed with high-purity copper conductors, thermosetting XLPE insulation, and tough PVC jacket, it meets stringent IEC 60502-1 requirements. This cable provides low dielectric losses, excellent short-circuit tolerance, and strong resistance to environmental factors like water and abrasion. Perfect for fixed installations in wet or dry locations, including direct burial without armour when mechanical protection is not critical. Enhanced bending radius and flame-retardant properties facilitate safe, easy handling.FAQ From Customers
-
What are the advantages of power cables and overhead lines?(1) Reliable operation, because it is installed in a hidden place such as underground, it is less damaged by external forces, has less chance of failure, and the power supply is safe, and it will not cause harm to people; (2) The maintenance workload is small and frequent inspections are not required; (3) No need to erect towers; (4) Help improve power factor.
-
Which aspects should be considered when choosing the cross section of a power cable?(1) The long-term allowable working current of the cable; (2) Thermal stability once short circuited; (3) The voltage drop on the line cannot exceed the allowable working range.
-
What are the measures for cable fire prevention?(1) Use flame-retardant cables; (2) Use fireproof cable tray; (3) Use fireproof paint; (4) Fire partition walls and fire baffles are installed at cable tunnels, mezzanine exits, etc.; (5) Overhead cables should avoid oil pipelines and explosion-proof doors, otherwise local pipes or heat insulation and fire prevention measures should be taken.
-
What should be paid attention to during the transportation and handling of cables?(1) During transportation, loading and unloading, cables and cable reels should not be damaged. It is strictly forbidden to push the cable reels directly from the vehicle. Generally, cables should not be transported and stored flat. (2) Before transporting or rolling the cable reel, ensure that the cable reel is firm, the cable is wound tightly, the oil pipe between the oil-filled cable and the pressure oil tank should be fixed without damage, the pressure oil tank should be firm, and the pressure indication should meet the requirements.
-
What inspections should be carried out for the acceptance of cable lines?(1) The cable specifications should meet the regulations, the arrangement should be neat, no damage, and the signs should be complete, correct and clear; (2) The fixed bending radius of the cable, the related distance and the wiring of the metal sheath of the single-core power cable should meet the requirements; (3) The cable terminal and the middle head should not leak oil, and the installation should be firm. The oil pressure of the oil-filled cable and the meter setting should meet the requirements; (4) Good grounding; (5) The color of the cable terminal is correct, and the metal parts such as the bracket are completely painted; (6) There should be no debris in the cable trench, tunnel, and bridge, and the cover should be complete.
