RHZ1-2OL(AS)-AL Medium Voltage Power Cable(8.7/15kV, 12/20kV, 18/30kV Specifications)
RHZ1-2OL(AS)-AL are enhanced flame-retardant, low smoke, zero halogen (LSZH) medium voltage cables with aluminum conductors, manufactured under IEC 60502-2 standards. Featuring stranded aluminium conductors, cross-linked polyethylene (XLPE) insulation, metallic screen, and low smoke zero halogen (LSZH) outer sheath with enhanced fire performance (AS designation), it complies with UNE 21123-4 and CPR standards. In fire conditions, it emits very low smoke and no toxic gases. Aluminium construction reduces weight and costs while providing sufficient current capacity. Excellent partial discharge resistance, low dielectric losses, and high thermal stability ensure efficient, long-term operation. Suitable for direct burial, ducts, or indoor use in public areas. The RHZ1-2OL(AS)-AL Medium Voltage Power Cable is ideal for utilities, hospitals, schools, tunnels, and infrastructure projects requiring economical, high-safety medium voltage cabling with superior fire behavior and reliability worldwide.
-
Voltage Rating(Uo/U)(Um)
8.7/15 (17.5) KV
12/20 (24)KV
18/30 (36)KV - Temperature Rating -40°C to +90°C
-
Minimum Bending Radius
20 x overall diameter during installation
15 x overall diameter installed
Construction
Technical Specifications
Quality Control
Application
Construction

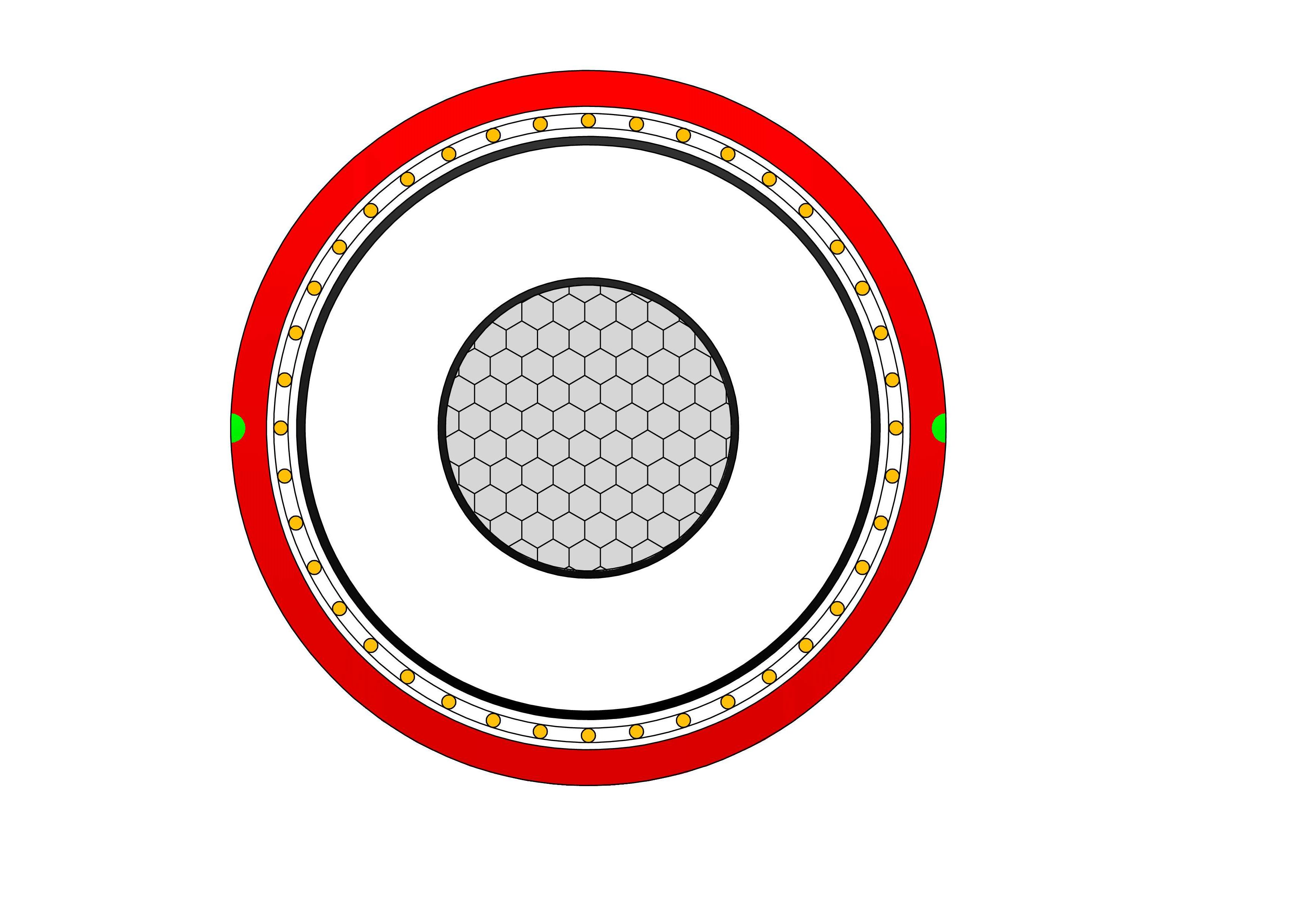

RHZ1-2OL(AS)-AL Medium Voltage Power Cable Constrution
-AL-medium-voltage-power-cable-standard.jpg)
Conductor
Class 2 stranded aluminium with longitudinal water tightness
Insulation
XLPE (Cross-Linked Polyethylene)
Conductor Screen
Semi-conductive material
Insulation Screen
Semi-conductive material
Longitudinal Waterblocking
Water-swellable tape
Screen
Copper wires
Sheath
PO (Polylefin) DMZ2/ST8
Sheath Color
Red with/Green stripes
Manufacturer Standard
IEC 60502-2, HD 620 10E-5, EN 60228
Flame retardant
CPR Classification Cca s1b, d2, a1
Halogen Free
IEC 60754-1/2
UV Resistant
UNE 211605, HD 605, Subclause 2.2.13
Technical Specifications
RHZ1-2OL(AS)-AL Medium Voltage Power Cable(8.7/15kV, 12/20kV, 18/30kV Specifications)
RHZ1-2OL(AS)-AL 8.7/15 (17.5) KV
RHZ1-2OL(AS)-AL 12/20 (24)KV
RHZ1-2OL(AS)-AL 18/30 (36)KV
|
No of Cores |
Nominal Cross Section Area |
Nominal Conductor Diameter |
Nominal Thickness of Insulation |
Nominal Diameter Over insulation |
Nominal Metallic Screen Cross Section |
Nominal Outer Sheath Thickness |
Nominal Outer Diameter |
Approximate Weight |
| mm2 | mm | mm | mm | mm2 | mm | mm | kg/km | |
| 1 | 50 | 8.0 | 4.5 | 18.2 | 16 | 2.5 | 28.1 | 720 |
| 1 | 95 | 11.2 | 4.5 | 21.4 | 16 | 2.5 | 31.2 | 1100 |
| 1 | 150 | 14.0 | 4.5 | 24.2 | 16 | 2.7 | 34.1 | 1440 |
| 1 | 240 | 17.9 | 4.5 | 28.1 | 16 | 3.0 | 37.8 | 1780 |
| 1 | 400 | 23.1 | 4.5 | 33.3 | 16 | 3.0 | 42.8 | 2300 |
| 1 | 630 | 29.1 | 4.5 | 39.6 | 16 | 3.0 | 50.3 | 3190 |
|
No of Cores |
Nominal Cross Section Area |
Nominal Conductor Diameter |
Nominal Thickness of Insulation |
Nominal Diameter Over insulation |
Nominal Metallic Screen Cross Section |
Nominal Outer Sheath Thickness |
Nominal Outer Diameter |
Approximate Weight |
| mm2 | mm | mm | mm | mm2 | mm | mm | kg/km | |
| 1 | 50 | 8.0 | 5.5 | 20.2 | 16 | 2.5 | 28.0 | 850 |
| 1 | 95 | 11.2 | 5.5 | 23.4 | 16 | 2.7 | 32.0 | 1100 |
| 1 | 150 | 14.0 | 5.5 | 26.2 | 16 | 3.0 | 34.0 | 1400 |
| 1 | 240 | 17.9 | 5.5 | 30.1 | 16 | 3.0 | 38.0 | 1800 |
| 1 | 400 | 23.1 | 5.5 | 35.3 | 16 | 3.0 | 43.0 | 2500 |
| 1 | 630 | 29.1 | 5.5 | 41.6 | 16 | 3.0 | 50.0 | 3500 |
|
No of Cores |
Nominal Cross Section Area |
Nominal Conductor Diameter |
Nominal Thickness of Insulation |
Nominal Diameter Over insulation |
Nominal Metallic Screen Cross Section |
Nominal Outer Sheath Thickness |
Nominal Outer Diameter |
Approximate Weight |
| mm2 | mm | mm | mm | mm2 | mm | mm | kg/km | |
| 1 | 50 | 8.0 | 5.5 | 25.2 | 16 | 2.7 | 32.0 | 900 |
| 1 | 95 | 8.0 | 5.5 | 28.4 | 16 | 3.0 | 35.0 | 1200 |
| 1 | 150 | 8.0 | 5.5 | 31.2 | 16 | 3.0 | 38.0 | 1500 |
| 1 | 240 | 8.0 | 5.5 | 35.1 | 16 | 3.0 | 43.0 | 1900 |
| 1 | 400 | 8.0 | 5.5 | 40.3 | 16 | 3.0 | 48.0 | 2750 |
| 1 | 630 | 8.0 | 5.5 | 46.6 | 16 | 3.0 | 56.0 | 3500 |
Quality Control
RHZ1-2OL(AS)-AL Medium Voltage Power Cable(8.7/15kV, 12/20kV, 18/30kV Specifications)
Raw Material Test
Raw material testing for the RHZ1-2OL(AS)-AL Medium Voltage Power Cable (8.7/15kV, 12/20kV, 18/30kV) focuses on safety and conductivity. Aluminium conductors are inspected for purity, conductivity, and mechanical properties per UNE/IEC standards. XLPE insulation compound undergoes density, antioxidant content, and crosslinking analysis via OIT and DSC tests. Screen materials are checked for thickness and adhesion. Enhanced LSZH sheath compound is rigorously tested for halogen content (<0.5%), smoke density, acidity, and advanced flame-retardant additives using IEC 60754 and EN 50399 methods. Samples endure tensile strength, elongation, and accelerated aging/thermal trials. The step-by-step process: incoming batch certification, sampling protocol, chemical composition spectroscopy, mechanical/electrical property testing (before/after aging), fire performance pre-simulation, and material approval decision.
Process inspection
During the manufacturing of the RHZ1-2OL(AS)-AL Medium Voltage Power Cable (8.7/15kV, 12/20kV, 18/30kV), process inspection ensures enhanced fire safety. Aluminium stranding is monitored for compactness with laser gauges. Triple extrusion (conductor shield, XLPE insulation, insulation shield) controls concentricity and thickness using online X-ray systems. The screen application verifies overlap and bonding. Enhanced LSZH sheath extrusion includes real-time spark testing and diameter verification. Marking permanence and sheath color are inspected. Key steps: material pre-drying confirmation, extrusion/screening parameter logging (temperature, pressure), intermediate hot set tests for crosslinking degree, partial discharge monitoring, advanced smoke/flame additive distribution checks, defect detection/correction, and post-process cooling control.
Finished Product
The finished RHZ1-2OL(AS)-AL Medium Voltage Power Cable (8.7/15kV, 12/20kV, 18/30kV) undergoes stringent testing for fire and electrical certification. Routine tests include conductor resistance, AC high voltage withstand (up to 3.5U0), partial discharge (≤5pC), screen continuity, and thickness verification. Enhanced fire tests cover smoke density (IEC 61034), halogen acid gas (IEC 60754), bundled flame propagation (EN 50399), and heat release for CPR classification. Type tests include impulse withstand and thermal cycling. The process steps: sample preparation with terminations, gradual voltage ramp-up, PD monitoring, fire chamber exposure with smoke/heat measurement, environmental conditioning, post-test electrical/mechanical re-measurement, and visual inspection. Additional checks cover tan delta, capacitance, and marking durability.
Application
RHZ1-2OL(AS)-AL Medium Voltage Power Cable (8.7/15kV, 12/20kV, 18/30kV) is perfect for underground and indoor medium voltage supply in hospitals, schools, airports, tunnels, shopping malls, and high-rise buildings requiring enhanced CPR fire classification and low smoke zero halogen properties for maximum occupant safety.
Technical Advantages
● 30+ years of manufacturing experience
● ISO and UL certified production
● Customized cable and transformer solutions
Product Packaging
Wires and Cables packaging (1)
Wires and Cables packaging (2)
Wires and Cables packaging (3)
Wires and Cables packaging (4)
Wires and Cables packaging (5)
Wires and Cables packaging (6)
Wires and Cables packaging (7)
Wires and Cables packaging (8)
Related Products
N2XSY Medium Voltage Power Cable(6/10kV, 12/20kV, 18/30kV)
N2XSY are medium voltage power cables with copper conductors and cross-linked polyethylene (XLPE) insulation, designed according to DIN VDE 0276-620 standards. Constructed with high-purity copper conductors, thermosetting XLPE insulation, metallic screen (copper tape or wires), and tough PVC outer sheath, it meets IEC 60502-2 requirements. The screen ensures electromagnetic compatibility and fault protection. Low tan delta, high breakdown strength, and excellent thermal endurance minimize losses and support overloads. PVC sheath provides solid mechanical and moisture protection for fixed installations. Optional longitudinal water-blocking improves performance in damp areas. Flame-retardant and easy to handle, the N2XSY Medium Voltage Power Cable is favored for power grids, manufacturing plants, commercial developments, and renewable energy sites demanding robust single-core medium voltage cabling with proven durability and cost efficiency in buried or tray installations worldwide.
4/0 Zuzara Aluminum Conductor Triplex Overhead Service Drop Cable
4/0 Zuzara Aluminum Triplex Overhead Service Drop Cable is engineered for efficient and reliable overhead power distribution from utility poles to residential or commercial premises through a weather head. The cable features two phase conductors and a bare ACSR messenger wire bonded closely to provide neutral support. Each aluminum conductor is insulated with UV-resistant black cross-linked polyethylene (XLP) for long-lasting outdoor performance. This triplex cable is designed for 600V applications and is compliant with major ASTM and ICEA standards.
FR-N20XA8E-R 12/20kV Cable Gen to NF C 33-226 - Cu/XLPE/MDPE
The NF C 33-226 Cu-XLPE-MDPE 12/20kV Cable is a premium medium voltage power cable designed for safe and reliable fixed installations. Constructed with a Class 2 stranded copper conductor, cross-linked polyethylene (XLPE) insulation, and a durable MDPE outer sheath, it ensures excellent electrical conductivity, heat resistance, and mechanical protection. Complying with NF C 33-226, IEC 60502-2, and EN 60228 standards, this cable is ideal for power distribution networks in industrial plants, municipal grids, and large commercial facilities. It offers strong resistance to water (AD7) and UV radiation (ISO 4892), and is halogen-free (IEC/EN 60754-1) for safer, more environmentally friendly operation. With a voltage rating of 12/20 (24)kV, a maximum conductor temperature of 90°C, and a robust XLPE insulation system, this cable guarantees stable and efficient power transmission under medium-voltage conditions.
Raven ACSR Conductor Cable
The Raven ACSR Conductor Cable is a reliable overhead conductor designed for efficient power distribution. Named "Raven" for its 1/0 AWG size with 6/1 stranding (6 aluminum wires around 1 steel core), it combines lightweight aluminum for high conductivity with a galvanized steel core for tensile strength. Compliant with ASTM B230, B232, and ICEA standards, this cable offers a breaking load of approximately 3,550 lbs and a current rating up to 242 amps at 75°C in overhead applications. The aluminum 1350-H19 provides excellent corrosion resistance and low electrical resistance (0.1662 Ω/1000ft at 20°C), while the steel enhances sag control over spans up to 250m. Suitable for voltages up to 138kV in distribution lines, the Raven ACSR Conductor Cable minimizes line losses and withstands moderate weather loads, including wind and ice. Its economical design is ideal for utility upgrades, rural electrification, and grid extensions, ensuring dependable power delivery with minimal maintenance in overhead transmission and distribution systems worldwide.SHOUOJ-mining-cable.webp)

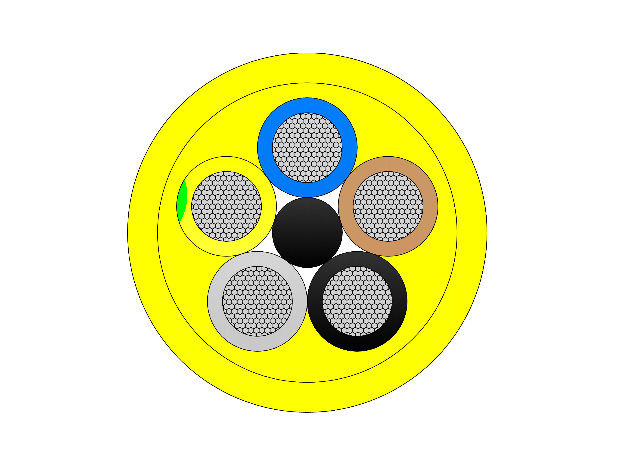

(N)SHOU O/J - 0.6/1kV Mining Cable
