RHZ1-OL(AS)-AL Medium Voltage Power Cable(8.7/15kV, 12/20kV, 18/30kV)
RHZ1-OL(AS)-AL Medium Voltage Power Cable (8.7/15kV, 12/20kV, 18/30kV) is a lightweight cable with enhanced fire retardancy for critical medium voltage applications. Featuring stranded aluminium conductors, cross-linked polyethylene (XLPE) insulation, metallic screen, and low smoke zero halogen (LSZH) outer sheath with advanced fire behavior (AS designation), it complies with UNE 21123-4 and higher CPR classifications. In fire scenarios, it produces very low smoke and no toxic gases. Aluminium construction reduces weight and costs while ensuring reliable current capacity. Superior partial discharge resistance, low dielectric losses, and high thermal stability provide efficient, long-lasting performance. Suitable for direct burial, ducts, or indoor use in high-safety areas. The RHZ1-OL(AS)-AL Medium Voltage Power Cable is perfect for utilities, hospitals, schools, tunnels, and infrastructure projects requiring economical, advanced fire-safe medium voltage cabling with exceptional life-safety features and durability worldwide.
-
Voltage Rating(Uo/U)(Um)
8.7/15 (17.5) KV
12/20 (24)KV
18/30 (36)KV - Temperature Rating -40°C to +90°C
-
Minimum Bending Radius
20 x overall diameter during installation
15 x overall diameter installed
Construction
Technical Specifications
Quality Control
Application
Construction

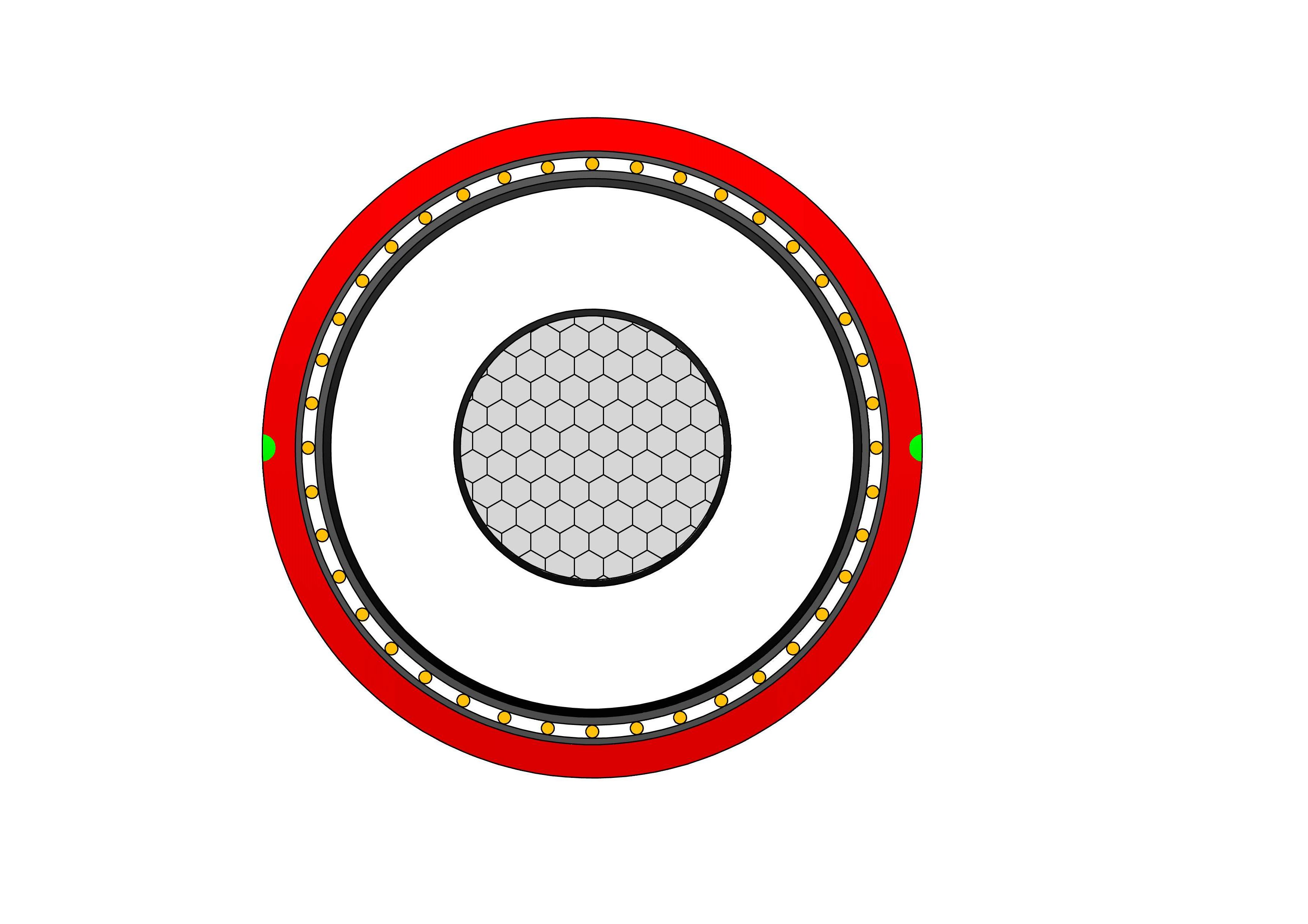

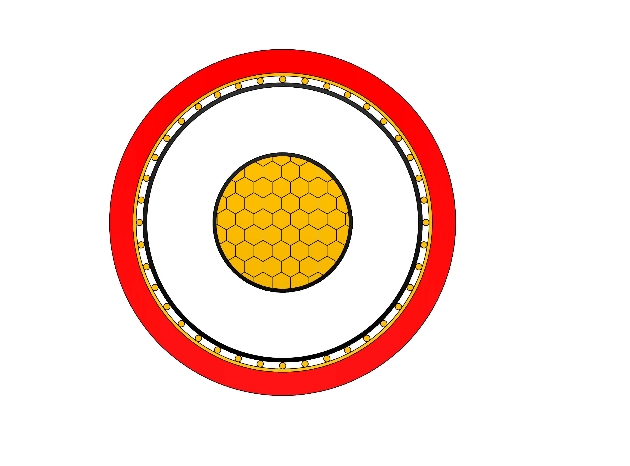

RHZ1-OL(AS)-AL Medium Voltage Power Cable Constrution
-AL-medium-voltage-power-cable-standard.jpg)
Conductor
Class 2 stranded aluminium
Insulation
XLPE (Cross-Linked Polyethylene)
Conductor Screen
Semi-conductive material
Insulation Screen
Semi-conductive material
Longitudinal Waterblocking
Water-swellable tape
Longitudinal Waterblocking
Swellable Tapes
Sheath
PO (Polylefin) DMZ2/ST8
Sheath Color
Red with/Green stripes
Manufacturer Standard
IEC 60502-2, HD 620 10E-5, EN 60228
Flame retardant
CPR Classification Cca s1b, d2, a1
Halogen Free
IEC 60754-1/2
UV Resistant
UNE 211605, HD 605, Subclause 2.2.13
Technical Specifications
RHZ1-OL(AS)-AL Medium Voltage Power Cable(8.7/15kV, 12/20kV, 18/30kV)
RHZ1-OL(AS)-AL 8.7/15 (17.5) KV
RHZ1-OL(AS)-AL 12/20 (24)KV
RHZ1-OL(AS)-AL 18/30 (36)KV
|
No of Cores |
Nominal Cross Section Area |
Nominal Conductor Diameter |
Nominal Thickness of Insulation |
Nominal Diameter Over insulation |
Nominal Metallic Screen Cross Section |
Nominal Outer Sheath Thickness |
Nominal Outer Diameter |
Approximate Weight |
| mm2 | mm | mm | mm | mm2 | mm | mm | kg/km | |
| 1 | 50 | 8.0 | 4.5 | 18.2 | 16 | 2.5 | 28.1 | 720 |
| 1 | 95 | 11.2 | 4.5 | 21.4 | 16 | 2.5 | 31.2 | 1100 |
| 1 | 150 | 14.0 | 4.5 | 24.2 | 16 | 2.7 | 34.1 | 1440 |
| 1 | 240 | 17.9 | 4.5 | 28.1 | 16 | 3.0 | 37.8 | 1780 |
| 1 | 400 | 23.1 | 4.5 | 33.3 | 16 | 3.0 | 42.8 | 2300 |
| 1 | 630 | 29.1 | 4.5 | 39.6 | 16 | 3.0 | 50.3 | 3190 |
|
No of Cores |
Nominal Cross Section Area |
Nominal Conductor Diameter |
Nominal Thickness of Insulation |
Nominal Diameter Over insulation |
Nominal Metallic Screen Cross Section |
Nominal Outer Sheath Thickness |
Nominal Outer Diameter |
Approximate Weight |
| mm2 | mm | mm | mm | mm2 | mm | mm | kg/km | |
| 1 | 50 | 8.0 | 5.5 | 20.2 | 16 | 2.5 | 28.0 | 850 |
| 1 | 95 | 11.2 | 5.5 | 23.4 | 16 | 2.7 | 32.0 | 1100 |
| 1 | 150 | 14.0 | 5.5 | 26.2 | 16 | 3.0 | 34.0 | 1400 |
| 1 | 240 | 17.9 | 5.5 | 30.1 | 16 | 3.0 | 38.0 | 1800 |
| 1 | 400 | 23.1 | 5.5 | 35.3 | 16 | 3.0 | 43.0 | 2500 |
| 1 | 630 | 29.1 | 5.5 | 41.6 | 16 | 3.0 | 50.0 | 3500 |
|
No of Cores |
Nominal Cross Section Area |
Nominal Conductor Diameter |
Nominal Thickness of Insulation |
Nominal Diameter Over insulation |
Nominal Metallic Screen Cross Section |
Nominal Outer Sheath Thickness |
Nominal Outer Diameter |
Approximate Weight |
| mm2 | mm | mm | mm | mm2 | mm | mm | kg/km | |
| 1 | 50 | 8.0 | 5.5 | 25.2 | 16 | 2.7 | 32.0 | 900 |
| 1 | 95 | 8.0 | 5.5 | 28.4 | 16 | 3.0 | 35.0 | 1200 |
| 1 | 150 | 8.0 | 5.5 | 31.2 | 16 | 3.0 | 38.0 | 1500 |
| 1 | 240 | 8.0 | 5.5 | 35.1 | 16 | 3.0 | 43.0 | 1900 |
| 1 | 400 | 8.0 | 5.5 | 40.3 | 16 | 3.0 | 48.0 | 2750 |
| 1 | 630 | 8.0 | 5.5 | 46.6 | 16 | 3.0 | 56.0 | 3500 |
Quality Control
RHZ1-OL(AS)-AL Medium Voltage Power Cable(8.7/15kV, 12/20kV, 18/30kV)
Raw Material Test
For the RHZ1-OL(AS)-AL Medium Voltage Power Cable (8.7/15kV, 12/20kV, 18/30kV), raw material testing emphasizes enhanced fire performance. Aluminium is certified for electrical grade and ductility. XLPE granules are evaluated for contamination, thermal stability, and crosslinking efficiency via microscopy and TGA. Screen materials undergo resistivity and bonding checks. Enhanced LSZH compound faces advanced halogen-free verification, higher flame-retardant loading, smoke opacity, and corrosivity tests per EN standards. The structured process: receipt inspection, random sampling, physical/mechanical testing (tensile, elongation), chemical analysis with ion chromatography, accelerated aging and fire simulation trials, and release decision. This ensures premium inputs, establishing the base for the RHZ1-OL(AS)-AL Medium Voltage Power Cable's dielectric strength, screening reliability, enhanced low-emission fire safety.
Process inspection
Process inspection during RHZ1-OL(AS)-AL Medium Voltage Power Cable (8.7/15kV, 12/20kV, 18/30kV) production involves continuous fire-focused monitoring. Aluminium conductor forming checks uniformity and surface quality. Triple co-extrusion ensures void-free shields and insulation with real-time thickness gauges. Screen application monitors coverage and tension. Enhanced LSZH sheath extrusion includes online spark testing and ovality control. Critical steps: pre-extrusion compound dryness verification, parameter stabilization, capacitance-based eccentricity monitoring, gel fraction sampling, partial discharge intermediate checks, advanced fire-retardant additive distribution, and defect removal protocols. This multi-stage assurance maintains the RHZ1-OL(AS)-AL Medium Voltage Power Cable's precise geometry, reliable screening, uniform enhanced LSZH sheath with advanced fire behavior, and UNE/CPR compliance throughout manufacturing.
Finished Product
Completed RHZ1-OL(AS)-AL Medium Voltage Power Cable (8.7/15kV, 12/20kV, 18/30kV) reels are subjected to comprehensive tests. Mandatory routines: DC resistance, high-potential AC test, partial discharge (≤5pC), screen resistance, and thickness checks. Enhanced fire tests include bundled flame propagation, heat release, smoke production, and acidity measurement for advanced CPR compliance. Extended tests cover impulse and long-duration voltage. The sequential process: sample conditioning, parameter application (voltage/heat), timed fire exposure monitoring, recovery inspection, property re-measurement, and documentation. Additional verifications ensure marking permanence and flexibility. Passing all confirms the RHZ1-OL(AS)-AL Medium Voltage Power Cable's enhanced fire retardancy, low smoke zero halogen properties, electrical integrity, and suitability for critical medium voltage applications in public or confined spaces.
Application
Perfect for medium voltage distribution in high-risk venues like metro systems, theaters, hotels, data centers, and commercial complexes requiring enhanced fire retardancy and higher CPR ratings. Commonly installed indoors or underground for superior protection and low smoke emission in densely populated environments.
Technical Advantages
● 30+ years of manufacturing experience
● ISO and UL certified production
● Customized cable and transformer solutions
Product Packaging
Wires and Cables packaging (1)
Wires and Cables packaging (2)
Wires and Cables packaging (3)
Wires and Cables packaging (4)
Wires and Cables packaging (5)
Wires and Cables packaging (6)
Wires and Cables packaging (7)
Wires and Cables packaging (8)
Related Products
4 Artemia Aluminum Conductor Triplex Overhead Service Drop Cable
4 Artemia Triplex Aluminum Overhead Service Drop Cable is designed for reliable power distribution in residential, commercial, and temporary installations. It features two insulated phase conductors and a bare AAC (All-Aluminum Conductor) messenger that serves both as a neutral and as the cable’s mechanical support. Suitable for 120/240V single-phase overhead service, the cable operates at voltages up to 600V. The black cross-linked polyethylene (XLP) insulation delivers excellent resistance to UV rays, moisture, and abrasion, ensuring long-term outdoor performance.
THHN AND THWN
Electrical wire THHN THWN is used in new construction projects or rewiring tasks in 600-volt systems. Versatile and usable in both wet and dry locations, THHN/THWN-2 is an excellent choice for a wide range of electrical installations. THHN/THWN-2 conductors can withstand temperatures up to 90°C in dry environments and up to 75°C in the presence of oil or coolant. Its outer nylon jacket is smooth and fine, ensuring easy installation by reducing friction during pulling. This feature is especially useful for long or challenging runs.
NYBY 0.6/1kV Low Voltage Power Cable
NYBY 0.6/1kV are low voltage power cables designed according to IEC 60502-1 standard, suitable for fixed installation in indoor, outdoor, underground, cable ducts, or concrete environments, with steel tape armoring for enhanced mechanical protection. Constructed with copper conductors, PVC core insulation, filling, galvanized steel wire armour, and tough PVC outer sheath, it meets VDE 0276 and IEC requirements. The SWA layer offers outstanding resistance to mechanical damage, enabling direct burial without additional conduits. Copper ensures minimal losses and high current rating. Flame-retardant and stable in moist conditions, the NYBY 0.6/1kV Low Voltage Power Cable is widely used in factories, renewable energy sites, commercial complexes, and infrastructure needing reliable, long-service-life low-voltage cabling with enhanced safeguarding in aggressive soils or high-risk areas.H-medium-voltage-power-cable.jpg)

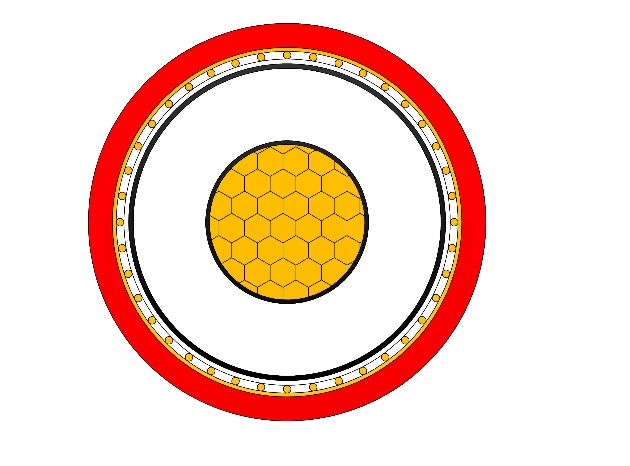

N2XS(F)H Medium Voltage Power Cable (6/10kV, 12/20kV, 18/30kV)
