167kVA Conventional Type Single Phase Pole Mounted Transformer
NPC ELECTRIC'S 167kVA Conventional Type Single Phase pole Mounted transformer is a high capacity single phase distribution transformer designed for medium to high load distribution systems. It is mainly used in residential, commercial, agricultural and light industrial applications to provide stable single phase power to ensure reliable operation of user-side equipment. It complies with international standards such as ANSI/IEEE C57, IEC60076 and other standards to ensure its high quality and stability.
- Primary Voltage Ratings 2.4-34.5kV
- Secondary Voltage Ratings 480-240/240-120 or customized
- H.V. Tap Range ± 2×2.5% HV taps or others
- Type Conventional Type
- BIL 30-150kV
- Standards IEEE, ANSI, NEMA, ASTM
- Application Residential, commercial, agricultural and light industrial
- Power Rating 167kVA
- Certificate CE, ISO
- Cooling Method ONAN, KNAN
- Oil Minerial Oil or FR3
- Opeartion Step Down
Technical Specifications
Customization Optional
Packing and Shipping
Manufacturer Test
Routine Testing
Application
Technical Specifications
167kVA Conventional Type Single Phase Pole Mounted Transformer
Technical Specifications
Accessories
| Rated Power | 167 kVA |
| Rating Primary Voltage | 12.4-34.5kV |
| Secondary Voltage | 480-240V 240-120V 277V Customized |
| Frequency | 50/60Hz |
| Vector Group | Ii0,Ii6 |
| Winding Material | Aluminum/Copper |
| Efficiency | As IEEE,Doe 2016,CAS Std or Customized |
| Impedance Voltage | Nominal 2% or Customized 1.1-5.75% |
| Altitude | ≤1,000m or Customized |
| Color | ANSI 70 Light gray/Munsell 7GY3.29/1.5 or customized etc |
| Tank material | Mild Steel, 304 Stainless Steel |
| Insulating Oil Weight | 138 kg |
| Total Weight | 680 kg |
| Outline Dimensions（W×D×H） | 795×890×1335 (mm) |
| Lifting Lug |
| Tap Changer |
| Pressure Relief Valve |
| Tank Cover and clamp |
| L.V Bushing |
| HV Bushing |
| Ground Strap |
| Nameplate |
| Non-PCB decal |
| High Voltage Warning Signs |
| Suport lug |
| Oil fill valve |
Customization Optional
167kVA Conventional Type Single Phase Pole Mounted Transformer
As a high-power single-phase transformer, NPC ELECTRIC'S 167kVA Conventional Type Single Phase pole Mounted transformer provides a variety of optional specifications according to different application requirements. These options cover electrical performance, cooling methods, insulation materials, protection levels, shell coatings and special accessories to ensure that the transformer can provide optimal performance in different working environments and usage scenarios.
The rated voltage high-voltage side can be 11kV, 13.2kV, 13.8kV, 15kV, 19.92kV, 24.94kV, etc., depending on the grid standard. The low-voltage side can be 120/240V, 240/480V, 277/480V or other customized voltages. The frequency is 50Hz or 60Hz, and the appropriate transformer specifications are selected according to the grid frequency of different countries or regions.
The rated voltage high-voltage side can be 11kV, 13.2kV, 13.8kV, 15kV, 19.92kV, 24.94kV, etc., depending on the grid standard. The low-voltage side can be 120/240V, 240/480V, 277/480V or other customized voltages. The frequency is 50Hz or 60Hz, and the appropriate transformer specifications are selected according to the grid frequency of different countries or regions.
The insulation level can be A, B, F or H insulation, and the specific choice depends on the working environment and temperature requirements of the transformer. The high-level insulation system can improve the transformer's high temperature resistance and extend the service life of the equipment. Mineral oil complies with IEC 60296 or ASTM D3487 standards and has good electrical insulation and heat dissipation capabilities. Silicone oil is used in places with high fire protection requirements. It is resistant to high temperatures and non-flammable, and is suitable for urban power supply systems and indoor installations. Natural ester oil is an environmentally friendly insulating oil with good biodegradability and high temperature resistance, suitable for areas with strict environmental protection requirements (such as water source protection areas).
The 167kVA Conventional Type Single Phase pole Mounted transformer provides a variety of optional specifications to meet different grid requirements, environmental conditions and special application needs. By selecting different voltage levels, insulation media, cooling methods, protection levels and intelligent monitoring functions, the transformer can provide reliable power guarantees in many fields such as urban and rural power distribution, industrial power supply, agricultural power and new energy applications.
The 167kVA Conventional Type Single Phase pole Mounted transformer provides a variety of optional specifications to meet different grid requirements, environmental conditions and special application needs. By selecting different voltage levels, insulation media, cooling methods, protection levels and intelligent monitoring functions, the transformer can provide reliable power guarantees in many fields such as urban and rural power distribution, industrial power supply, agricultural power and new energy applications.
Packing and Shipping
167kVA Conventional Type Single Phase Pole Mounted Transformer
NPC ELECTRIC'S 167kVA Conventional Type Single Phase pole Mounted transformer is very important for international transportation, packaging and transportation management to ensure that the product is not damaged during sea transportation, maintain its good performance and safety.
In order to ensure that the transformer is not affected by the external environment during long-distance transportation, it is usually packed in sturdy wooden boxes or wooden pallets. A waterproof film is added to the outside of the wooden box to prevent water vapor from entering and protect the transformer from moisture. The wooden box structure usually uses imported high-quality wood to ensure strength and stability. The transformer is additionally protected against shock by foam, airbags or rubber pads inside the wooden box to reduce possible collisions and vibrations during transportation.
The transformer is fixed in the container by steel wire ropes, wooden frames, support blocks, etc. to prevent sliding or tilting during transportation. Especially during the shaking of sea voyage, it is necessary to ensure that the transformer is stable and motionless to avoid damage. Sea transportation usually involves long-term sea transportation, especially in humid and salt spray environments. To prevent the equipment housing and internal components from being corroded by salt, an anti-salt spray coating is added to the outside of the packaging box, and preservatives are used to ensure the safety of the transformer during sea transportation. During transportation, products are usually insured with full marine insurance to ensure full compensation in case of damage or loss.
The packaging and shipping process of NPC ELECTRIC'S 167kVA Conventional Type Single Phase Pole Mounted transformer involves multiple details, including sturdy wooden box packaging, moisture and corrosion protection, precise loading and fixing, temperature and humidity monitoring during sea transportation, and customs clearance and delivery procedures after arriving at the destination. Through professional packaging and transportation arrangements, we ensure that the transformer is fully protected during long-distance sea transportation and arrives at the customer's hands on time and safely.
In order to ensure that the transformer is not affected by the external environment during long-distance transportation, it is usually packed in sturdy wooden boxes or wooden pallets. A waterproof film is added to the outside of the wooden box to prevent water vapor from entering and protect the transformer from moisture. The wooden box structure usually uses imported high-quality wood to ensure strength and stability. The transformer is additionally protected against shock by foam, airbags or rubber pads inside the wooden box to reduce possible collisions and vibrations during transportation.
The transformer is fixed in the container by steel wire ropes, wooden frames, support blocks, etc. to prevent sliding or tilting during transportation. Especially during the shaking of sea voyage, it is necessary to ensure that the transformer is stable and motionless to avoid damage. Sea transportation usually involves long-term sea transportation, especially in humid and salt spray environments. To prevent the equipment housing and internal components from being corroded by salt, an anti-salt spray coating is added to the outside of the packaging box, and preservatives are used to ensure the safety of the transformer during sea transportation. During transportation, products are usually insured with full marine insurance to ensure full compensation in case of damage or loss.
The packaging and shipping process of NPC ELECTRIC'S 167kVA Conventional Type Single Phase Pole Mounted transformer involves multiple details, including sturdy wooden box packaging, moisture and corrosion protection, precise loading and fixing, temperature and humidity monitoring during sea transportation, and customs clearance and delivery procedures after arriving at the destination. Through professional packaging and transportation arrangements, we ensure that the transformer is fully protected during long-distance sea transportation and arrives at the customer's hands on time and safely.
32
32 years of industry experience

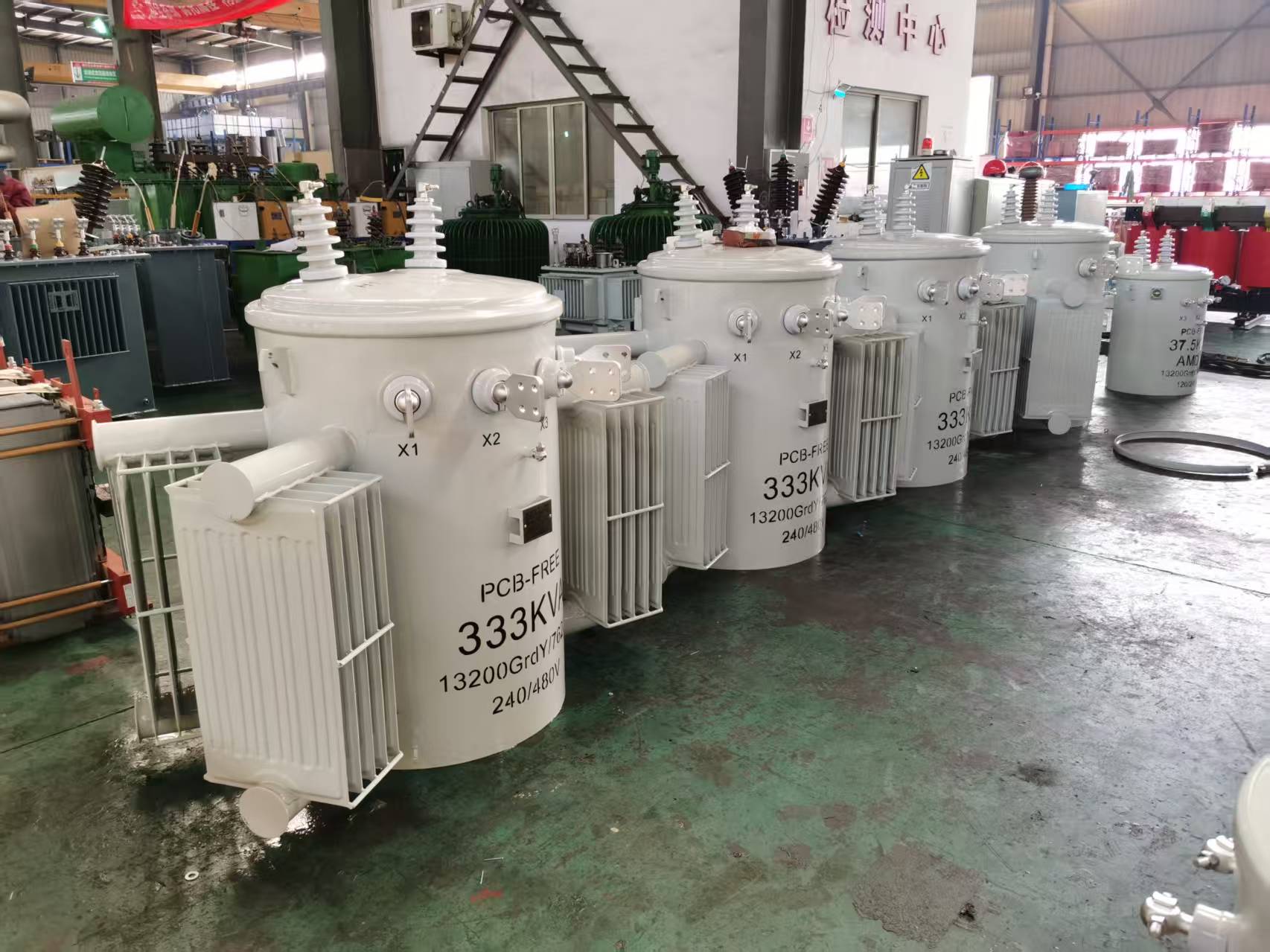

Manufacturer Test
167kVA Conventional Type Single Phase Pole Mounted Transformer
Progress Test
During the manufacturing process of NPC ELECTRIC'S 167kVA Conventional Type Single Phase pole Mounted transformer, the manufacturer will conduct a series of key tests, including material inspection, winding test and insulation inspection. The tests also include electrical performance verification, such as short-circuit test, load test and temperature rise test to ensure that the transformer can operate safely under the specified environmental conditions. Through these tests, manufacturers can confirm that the transformer meets industry standards and customer requirements. The results of the progress test will be recorded in the report as a quality assurance before final delivery.
Design Tests
All transformer will be test after finished the production, test items as below:
♦ Insulation Power Factor
♦ Ratio, Polarity, and Phase Relation
♦ Winding Resistance
♦ Impulse Tests
♦ On load Loss Test
♦ No Load Loss Test
♦ Leak Test
♦ DC Insulation Resistance Test
♦ Transformer Turns Ratio/TTR (All Tap Voltages)
♦ Impedance Voltage & Load Loss (Rated Voltage)
♦ Polarity, 1-Ph
♦ Excitation & No-Load Loss (Rated Voltage)
♦ Applied Voltage
♦ Induced Voltage
♦ Lightning Impulse
♦ Insulation Resistance (Rated Voltage)
♦ Temperature Rise
♦ Dielectric Withstand (Hipot)
Transformer Factory Acceptance Test
The factory acceptance test of NPC ELECTRIC'S 167kVA Conventional Type Single Phase pole Mounted transformer includes a comprehensive test of the transformer's electrical performance, mechanical structure and safety functions to ensure that it meets the design requirements and international standards. The test content usually covers no-load test, load test, short-circuit test and temperature rise test to verify the reliability and stability of the transformer.
Routine Test - Transformer Turns Ratio/TTR (All Tap Voltages)
Purpose of Testing
The purpose of the transformer turns ratio (TTR) test is to confirm whether the voltage ratio between each tap of the transformer meets the design requirements and ensure that the transformer winding is connected correctly. By measuring the voltage ratio of each tap, it is possible to detect whether there is a fault or deviation in the transformer winding.
Testing Equipment
TTR tester: such as Doble, Megger, Omicron and other brands of transformer winding ratio tester.
Voltage source: usually AC 10 V to 30 V , used to test different voltages for each tap.
Temperature and humidity meter: used to record environmental conditions during the test to ensure test accuracy.
Current probe: used to measure the load current of the winding and ensure the accuracy of the test results.
Voltage source: usually AC 10 V to 30 V , used to test different voltages for each tap.
Temperature and humidity meter: used to record environmental conditions during the test to ensure test accuracy.
Current probe: used to measure the load current of the winding and ensure the accuracy of the test results.
Pre-Test Preparation
Disconnect all transformer tap-changers from the power supply and ensure that all equipment is properly grounded and discharged.
Perform the test under suitable environmental conditions: relative humidity below 75% and no rain (recommended temperature: 20-30°C). Avoid high humidity or bad weather that may affect the test accuracy.
Perform the test under suitable environmental conditions: relative humidity below 75% and no rain (recommended temperature: 20-30°C). Avoid high humidity or bad weather that may affect the test accuracy.
Test Progress
Perform the test under suitable environmental conditions: relative humidity below 75% and no rain (recommended temperature: 20-30°C). Avoid high humidity or bad weather that may affect the test accuracy.
Measure and Record
Start the test and record the following parameters:
The voltage ratio between the windings
Deviation of the measured value from the rated ratio
The voltage ratio between the windings
Deviation of the measured value from the rated ratio
Temperature Correction
If necessary, perform temperature correction on the measured turns ratio data (especially when testing at higher or lower temperatures). Generally, the standard reference temperature for temperature correction is 20°C.
Repeat Testing (if necessary)
If necessary, perform temperature correction on the measured turns ratio data (especially when testing at higher or lower temperatures). Generally, the standard reference temperature for temperature correction is 20°C.
Evaluation Criteria (Reference)
Turns ratio error ≤ 0.5% (pass)
0.5% < Turns ratio error ≤ 1% (caution)
Turns ratio error > 1% (further inspection or corrective action required)
0.5% < Turns ratio error ≤ 1% (caution)
Turns ratio error > 1% (further inspection or corrective action required)
*These comprehensive tests ensure that each transformer meets performance standards and operates
reliably under various conditions.
Application
Residential, commercial, agricultural and light industrial
Technical Advantages
● 30+ years of manufacturing experience
● ISO and UL certified production
● Customized cable and transformer solutions
Product Packaging
Transformers Packaging (1)
Transformers Packaging (2)
Transformers Packaging (3)
Transformers Packaging (4)
Transformers Packaging (5)
Transformers Packaging (6)
Transformers Packaging (7)
Transformers Packaging (8)
