N2XRY 0.6/1kV Low Voltage Power Cable
N2XRY 0.6/1kV are low voltage power cables designed according to BS 5467 standard, suitable for fixed installation in indoor, outdoor, underground, Cable ducts ,conduits or concrete (not subject to vibration) environments,with additional mechanical protection due to steel wire armouring.
- Characteristics Voltage Rating Uo/U 0.6/1kV
- Temperature Rating Fixed: -25°C to +90°C
- Minimum Bending Radius 1.5mm² to 16mm² - Fixed: 6 x overall diameter; 25mm² and above - Fixed: 8 x overall diameter
Construction
Technical Specifications
Quality Control
Application
Construction

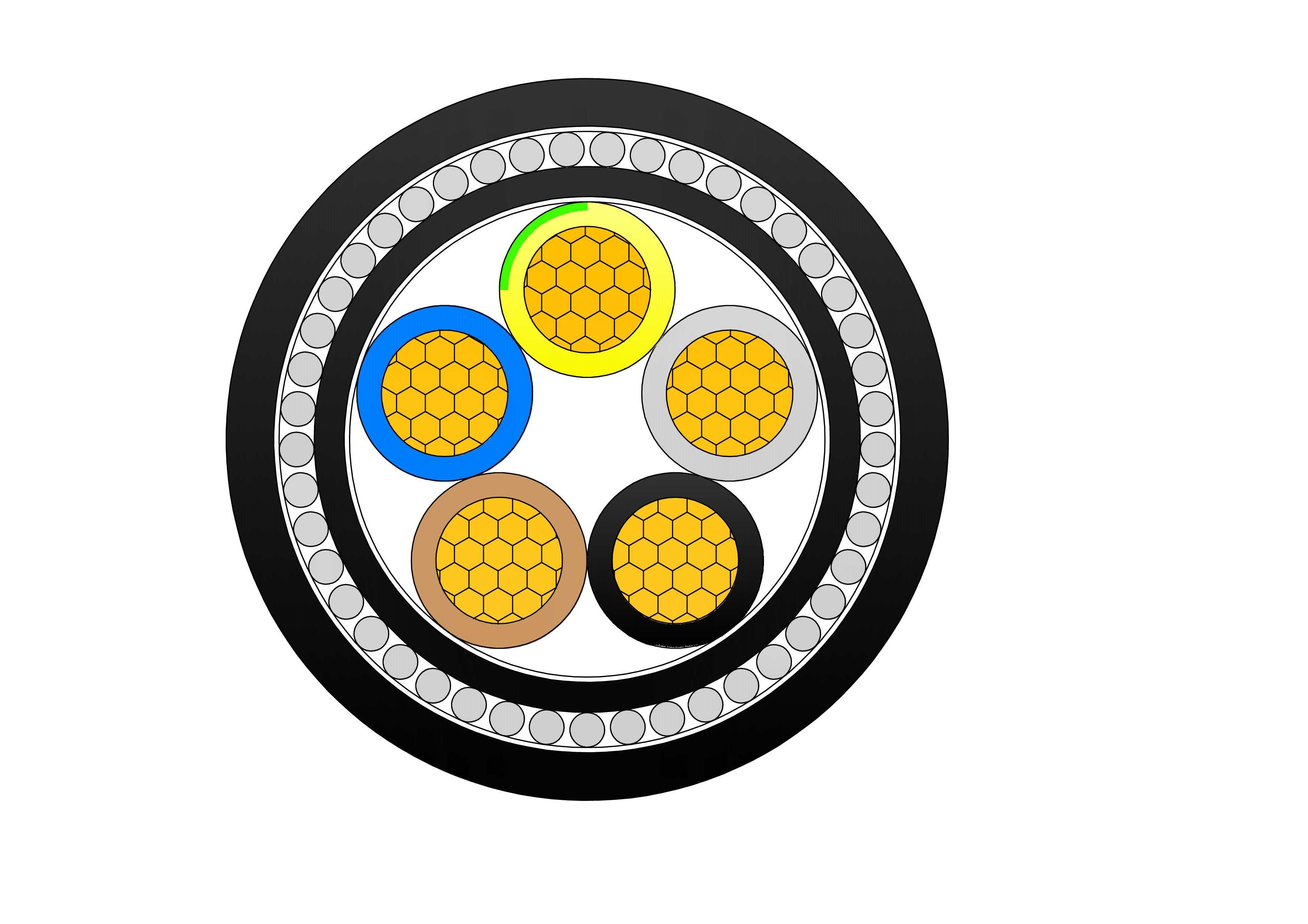

N2XRY 0.6/1kV Low Voltage Power Cable Construction
Conductor
Class 2 Stranded copper
Insulation
XLPE (Cross-Linked Polyethylene)
Bedding
PVC (Polyvinyl Chloride)
Armour
SWA (Steel Wire Armour)
Sheath
PVC(Polyvinyl Chloride)
Sheath Colour
Black
Manufacturer Standard
BS 5467, IEC/EN 60502-1, IEC/EN 60228
Flame retardant
IEC/EN 60332-1-2
Core Identification
2 core: Brown /Blue
3 core: Brown /Blue/Grey
4 core: Brown / Black/ Grey/ Green/Blue
5 core: Green/Yellow /Brown /Blue/ Black/ Grey
3 core: Brown /Blue/Grey
4 core: Brown / Black/ Grey/ Green/Blue
5 core: Green/Yellow /Brown /Blue/ Black/ Grey
Application
N2XRY cables are suitable for fixed installation in indoor, outdoor, underground, duct and other environments, especially for places with high requirements for mechanical protection.
Technical Specifications
N2XRY 0.6/1kV Low Voltage Power Cable
N2XRY Low Voltage Power Cable Technical Specifications
|
No of Cores |
Nominal Cross Section Area |
Nominal Thickness of insulation |
Nominal Overall Diameter | Approximate Weight |
BW / CW GLAND |
Wraparound Cleats |
|
| Under Armour | Overall | ||||||
| mm2 | mm | mm | kg/km | ||||
| 2 | 1.5 | 0.6 | 7.3 | 12.1 | 302 | 20 | CC5 |
| 2 | 2.5 | 0.7 | 8.5 | 13.6 | 346 | 20 | CC6 |
| 2 | 4 | 0.7 | 9.4 | 14.7 | 410 | 20S | CC7 |
| 2 | 6 | 0.7 | 10.5 | 15.9 | 499 | 20 | CC7 |
| 2 | 10 | 0.7 | 12.3 | 18 | 648 | 20 | CC8 |
| 2 | 16 | 0.7 | 14.3 | 20.4 | 978 | 20 | CC9 |
| 2 | 25 | 0.9 | 14.7 | 20.4 | 1290 | 25 | CC9 |
| 2 | 35 | 0.9 | 16.8 | 23.3 | 1500 | 25 | CC10 |
| 2 | 50 | 1 | 19 | 25.8 | 1890 | 25 | CC11 |
| 2 | 70 | 1.1 | 22 | 29 | 2450 | 32 | CC12 |
| 2 | 95 | 1.1 | 25.1 | 33.1 | 3300 | 32 | CC14 |
| 2 | 120 | 1.2 | 27.9 | 36.1 | 4020 | 40 | CC16 |
| 2 | 150 | 1.4 | 30.9 | 39.3 | 4750 | 40 | CC16 |
| 3 | 1.5 | 0.6 | 7.8 | 12.6 | 330 | 20 | CC5 |
| 3 | 2.5 | 0.7 | 9.2 | 14.1 | 390 | 20S | CC6 |
| 3 | 4 | 0.7 | 10 | 15.3 | 464 | 20S | CC7 |
| 3 | 6 | 0.7 | 11.2 | 16.6 | 568 | 20 | CC7 |
| 3 | 10 | 0.7 | 13.1 | 19.5 | 866 | 20 | CC8 |
| 3 | 16 | 0.7 | 15.3 | 21.6 | 1152 | 25 | CC9 |
| 3 | 25 | 0.9 | 18.9 | 23.6 | 1800 | 25 | CC11 |
| 3 | 35 | 0.9 | 21.3 | 25.7 | 2230 | 32 | CC12 |
| 3 | 50 | 1 | 21.7 | 28.5 | 2490 | 32 | CC12 |
| 3 | 70 | 1.1 | 25.2 | 32.2 | 3290 | 32 | CC14 |
| 3 | 95 | 1.1 | 28.8 | 37 | 4440 | 40 | CC16 |
| 3 | 120 | 1.2 | 32 | 40.4 | 5470 | 40 | CC16 |
| 3 | 150 | 1.4 | 35.9 | 45.5 | 6930 | 50S | CC18 |
| 3 | 185 | 1.6 | 40 | 49.8 | 8350 | 63S | CC20 |
| 3 | 240 | 1.7 | 44.9 | 55.1 | 10400 | 63S | - |
| 3 | 300 | 1.8 | 49.8 | 60.2 | 12600 | 63S | - |
| 3 | 400 | 2 | 55.8 | 66.6 | 14600 | 75S | - |
| 4 | 1.5 | 0.6 | 8.5 | 13.3 | 365 | 20S | CC6 |
| 4 | 2.5 | 0.7 | 9.9 | 15 | 438 | 20 | CC6 |
| 4 | 4 | 0.7 | 11 | 16.4 | 532 | 20 | CC7 |
| 4 | 6 | 0.7 | 12.3 | 18.7 | 764 | 20 | CC8 |
| 4 | 10 | 0.7 | 14.5 | 21.1 | 1013 | 25 | CC9 |
| 4 | 16 | 0.7 | 17 | 23.4 | 1360 | 25 | CC10 |
| 4 | 25 | 0.9 | 21 | 26.1 | 2160 | 32 | CC11 |
| 4 | 35 | 0.9 | 23.6 | 28.6 | 2690 | 32 | CC12 |
| 4 | 50 | 1 | 25 | 32 | 3130 | 32 | CC14 |
| 4 | 70 | 1.1 | 29.5 | 37.7 | 4500 | 40 | CC16 |
| 4 | 95 | 1.1 | 33.3 | 41.7 | 5600 | 50S | CC18 |
| 4 | 120 | 1.2 | 37.5 | 47.1 | 7400 | 50 | CC20 |
| 4 | 150 | 1.4 | 41.6 | 51.4 | 8780 | 50 | - |
| 4 | 185 | 1.6 | 46.4 | 56.6 | 10630 | 63S | - |
| 4 | 240 | 1.7 | 52.6 | 63 | 13390 | 63 | - |
| 4 | 300 | 1.8 | 58 | 68.8 | 16290 | 75S | - |
| 4 | 400 | 2 | 65.4 | 78.1 | 19800 | 90 | - |
| 5 | 1.5 | 0.6 | 9.7 | 14.3 | 410 | 20S | CC6 |
| 5 | 2.5 | 0.7 | 11.7 | 16.1 | 470 | 20 | CC7 |
| 5 | 4 | 0.7 | 13 | 17.8 | 710 | 20 | CC7 |
| 5 | 6 | 0.7 | 14.5 | 20 | 876 | 25 | CC8 |
| 5 | 10 | 0.7 | 17.2 | 22.9 | 1165 | 25 | CC10 |
| 5 | 16 | 0.7 | 20 | 26.6 | 1742 | 32 | CC11 |
| 5 | 25 | 0.9 | 24.7 | 31.5 | 2323 | 32 | CC14 |
| 5 | 35 | 0.9 | 27.8 | 34.8 | 2932 | 40 | CC14 |
| 5 | 50 | 1 | 32.4 | 40.4 | 4192 | 50S | CC16 |
| 5 | 70 | 1.1 | 35.8 | 43.0 | 5500 | 50S | CC18 |
| 5 | 95 | 1.1 | 42.1 | 49.0 | 7145 | 50S | CC20 |
| 7 | 1.5 | 0.6 | 10.2 | 15.2 | 470 | 20S | CC6 |
| 7 | 2.5 | 0.7 | 12.3 | 17.1 | 600 | 20 | CC7 |
| 7 | 4 | 0.7 | 13.6 | 19.1 | 881 | 20 | CC8 |
| 12 | 1.5 | 0.6 | 13.7 | 19.4 | 780 | 20 | CC8 |
| 12 | 2.5 | 0.7 | 16.3 | 22.4 | 1000 | 25 | CC9 |
| 19 | 1.5 | 0.6 | 16.2 | 22.2 | 1000 | 25 | CC9 |
| 19 | 2.5 | 0.7 | 19.9 | 26.6 | 1540 | 25 | CC11 |
| 27 | 1.5 | 0.6 | 20 | 26.7 | 1500 | 32 | CC11 |
| 27 | 2.5 | 0.7 | 24 | 30.7 | 1950 | 32 | CC14 |
| 37 | 1.5 | 0.6 | 22.3 | 29 | 1800 | 32 | CC12 |
| 37 | 2.5 | 0.7 | 26.9 | 33.8 | 2350 | 40 | CC14 |
Quality Control
N2XRY 0.6/1kV Low Voltage Power Cable
Raw Material Test
NPC has always chosen raw material suppliers who have a good reputation, possess stable supply capabilities and have passed international quality system certifications (such as ISO 9001). And establish a long-term cooperative relationship with it, forming a stable and reliable raw material supply chain.
We will ensure that all raw materials are subject to strict inspection procedures upon entry to the factory, and can only be stored in the warehouse after they have been confirmed to meet the standards.
Process inspection
NPC has strict quality control procedures for each process in the cable production process.
Process documents: Develop detailed process flow and operation instructions to clarify the operating specifications and quality standards of each process.
Equipment calibration: Regularly calibrate key equipment such as wire drawing machines, stranding machines, extruders, and diameter gauges to ensure that the accuracy meets the requirements.
First piece confirmation: Before each batch of production, the first piece is trial-produced to confirm that the process parameters, product dimensions, electrical performance, etc. meet the standards before mass production can be carried out.
Finished Product
Inspectors conduct ex-factory inspections on cables according to relevant standards and corresponding product inspection specifications to ensure that each ex-factory product complies with the process regulations.
Application
N2XRY cables are suitable for fixed installation in indoor, outdoor, underground, duct and other environments, especially for places with high requirements for mechanical protection.
Technical Advantages
● 30+ years of manufacturing experience
● ISO and UL certified production
● Customized cable and transformer solutions
Product Packaging
Wires and Cables packaging (1)
Wires and Cables packaging (2)
Wires and Cables packaging (3)
Wires and Cables packaging (4)
Wires and Cables packaging (5)
Wires and Cables packaging (6)
Wires and Cables packaging (7)
Wires and Cables packaging (8)
