NA2XBY 0.6/1kV Low Voltage Power Cable
NA2XBY 0.6/1kV are low voltage power cables designed according to EN 60228 standard, suitable for fixed installation in indoor, outdoor, underground, Cable ducts, conduits, or concrete (not subject to vibration) environments. Featuring stranded aluminium conductors, cross-linked polyethylene (XLPE) insulation, PVC bedding, galvanized steel wire armour (SWA), and PVC outer sheath, it complies with IEC 60502-1 standards. The lightweight aluminium reduces material and installation costs while the SWA provides robust mechanical protection against impacts and rodents, ideal for direct burial. With low dielectric losses, high thermal stability, and good moisture resistance, it ensures efficient transmission in demanding environments. Flame-retardant and durable, the NA2XBY 0.6/1kV Low Voltage Power Cable offers long service life with minimal maintenance. Perfect for industrial sites, infrastructure projects, commercial developments, and utility networks requiring reliable, protected low-voltage underground power supply.
- Voltage Rating(Uo/U) 0.6/1kV
- Maximum Operating Temperature +90°C
- Minimum Bending Radius 15 x overall diameter
Construction
Technical Specifications
Quality Control
Application
Construction

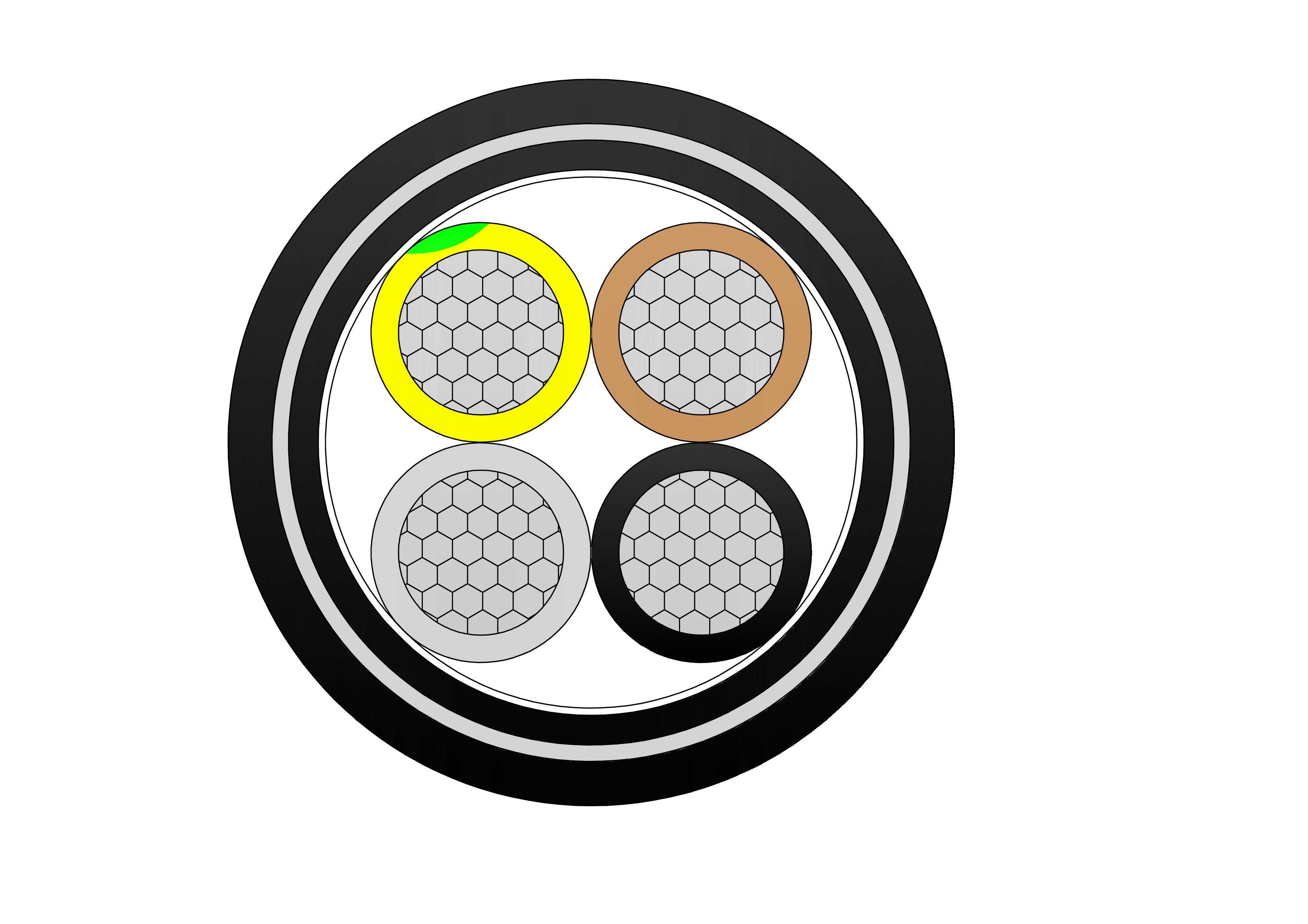

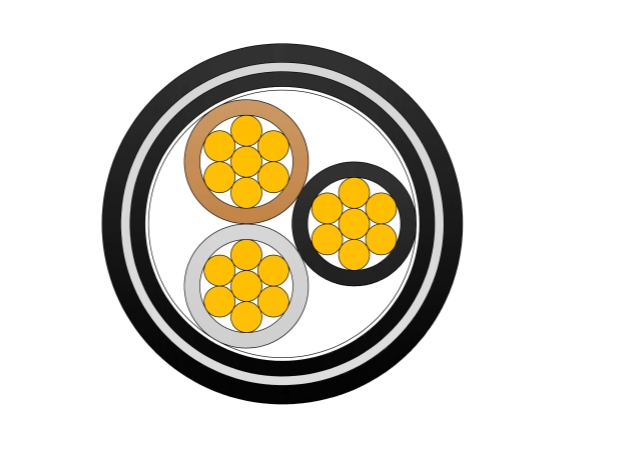

NA2XBY 0.6/1kV Low Voltage Power Cable Construction
Conductor
Class 2 stranded aluminium conductor
Insulation
XLPE (Cross-Linked Polyethylene)
Filler
PVC(Polyvinyl Chloride)
Armour
Double galvanized steel tape
Sheath
PVC(Polyvinyl Chloride)
Sheath Colour
Black
Manufacturer Standard
IEC 60502-1, EN 60228
Flame retardant
IEC/EN 60332-1-2
Application
With its galvanized steel tape armor, this cable offers excellent resistance to mechanical stress and is well-suited for use in local distribution networks.
Technical Specifications
NA2XBY 0.6/1kV Low Voltage Power Cable
NA2XBY Low Voltage Power Cable Technical Specifications
|
No of Cores |
Nominal Cross-Section Area |
Nominal Overall Diameter |
Approximate Weight |
| mm2 | mm | kg/km | |
| 2 | 16 | 19.6 | 624 |
| 2 | 25 | 22.6 | 807 |
| 2 | 35 | 24.8 | 967 |
| 3 | 16 | 20.5 | 741 |
| 3 | 25 | 23.8 | 985 |
| 3 | 35 | 26.2 | 1202 |
| 3 | 35/16 | 27.4 | 1317 |
| 3 | 50 | 29.6 | 1503 |
| 3 | 50/25 | 30.2 | 1573 |
| 3 | 70 | 33.5 | 1914 |
| 3 | 70/35 | 35.3 | 2132 |
| 3 | 95 | 37.6 | 2429 |
| 3 | 95/50 | 39.7 | 2711 |
| 3 | 120 | 42.5 | 2991 |
| 3 | 120/70 | 45 | 3363 |
| 3 | 150/70 | 48.8 | 4271 |
| 3 | 185/95 | 54.1 | 41191 |
| 3 | 240/120 | 61.2 | 6174 |
| 4 | 16 | 22.1 | 859 |
| 4 | 25 | 26 | 1172 |
| 4 | 35 | 28.6 | 1434 |
| 4 | 50 | 32.4 | 1804 |
| 4 | 70 | 36.7 | 2306 |
| 5 | 16 | 23.9 | 1057 |
| 5 | 25 | 28.4 | 1477 |
| 5 | 35 | 31.5 | 1842 |
| 5 | 50 | 35.9 | 2356 |
| 5 | 70 | 40 | 2960 |
| 5 | 95 | 45.3 | 3837 |
Quality Control
NA2XBY 0.6/1kV Low Voltage Power Cable
Raw Material Test
For the NA2XBY 0.6/1kV Low Voltage Power Cable, raw material testing begins with aluminium certification for alloy composition and mechanical properties. XLPE granules are tested for crosslinking potential, contamination, and thermal endurance via hot set pre-checks. PVC compounds undergo Congo red testing, volume resistivity, and migration analysis. Steel wires are checked for galvanization mass, diameter tolerance, and breaking load. The structured process: receipt documentation review, random sampling, physical/mechanical testing (yield, elongation), chemical verification using spectroscopy, accelerated aging/corrosion trials, and material release decision. This ensures defect-free inputs, providing the base for the NA2XBY 0.6/1kV Low Voltage Power Cable's electrical performance, insulation quality, and robust armour protection.
Process inspection
Process inspection in NA2XBY 0.6/1kV Low Voltage Power Cable production involves multi-point quality checks. Aluminium conductor forming monitors strand uniformity and surface smoothness. XLPE insulation extrusion ensures even coverage with X-ray gauges. Bedding layer provides smooth armouring base. Steel wire application controls helical lay, tension balance, and overlap. Sheath extrusion includes online spark testing and thickness uniformity. Critical steps: pre-extrusion compound verification, parameter stabilization, real-time dimension scanning, armour wire coverage measurement, gel fraction sampling, and defect removal protocols. This ensures the NA2XBY 0.6/1kV Low Voltage Power Cable maintains precise construction, strong armour integrity, and IEC compliance throughout manufacturing.
Finished Product
Completed NA2XBY 0.6/1kV Low Voltage Power Cable reels face rigorous tests. Key routines: DC resistance, high-potential AC test, insulation thickness, sheath integrity, and armour continuity. Mechanical endurance via impact, crushing, and pulling tests. Heat shock and flame propagation evaluations follow. The sequential process: conditioning, voltage/mechanical load application, timed exposure monitoring, recovery inspection, property re-measurement, and documentation. Additional checks cover ovality and weight. Passing all verifies the NA2XBY 0.6/1kV Low Voltage Power Cable's mechanical strength, electrical reliability, and suitability for direct burial low-voltage networks.
Application
Excellent for underground power supply in manufacturing plants, solar farms, street lighting, and rural electrification. Commonly direct-buried for feeding transformers, motors, and panels where mechanical protection and aluminium cost advantages are required.
