NA2XRY 0.6/1kV Low Voltage Power Cable
NA2XRY 0.6/1kV are low voltage power cables designed according to BS 5467 standard, suitable for fixed installation in indoor, outdoor, underground, or concrete (Can withstand certain mechanical forces) environments. Constructed with aluminium conductors, thermosetting XLPE insulation, PVC inner bedding, double galvanised steel tape armour, and tough PVC outer sheath, it meets IEC 60502-1 requirements. The STA armour offers outstanding resistance to compression and external forces, enabling direct burial. Lightweight aluminium lowers installation costs while ensuring good current rating and low losses. Flame-retardant and stable in harsh conditions, the NA2XRY 0.6/1kV Low Voltage Power Cable is favoured for manufacturing plants, renewable sites, commercial complexes, and infrastructure demanding reliable, low-maintenance low-voltage cabling with enhanced mechanical safeguarding.
- Voltage Rating(Uo/U) 0.6/1kV
- Temperature Rating Fixed: -5°C to +90°C
- Minimum Bending Radius 15 x overall diameter
Construction
Technical Specifications
Quality Control
Application
Construction

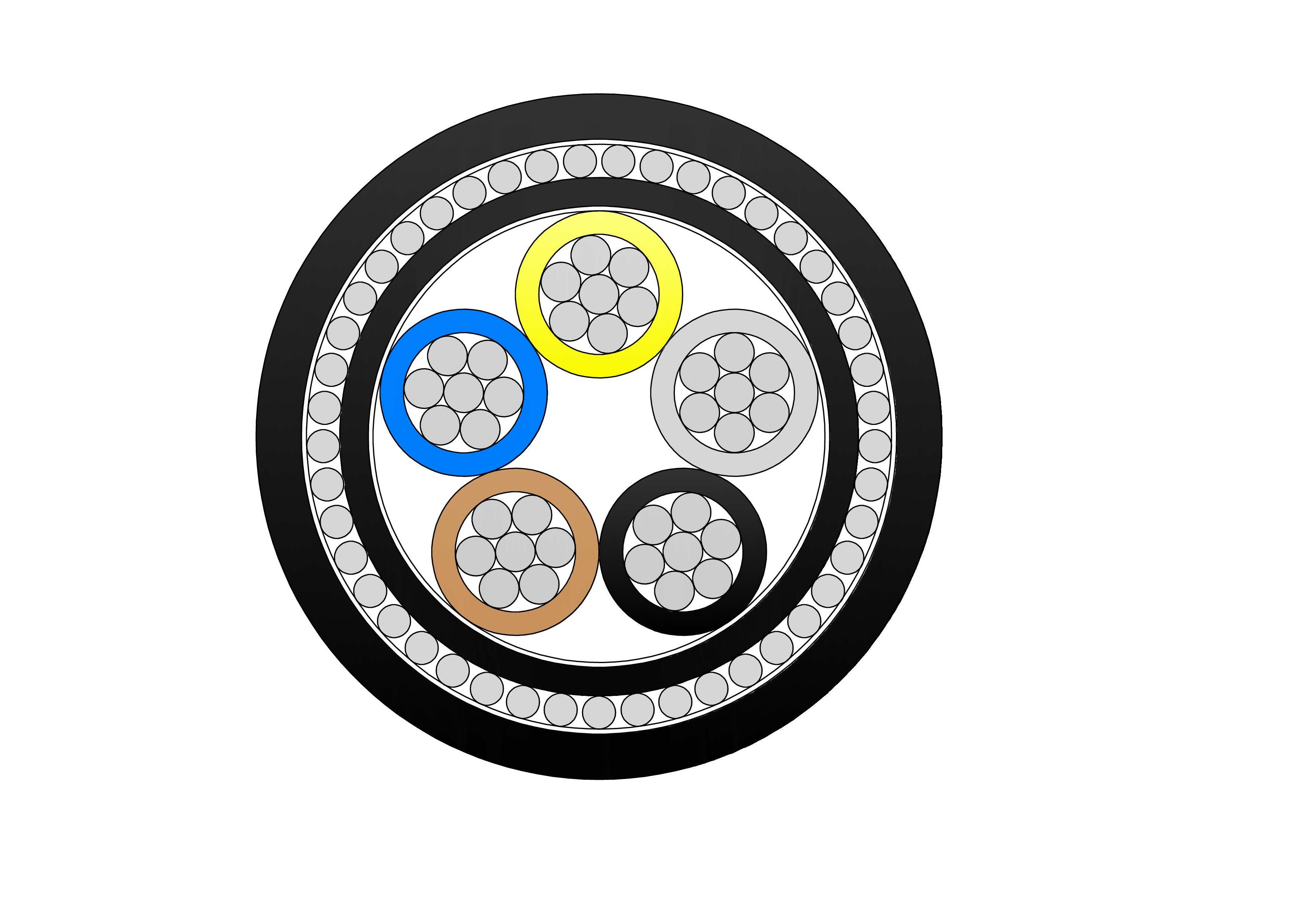

NA2XRY 0.6/1kV Low Voltage Power Cable Construction
Conductor
Class Class 2 stranded aluminium conductor
Insulation
XLPE (Cross-Linked Polyethylene)
Filler
PVC(Polyvinyl Chloride)
Armour
Single core: AWA (Aluminium wire armour)
All other sizes: SWA (Galvanized round steel wire）
All other sizes: SWA (Galvanized round steel wire）
Sheath
PVC(Polyvinyl Chloride)
Sheath Colour
Black
Manufacturer Standard
BS 5467, IEC 60502-1
Flame retardant
IEC/EN 60332-1-2
Core Identification
2 core: Brown /Blue
3 core: Brown /Blue/ Grey
4 core: Brown /Blue/ Black/ Grey
5 core: Green/Yellow /Brown /Blue/ Black/ Grey
3 core: Brown /Blue/ Grey
4 core: Brown /Blue/ Black/ Grey
5 core: Green/Yellow /Brown /Blue/ Black/ Grey
Application
NA2XRY cable is ideal for underground installations thanks to its excellent resistance to mechanical stress and demanding environments. Its ability to withstand relatively high ambient temperatures makes it well-suited for such conditions, as it supports a high maximum conductor temperature.
Technical Specifications
NA2XRY 0.6/1kV Low Voltage Power Cable
NA2XRY Low Voltage Power Cable Technical Specifications
|
No of Cores |
Nominal Cross Section Area |
Nominal Thickness of insulation |
Nominal Thickness of sheath |
Nominal Diameter |
Approximate Weight |
| mm2 | mm | mm | mm | kg/km | |
| 1 | 70 | 1.1 | 1.3 | 19.6 | 525 |
| 1 | 95 | 1.1 | 1.3 | 21.1 | 620 |
| 1 | 120 | 1.2 | 1.3 | 22.7 | 730 |
| 1 | 150 | 1.4 | 1.4 | 26.2 | 935 |
| 1 | 185 | 1.6 | 1.5 | 27.7 | 1085 |
| 1 | 240 | 1.7 | 1.5 | 30.3 | 1310 |
| 1 | 300 | 1.8 | 1.6 | 33 | 1560 |
| 1 | 400 | 2 | 1.7 | 36.9 | 1995 |
| 1 | 500 | 2.2 | 1.7 | 40.3 | 2375 |
| 1 | 630 | 2.4 | 1.8 | 44.8 | 2963 |
| 2 | 25 | 0.9 | 1.3 | 23.2 | 850 |
| 2 | 35 | 0.9 | 1.4 | 26.4 | 1165 |
| 2 | 50 | 1 | 1.6 | 29.8 | 1390 |
| 2 | 70 | 1.1 | 1.7 | 34.3 | 1925 |
| 2 | 95 | 1.1 | 1.7 | 37.3 | 2270 |
| 2 | 150 | 1.4 | 1.8 | 45.9 | 2945 |
| 2 | 185 | 1.6 | 2 | 50 | 3990 |
| 2 | 240 | 1.7 | 2.1 | 55.4 | 4760 |
| 2 | 300 | 1.8 | 2.1 | 60.8 | 5600 |
| 3 | 25 | 0.9 | 1.4 | 25.4 | 1100 |
| 3 | 35 | 0.9 | 1.5 | 28 | 1300 |
| 3 | 50 | 1 | 1.5 | 28.1 | 1370 |
| 3 | 70 | 1.1 | 1.6 | 31.6 | 1700 |
| 3 | 95 | 1.1 | 1.7 | 35.6 | 2215 |
| 3 | 120 | 1.2 | 1.8 | 39 | 2610 |
| 3 | 150 | 1.4 | 1.9 | 43.1 | 3485 |
| 3 | 185 | 1.6 | 2 | 47.1 | 4065 |
| 3 | 240 | 1.7 | 2.1 | 52 | 4900 |
| 3 | 300 | 1.8 | 2.2 | 57.1 | 5750 |
| 3 | 400 | 2 | 2.4 | 64.3 | 7105 |
| 4 | 25 | 0.9 | 1.4 | 27.4 | 1265 |
| 4 | 35 | 0.9 | 1.5 | 30.3 | 1520 |
| 4 | 50 | 1 | 1.6 | 31.8 | 1655 |
| 4 | 70 | 1.1 | 1.7 | 36.6 | 2320 |
| 4 | 95 | 1.1 | 1.8 | 39.3 | 2755 |
| 4 | 120 | 1.2 | 1.9 | 44.4 | 3635 |
| 4 | 150 | 1.4 | 2 | 48.9 | 4280 |
| 4 | 185 | 1.6 | 2.1 | 53.7 | 5025 |
| 4 | 240 | 1.7 | 2.2 | 59.7 | 6105 |
| 4 | 300 | 1.8 | 2.4 | 65.3 | 7315 |
| 5 | 25 | 0.9 | 1.5 | 29.7 | 1530 |
| 5 | 35 | 0.9 | 1.6 | 32.9 | 1830 |
| 5 | 50 | 1 | 1.7 | 37.8 | 2535 |
| 5 | 70 | 1.1 | 1.8 | 43 | 3250 |
- Soil thermal resistivity at 120 ˚C.Cm/Watt
- Burial depth 0.5 m
- Ground temperature 15 ˚C
- Air temperature 25 ˚C
- Frequency 50 Hz
Quality Control
NA2XRY 0.6/1kV Low Voltage Power Cable
Raw Material Test
For the NA2XRY 0.6/1kV Low Voltage Power Cable, raw material testing starts with aluminium certification for alloy and elongation properties. XLPE granules are tested for crosslinking agent, contamination, and thermal stability via hot set pre-checks and microscopy. PVC compounds undergo volume resistivity, Congo red, and migration analysis. Steel tapes are verified for galvanisation uniformity, width tolerance, and breaking strength. The structured process: receipt documentation review, random sampling, physical/mechanical testing (tensile, yield), chemical verification using spectroscopy, accelerated aging/corrosion trials, and material release decision. This comprehensive screening secures premium inputs, forming the base for the NA2XRY 0.6/1kV Low Voltage Power Cable's conductivity, insulation quality, and effective double tape armour performance.
Process inspection
Process inspection in NA2XRY 0.6/1kV Low Voltage Power Cable manufacturing involves real-time checks. Aluminium conductor forming monitors strand uniformity and defects. XLPE insulation extrusion ensures bonding with X-ray gauges. The bedding layer provides an armouring base. Double steel tape application controls helical overlap, gap, and adhesion. Sheath extrusion includes online spark testing and thickness uniformity. Critical steps: pre-extrusion compound verification, parameter stabilisation, capacitance-based eccentricity monitoring, tape overlap sampling, gel fraction checks, and defect removal protocols. This multi-stage control maintains the NA2XRY 0.6/1kV Low Voltage Power Cable's structural precision, armour reliability, and IEC compliance.
Finished Product
Completed NA2XRY 0.6/1kV Low Voltage Power Cable reels are rigorously tested. Key routines: DC resistance, high-potential AC test, insulation thickness, sheath integrity, and tape continuity. Mechanical endurance via compression, impact, and penetration tests. Heat shock and flame propagation evaluations follow. The sequential process: reel sampling, conditioning, gradual load/voltage application, timed exposure monitoring, recovery inspection, property re-measurement, and documentation. Additional checks cover ovality and weight. Passing all confirms the NA2XRY 0.6/1kV Low Voltage Power Cable's crush resistance, electrical reliability, and suitability for direct burial low-voltage networks in demanding environments.
Application
Excellent for underground low-voltage distribution in factories, solar parks, street lighting, and rural areas. Commonly direct-buried for supplying panels, transformers, and equipment where compression protection and aluminium economics are prioritized.
Technical Advantages
● 30+ years of manufacturing experience
● ISO and UL certified production
● Customized cable and transformer solutions
Product Packaging
Wires and Cables packaging (1)
Wires and Cables packaging (2)
Wires and Cables packaging (3)
Wires and Cables packaging (4)
Wires and Cables packaging (5)
Wires and Cables packaging (6)
Wires and Cables packaging (7)
Wires and Cables packaging (8)
