NA2XSY Aluminum XLPE LSZH Cable
NA2XSY Aluminum XLPE LSZH Cable is a medium-voltage power cable with an aluminum conductor, TR-XLPE insulation, and a PVC outer sheath. It is designed according to IEC 60502-2 and VDE 0276 standards for rated voltages typically from 6/10kV up to 18/30kV. This cable provides excellent thermal, electrical, and mechanical properties, making it suitable for reliable energy transmission in medium-voltage networks. This cable excels in fire-prone environments by minimizing smoke and toxic gas release, while providing excellent electrical insulation, thermal endurance, and moisture resistance. The aluminum core reduces weight and cost without compromising performance. Ideal for fixed wiring in buildings, subways, and industrial facilities.
- Flame Retardant Standard IEC/EN 60332-1-2
- Manufacturer Standard EN 60228, IEC 60502-2
- Voltage Rating(Uo/U) 6/10 (12)kV 12/20 (24)kV 18/30(36)KV
- System Frequency Range(Hz) 49-61
Construction
Technical Specifications
Quality Control
Application

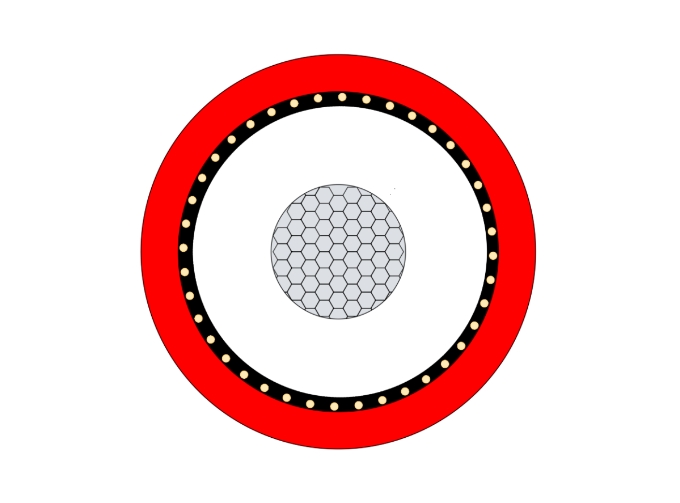

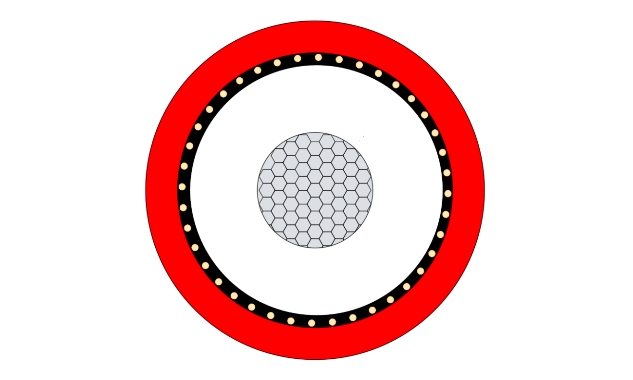

Construction
NA2XSY Aluminium Conductor
Conductor
Class 2 stranded aluminium conductor
Insulation
TR-XLPE(Cross-Linked Polyethylene)
Sheath
PVC(Polyvinyl Chloride)
Sheath Color
Red
Conductor Screen
Semi-conductive material
Insulation Screen
Semi-conductive material
Screen
Copper wires
Technical Specifications
NA2XSY Aluminum XLPE LSZH Cable
18/30kV Dimension
12/20kV Dimension
6/10kV Dimension
| No of Cores | Nominal Cross Sectional Area | Nominal Overall Diameter | Nominal Weight | |
| Conductor | Copper Wire Screen | |||
| mm² | mm² | mm | kg/km | |
| 1 | 50 | 16 | 41 | 1190 |
| 1 | 70 | 16 | 42 | 1315 |
| 1 | 95 | 16 | 43 | 1450 |
| 1 | 120 | 16 | 45 | 1580 |
| 1 | 150 | 25 | 47 | 1800 |
| 1 | 185 | 25 | 49 | 1965 |
| 1 | 240 | 25 | 51 | 2230 |
| 1 | 300 | 25 | 53 | 2470 |
| 1 | 400 | 35 | 56 | 2920 |
| 1 | 500 | 35 | 60 | 3230 |
| 1 | 630 | 35 | 62 | 3774 |
| 1 | 800 | 35 | 66 | 4428 |
| No of Cores | Nominal Cross Sectional Area | Nominal Overall Diameter | Nominal Weight | |
| Conductor | Copper Wire Screen | |||
| mm² | mm² | mm | kg/km | |
| 1 | 50 | 16 | 33 | 950 |
| 1 | 70 | 16 | 35 | 1050 |
| 1 | 95 | 16 | 36 | 1150 |
| 1 | 120 | 16 | 38 | 1300 |
| 1 | 150 | 25 | 39 | 1500 |
| 1 | 185 | 25 | 41 | 1650 |
| 1 | 240 | 25 | 44 | 1850 |
| 1 | 300 | 25 | 46 | 2100 |
| 1 | 400 | 35 | 49 | 2550 |
| 1 | 500 | 35 | 52 | 2824 |
| 1 | 630 | 35 | 54 | 3336 |
| 1 | 800 | 35 | 56 | 3955 |
| No of Cores | Nominal Cross Sectional Area | Nominal Overall Diameter | Nominal Weight | |
| Conductor | Copper Wire Screen | |||
| mm² | mm² | mm | kg/km | |
| 1 | 35 | 16 | 28 | 700 |
| 1 | 50 | 16 | 29 | 750 |
| 1 | 70 | 16 | 31 | 850 |
| 1 | 95 | 16 | 32 | 950 |
| 1 | 120 | 16 | 34 | 1050 |
| 1 | 150 | 25 | 35 | 1300 |
| 1 | 185 | 25 | 37 | 1400 |
| 1 | 240 | 25 | 39 | 1650 |
| 1 | 300 | 25 | 40 | 1850 |
| 1 | 400 | 35 | 45 | 2300 |
| 1 | 500 | 35 | 46 | 2431 |
| 1 | 630 | 35 | 48 | 2916 |
| 1 | 800 | 35 | 50 | 3508 |
Quality Control
NA2XSY Aluminum XLPE LSZH Cable
Raw Material Test
For the NA2XSY Aluminum XLPE LSZH Cable, raw material testing begins with aluminum conductor certification for electrical grade and elongation. XLPE granules are analyzed for antioxidant levels, crosslinking potential, and impurities via TGA and microscopy. LSZH compounds undergo strict halogen-free verification (chlorine/bromine <50ppm), smoke opacity, and acid gas tests. The structured process: receipt inspection, random sampling, physical/mechanical testing, chemical composition confirmation using advanced spectroscopy, accelerated aging trials, and release decision. This ensures premium inputs, establishing the foundation for the NA2XSY Aluminum XLPE LSZH Cable's conductivity, dielectric strength, and superior fire performance.
Process inspection
Process inspection in NA2XSY Aluminum XLPE LSZH Cable production involves continuous quality checks. Conductor forming monitors strand uniformity and surface defects. XLPE insulation extrusion ensures even coverage with real-time thickness gauges. LSZH sheath application includes online spark testing and diameter control. Core assembly verifies twisting and bedding. Printing durability is inspected. Critical steps: pre-extrusion compound verification, line parameter stabilization, capacitance monitoring for eccentricity, gel fraction sampling, and immediate corrective actions. This ensures the NA2XSY Aluminum XLPE LSZH Cable maintains precise dimensions, reliable insulation, and compliance with LSZH and IEC requirements.
Finished Product
Completed NA2XSY Aluminum XLPE LSZH Cable reels are rigorously tested. Mandatory routines: DC resistance, high-potential AC test, insulation resistance in water, and thickness verification. Fire tests include smoke density (IEC 61034), acid gas emission (IEC 60754), and flame propagation. Mechanical tests cover impact and cold bend. The sequential process: sample conditioning, parameter application (voltage/heat), timed exposure, recovery inspection, re-measurement of properties, and documentation. Additional checks ensure marking legibility and flexibility. Passing all confirms the NA2XSY Aluminum XLPE LSZH Cable's low-emission safety, durability, and efficiency for low-voltage systems.
Application
Widely used in commercial complexes, transportation hubs, data centers, and public facilities requiring fire-safe cabling. Excellent for underground and indoor fixed installations where low smoke and zero halogen properties are essential for occupant safety and evacuation.
Technical Advantages
● 30+ years of manufacturing experience
● ISO and UL certified production
● Customized cable and transformer solutions
Product Packaging
Wires and Cables packaging (1)
Wires and Cables packaging (2)
Wires and Cables packaging (3)
Wires and Cables packaging (4)
Wires and Cables packaging (5)
Wires and Cables packaging (6)
Wires and Cables packaging (7)
Wires and Cables packaging (8)
