N2XCH 0.6/1kV Low Voltage Power Cable
N2XCH 0.6/1kV are low-voltage power cables designed according to VDE 0276-603 and IEC 60502-1 standards, suitable for fixed installation in indoor, outdoor, and underground environments, including concrete (not exposed to vibration), where electromagnetic shielding is required.
- Characteristics Voltage Rating Uo/U 0.6/1kV
- Temperature Rating Fixed: -30°C to +90°C
- Minimum Bending Radius 15 x overall diameter
Construction
Technical Specifications
Quality Control
Application
Construction

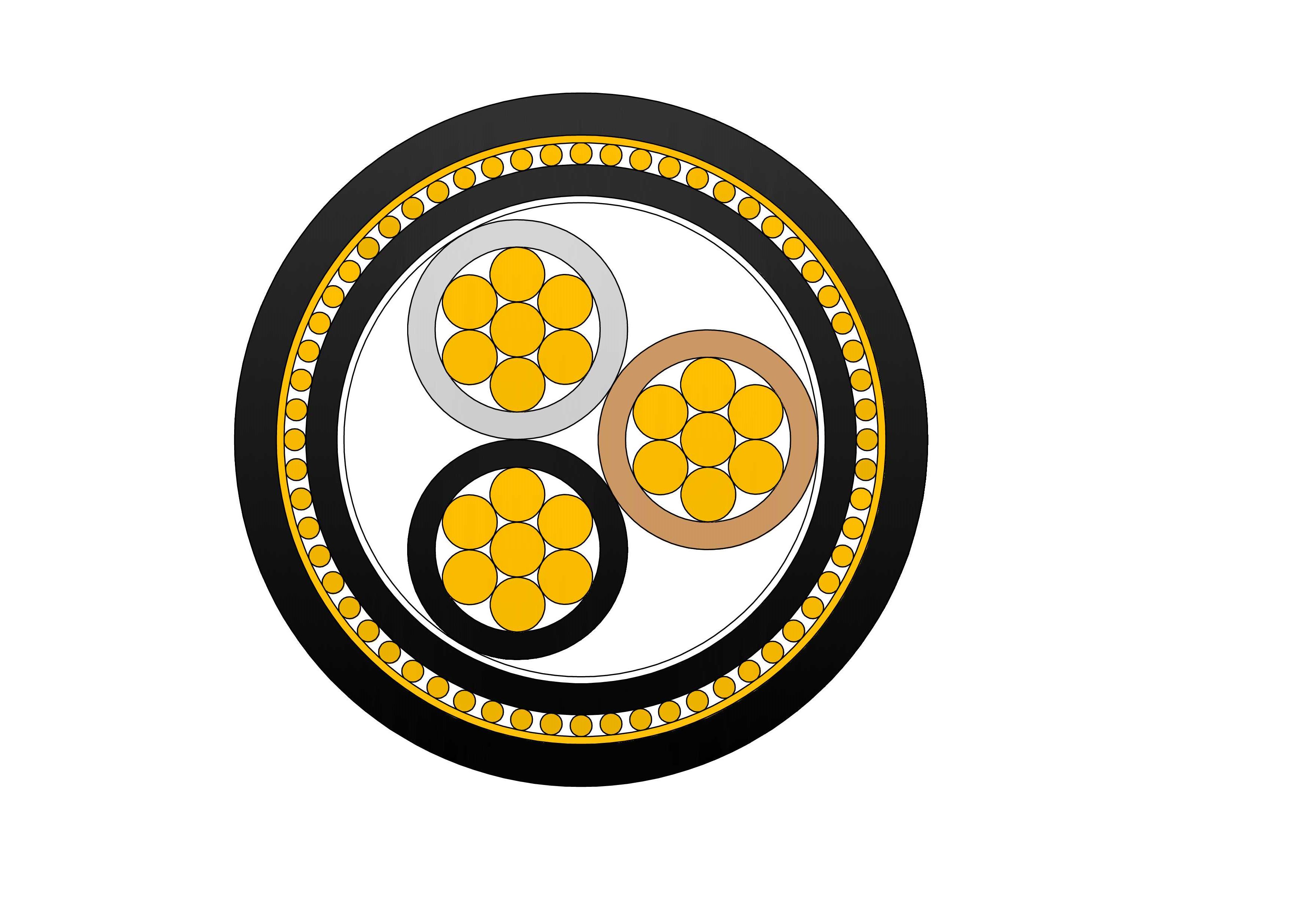

N2XCH 0.6/1kV Low Voltage Power Cable Construction
Conductor
RE: Class 1 solid copper
RM: Class 2 circular stranded copper
SM: Class 2 sectorial stranded copper
RM: Class 2 circular stranded copper
SM: Class 2 sectorial stranded copper
Insulation
XLPE (Cross-Linked Polyethylene)
Inner Sheath
Halogen-free compound
Concentric Conductor
Copper wires with a counter helix of copper tape
Sheath
LSZH (Low Smoke Zero Halogen)
Sheath Colour
Black
Manufacturer Standard
IEC 60502-1 VDE 0276 Part 604
Flame retardant
IEC/EN 60754-1/2, IEC/EN 61034-1/2
Core Identification
2 core: Brown /Blue
3 core: Brown /Black/ Grey
4 core: Brown / Black/ Grey/ Blue
5 core: Green/ /Brown /Blue/ Black/ Grey
3 core: Brown /Black/ Grey
4 core: Brown / Black/ Grey/ Blue
5 core: Green/ /Brown /Blue/ Black/ Grey
Application
N2XCH cables are suitable for low-voltage power distribution systems that require electromagnetic shielding, such as industrial plants, power stations and control centers. They can be used indoors, outdoors, underground or in concrete (non-vibration environments), and are particularly suitable for locations that are sensitive to signal interference.
Technical Specifications
N2XCH 0.6/1kV Low Voltage Power Cable
N2XCH Low Voltage Power Cable Technical Specifications
|
No of Cores |
Conductor Nominal Cross-Section Area |
Concentric Conductor Nominal Cross Section |
Nominal Thickness of Insulation |
Nominal Overall Diameter |
Approximate Weight |
| mm2 | mm2 | mm | mm | kg/km | |
| 2 | 1.5 | 1.5 | 0.7 | 12 | 250 |
| 2 | 2.5 | 2.5 | 0.7 | 12 | 280 |
| 2 | 4 | 4 | 0.7 | 14 | 320 |
| 2 | 6 | 6 | 0.7 | 15 | 410 |
| 2 | 10 | 10 | 0.7 | 17 | 550 |
| 2 | 16 | 16 | 0.7 | 19 | 780 |
| 3 | 1.5 | 1.5 | 0.7 | 12 | 250 |
| 3 | 2.5 | 2.5 | 0.7 | 13 | 320 |
| 3 | 4 | 4 | 0.7 | 14 | 400 |
| 3 | 6 | 6 | 0.7 | 16 | 500 |
| 3 | 10 | 10 | 0.7 | 18 | 750 |
| 3 | 16 | 16 | 0.7 | 21 | 1000 |
| 3 | 25 | 16 | 0.9 | 24 | 1600 |
| 3 | 35 | 16 | 0.9 | 27 | 1800 |
| 3 | 50 | 25 | 1 | 30 | 2400 |
| 3 | 70 | 35 | 1.1 | 34 | 2615 |
| 3 | 95 | 50 | 1.1 | 38.1 | 3636 |
| 3 | 120 | 70 | 1.2 | 42.5 | 4606 |
| 3 | 150 | 70 | 1.4 | 47 | 5552 |
| 3 | 185 | 95 | 1.6 | 50 | 6680 |
| 3 | 240 | 120 | 1.7 | 57.1 | 8964 |
| 4 | 1.5 | 1.5 | 0.7 | 13 | 235 |
| 4 | 2.5 | 2.5 | 0.7 | 14 | 302 |
| 4 | 4 | 4 | 0.7 | 15 | 411 |
| 4 | 6 | 6 | 0.7 | 17 | 527 |
| 4 | 10 | 10 | 0.7 | 19 | 762 |
| 4 | 16 | 16 | 0.7 | 22 | 1139 |
| 4 | 25 | 16 | 0.9 | 27 | 1634 |
| 4 | 35 | 16 | 0.9 | 29 | 2080 |
| 4 | 50 | 25 | 1 | 33 | 2790 |
| 4 | 70 | 35 | 1.1 | 41 | 3550 |
| 4 | 95 | 50 | 1.1 | 46 | 4800 |
| 4 | 120 | 70 | 1.2 | 50 | 6556 |
| 4 | 150 | 70 | 1.4 | 55 | 7904 |
| 4 | 185 | 95 | 1.6 | 62 | 9950 |
| 4 | 240 | 120 | 1.7 | 68 | 12912 |
| 5 | 1.5 | 1.5 | 0.7 | 14 | 283 |
| 7 | 1.5 | 2.5 | 0.7 | 16 | 380 |
| 7 | 2.5 | 2.5 | 0.7 | 18 | 480 |
| 7 | 4 | 4 | 0.7 | 19 | 650 |
| 7 | 6 | 6 | 0.7 | 20 | 850 |
| 10 | 2.5 | 4 | 0.7 | 18 | 550 |
| 12 | 1.5 | 2.5 | 0.7 | 20 | 550 |
| 12 | 2.5 | 4 | 0.7 | 21 | 750 |
| 14 | 1.5 | 2.5 | 0.7 | 17.6 | 486 |
| 21 | 2.5 | 10 | 0.7 | 23 | 1050 |
| 24 | 1.5 | 6 | 0.7 | 25 | 950 |
| 24 | 1.5 | 6 | 0.7 | 27 | 1100 |
| 30 | 1.5 | 6 | 0.7 | 27 | 1100 |
| 30 | 2.5 | 6 | 0.7 | 28 | 1500 |
