RHZ1-OL-AL Medium Voltage Power Cable(8.7/15kV, 12/20kV, 18/30kV)
Our RHZ1-OL-AL Medium Voltage Power Cable (8.7/15kV, 12/20kV, 18/30kV) provides economical fire safety for medium voltage networks. Built with aluminium conductors, thermosetting XLPE insulation, metallic screen, and advanced low smoke zero halogen (LSZH) sheath, it meets UNE 21123-4 and CPR requirements. During fires, it emits very low smoke and no corrosive gases, facilitating evacuation. Lightweight aluminium reduces costs and installation effort while delivering reliable current capacity. Superior partial discharge resistance, low tan delta, and thermal endurance ensure efficiency and longevity. Suitable for direct burial, ducts, or indoor use in sensitive areas, the RHZ1-OL-AL Medium Voltage Power Cable is widely used in transportation hubs, data centers, public facilities, and infrastructure demanding reliable medium voltage cabling with enhanced fire protection, environmental compliance, and life-safety features in populated or confined spaces.
-
Voltage Rating(Uo/U)(Um)
8.7/15 (17.5) KV
12/20 (24)KV
18/30 (36)KV - Temperature Rating -40°C to +90°C
- Minimum Bending Radius 15 x overall diameter
Construction
Technical Specifications
Quality Control
Application
Construction

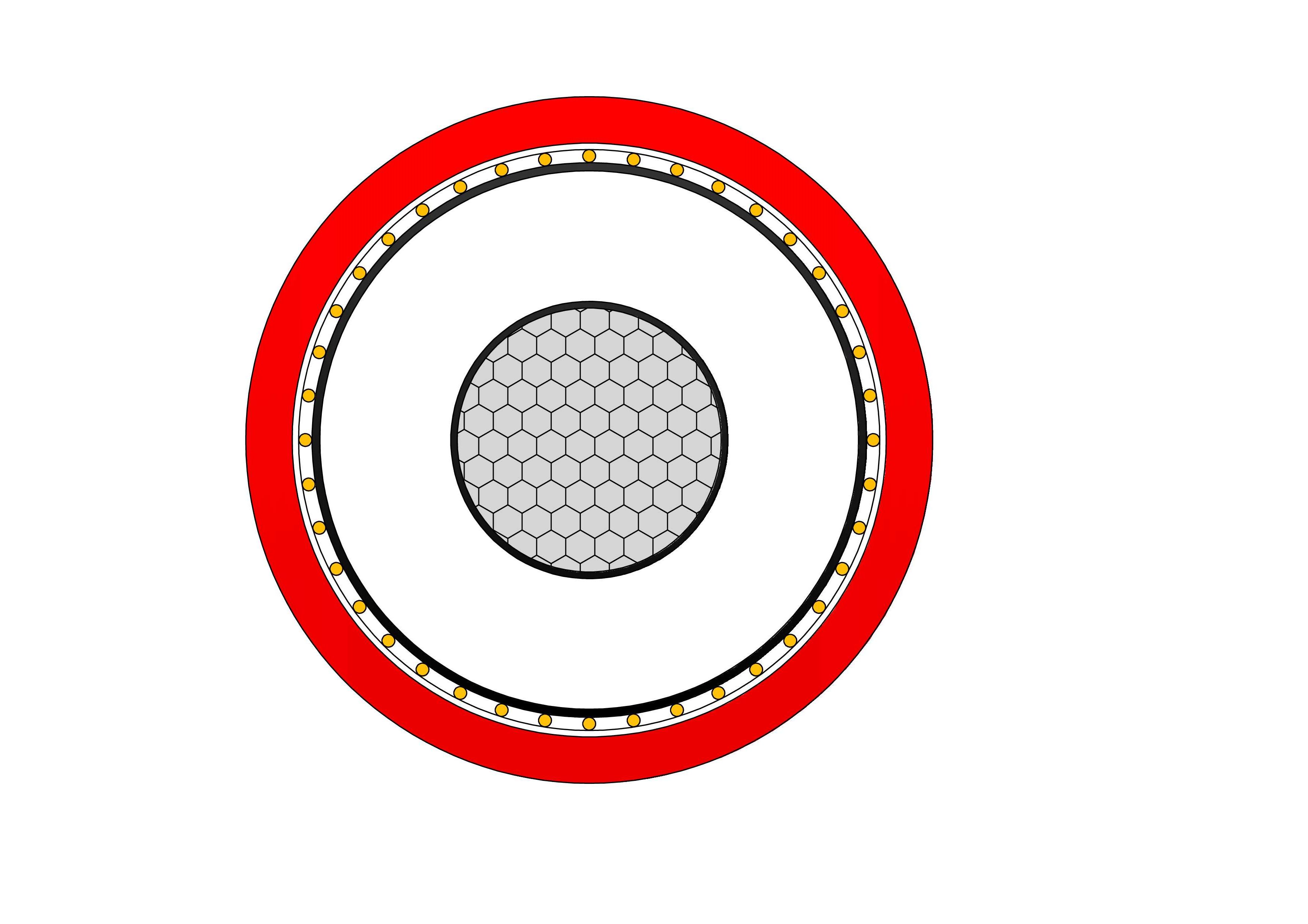

RHZ1-OL-AL Medium Voltage Power Cable Constrution
Conductor
Class 2 stranded aluminium
Insulation
XLPE (Cross-Linked Polyethylene)
Conductor Screen
Semi-conductive material
Insulation Screen
Semi-conductive material
Longitudinal Waterblocking
Water-swellable tape
Screen
Copper Wires
Longitudinal Waterblocking
Water-swellable tape
Sheath
PO (Polylefin) Type DMZ1 ST7
Sheath Color
Red
Manufacturer Standard
IEC 60502-2, HD 620 10E-1
Flame retardant
CPR Classification Cca s1b, d2, a1
Halogen Free
IEC 60754-1/2
UV Resistant
UNE 211605, HD 605, Subclause 2.2.13
Technical Specifications
RHZ1-OL-AL Medium Voltage Power Cable(8.7/15kV, 12/20kV, 18/30kV)
RHZ1-OL-AL 8.7/15 (17.5) KV
RHZ1-OL-AL 12/20 (24)KV
RHZ1-OL-AL 18/30 (36)KV
|
No of Cores |
Nominal Cross Section Area |
Nominal Conductor Diameter |
Nominal Thickness of Insulation |
Nominal Diameter Over insulation |
Nominal Metallic Screen Cross Section |
Nominal Outer Sheath Thickness |
Nominal Outer Diameter |
Approximate Weight |
| mm2 | mm | mm | mm | mm2 | mm | mm | kg/km | |
| 1 | 50 | 8.0 | 4.5 | 18.2 | 16 | 2.5 | 28.1 | 720 |
| 1 | 95 | 11.2 | 4.5 | 21.4 | 16 | 2.5 | 31.2 | 1100 |
| 1 | 150 | 14.0 | 4.5 | 24.2 | 16 | 2.7 | 34.1 | 1440 |
| 1 | 240 | 17.9 | 4.5 | 28.1 | 16 | 3.0 | 37.8 | 1780 |
| 1 | 400 | 23.1 | 4.5 | 33.3 | 16 | 3.0 | 42.8 | 2300 |
| 1 | 630 | 29.1 | 4.5 | 39.6 | 16 | 3.0 | 50.3 | 3190 |
|
No of Cores |
Nominal Cross Section Area |
Nominal Conductor Diameter |
Nominal Thickness of Insulation |
Nominal Diameter Over insulation |
Nominal Metallic Screen Cross Section |
Nominal Outer Sheath Thickness |
Nominal Outer Diameter |
Approximate Weight |
| mm2 | mm | mm | mm | mm2 | mm | mm | kg/km | |
| 1 | 50 | 8.0 | 5.5 | 20.2 | 16 | 2.5 | 28.0 | 850 |
| 1 | 95 | 11.2 | 5.5 | 23.4 | 16 | 2.7 | 32.0 | 1100 |
| 1 | 150 | 14.0 | 5.5 | 26.2 | 16 | 3.0 | 34.0 | 1400 |
| 1 | 240 | 17.9 | 5.5 | 30.1 | 16 | 3.0 | 38.0 | 1800 |
| 1 | 400 | 23.1 | 5.5 | 35.3 | 16 | 3.0 | 43.0 | 2500 |
| 1 | 630 | 29.1 | 5.5 | 41.6 | 16 | 3.0 | 50.0 | 3500 |
|
No of Cores |
Nominal Cross Section Area |
Nominal Conductor Diameter |
Nominal Thickness of Insulation |
Nominal Diameter Over insulation |
Nominal Metallic Screen Cross Section |
Nominal Outer Sheath Thickness |
Nominal Outer Diameter |
Approximate Weight |
| mm2 | mm | mm | mm | mm2 | mm | mm | kg/km | |
| 1 | 50 | 8.0 | 8.0 | 25.2 | 16 | 2.7 | 32.0 | 900 |
| 1 | 95 | 11.2 | 8.0 | 28.4 | 16 | 3.0 | 35.0 | 1200 |
| 1 | 150 | 14.0 | 8.0 | 31.2 | 16 | 3.0 | 38.0 | 1500 |
| 1 | 240 | 17.9 | 8.0 | 35.1 | 16 | 3.0 | 43.0 | 1900 |
| 1 | 400 | 23.1 | 8.0 | 40.3 | 16 | 3.0 | 48.0 | 2750 |
| 1 | 630 | 29.1 | 8.0 | 46.6 | 16 | 3.0 | 56.0 | 3500 |
Quality Control
RHZ1-OL-AL Medium Voltage Power Cable(8.7/15kV, 12/20kV, 18/30kV)
Raw Material Test
Raw material testing for the RHZ1-OL-AL Medium Voltage Power Cable (8.7/15kV, 12/20kV, 18/30kV) ensures fire-safe quality. Aluminium conductors are inspected for purity, conductivity, and mechanical properties per UNE/IEC standards. XLPE insulation compound undergoes density, antioxidant content, and crosslinking analysis via OIT and DSC tests. Screen materials are checked for thickness and adhesion. LSZH sheath compound is rigorously tested for halogen content (<0.5%), smoke density, acidity, and flame-retardant additives using IEC 60754 and EN 50399 methods. Samples endure tensile strength, elongation, and accelerated aging/thermal trials. The step-by-step process: incoming batch certification, sampling protocol, chemical composition spectroscopy, mechanical/electrical property testing (before/after aging), fire performance pre-simulation, and material approval decision.
Process inspection
During the manufacturing of the RHZ1-OL-AL Medium Voltage Power Cable (8.7/15kV, 12/20kV, 18/30kV), process inspection maintains fire safety consistency. Aluminium stranding is monitored for compactness with laser gauges. Triple extrusion (conductor shield, XLPE insulation, insulation shield) ensures concentricity and thickness using online X-ray systems. The screen application verifies overlap and bonding. LSZH sheath extrusion includes real-time spark testing and diameter verification. Marking permanence and sheath color are inspected. Key steps: material pre-drying confirmation, extrusion/screening parameter logging (temperature, pressure), intermediate hot set tests for crosslinking degree, partial discharge monitoring, flame-retardant additive distribution checks, defect detection/correction, and post-process cooling control.
Finished Product
The finished RHZ1-OL-AL Medium Voltage Power Cable (8.7/15kV, 12/20kV, 18/30kV) undergoes comprehensive testing for fire and electrical certification. Routine tests include conductor resistance, AC high voltage withstand (up to 3.5U0), partial discharge (≤5pC), screen continuity, and thickness verification. Fire safety tests cover smoke density (IEC 61034), halogen acid gas (IEC 60754), flame propagation (IEC 60332), and heat release. Type tests include impulse withstand and thermal cycling. The process steps: sample preparation with terminations, gradual voltage ramp-up, PD monitoring, fire chamber exposure with smoke/heat measurement, environmental conditioning, post-test electrical/mechanical re-measurement, and visual inspection. Additional checks cover tan delta, capacitance, and marking durability.
Application
RHZ1-OL-AL Medium Voltage Power Cable (8.7/15kV, 12/20kV, 18/30kV) is ideal for underground and indoor medium voltage supply in hospitals, schools, airports, tunnels, shopping malls, and high-rise buildings. Perfect for areas requiring low smoke zero halogen cables to enhance occupant safety and reduce toxic emissions during fires.
Technical Advantages
● 30+ years of manufacturing experience
● ISO and UL certified production
● Customized cable and transformer solutions
Product Packaging
Wires and Cables packaging (1)
Wires and Cables packaging (2)
Wires and Cables packaging (3)
Wires and Cables packaging (4)
Wires and Cables packaging (5)
Wires and Cables packaging (6)
Wires and Cables packaging (7)
Wires and Cables packaging (8)
