NAYY-J/NAYY-O Cables
The NAYY-J/NAYY-O Solar Cables provide cost-effective, reliable power distribution in photovoltaic systems. With sector-shaped or round aluminum conductors, PVC core insulation, and robust PVC outer jacket, they meet VDE 0276 requirements. NAYY-J includes a protective earth conductor, while NAYY-O is without. These cables excel in wet environments with superior water and chemical resistance, suitable for direct burial without additional protection. UV-stabilized and mechanically strong, they withstand soil stress and installation pulling forces. Low-weight aluminum reduces handling efforts, making them popular for extensive solar parks. NAYY-J/NAYY-O Solar Cables ensure efficient energy transfer with minimal losses, supporting sustainable solar infrastructure worldwide.
- Manufacturer Standard IEC 60502-1, IEC 60228, VDE 0276-603, HD 603
- Flame Redartant Standard IEC 60332-1, IEC 60332-3-24(Cat. C)
- Halogen Free Standard IEC60754-1/2 and IEC 60684-2
- Voltage Rating Uo/U(Um =1.2kV) 0.6/1kV
- Working Temperature -40℃ to +90℃
- System Frequency Range(Hz) 49-61
Construction
Technical Specifications
Quality Control
Application
Construction

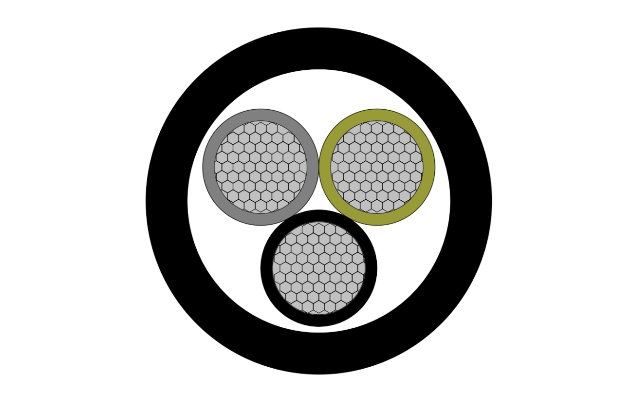

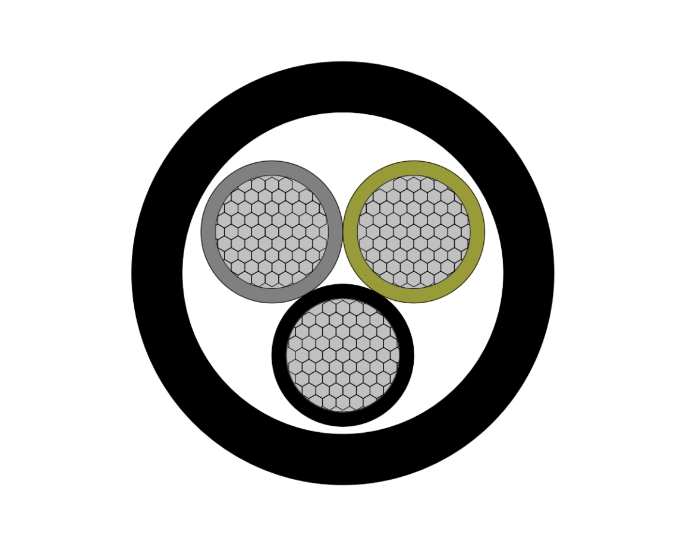

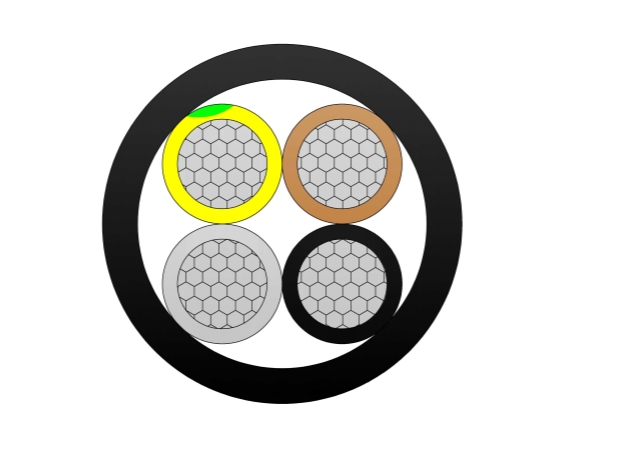

NAYY-J/NAYY-O Solar Cables Conductor
Conductor
Class 1 solid aluminium-circular or circular compacted: Class 2 stranded
Insulation
PVC((Polyvinyl Chloride)
Sheath
PVC(Polyvinyl Chloride)
Insulation Identification NAYY-J
1 core: Green/Yellow
3 core: Green/Yellow, Blue, Brown
4 core: Green/Yellow, Blue, Brown, Green/Yellow Brown, Black Grey
5 core: Green/Yellow, Blue, Brown, Black, Grey
3 core: Green/Yellow, Blue, Brown
4 core: Green/Yellow, Blue, Brown, Green/Yellow Brown, Black Grey
5 core: Green/Yellow, Blue, Brown, Black, Grey
Insulation Identification NAYY-O
1 core: Black
3 core: Black, Brown, Grey
4 core: Blue, Brown, Black, Grey
5 core: Blue, Brown, Black, Grey, Black
3 core: Black, Brown, Grey
4 core: Blue, Brown, Black, Grey
5 core: Blue, Brown, Black, Grey, Black
Technical Specifications
NAYY-J/NAYY-O Cables
NAYY-J /NAYY-O Dimension
| No of Cores | Nominal Cross Section Area | Nominal Thickness of Insulation (m) | Nominal Thickness of Sheath | Nominal Diameter | Approximate Weight |
| mm2 | mm | mm | (mm) | kg/km | |
| 1 | 10 | 1.0 | 1.4 | 8.9 | 99 |
| 1 | 16 | 1 | 1.4 | 9.9 | 127 |
| 1 | 25 | 1.2 | 1.4 | 11.2 | 171 |
| 1 | 35 | 1.2 | 1.4 | 12.2 | 209 |
| 1 | 50 | 1.4 | 1.4 | 13.6 | 267 |
| 1 | 70 | 1.4 | 1.4 | 15.7 | 351 |
| 1 | 95 | 1.6 | 1.8 | 19 | 490 |
| 1 | 120 | 1.6 | 1.8 | 20 | 575 |
| 1 | 150 | 1.8 | 1.8 | 22 | 695 |
| 1 | 185 | 2 | 1.8 | 25 | 845 |
| 1 | 240 | 2.2 | 1.8 | 28 | 1100 |
| 1 | 300 | 2.4 | 1.9 | 30 | 1379 |
| 1 | 400 | 2.6 | 2 | 34 | 1615 |
| 1 | 500 | 2.8 | 2.1 | 37 | 2015 |
| 1 | 630 | 2.8 | 2.2 | 43 | 2472 |
| 3 | 300 | 2.4 | 3 | 59 | 4500 |
| 4 | 6 | 1 | 1.8 | 17 | 377 |
| 4 | 10 | 1 | 1.8 | 19 | 470 |
| 4 | 16 | 1.2 | 1.8 | 24 | 750 |
| 4 | 25 | 1.2 | 1.8 | 25 | 950 |
| 4 | 35 | 1.2 | 1.8 | 28.1 | 1120 |
| 4 | 50 | 1.4 | 1.9 | 29.5 | 1151 |
| 4 | 70 | 1.4 | 2.1 | 33.4 | 1594 |
| 4 | 95 | 1.6 | 2.2 | 39 | 2030 |
| 4 | 120 | 1.6 | 2.4 | 43 | 2400 |
| 4 | 150 | 1.8 | 2.5 | 46 | 3030 |
| 4 | 185 | 2 | 2.7 | 51 | 3650 |
| 4 | 240 | 2.2 | 2.9 | 58 | 4800 |
| 4 | 300 | 2.4 | 3 | 63.5 | 5685 |
| 5 | 10 | 1 | 1.8 | 19.3 | 585 |
| 5 | 16 | 1.2 | 1.8 | 21.8 | 938 |
| 5 | 25 | 1.2 | 1.8 | 27.1 | 1188 |
| 5 | 35 | 1.2 | 1.8 | 30.2 | 1375 |
| 5 | 50 | 1.4 | 1.8 | 36.2 | 1720 |
| 5 | 70 | 1.4 | 2.1 | 44 | 2240 |
| 5 | 95 | 1.6 | 2.1 | 47 | 3060 |
| 5 | 120 | 1.6 | 2.4 | 53 | 3580 |
| 5 | 150 | 1.8 | 2.5 | 56 | 4400 |
| 5 | 185 | 2 | 2.7 | 59 | 5481 |
| 5 | 240 | 2.2 | 2.9 | 71 | 7000 |
Quality Control
NAYY-J/NAYY-O Cables
Raw Material Test
For NAYY-J/NAYY-O Solar Cables, raw material testing begins with aluminum ingot/rod certification. Samples are checked for alloy composition, impurities, and electrical conductivity using spectrometers. PVC resins undergo viscosity, K-value, and monomer residue analysis. Stabilizers and plasticizers are quantified for migration risk. Conductor rods face elongation and bend tests. Insulation compounds are tested for dielectric strength and thermal endurance pre-extrusion. The step-by-step process: incoming documentation review, random sampling, physical/mechanical testing, chemical verification, accelerated aging trials, and material release. This rigorous evaluation establishes a defect-free foundation for the NAYY-J/NAYY-O Solar Cables' durability and electrical performance in solar installations.
Process inspection
Process inspection in NAYY-J/NAYY-O Solar Cables manufacturing involves multi-point quality checks. Aluminum drawing/stranding monitors strand compactness and surface defects. Core insulation extrusion ensures even coverage and adhesion with real-time thickness gauges. Filling and assembly stages verify core positioning and tape application. Outer sheath extrusion includes spark testing and eccentricity measurement. Printing durability and color consistency are inspected. Critical steps: pre-extrusion compound mixing verification, line speed/temperature control, in-process voltage testing, sampling for cross-section analysis, and immediate defect removal. This ensures the NAYY-J/NAYY-O Solar Cables achieve uniform construction, reliable insulation, and full VDE compliance throughout production.
Finished Product
Completed NAYY-J/NAYY-O Solar Cables are rigorously tested before dispatch. Key routines: DC resistance measurement, AC voltage test (immersed if required), insulation and sheath thickness checks, and continuity verification. Flame test (vertical), cold bend, and impact resistance confirm mechanical properties. Long-duration heat and moisture tests assess aging. The sequential process: reel sampling, test setup with water bath/oven, parameter application (voltage/temperature), timed exposure, recovery inspection, electrical/mechanical re-measurement, and documentation. Additional checks cover outer diameter and weight. Passing all verifies the NAYY-J/NAYY-O Solar Cables' safety, robustness, and efficiency for photovoltaic power transmission.
Application
NAYY-J and NAYY-O are low-voltage power cables designed according to IEC 60502-1 standard, suitable for fixed installation in indoor, outdoor, underground, or concrete (not subject to vibration) environments. For solar projects, substation projects, Electrical Equipment in air, ground, water, and tube.
Technical Advantages
● 30+ years of manufacturing experience
● ISO and UL certified production
● Customized cable and transformer solutions
Product Packaging
Wires and Cables packaging (1)
Wires and Cables packaging (2)
Wires and Cables packaging (3)
Wires and Cables packaging (4)
Wires and Cables packaging (5)
Wires and Cables packaging (6)
Wires and Cables packaging (7)
Wires and Cables packaging (8)
Related Products
N2XSH Medium Voltage Power Cable(6/10kV, 12/20kV, 18/30kV)
N2XSH are flame-retardant, low smoke, zero halogen (LSZH) medium voltage cables with copper conductors, manufactured according to IEC 60502-2 standards. Featuring stranded copper conductors, cross-linked polyethylene (XLPE) insulation, copper tape or wire screen, and low smoke zero halogen (LSZH) outer sheath, it complies with IEC 60502-2 and fire performance standards. In fire situations, the LSZH sheath emits minimal smoke and no toxic halogen gases, protecting lives and equipment. Excellent electrical properties, low dielectric losses, and high thermal stability ensure efficient power transmission. Suitable for direct burial, ducts, or indoor installations in public areas, it offers good mechanical protection and moisture resistance. The N2XSH Medium Voltage Power Cable is the preferred choice for utilities, hospitals, schools, tunnels, and infrastructure projects demanding reliable, environmentally friendly medium voltage cabling with superior fire safety and long service life worldwide.
(N)TSCGEWOU 3.6/6kV, 6/10kV, 8.7/15kV and 12/20kV Submersible Cable
The (N)TSCGEWOU 3.6/6kV, 6/10kV, 8.7/15kV, and 12/20kV Submersible Cable is a medium voltage flexible power cable designed for long-term underwater use in accordance with VDE 0250 standards. It features Class 5 tinned copper conductors, EPR rubber insulation, semi-conductive layers, and a copper braid earth conductor, with EPR and CM waterproof rubber sheaths for excellent resistance to water, salt, abrasion, oil, and mechanical stress. Suitable for pumps, dredgers, floating docks, and heavy-duty mining equipment, this cable ensures reliable performance in wet and harsh industrial environments.
1/0 Sandcrab Aluminum Conductor Triplex Overhead Service Drop Cable
1/0 Sandcrab Aluminum Conductor Overhead Service Drop Cable has three conductors, with one of them being for neutral path, and two electrodes. Used to supply power, usually from a pole-mounted transformer, to the user's service head where connection to the service entrance cable is made. To be used at voltages of 600 volts phase-to-phase or less and at conductor temperatures not to exceed 75°C for polyethylene insulated conductors or 90°C for cross-linked polyethylene (XLPE) insulated conductors. A bare messenger wire of this electrical cable is bonded closely on the two insulated aluminum conductors, which are individually insulated with black cross-linked polyethylene for protection.
AMES AAAC Conductor Cable
AMES AAAC (All Aluminum Alloy Twisted) cables comply with ASTM B399 standards and have excellent conductivity and corrosion resistance. With 250 mm² nominal area and 19-strand design, it uses heat-treated aluminum-magnesium-silicon alloy (6201-T81) for enhanced strength (295 MPa min) and conductivity (53% IACS min). Meeting ASTM B398, B399, IEC 61089, and BS EN 50182 standards, this cable handles ampacity up to 600A at 75°C and voltages up to 33kV. The all-alloy construction avoids bimetallic corrosion, providing better resistance in harsh conditions than ACSR. Reduced weight minimizes sag and installation expenses, supporting longer spans. The Ames AAAC Conductor Cable delivers low electrical losses, high mechanical endurance, and excellent weather tolerance. Flame-retardant variants available. Perfect for urban grids, renewable projects, and coastal setups, it provides cost-effective, low-maintenance power delivery in overhead applications globally, excelling in reliability and lifespan over conventional conductors.
4 Whelk Triplex Aluminum Conductor Triplex Overhead Service Drop Cable
4 Whelk Triplex Aluminum Overhead Service Drop Cable is designed for dependable power distribution in residential, commercial, and temporary service applications. It consists of two insulated phase conductors and one bare ACSR (Aluminum Conductor Steel Reinforced) messenger that functions as both a neutral conductor and a support strand. This cable is ideal for 120/240V single-phase overhead service and operates at voltages up to 600V. The black cross-linked polyethylene (XLP) insulation provides exceptional resistance to sunlight, abrasion, and moisture, making it suitable for long-term outdoor use.2Y-high-voltage-power-cable.webp)
2XS(FL)2Y MDPE High Voltage 26/45 (52)kV Power Cable
The 2XS(FL)2Y MDPE High Voltage Power Cable is a single-core aluminum conductor cable with XLPE insulation and an MDPE sheath, rated 26/45(52) kV. Designed for medium- and high-voltage power transmission, it meets IEC 60502 and IEC 60840 standards, offering excellent electrical performance, mechanical protection, and environmental resistance. Its robust construction features a copper conductor, semi-conductive screens, water-blocking tape, metallic screen, aluminum tape with PE coating, and a durable MDPE sheath, ensuring reliable operation in power stations, industrial facilities, and distribution networks. Suitable for underground, underwater, outdoor, indoor, and duct installations.FAQ From Customers
-
What are the advantages of power cables and overhead lines?(1) Reliable operation, because it is installed in a hidden place such as underground, it is less damaged by external forces, has less chance of failure, and the power supply is safe, and it will not cause harm to people; (2) The maintenance workload is small and frequent inspections are not required; (3) No need to erect towers; (4) Help improve power factor.
-
Which aspects should be considered when choosing the cross section of a power cable?(1) The long-term allowable working current of the cable; (2) Thermal stability once short circuited; (3) The voltage drop on the line cannot exceed the allowable working range.
-
What are the measures for cable fire prevention?(1) Use flame-retardant cables; (2) Use fireproof cable tray; (3) Use fireproof paint; (4) Fire partition walls and fire baffles are installed at cable tunnels, mezzanine exits, etc.; (5) Overhead cables should avoid oil pipelines and explosion-proof doors, otherwise local pipes or heat insulation and fire prevention measures should be taken.
-
What should be paid attention to during the transportation and handling of cables?(1) During transportation, loading and unloading, cables and cable reels should not be damaged. It is strictly forbidden to push the cable reels directly from the vehicle. Generally, cables should not be transported and stored flat. (2) Before transporting or rolling the cable reel, ensure that the cable reel is firm, the cable is wound tightly, the oil pipe between the oil-filled cable and the pressure oil tank should be fixed without damage, the pressure oil tank should be firm, and the pressure indication should meet the requirements.
-
What inspections should be carried out for the acceptance of cable lines?(1) The cable specifications should meet the regulations, the arrangement should be neat, no damage, and the signs should be complete, correct and clear; (2) The fixed bending radius of the cable, the related distance and the wiring of the metal sheath of the single-core power cable should meet the requirements; (3) The cable terminal and the middle head should not leak oil, and the installation should be firm. The oil pressure of the oil-filled cable and the meter setting should meet the requirements; (4) Good grounding; (5) The color of the cable terminal is correct, and the metal parts such as the bracket are completely painted; (6) There should be no debris in the cable trench, tunnel, and bridge, and the cover should be complete.
