NYRY 0.6/1kV Low Voltage Power Cable
NYRY 0.6/1kV are low voltage power cables designed according to BS 5467 standard, suitable for fixed installation in indoor, outdoor, underground, cable ducts or concrete (not subject to vibration) environments, with steel wire armouring for mechanical protection. The cable features stranded copper conductors insulated with high-quality PVC, ensuring dependable electrical performance and thermal resistance under normal operating conditions. The metallic concentric conductor layer provides effective grounding and enhanced fault current capability, while the robust PVC outer sheath offers protection against moisture, abrasion, and external mechanical stress. Rated at 0.6/1kV and manufactured in accordance with relevant IEC standards, the NYRY cable is suitable for fixed installation both indoors and outdoors. Its construction supports long service life, consistent power delivery, and safe operation in demanding environments.
- Voltage Rating(Uo/U) 0.6/1kV
- Fixed installation TempRating -5°C to +70°C (PVC insulation limits)
-
Minimum Bending Radius
Fixed: 6 × overall diameter(1.5mm² to 16mm²)
Fixed: 8 × overall diameter(>=25mm²)
Construction
Technical Specifications
Quality Control
Application
Construction

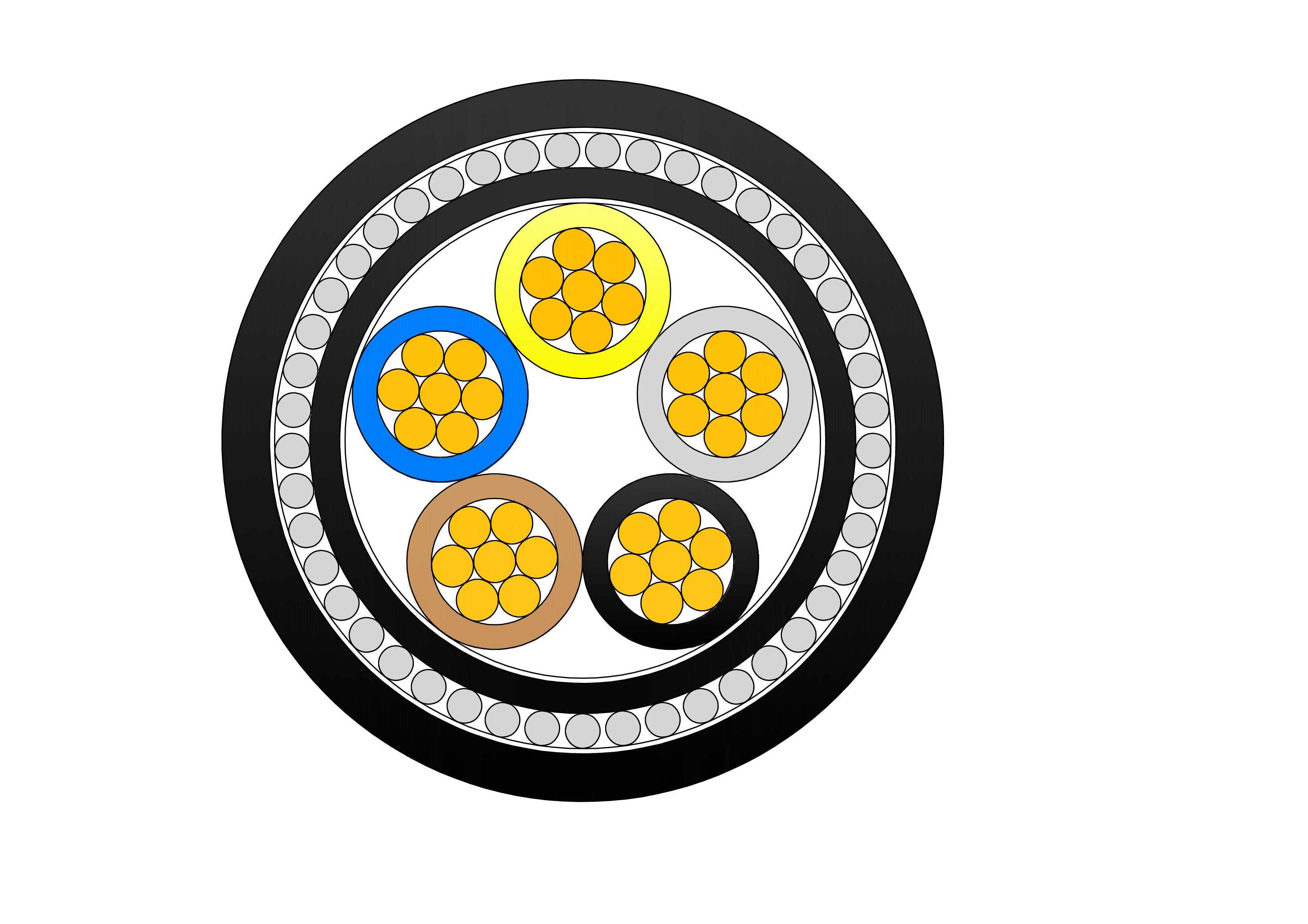

NYRY 0.6/1kV Low Voltage Power Cable Construction
Conductor
Class 2 stranded copper
Insulation
PVC (Polyvinyl Chloride)
Bedding
PVC (Polyvinyl Chloride)
Armour
SWA (Steel Wire Armour)
Sheath
PVC (Polyvinyl Chloride)
Sheath Colour
Black
Manufacturer Standard
BS 5467, IEC/EN 60228
Flame retardant
IEC/EN 60332-1-2
Core Identification
2 core: Brown / Blue
3 core: Brown / Blue / Green-Yellow
4 core: Brown / Black / Grey / Green-Yellow
5 core: Green-Yellow / Blue / Brown / Black / Grey
3 core: Brown / Blue / Green-Yellow
4 core: Brown / Black / Grey / Green-Yellow
5 core: Green-Yellow / Blue / Brown / Black / Grey
Application
NYRY cables are suitable for fixed installation in power distribution networks, installed in indoor, outdoor, underground, and cable duct environments, particularly where medium mechanical protection is required
Technical Specifications
NYRY 0.6/1kV Low Voltage Power Cable
NYRY Low Voltage Power Cable Technical Specifications
| No of Cores |
Nominal Cross Section Area |
Nominal Thickness of insulation |
Nominal Thickness of sheath |
Nominal Diameter |
Approximate Weight |
| mm2 | mm | mm | mm | kg/km | |
| 2 | 1.5 | 0.7 | 1.8 | 12.5 | 300 |
| 2 | 2.5 | 0.8 | 1.8 | 13.5 | 390 |
| 2 | 4 | 0.8 | 1.8 | 14.5 | 490 |
| 2 | 6 | 0.8 | 1.8 | 15.5 | 620 |
| 2 | 10 | 1.0 | 1.8 | 17.5 | 810 |
| 3 | 10 | 1.0 | 1.8 | 19 | 1050 |
| 3 | 16 | 1.0 | 1.8 | 21 | 1300 |
| 3 | 25 | 1.2 | 1.8 | 24 | 1750 |
| 3 | 35 | 1.2 | 1.8 | 26 | 2100 |
| 3 | 50 | 1.4 | 1.8 | 29 | 2600 |
| 3 | 70 | 1.4 | 1.8 | 32 | 3300 |
| 3 | 95 | 1.6 | 2.0 | 36 | 4200 |
| 3 | 120 | 1.6 | 2.0 | 38 | 5100 |
| 3 | 150 | 1.8 | 2.2 | 42 | 6200 |
| 3 | 185 | 2.0 | 2.4 | 46 | 7300 |
| 3 | 240 | 2.2 | 2.5 | 51 | 8800 |
| 4 | 10 | 1.0 | 1.8 | 21 | 1250 |
| 4 | 16 | 1.0 | 1.8 | 23 | 1500 |
| 4 | 25 | 1.2 | 1.8 | 26 | 2100 |
| 4 | 35 | 1.2 | 1.8 | 28 | 2550 |
| 4 | 50 | 1.4 | 1.8 | 31 | 3100 |
| 4 | 70 | 1.4 | 1.8 | 34 | 4000 |
| 4 | 95 | 1.6 | 2.0 | 38 | 5000 |
| 4 | 120 | 1.6 | 2.0 | 40 | 6000 |
| 4 | 150 | 1.8 | 2.2 | 44 | 7200 |
| 4 | 185 | 2.0 | 2.4 | 48 | 8500 |
| 4 | 240 | 2.2 | 2.5 | 53 | 10200 |
Quality Control
NYRY 0.6/1kV Low Voltage Power Cable
Raw Material Test
Raw Material Test is the first quality control stage for the NYRY 0.6/1kV Low Voltage Power Cable. Copper conductors are tested for electrical conductivity, tensile strength, elongation, and surface cleanliness. PVC insulation compounds are evaluated for dielectric strength, thermal stability, and resistance to aging. Materials used for the concentric conductor are inspected for uniformity and corrosion resistance. PVC sheath materials undergo mechanical and environmental testing to ensure durability. Only raw materials that meet technical specifications and applicable standards are approved for cable production.
Process inspection
Process Inspection ensures stable manufacturing quality of the NYRY 0.6/1kV Low Voltage Power Cable throughout production. Conductor stranding is monitored for correct lay length and compactness. PVC insulation extrusion is inspected for thickness uniformity, concentricity, and surface finish. Application of the concentric conductor is checked for full coverage and proper contact. Outer sheathing is continuously monitored to ensure mechanical strength and dimensional accuracy. In-process electrical checks verify insulation integrity before final processing.
Finished Product
Finished Product Test confirms the performance and safety of the NYRY 0.6/1kV Low Voltage Power Cable. Electrical tests include conductor resistance measurement and insulation resistance testing. Voltage withstand tests verify insulation reliability at rated voltage. Mechanical tests assess sheath integrity and flexibility. Visual inspection ensures correct construction, marking, and packaging before release for shipment.
Application
Suitable for industrial facilities, power plants, substations, commercial buildings, and utility networks requiring reliable low voltage power distribution with grounding protection.
Technical Advantages
● 30+ years of manufacturing experience
● ISO and UL certified production
● Customized cable and transformer solutions
Product Packaging
Wires and Cables packaging (1)
Wires and Cables packaging (2)
Wires and Cables packaging (3)
Wires and Cables packaging (4)
Wires and Cables packaging (5)
Wires and Cables packaging (6)
Wires and Cables packaging (7)
Wires and Cables packaging (8)
