NYCY 0.6/1kV Low Voltage Power Cable
NYCY 0.6/1kV are low-voltage power cables designed according to VDE 0276 standard, suitable for fixed installation in indoor, outdoor, underground, cable ducts, or concrete (not exposed to mechanical vibration). Featuring stranded copper conductors, PVC insulation, filler, concentric copper wire screen with counter-helix tape, and robust PVC outer sheath, it complies with VDE 0276-603 and IEC standards. The concentric screen serves as neutral/earth conductor and provides excellent EMI shielding, reducing interference in sensitive areas. Suitable for direct burial, ducts, or indoor fixed installations, it offers good mechanical strength, moisture resistance, and flame-retardant properties. Copper conductors ensure low losses and high current capacity. The NYCY 0.6/1kV Low Voltage Power Cable delivers long service life with minimal maintenance, making it ideal for industrial plants, commercial buildings, residential networks, and infrastructure projects requiring screened, efficient low-voltage copper cabling for safe and interference-free energy transmission worldwide.
- Voltage Rating(Uo/U) 0.6/1kV
- Max conductor operating Temp Fixed: 70°C ; Moved: -5°C to +70°C
- Minimum Bending Radius 15 x overall diameter
- Test Voltage 4KV
Construction
Technical Specifications
Quality Control
Application
Construction

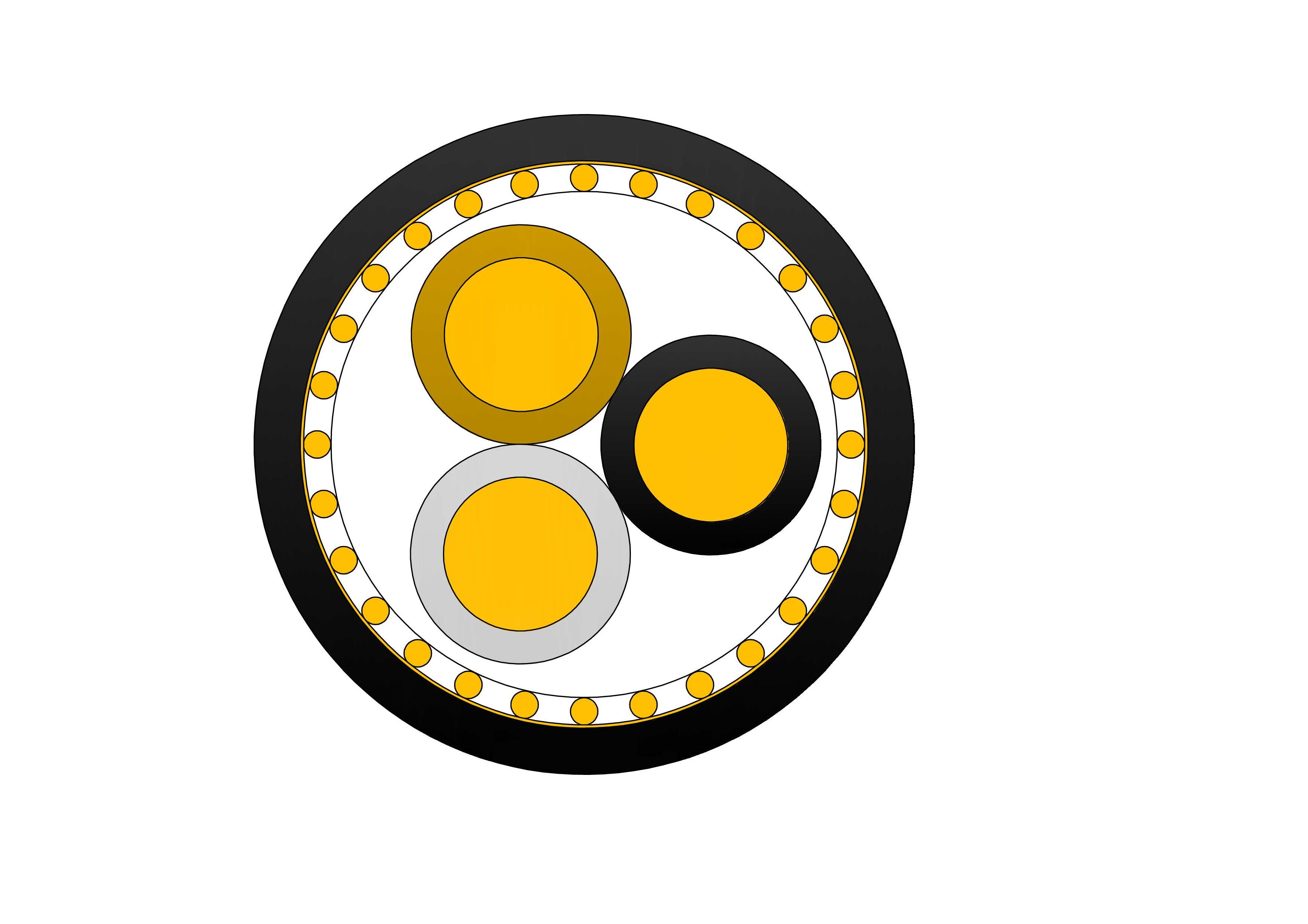

NYCY 0.6/1kV Low Voltage Power Cable Construction
Conductor
RE: Class 1 solid bare copper
Insulation
PVC (Polyvinyl Chloride)
Inner Sheath
Halogen-free compound
Concentric Conductor
Copper wires and copper tape
Sheath
PVC(Polyvinyl Chloride)
Sheath Colour
Black
Manufacturer Standard
VDE 0276-603, VDE 0276-627 ( ≥ 5 cores)
Flame retardant
VDE 0482-332-1-2/IEC 60332-1-2
Core Identification
2 core: Brown /Blue
3 core: Brown /Black/Grey
4 core: Brown / Black/ Grey/Blue
5 core: Green /Brown /Blue/ Black/ Grey
7 core and above: Black with/White numbers
3 core: Brown /Black/Grey
4 core: Brown / Black/ Grey/Blue
5 core: Green /Brown /Blue/ Black/ Grey
7 core and above: Black with/White numbers
Application
NYCY cables are suitable for fixed wiring in the industrial and construction fields. They can be laid indoors, outdoors, and underground. They are widely used in power distribution systems.
Technical Specifications
NYCY 0.6/1kV Low Voltage Power Cable
NYCY Low Voltage Power Cable Technical Specifications
| No of Cores |
Nominal Cross Section Area |
Conductor Type |
Nominal Insulation Wall Thickness |
Nominal Sheath Wall Thickness |
Nominal Overall Diameter |
Approximate Weight |
| mm2 | mm | mm | mm | kg/km | ||
| 1 | 6/6 | RE | 1 | 1.8 | 10.2 | 201 |
| 2 | 1.5/1.5 | RE | 0.8 | 1.8 | 13 | 200 |
| 2 | 2.5/2.5 | RE | 0.8 | 1.8 | 13.6 | 260 |
| 2 | 4/4 | RE | 1 | 1.8 | 15.4 | 350 |
| 2 | 6/6 | RE | 1 | 1.8 | 16.9 | 430 |
| 2 | 10/10 | RE | 1 | 1.8 | 18.5 | 520 |
| 2 | 16/16 | RE | 1 | 1.8 | 20.5 | 720 |
| 3 | 1.5/1.5 | RE | 0.8 | 1.8 | 13.2 | 220 |
| 3 | 2.5/2.5 | RE | 0.8 | 1.8 | 14.2 | 280 |
| 3 | 2.5/10 | RE | 0.8 | 1.8 | 14.4 | 359 |
| 3 | 4/4 | RE | 1 | 1.8 | 16.3 | 390 |
| 3 | 6/6 | RE | 1 | 1.8 | 17.3 | 500 |
| 3 | 10/10 | RE | 1 | 1.8 | 20 | 680 |
| 3 | 16/16 | RE | 1 | 1.8 | 23 | 1010 |
| 4 | 1.5/1.5 | RE | 0.8 | 1.8 | 14.2 | 250 |
| 4 | 2.5/2.5 | RE | 0.8 | 1.8 | 15.3 | 340 |
| 4 | 4/4 | RE | 1 | 1.8 | 17.3 | 460 |
| 4 | 6/6 | RE | 1 | 1.8 | 18.4 | 580 |
| 4 | 10/10 | RE | 1 | 1.8 | 21 | 765 |
| 4 | 16/16 | RE | 1 | 1.8 | 23 | 1060 |
| 5 | 1.5/1.5 | RE | 0.8 | 1.8 | 15 | 330 |
| 5 | 2.5/2.5 | RE | 0.8 | 1.8 | 16 | 400 |
| 5 | 4/4 | RE | 1 | 1.8 | 19 | 550 |
| 5 | 6/6 | RE | 1 | 1.8 | 21 | 700 |
| 7 | 1.5/2.5 | RE | 0.8 | 1.8 | 15.3 | 350 |
| 7 | 2.5/2.5 | RE | 0.8 | 1.8 | 17.4 | 450 |
| 7 | 4/4 | RE | 1 | 1.8 | 20 | 600 |
| 7 | 6/6 | RE | 1 | 1.8 | 22.5 | 790 |
| 7 | 10/10 | RE | 1 | 1.8 | 25 | 1320 |
| 8 | 4/4 | RE | 1 | 1.8 | 20 | 770 |
| 10 | 1.5/2.5 | RE | 0.8 | 1.8 | 18.4 | 410 |
| 10 | 2.5/4 | RE | 1 | 1.8 | 20.4 | 600 |
| 10 | 4/6 | RE | 0.8 | 1.8 | 23.5 | 900 |
| 12 | 1.5/2.5 | RE | 0.8 | 1.8 | 19.4 | 470 |
| 12 | 2.5/4 | RE | 0.8 | 1.8 | 20.5 | 660 |
| 12 | 4/6 | RE | 1 | 1.8 | 24.5 | 1060 |
| 14 | 1.5/2.5 | RE | 0.8 | 1.8 | 20.4 | 520 |
| 14 | 2.5/6 | RE | 0.8 | 1.8 | 21.5 | 750 |
| 16 | 1.5/4 | RE | 0.8 | 1.8 | 20 | 620 |
| 16 | 2.5/6 | RE | 0.8 | 1.8 | 22.5 | 800 |
| 19 | 1.5/4 | RE | 0.8 | 1.8 | 22.5 | 660 |
| 19 | 2.5/6 | RE | 0.8 | 1.8 | 23.5 | 940 |
| 19 | 4/10 | RE | 1 | 1.8 | 27.1 | 1376 |
| 21 | 1.5/6 | RE | 0.8 | 1.8 | 23 | 790 |
| 24 | 1.5/6 | RE | 0.8 | 1.8 | 5.5 | 850 |
| 24 | 2.5/10 | RE | 0.8 | 1.8 | 7.6 | 1150 |
| 24 | 4/10 | RE | 1 | 1.8 | 2.3 | 1813 |
| 30 | 1.5/6 | RE | 0.8 | - | 26.5 | 1020 |
| 30 | 2.5/10 | RE | 0.8 | 1.8 | 29.5 | 1600 |
| 40 | 1.5/10 | RE | 0.8 | 1.8 | 30 | 1280 |
| 40 | 2.5/10 | RE | 0.8 | 1.8 | 33 | 1660 |
| 52 | 1.5/10 | RE | 0.8 | 1.8 | 32 | 1600 |
| 52 | 2.5/10 | RE | 0.8 | 1.8 | 35 | 2000 |
| 61 | 1.5/10 | RE | 0.8 | 1.8 | 33 | 2000 |
| 61 | 2.5/10 | RE | 0.8 | 1.8 | 36 | 2280 |
Quality Control
NYCY 0.6/1kV Low Voltage Power Cable
Raw Material Test
For the NYCY 0.6/1kV Low Voltage Power Cable, raw material testing begins with copper certification for electrical grade and mechanical specifications. PVC compounds undergo viscosity, thermal stability, and migration analysis. Concentric screen wires face resistivity, diameter tolerance, and bonding checks. Fillers are tested for moisture and compatibility. The structured process: receipt documentation review, random sampling, physical/mechanical testing (tensile, elongation), chemical verification using spectroscopy, accelerated aging trials, and material release decision. This ensures defect-free inputs, providing the base for the NYCY 0.6/1kV Low Voltage Power Cable's conductivity, insulation quality, effective concentric screening, and environmental resistance in low-voltage screened applications.
Process inspection
Process inspection in NYCY 0.6/1kV Low Voltage Power Cable production involves multi-point quality checks. Copper forming monitors strand uniformity and defects. PVC insulation extrusion ensures adhesion with thickness gauges. Assembly stages verify core positioning and filler. Concentric screening controls wire density, lay, and tape integrity. Sheath extrusion includes spark testing and eccentricity measurement. Critical steps: pre-extrusion mixing verification, line speed/temperature control, in-process screen coverage sampling, resistivity checks, and defect removal. This ensures the NYCY 0.6/1kV Low Voltage Power Cable achieves uniform construction, reliable screening, and full VDE/IEC compliance.
Finished Product
Completed NYCY 0.6/1kV Low Voltage Power Cable is rigorously tested. Key routines: DC resistance (conductor/screen), AC voltage test, thickness checks, continuity, and shielding effectiveness. Flame test (vertical), cold bend, and impact confirm properties. Long-duration heat/moisture tests assess aging. The sequential process: reel sampling, test setup with bath/oven, parameter application, timed exposure, recovery inspection, re-measurement, and documentation. Additional checks cover diameter and weight. Passing all verifies the NYCY 0.6/1kV Low Voltage Power Cable's EMI shielding, safety, robustness, and efficiency for screened low-voltage transmission.
Application
NYCY 0.6/1kV Low Voltage Power Cable is ideal for underground and indoor distribution in industrial facilities, commercial complexes, residential areas, and areas with electromagnetic interference concerns. Perfect for direct burial or ducts requiring screened copper cabling for reduced EMI and reliable power supply.
Technical Advantages
● 30+ years of manufacturing experience
● ISO and UL certified production
● Customized cable and transformer solutions
Product Packaging
Wires and Cables packaging (1)
Wires and Cables packaging (2)
Wires and Cables packaging (3)
Wires and Cables packaging (4)
Wires and Cables packaging (5)
Wires and Cables packaging (6)
Wires and Cables packaging (7)
Wires and Cables packaging (8)
Related Products
FR-N30XA8E-R 18/30kV Cable Gen to NF C 33-226 - Cu/XLPE/MDPE
The NF C 33-226 Cu-XLPE-MDPE 18/30kV Cable is a robust medium voltage power cable designed for safe and reliable energy transmission in fixed installations. It features a Class 2 stranded copper conductor, cross-linked polyethylene (XLPE) insulation, and a medium-density polyethylene (MDPE) outer sheath, ensuring outstanding electrical conductivity, insulation integrity, and mechanical protection. Complying with NF C 33-226, IEC 60502-2, and EN 60228, this cable is ideal for power distribution in industrial plants, substations, municipal grids, and commercial facilities. It provides excellent resistance to water (AD7) and UV radiation (ISO 4892), while being halogen-free (IEC/EN 60754-1) to ensure environmental and operational safety. With a voltage rating of 18/30 (36)kV and maximum operating temperature of 90°C, the Cu-XLPE-MDPE construction guarantees stable, efficient, and long-lasting performance in medium- and high-voltage networks.

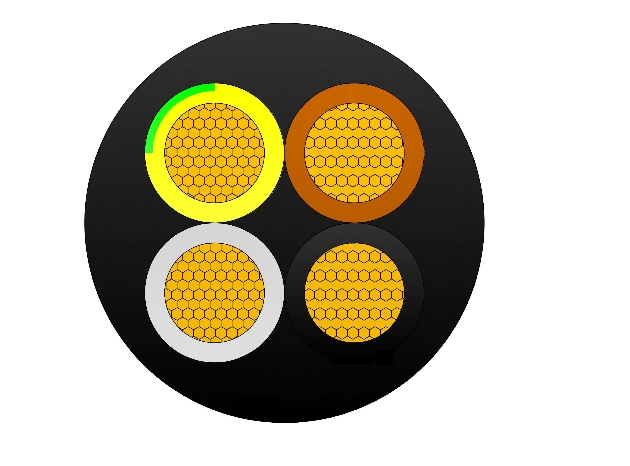

H07ZZ-F EN 50525-3-21 LSZH Rubber Flexible Cable
The H07ZZ-F Rubber Flexible Cable is a high-performance low-smoke, halogen-free (LSZH) flexible cable designed in compliance with EN 50525-3-21 and IEC 60502-1 standards. It offers outstanding flexibility, flame retardancy, and resistance to smoke and toxic gas emission, ensuring enhanced safety in public and industrial environments. With its cross-linked LSZH insulation and sheath, the H07ZZ-F cable is ideal for fixed and mobile electrical installations in airports, subways, public buildings, power distribution systems, UPS equipment, and stage lighting setups. Engineered to perform under moderate mechanical stress, it maintains excellent reliability both indoors and outdoors.
954 MCM CARDINAL ACSR Conductor Cable
The ACSR CAA 954 MCM 54/7F CARDINAL is a high-capacity, heavy-duty Aluminium Conductor Steel Reinforced (ACSR) cable engineered for the reliable transmission of electrical power over long-span overhead lines. It features 54 hard-drawn 1350-H19 aluminium strands concentrically laid around 7 galvanized steel strands, offering an optimized balance between excellent electrical conductivity and mechanical strength. Manufactured to meet the requirements of ASTM B232, the CARDINAL configuration is a trusted industry standard, widely adopted in high-voltage transmission systems. The galvanized steel core, available in Class A or B coatings, provides superior corrosion resistance and structural support, making this conductor ideal for outdoor environments exposed to wind, ice, and mechanical loading. The 54/7F strand design ensures increased current-carrying capacity and lower resistance, making it suitable for use in critical infrastructure and utility-grade transmission networks. Its cost-effective design makes it popular for utility upgrades and rural electrification, ensuring reliable power delivery with minimal maintenance in overhead transmission and distribution systems worldwide.
4/0 Arca Aluminum Conductor Triplex Overhead Service Drop Cable
The 4/0 Arca Aluminum Triplex Overhead Service Drop Cable is designed for overhead power distribution from utility lines to residential or commercial buildings. It consists of two phase conductors and one neutral messenger conductor. Built for outdoor installations through the weather head at voltages up to 600V, this cable is ideal for overhead service drop applications. The phase conductors are insulated with black cross-linked polyethylene (XLP) for superior durability and weather resistance. The neutral conductor is a bare AAAC (All-Aluminum Alloy Conductor), providing both mechanical support and electrical grounding.
1/0 Murex Aluminum Conductor Triplex Overhead Service Drop Cable
1/0 Murex Triplex Aluminum Conductor Overhead Service Drop Cable is engineered for reliable aerial power transmission from pole-mounted transformers to the user's service entrance. Featuring two insulated phase conductors and a bare neutral AAC messenger, this triplex cable is ideal for low-voltage overhead distribution systems. Each conductor is made of 1350-H19 series aluminum, known for high conductivity and lightweight properties. The conductors are individually insulated with black cross-linked polyethylene (XLP), offering excellent resistance to sunlight, abrasion, and moisture. This cable is rated for up to 600 volts, and operates at 75°C (PE insulation) or 90°C (XLP insulation), meeting or exceeding all applicable ASTM and ANSI/ICEA S-76-474 standards.

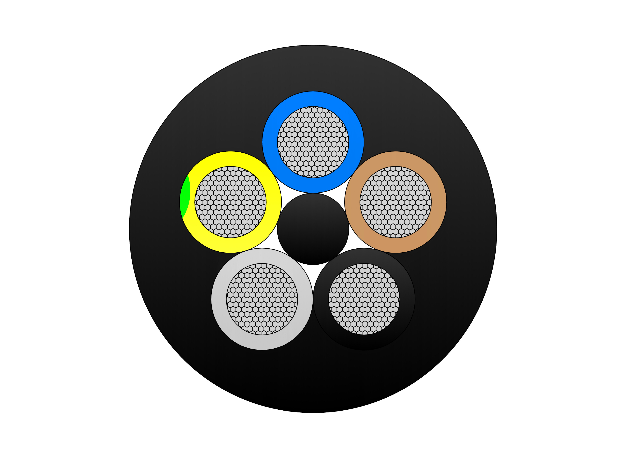

Type 450 Flexible Copper Screened Mining Cable With Two Earth And One Pilot Core
