RZ1-K(AS) XLPE LSZH Flexible Cable
RZ1-K(AS) XLPE LSZH Flexible Cable is a single Core flame retardant LSZH flexible power cable suitable for instllation outdoor and indoor. The "(AS)" suffix denotes advanced fire-retardant properties, minimizing smoke and toxic gases during fires. Excellent bend radius and resistance to mechanical stress, oils, and chemicals ensure easy routing and durability.
- Standard IEC 60502-1, EN 60228, UNE 21123-4
- Flame Non-Propagation Standard IEC/EN 60332-1/EC/EN 60332-3
- LCGE Standard IEC/EN 60754-1/2
- Low Smoke Emission Standard IEC/EN 61034
- Chemical &Oil Resistance acceptable Standard
- UV Resistant Standard EN50618 & UNE 211605
- Water Resistance Standard AD7
- Abrasion Resistance AD2
- Working Temperature -40℃ to +90℃
- System frequency range(Hz) 49-61
- Voltage Rating Uo/U(Um) 1.8/3(3.6)kV
Construction
Technical Specifications
Quality Control
Application

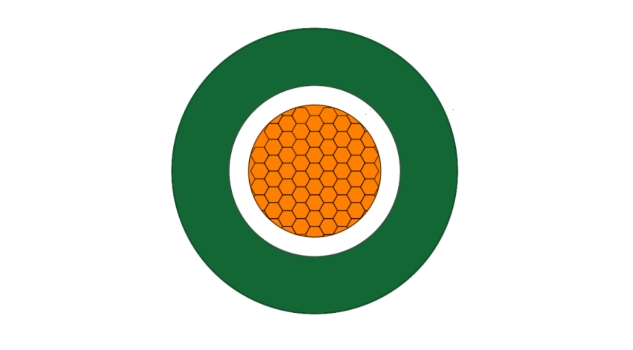

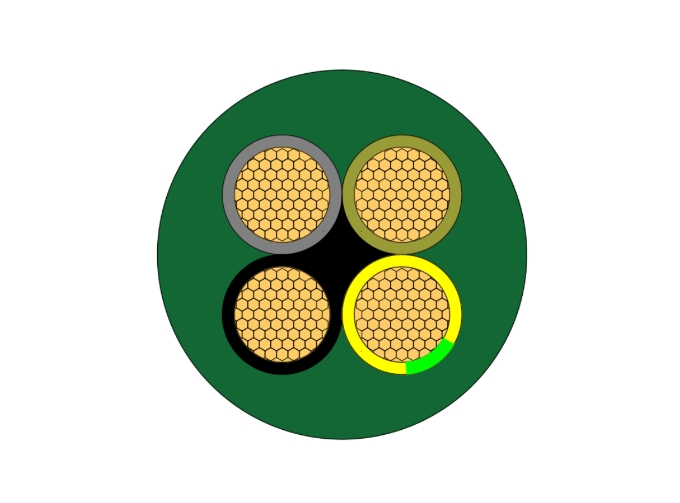

Construction
RZ1-K(AS) XLPE LSZH Flexible Cable Conductor
Conductor
Class 5 flexible copper conductor
Insulation
XLPE(Cross-Linked Polyethylene)
Sheath
LSZH (Low Smoke Zero Halogen)type STB(to IEC 60502-1) and type DMZ-E(to UNE 21123-4)
Sheath Color
Green, Black
Technical Specifications
RZ1-K(AS) XLPE LSZH Flexible Cable
Dimension
Electrical Characteristics
|
No. of Cores |
Nominal Cross Sectional Area |
Nominal Conductor Diameter |
Nominal Insulation Thickness |
Nominal Sheath Thickness |
Nominal Outer Sheath Diameter |
Nominal Weight |
Minimum Bending Radius | |
| During installation |
After installation |
|||||||
| mm² | mm | mm | mm | mm | kg/km | mm | mm | |
| 1 | 95 | 11.8 | 2.0 | 1.6 | 19.0 | 993 | 190 | 152 |
| 1 | 120 | 13.8 | 2.0 | 1.7 | 21.2 | 1216 | 212 | 170 |
| 1 | 150 | 15.0 | 2.0 | 1.7 | 22.4 | 1485 | 224 | 179 |
| 1 | 185 | 16.5 | 2.0 | 1.8 | 24.1 | 1796 | 241 | 193 |
| 1 | 240 | 19.1 | 2.0 | 1.9 | 26.9 | 2315 | 269 | 215 |
| 1 | 300 | 21.6 | 2.0 | 2.0 | 29.6 | 2859 | 294 | 235 |
| 1 | 400 | 26.6 | 2.0 | 2.1 | 34.8 | 3643 | 348 | 278 |
|
Nominal Cross Sectional Area |
Maximum Conductor DC Resistance at 20℃ |
Maximum Conductor AC Resistance at 90℃ |
Maximum Current Rating | Voltage Drop Cos Φ=0.8 | |
| Air 30℃ | Buried 20℃ | ||||
| mm² | Ω/Km | Ω/Km | A | A | V/A.km |
| 95 | 0.206 | 0.263 | 328 | 270 | 0.438 |
| 120 | 0.161 | 0.205 | 383 | 306 | 0.358 |
| 150 | 0.129 | 0.164 | 404 | 343 | 0.313 |
| 185 | 0.0991 | 0.128 | 510 | 387 | 0.262 |
| 240 | 0.0801 | 0.1021 | 552 | 448 | 0.223 |
| 300 | 0.0641 | 0.0817 | 639 | 502 | 0.193 |
| 400 | 0.0486 | 0.0620 | 823 | 558 | 0.164 |
Quality Control
RZ1-K(AS) XLPE LSZH Flexible Cable
Raw Material Test
For the RZ1-K(AS) XLPE LSZH Flexible Cable, raw material testing starts with fine copper certification for flexibility and conductivity. XLPE granules are evaluated for contamination, thermal stability, and crosslinking efficiency via microscopy and TGA. Enhanced LSZH compound faces advanced halogen-free verification, higher flame-retardant loading checks, smoke opacity, and corrosivity tests per EN standards. The structured process: receipt inspection, random sampling, physical/mechanical testing (tensile, elongation), chemical analysis with ion chromatography, accelerated aging and fire simulation trials, and release decision. This ensures premium inputs, establishing the base for the RZ1-K(AS) XLPE LSZH Flexible Cable's superior flexibility, enhanced fire performance, and low-emission characteristics.
Process inspection
Process inspection in RZ1-K(AS) XLPE LSZH Flexible Cable production involves real-time quality assurance. Copper bunching monitors strand count and flexibility parameters. XLPE insulation extrusion ensures even bonding with capacitance gauges. Special LSZH sheath application includes online spark testing, thickness uniformity, and enhanced additive distribution control. Multi-core twisting verifies the lay ratio and filler. Printing durability is assessed. Critical steps: pre-extrusion dryness verification, parameter stabilization, real-time eccentricity monitoring, gel fraction and flexibility sampling, fire-retardant property intermediate checks, and defect removal protocols. This multi-stage control maintains the RZ1-K(AS) XLPE LSZH Flexible Cable's precise construction, excellent bend performance, and compliance with fire safety standards.
Finished Product
Completed RZ1-K(AS) XLPE LSZH Flexible Cable reels are subjected to comprehensive factory tests. Mandatory routines: DC resistance, high-potential AC test, insulation thickness, and sheath integrity. Advanced fire tests include bundled flame propagation, heat release, smoke production, and acidity measurement for CPR compliance. Flexibility tests cover torsion and repeated bending. Mechanical evaluations include cold bend and impact. The sequential process: sample conditioning, parameter application (voltage/heat), timed fire exposure monitoring, recovery inspection, property re-measurement, and documentation. Additional verifications ensure chemical resistance and marking permanence. Passing all confirms the RZ1-K(AS) XLPE LSZH Flexible Cable's enhanced fire safety, flexibility, and reliability for critical installations.
Application
Perfect for emergency lighting, fire alarm systems, smoke extraction, and power supply in high-occupancy venues like theaters, metro stations, hotels, and commercial complexes requiring strict CPR classification and superior fire behavior.
Technical Advantages
● 30+ years of manufacturing experience
● ISO and UL certified production
● Customized cable and transformer solutions
Product Packaging
Wires and Cables packaging (1)
Wires and Cables packaging (2)
Wires and Cables packaging (3)
Wires and Cables packaging (4)
Wires and Cables packaging (5)
Wires and Cables packaging (6)
Wires and Cables packaging (7)
Wires and Cables packaging (8)
Related Products
FG7H1OAR - 3.6/6kV, 6/10kV, 8.7/15kV and 12/20kV Cable
The FG7H1OAR 3.6/6kV, 6/10kV, 8.7/15kV and 12/20kV Cable is a halogen-free, medium-voltage flexible power cable built to CEI 20-86 and IEC 60502-2 standards, designed for high safety and mechanical protection in demanding industrial environments. It features Class 5 tinned copper conductors, HEPR insulation, semi-conductive layers, and aluminium wire armour, ensuring excellent flame retardancy, impact resistance, and long service life. Ideal for fixed installations in tunnelling, underground mining, and heavy industry, it delivers reliable performance both indoors and outdoors under harsh operating conditions.
Control Cable 0.6/1 kV CVV to IEC 60502 Standard (2-30 core)
NPC Electric Control Cable 0.6/1 kV CVV to IEC 60502 Standard (2-30 core) is engineered for superior performance in demanding electrical control applications. Featuring concentric stranded copper conductors for excellent conductivity and flexibility, this cable is insulated with high-quality PVC in black, ensuring robust protection against environmental factors. Cores are identified with printed white numbers on black insulation for easy installation and maintenance. A PVC inner sheath and outer jacket provide additional mechanical strength and flame retardancy, making it suitable for indoor, outdoor, duct, and underground setups. Compliant with IEC 60502, it supports voltages up to 1 kV and operates in temperatures from -15°C to 70°C. This cable excels in control circuits, instrumentation, and auxiliary power systems, minimizing signal interference and ensuring data integrity. Available in 2 to 30 cores, it offers customization for specific project needs. Manufactured with precision, it reduces downtime and enhances system efficiency in industrial environments. Choose this CVV cable for long-lasting reliability, backed by rigorous quality testing and international standards.
DARIEN AAAC Conductor Cable
DARIEN AAAC (All Aluminum Alloy Conductor) cables are manufactured in compliance with ASTM B399 and IEC 61089 standards, offering excellent conductivity, high tensile strength, and outstanding corrosion resistance. With 700 mm² nominal area and 61-strand construction, it features heat-treated aluminum-magnesium-silicon alloy (6201-T81) for enhanced strength (295 MPa min) and conductivity (53% IACS min). Meeting ASTM B398, B399, IEC 61089, and BS EN 50182 standards, this cable supports ampacity up to 1100A at 75°C and voltages up to 33kV. The uniform alloy eliminates bimetallic issues, offering superior corrosion resistance in harsh environments compared to ACSR. Low weight reduces sag and installation costs, enabling longer spans. The Darien AAAC Conductor Cable provides minimal electrical losses, high mechanical endurance, and excellent weather tolerance. Flame-retardant options available. Suited for urban grids, renewable connections, and coastal installations, it ensures cost-effective, maintenance-free power delivery in overhead systems globally, outperforming traditional conductors in reliability and lifespan.
Instrumentation Cables—XLPE Insulated,Individual & Overall Screened,Lead Sheathed,Wire Armoured PVC Sheathed Cables(CU/XLPE/IOSCR/LEAD/SWA/PVC)
Instrumentation Cables are multi-conductor cables that carry and transport low-voltage electrical signals. These low-voltage signals are used to control and monitor electrical power systems. Instrumentation cables have many different industrial applications that include broadcasting, equipment control, such as drilling and pumping in the oil and gas industry, and data transfer, which includes analog and digital signals. They are manufactured according to the BS EN 50288-7 and BS EN 50288-1 standards to ensure quality. Depending on the application, instrumentation cables can be insulated with PVC or XLPE; the cables can be armoured or unarmoured. The sheathing materials can be of PVC, LSZH, or PE. The cables can have additional flame retardant or flame retardant properties, and they can be manufactured with special protections such as lead sheaths, or DRYLAM or AIRBAG technology.
High Voltage Power Cable
NPC Electric High Voltage Power Cable is engineered for reliable transmission of electricity at voltages from 35kV to 500kV. Featuring copper or aluminum conductors, cross-linked polyethylene (XLPE) insulation, metallic screening, and a robust outer sheath, this cable minimizes losses and ensures long-term performance in demanding environments. Designed to meet international standards like IEC 60840 and IEC 62067, it offers excellent electrical properties, mechanical strength, and resistance to moisture, chemicals, and thermal stress. Whether for underground burial, submarine applications, or overhead lines, our High Voltage Power Cable delivers superior efficiency and safety. With low dielectric losses and high breakdown strength, it supports modern power grids, renewable energy integration, and industrial power distribution. Choose our cables for minimal maintenance, extended service life, and compliance with global safety norms.2Y-high-voltage-power-cable.webp)
2XS(FL)2Y HDPE High Voltage 26/45 (52) kV Power Cable
2XS(FL)2Y HDPE High Voltage 26/45 (52) kV Power Cable is a high-performance XLPE-insulated cable designed for medium-to-high voltage transmission. It features a copper or aluminum conductor (optional watertightness – WTC), extruded semi-conductive conductor, and insulation screens, and water-swellable tapes for longitudinal water blocking. A longitudinally applied aluminium tape moisture barrier coated with PE copolymer provides excellent mechanical protection and resistance to moisture ingress. The HDPE oversheath offers superior abrasion resistance, chemical resistance, and durability, making it suitable for underground, underwater, outdoor, indoor, and duct installations in power stations, industrial plants, and distribution networks. Compliant with IEC 60840 standards, it ensures reliable performance in demanding environments.FAQ From Customers
-
What are the advantages of power cables and overhead lines?(1) Reliable operation, because it is installed in a hidden place such as underground, it is less damaged by external forces, has less chance of failure, and the power supply is safe, and it will not cause harm to people; (2) The maintenance workload is small and frequent inspections are not required; (3) No need to erect towers; (4) Help improve power factor.
-
Which aspects should be considered when choosing the cross section of a power cable?(1) The long-term allowable working current of the cable; (2) Thermal stability once short circuited; (3) The voltage drop on the line cannot exceed the allowable working range.
-
What are the measures for cable fire prevention?(1) Use flame-retardant cables; (2) Use fireproof cable tray; (3) Use fireproof paint; (4) Fire partition walls and fire baffles are installed at cable tunnels, mezzanine exits, etc.; (5) Overhead cables should avoid oil pipelines and explosion-proof doors, otherwise local pipes or heat insulation and fire prevention measures should be taken.
-
What should be paid attention to during the transportation and handling of cables?(1) During transportation, loading and unloading, cables and cable reels should not be damaged. It is strictly forbidden to push the cable reels directly from the vehicle. Generally, cables should not be transported and stored flat. (2) Before transporting or rolling the cable reel, ensure that the cable reel is firm, the cable is wound tightly, the oil pipe between the oil-filled cable and the pressure oil tank should be fixed without damage, the pressure oil tank should be firm, and the pressure indication should meet the requirements.
-
What inspections should be carried out for the acceptance of cable lines?(1) The cable specifications should meet the regulations, the arrangement should be neat, no damage, and the signs should be complete, correct and clear; (2) The fixed bending radius of the cable, the related distance and the wiring of the metal sheath of the single-core power cable should meet the requirements; (3) The cable terminal and the middle head should not leak oil, and the installation should be firm. The oil pressure of the oil-filled cable and the meter setting should meet the requirements; (4) Good grounding; (5) The color of the cable terminal is correct, and the metal parts such as the bracket are completely painted; (6) There should be no debris in the cable trench, tunnel, and bridge, and the cover should be complete.
