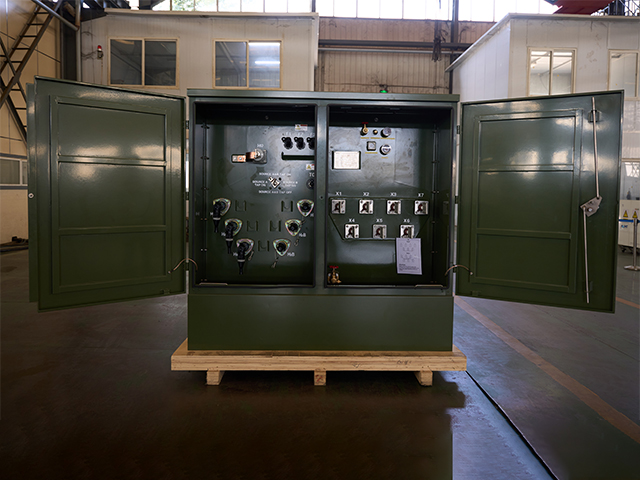

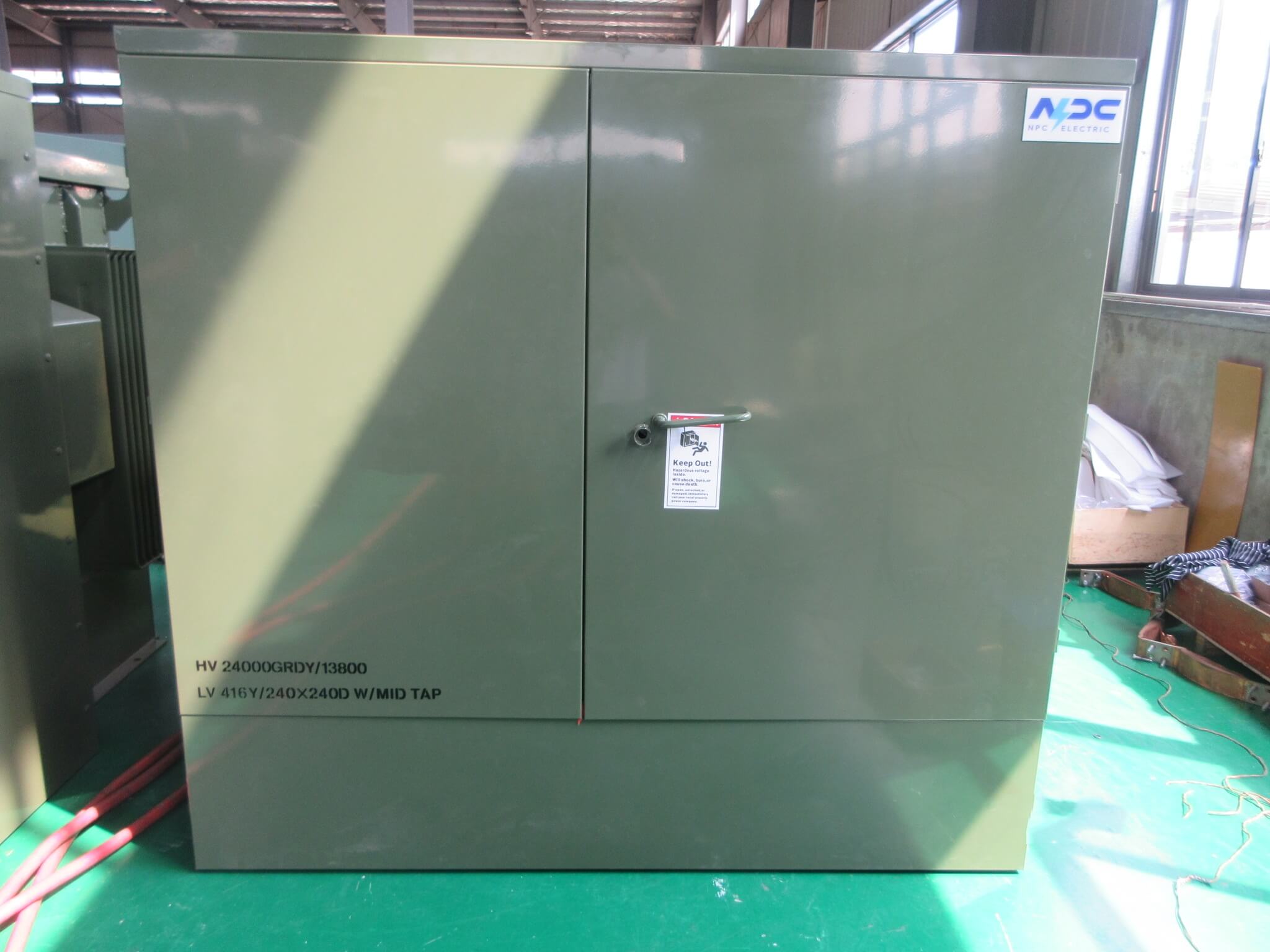

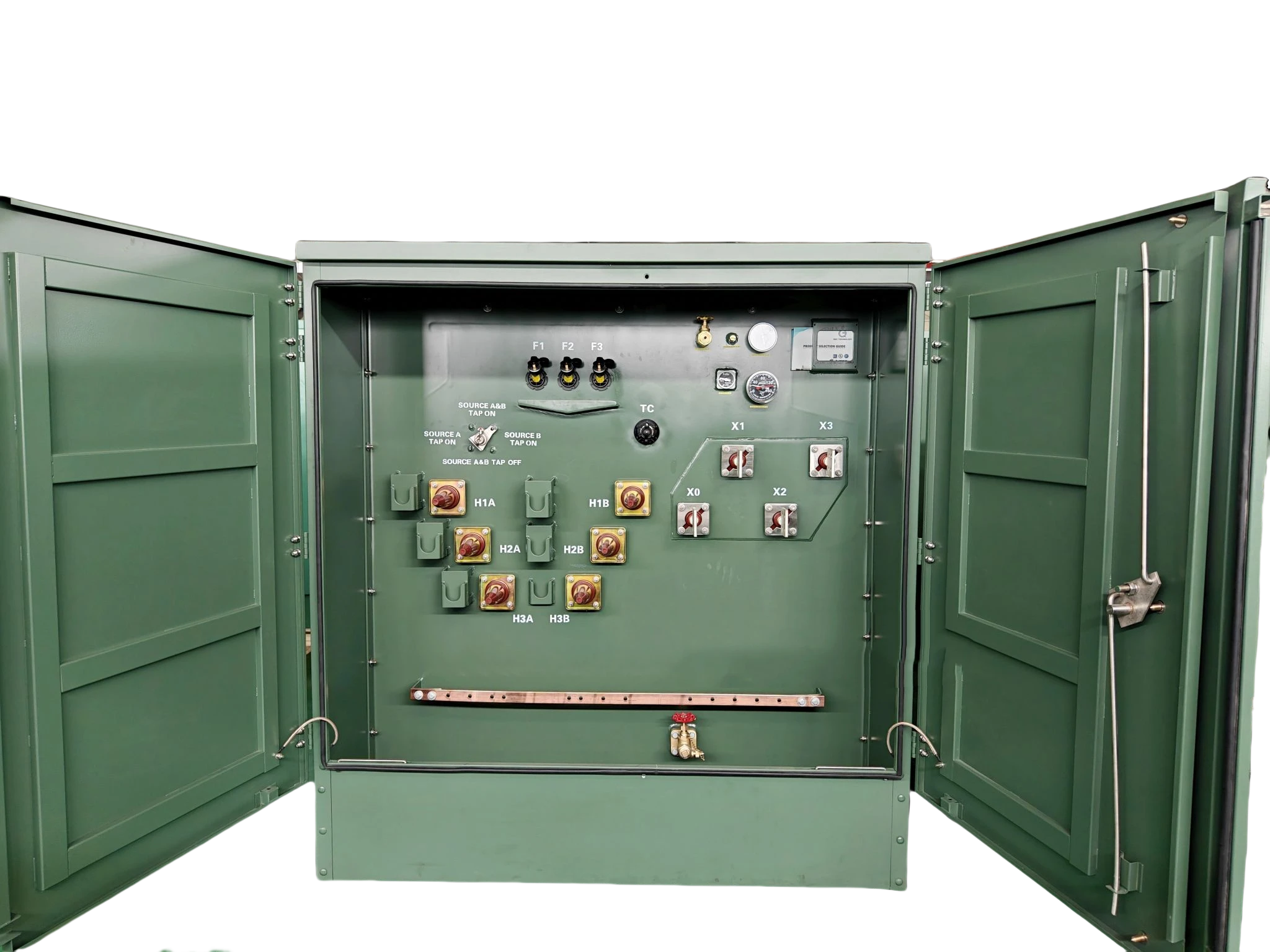

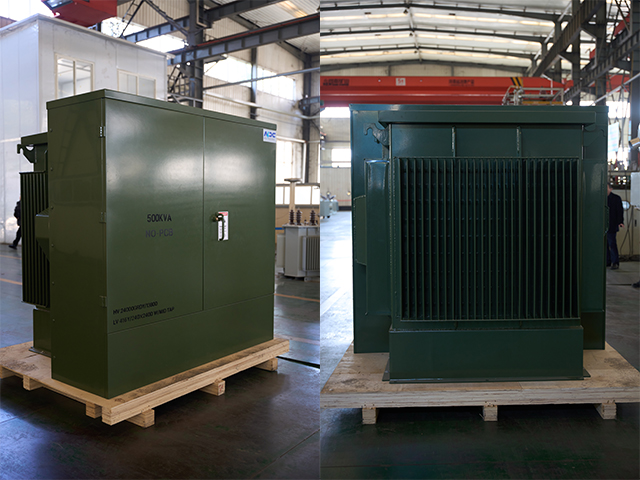

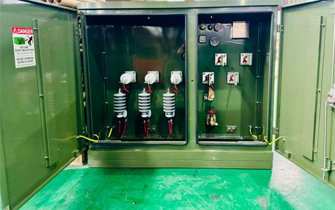

4000kVA Three Phase Pad Mounted Transformer
NPC ELECTRIC's 4000kVA Three Phase Pad Mounted transformer is made of high-performance silicon steel sheets and high-quality insulating oil. It complies with international standards such as IEC 60076 and ANSI C57. It has excellent electrical performance and weather resistance. It is suitable for large industrial parks, urban distribution stations, and new energy power generation systems. It is an ideal choice for high-reliability and high-efficiency power distribution.
- Primary Voltage Ratings 34.5-19.92/13.8-7.957/13.2-7.62/12.47-7.2, 24.94, 26.25, 33 or others
- Secondary Voltage Ratings 208GrdY/120;416GrdY/240 or Customized
- H.V. Tap Range ± 2×2.5% HV taps or others
- Type Loop Feed or Radial Feed
- BIL 30/95kV
- Standards ANSI,IEEE, CSA,CAN, DOE
- Application Industrial parks and large factories, new energy power stations (wind power, photovoltaic), large residential areas
- Power Rating 4000kVA
- Certificate UL, CUL, CSA, SGS
- Cooling Method ONAN, ONAN/ONAF, KNAN, KNAN/KNAF
- Oil Minerial Oil or FR3
- Opeartion Step Down & Step Up
Technical Specifications
Customization Optional
Packing and Shipping
Manufacturer Test
Routine Testing
Application
Technical Specifications
4000kVA Three Phase Pad Mounted Transformer
Technical Specifications

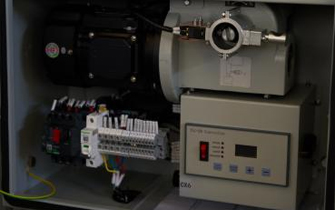

Accessories
| Rated Power | 4000 kVA |
| Rating Primary Voltage | 4.16-34.5kV or customized |
| Secondary Voltage | 480GrdY/277 208GrdY/120 400GrdY/230 Customized（208Y/120 V to 4,160 V） |
| Frequency | 50/60Hz |
| Vector Group | Dyn1/Yyn0/Dyn11/Dyn5 |
| Winding Material | Aluminum/Copper |
| Efficiency | As IEEE,Doe 2016,CAS Std or Customized |
| Impedance Voltage | Nominal 3.5% or Customized 1.1-5.75% |
| Altitude | ≤1,000m or Customized |
| Color | ANSI 70 Light gray/Munsell 7GY3.29/1.5 or customized etc |
| Tank material | Mild Steel, 304 Stainless Steel |
| Insulating Oil Weight | 3200 kg |
| Total Weight | 9500 kg |
| Outline Dimensions（L×W×H）in. | 2850×2250×1980（mm） |
| Lifting Lug | ELSP Fuse |
| Hinged Door | BAY-O-NET Fuse |
| Parking Bracket | Tap Changer |
| Tank Cover | Oil Level Gauge |
| L.V Bushing (4-Hole ) | Pressure Relief Valve |
| Two/Four Position Load break Switch | Vacuum Pressure Gauge |
| HV Grounding Copper Bar | Terminal Block |

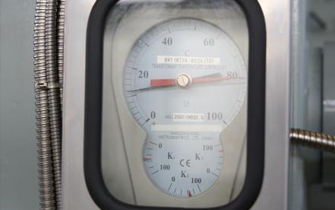

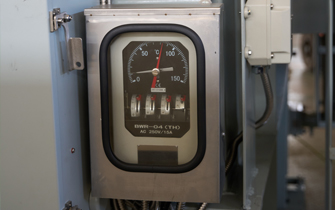

| Temperature Indicator | Door Handle |

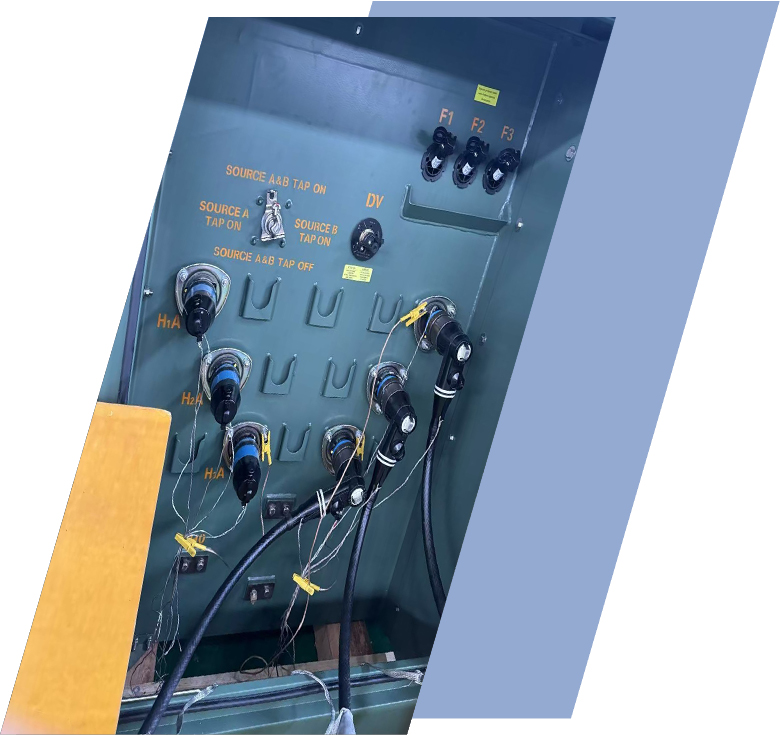

| H.V Bushing Well(15kV) | Ground Strap |
| Grounding Copper Bar | Nameplate |
| 1"'Drain Valve With 3/8" Sampler | IR Window |
| 1" Upper Fill Valve Filter Press Connection | Terminal Box |
| Non-PCB decal | High Voltage Warning Signs |
Customization Optional
4000kVA Three Phase Pad Mounted Transformer
To meet the needs of different users in complex application scenarios, NPC ELECTRIC provides multiple optional specifications to enhance the performance and adaptability of 4000kVA three-phase Pad Mounted transformers. Users can flexibly configure key parameters and functional modules according to the installation environment, grid structure and operating load.
In terms of wiring methods, the high-voltage side of the transformer supports multiple standard voltages such as 12.47kV, 13.8kV, and 24kV, and can choose triangle or star wiring methods to adapt to the on-site system. The cooling method can be selected as natural oil cooling (ONAN) or air cooling auxiliary (ONAF), which is suitable for heavy load or high temperature conditions. The protective shell material and protection level can also be customized according to outdoor, coastal or industrial environments, including stainless steel structure and multi-level protection standards such as NEMA 3R/IP54.
In terms of wiring methods, the high-voltage side of the transformer supports multiple standard voltages such as 12.47kV, 13.8kV, and 24kV, and can choose triangle or star wiring methods to adapt to the on-site system. The cooling method can be selected as natural oil cooling (ONAN) or air cooling auxiliary (ONAF), which is suitable for heavy load or high temperature conditions. The protective shell material and protection level can also be customized according to outdoor, coastal or industrial environments, including stainless steel structure and multi-level protection standards such as NEMA 3R/IP54.
At the same time, users can choose to configure pressure relief valves, oil level gauges, thermostats, gas relays and other protection devices according to maintenance and operation requirements, and can expand remote monitoring modules to achieve SCADA system access. For special application environments, such as high altitude, heavy salt fog, and earthquake-resistant areas, enhanced design solutions can also be provided to ensure long-term stable operation.
Through the above optional configurations, NPC ELECTRIC is committed to providing customers with more flexible and reliable customized transformer solutions to meet the stringent technical requirements of various energy, industrial and infrastructure projects.
Through the above optional configurations, NPC ELECTRIC is committed to providing customers with more flexible and reliable customized transformer solutions to meet the stringent technical requirements of various energy, industrial and infrastructure projects.

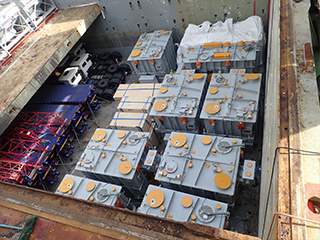

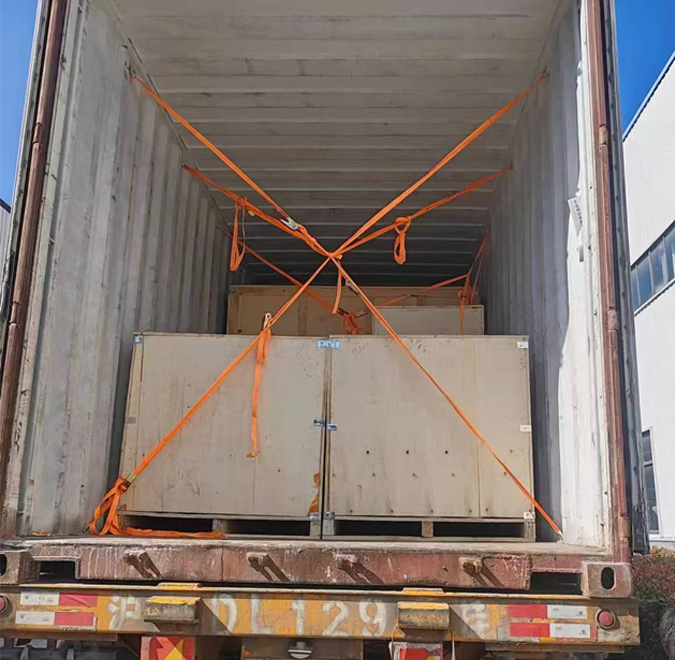

Packing and Shipping
4000kVA Three Phase Pad Mounted Transformer
NPC ELECTRIC's 4000kVA three-phase Pad Mounted transformers are packed with high-quality materials to ensure safety and stability during transportation.
The transformer's exterior is reinforced with sturdy wooden boxes or steel structural frames to prevent external impact during long-distance transportation. To protect the transformer from moisture and corrosion during transportation, the outer packaging surface is also wrapped with a waterproof film. All transport parts are strictly inspected and tested before packing to ensure that they meet transportation standards and customer requirements. In order to avoid damage or deformation of cable joints during transportation, the high and low voltage cable interface parts of the transformer are specially protected and covered with special protective covers.
The oil tank part of the transformer is filled with special materials to prevent leakage or damage to the oil tank during transportation. All accessories and accessories, such as grounding terminals, oil level gauges, etc., are also packaged separately and sent with the transformer for subsequent installation by customers.

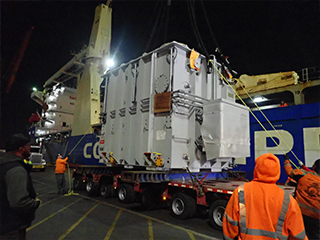

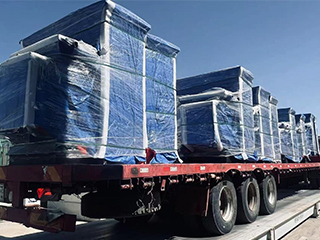

During transportation, the transformer will be transported in containers or trucks that meet international standards to ensure its stability and safety. For orders that require cross-border transportation, NPC ELECTRIC provides detailed customs declaration documents and transportation arrangements to ensure that the transformer can pass customs smoothly. According to customer requirements, the mode of transportation can be selected by sea, air or land, and the specific mode will be reasonably selected according to the destination, delivery time and customer needs. If the customer is located in an inland area far away from the port, we will arrange a professional land transportation team for the last mile delivery and provide door-to-door installation services. All transportation operations strictly follow international transportation and customs regulations to ensure compliance and safety.
During transportation, each packaging unit of the transformer has a clear logo and shipping label to facilitate customer identification and receipt.
After the transformer arrives at the destination, NPC ELECTRIC's technical team will assist customers in completing installation and commissioning to ensure the normal operation of the equipment. The overall transportation cycle will vary depending on the destination and transportation method, and the specific time will be confirmed and arranged with the customer in advance.
Through careful packaging design and thoughtful transportation services, NPC ELECTRIC ensures that the transformer can be delivered to customers safely and on time to meet their efficient and safe use needs.
The transformer's exterior is reinforced with sturdy wooden boxes or steel structural frames to prevent external impact during long-distance transportation. To protect the transformer from moisture and corrosion during transportation, the outer packaging surface is also wrapped with a waterproof film. All transport parts are strictly inspected and tested before packing to ensure that they meet transportation standards and customer requirements. In order to avoid damage or deformation of cable joints during transportation, the high and low voltage cable interface parts of the transformer are specially protected and covered with special protective covers.
The oil tank part of the transformer is filled with special materials to prevent leakage or damage to the oil tank during transportation. All accessories and accessories, such as grounding terminals, oil level gauges, etc., are also packaged separately and sent with the transformer for subsequent installation by customers.
During transportation, the transformer will be transported in containers or trucks that meet international standards to ensure its stability and safety. For orders that require cross-border transportation, NPC ELECTRIC provides detailed customs declaration documents and transportation arrangements to ensure that the transformer can pass customs smoothly. According to customer requirements, the mode of transportation can be selected by sea, air or land, and the specific mode will be reasonably selected according to the destination, delivery time and customer needs. If the customer is located in an inland area far away from the port, we will arrange a professional land transportation team for the last mile delivery and provide door-to-door installation services. All transportation operations strictly follow international transportation and customs regulations to ensure compliance and safety.
During transportation, each packaging unit of the transformer has a clear logo and shipping label to facilitate customer identification and receipt.
After the transformer arrives at the destination, NPC ELECTRIC's technical team will assist customers in completing installation and commissioning to ensure the normal operation of the equipment. The overall transportation cycle will vary depending on the destination and transportation method, and the specific time will be confirmed and arranged with the customer in advance.
Through careful packaging design and thoughtful transportation services, NPC ELECTRIC ensures that the transformer can be delivered to customers safely and on time to meet their efficient and safe use needs.
32
32 years of industry experience

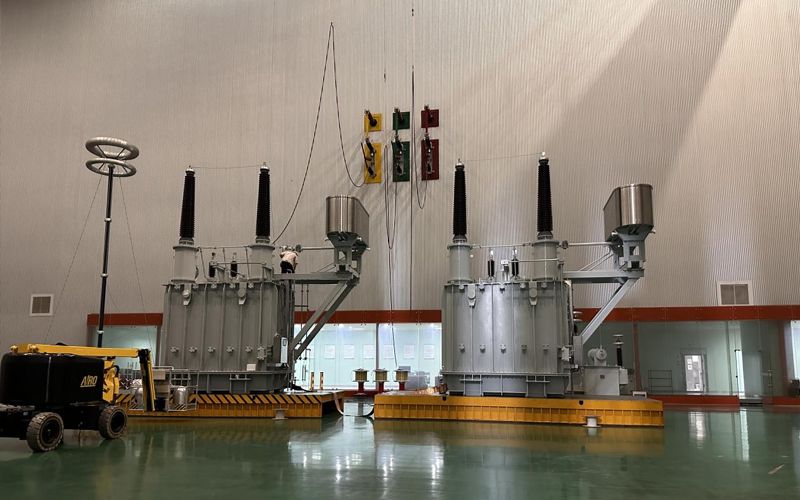

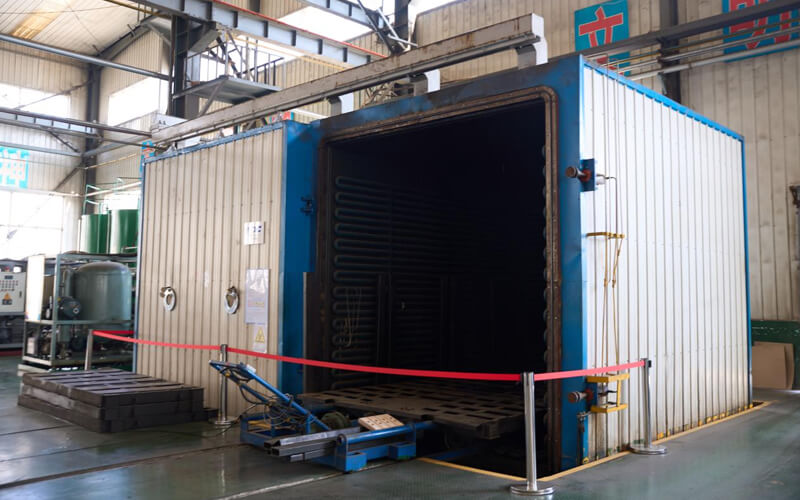

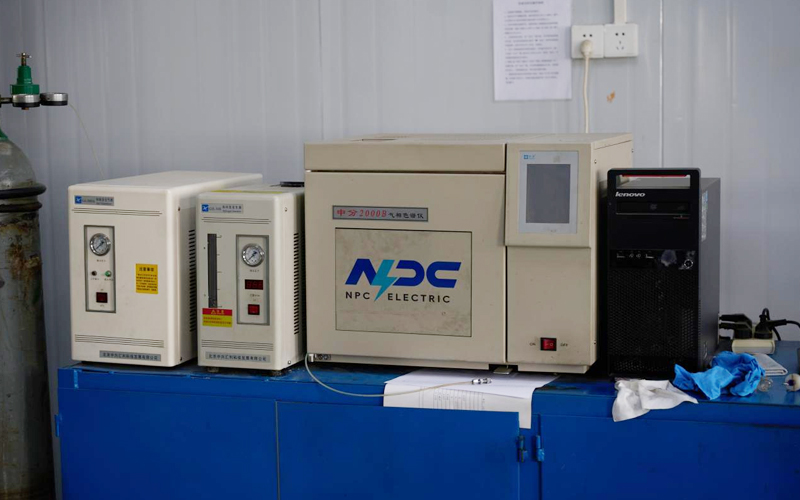

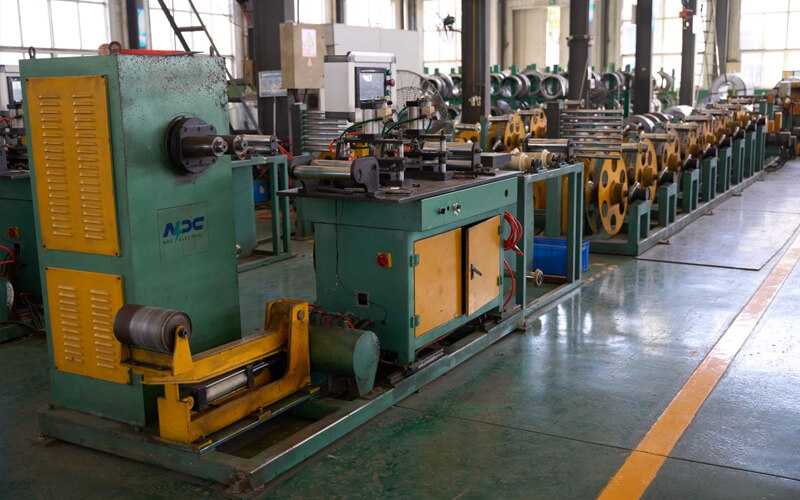

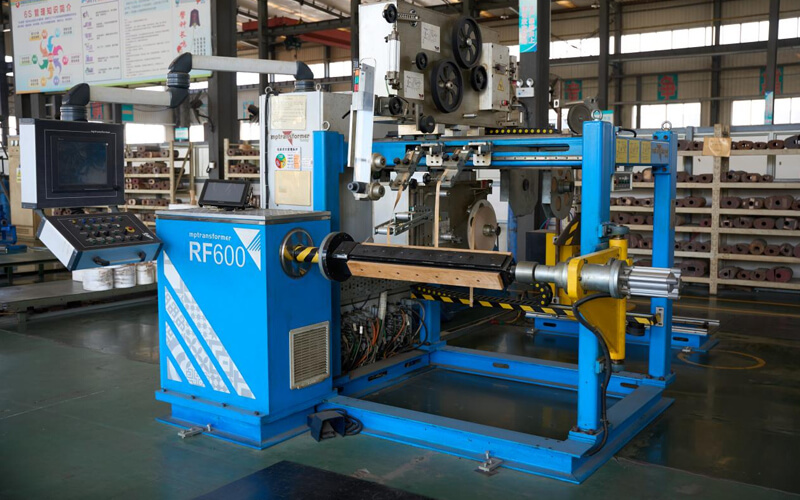

Manufacturer Test
4000kVA Three Phase Pad Mounted Transformer
Progress test
NPC ELECTRIC's 4000kVA three-phase pad mounted transformers are strictly tested in accordance with international standards during the manufacturing process. The tests include coil insulation test, no-load loss and short-circuit impedance test, dielectric strength and withstand voltage test and other key items. Each test is recorded and filed on-site by the quality inspection engineer to ensure that the product complies with IEC or ANSI standards. Only after all tests are passed can the next production process be entered, ultimately ensuring that the transformer has stable performance, safety and reliability.
Design Tests
All transformer will be test after finished the production, test items as below:
♦ Insulation Power Factor
♦ Ratio, Polarity, and Phase Relation
♦ Winding Resistance
♦ Impulse Tests
♦ On load Loss Test
♦ No Load Loss Test
♦ Leak Test
♦ DC Insulation Resistance Test
♦ Transformer Turns Ratio/TTR (All Tap Voltages)
♦ Impedance Voltage & Load Loss (Rated Voltage)
♦ Polarity, 1-Ph / Phase Relation, 3-Ph (Rated Voltage)
♦ Excitation & No-Load Loss (Rated Voltage)
♦ Applied Voltage
♦ Induced Voltage
♦ Lightning Impulse
♦ Insulation Resistance (Rated Voltage)
♦ Temperature Rise
♦ Dielectric Withstand (Hipot)

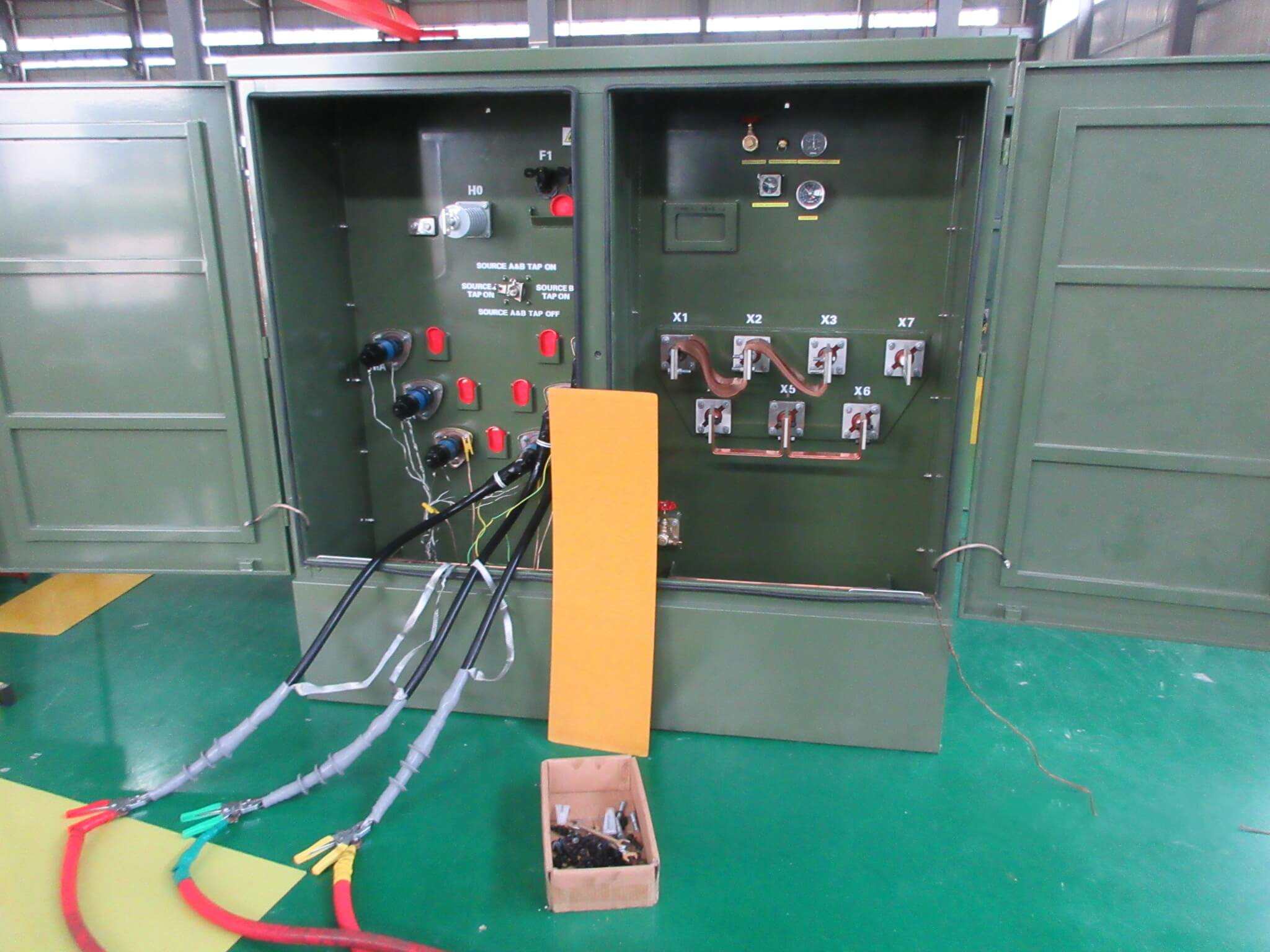

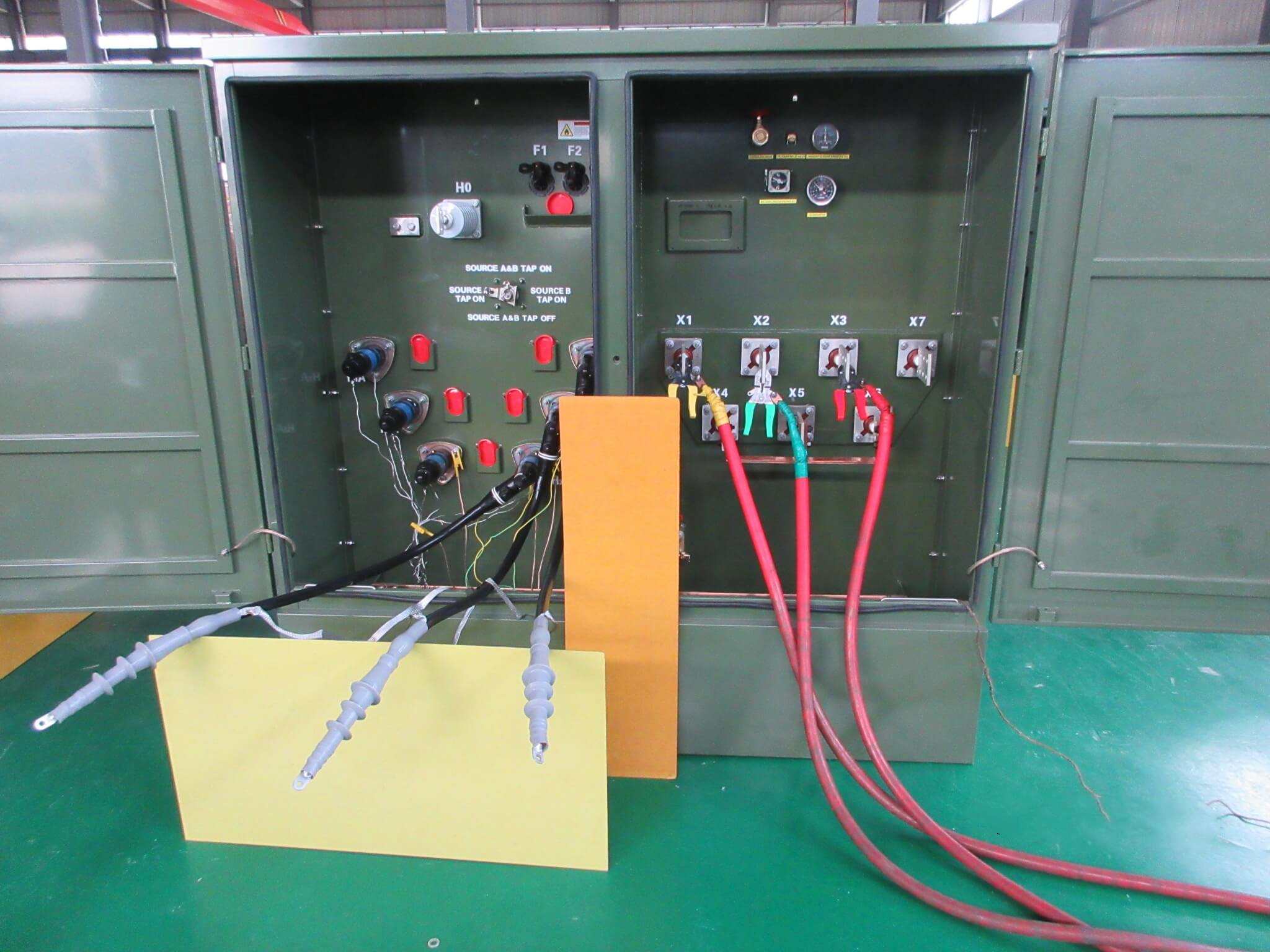

Transformer Factory Acceptance Test
NPC ELECTRIC's 4000kVA three-phase pad mounted transformers will undergo strict factory acceptance testing (FAT) before leaving the factory, including conventional electrical performance tests such as insulation resistance test, ratio test, induction withstand voltage and power frequency withstand voltage. All tests are performed in accordance with IEC 60076 or ANSI C57 standards to ensure that the products meet international quality requirements. Customers can make an appointment to monitor the test process on site to ensure that the equipment meets the technical specifications of their project.

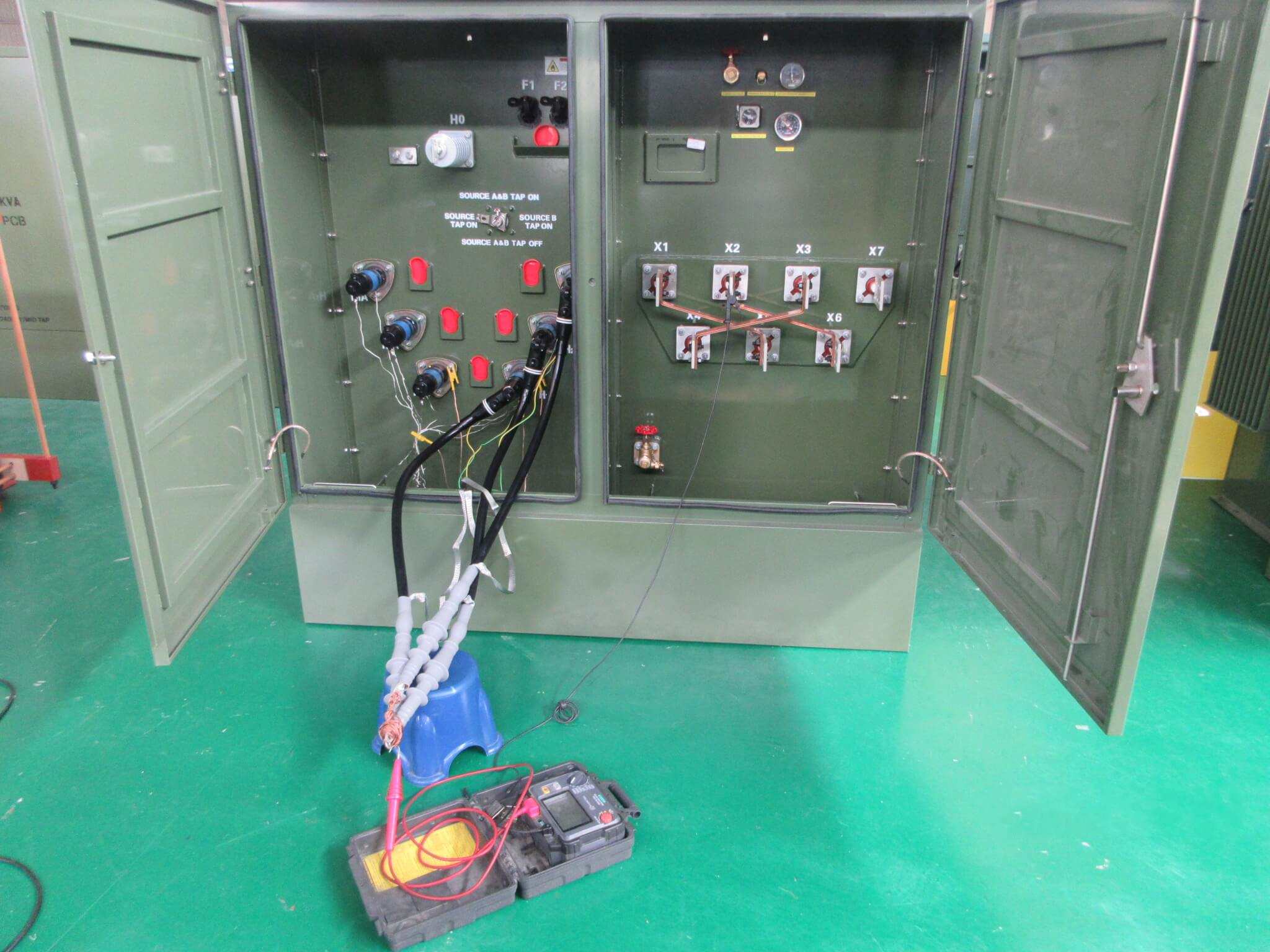

Routine Test - Polarity 1-Ph
Purpose of Testing
The purpose of testing the polarity of a single-phase transformer is to ensure that the primary and secondary windings are correctly oriented, preventing issues like improper phase connection. It also verifies that the transformer operates safely and efficiently in the intended electrical system.
Testing Equipment
Test equipment: Polarity Tester (e.g. Megger, Hioki, etc.)
Voltage source: usually 500 V, 1000 V or customized as needed
Environmental monitoring: Temperature and humidity meter (records ambient temperature and humidity)
Voltage source: usually 500 V, 1000 V or customized as needed
Environmental monitoring: Temperature and humidity meter (records ambient temperature and humidity)
Pre-Test Preparation
Disconnect the device from the power supply and ensure that it is properly grounded and discharged.
Check the connection terminals and wiring to ensure that there is no looseness or contamination.
Test under suitable environmental conditions: relative humidity less than 75% and no rain (recommended temperature: 20-30°C).
Check the connection terminals and wiring to ensure that there is no looseness or contamination.
Test under suitable environmental conditions: relative humidity less than 75% and no rain (recommended temperature: 20-30°C).
Test Progress
Connect the Test Instrument:
Connect the test equipment to the bushing or terminal of the device under test and ensure proper grounding.
Apply Test Voltage:
Select the appropriate test voltage according to the rated voltage of the device. For single-phase systems, the applied voltage should comply with the equipment specifications (such as 220V or 380V, etc.).
Connect the test equipment to the bushing or terminal of the device under test and ensure proper grounding.
Apply Test Voltage:
Select the appropriate test voltage according to the rated voltage of the device. For single-phase systems, the applied voltage should comply with the equipment specifications (such as 220V or 380V, etc.).
Measure and Record
Start the test and record the following parameters:
Phase sequence: Confirm whether the phase sequence of the power supply is correct.
Polarity: Check whether the wiring meets the predetermined polarity (positive and negative terminals are connected correctly).
Voltage: The actual voltage value during the test.
Phase sequence: Confirm whether the phase sequence of the power supply is correct.
Polarity: Check whether the wiring meets the predetermined polarity (positive and negative terminals are connected correctly).
Voltage: The actual voltage value during the test.
Temperature Correction
Measure different wiring points (such as input and output) for comparative analysis to ensure that the electrical polarity is consistent.
Repeat Testing (if necessary)
If necessary, correct the measured parameters to the reference temperature (usually 20°C) to ensure the accuracy of the test results.
Evaluation Criteria (Reference)
Correct polarity: The wiring meets the expected polarity requirements and meets the standard. Reverse polarity: If reverse polarity occurs, it should be corrected immediately and retested. Polarity uncertainty: If there is any uncertainty, further check the power supply and wiring configuration.
*These comprehensive tests ensure that each transformer meets performance standards and operates
reliably under various conditions.

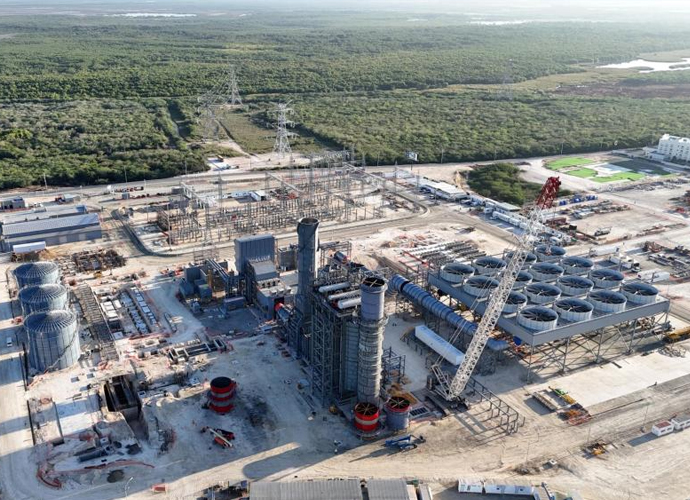

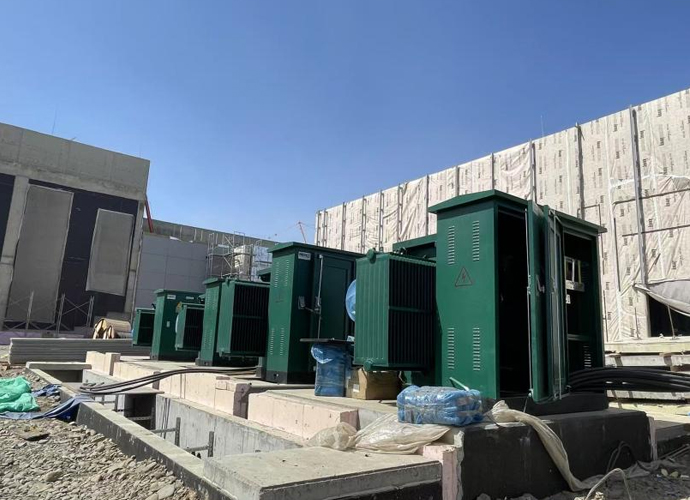

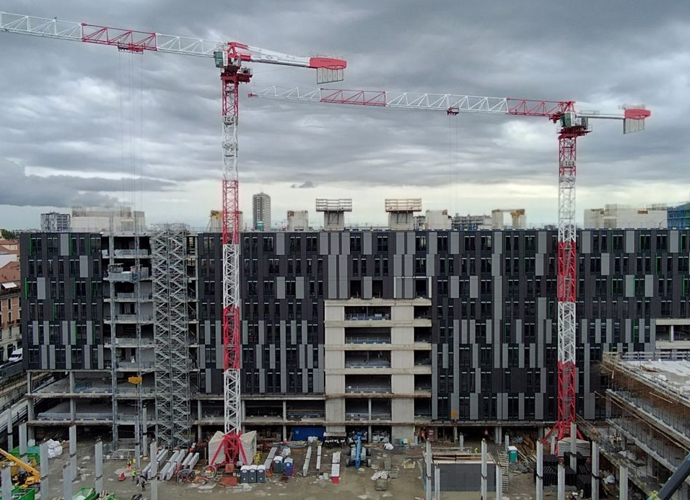

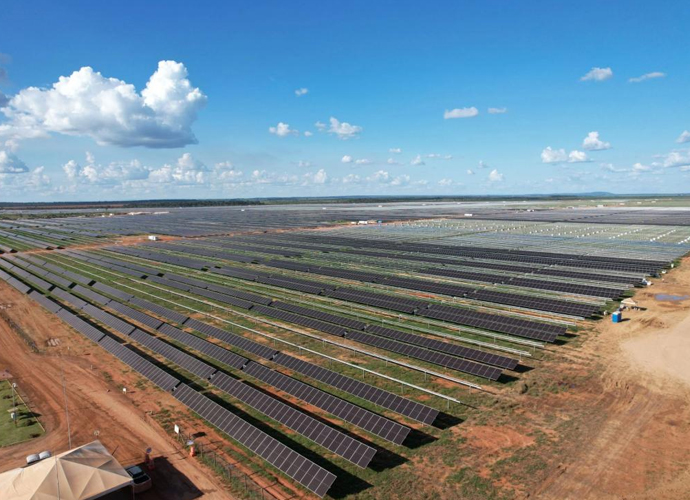

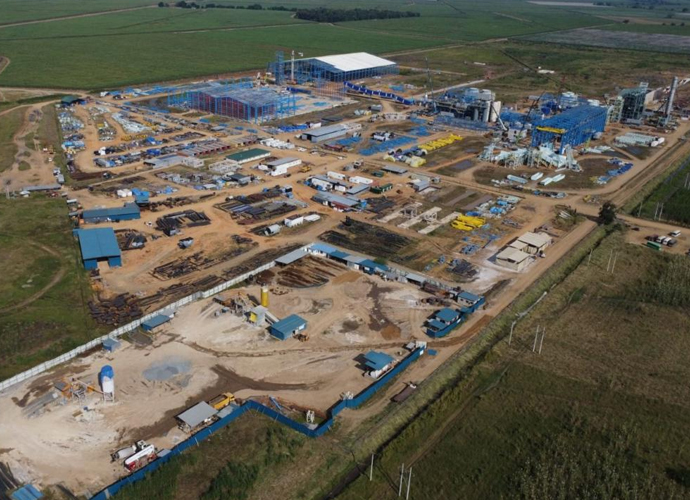

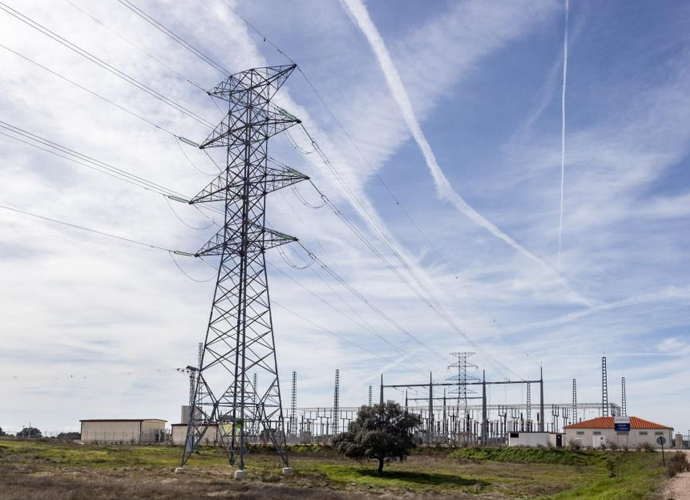

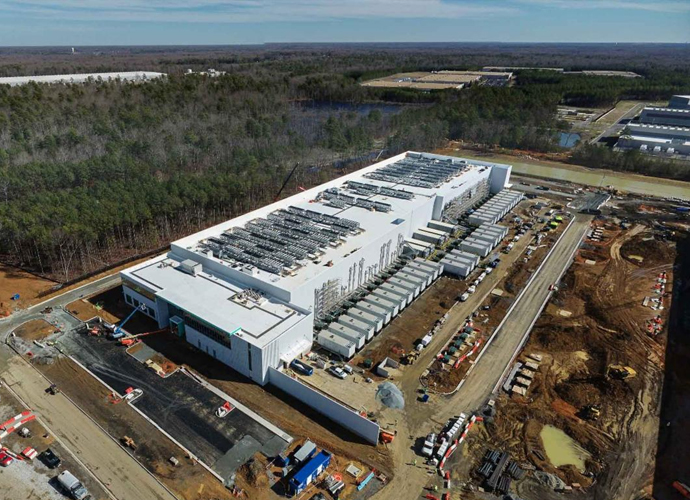

Application
Industrial parks and large factories, new energy power stations (wind power, photovoltaic), large residential areas
Technical Advantages
● 30+ years of manufacturing experience
● ISO and UL certified production
● Customized cable and transformer solutions

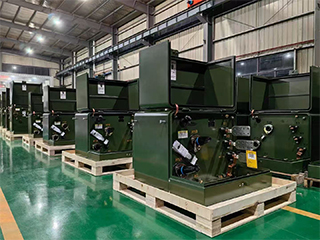

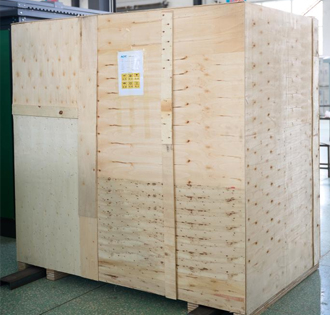

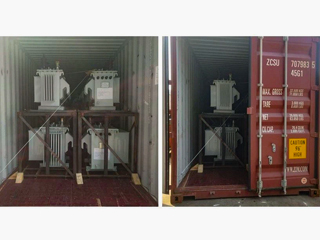

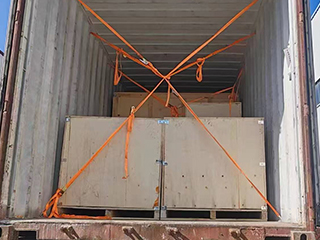

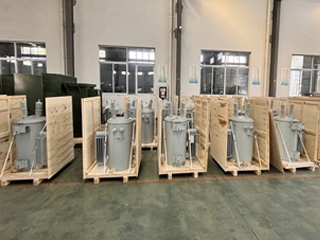

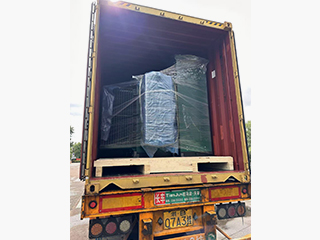

Product Packaging
Transformers Packaging (1)
Transformers Packaging (2)
Transformers Packaging (3)
Transformers Packaging (4)
Transformers Packaging (5)
Transformers Packaging (6)
Transformers Packaging (7)
Transformers Packaging (8)
Related Products

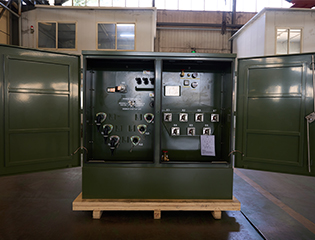

45kVA Three Phase Pad Mounted Transformer
The 45 kVA pad-mounted transformer meets ANSI, CSA, NEMA, IEEE, and DOE standards. NPC Electric's 45 kVA pad-mounted transformers comply with DOE efficiency values and are UL listed. Based on specific technical requirements, the iron core can be designed as either a three-legged or five-legged assembly structure.

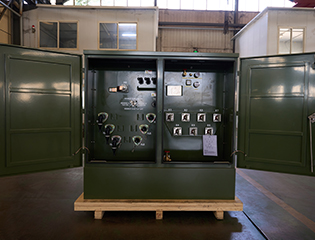

75kVA Three Phase Pad Mounted Transformer
