N2XBY 0.6/1kV Low Voltage Power Cable
N2XBY 0.6/1kV are low voltage power cables designed according to BS 5467 standard, suitable for fixed installation in indoor, outdoor, underground, Cable ducts or conduits, or concrete (not subject to vibration) environments. Featuring stranded copper conductors, cross-linked polyethylene (XLPE) insulation, PVC bedding, galvanised steel wire armour (SWA), and PVC outer sheath, it fully complies with IEC 60502-1 standards. The steel wire armour provides excellent mechanical protection against impacts, rodents, and crushing forces, making it perfect for direct burial. Widely used in industrial plants, infrastructure projects, and utility networks requiring reliable, protected low-voltage power supply underground or outdoors.
- Voltage Rating(Uo/U) 0.6/1kV
- Test Voltage 3.5kV
- Minimum Bending Radius 12 x overall diameter
- Maximum Operating +90ºC
- Maximum Short-Circuit +250°C
Construction
Technical Specifications
Quality Control
Application
Construction

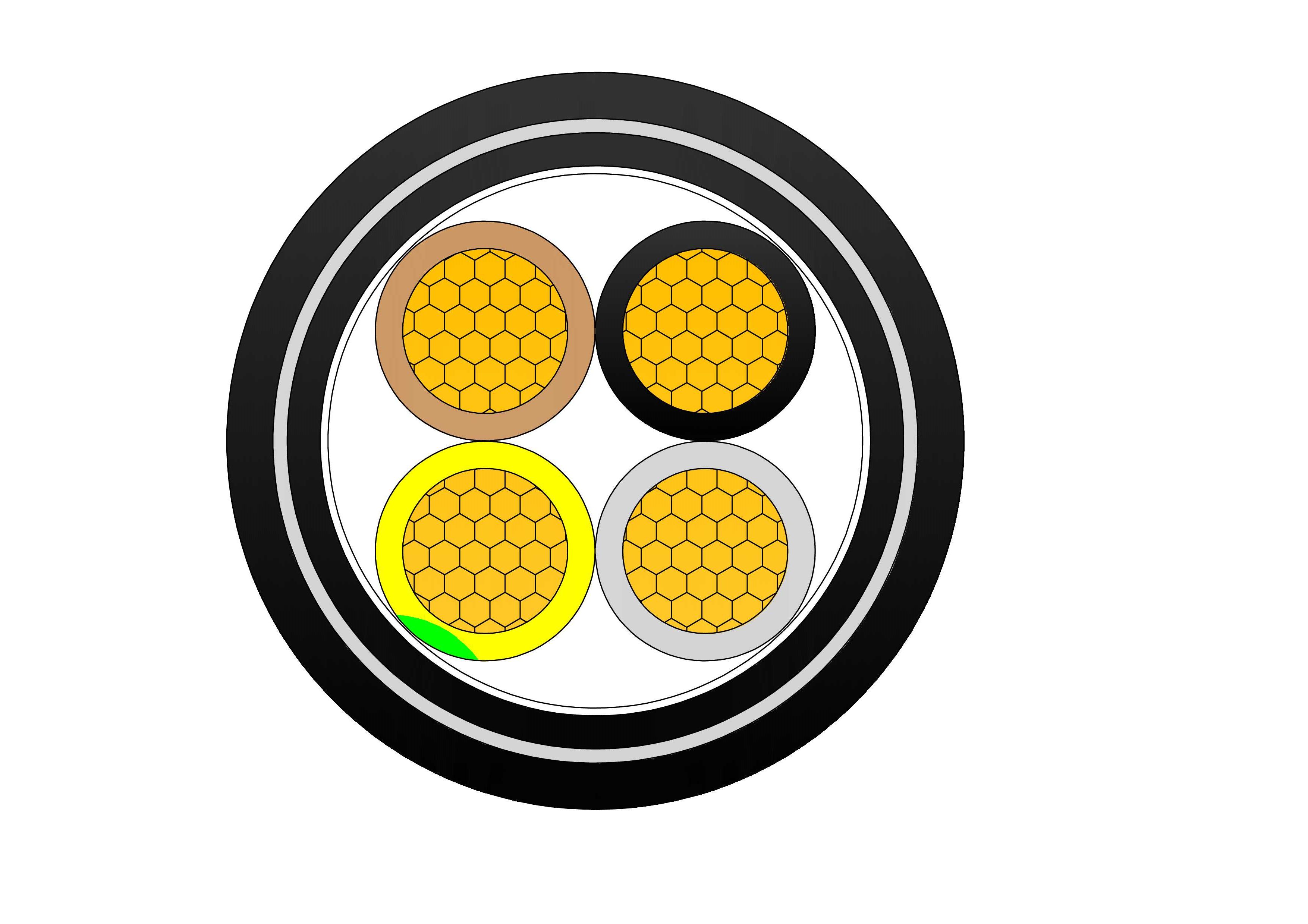

N2XBY 0.6/1kV Low Voltage Power Cable Construction
Conductor
Class 2 Stranded copper
Insulation
XLPE (Cross-Linked Polyethylene)
Filler
PVC(Polyvinyl Chloride)
Armour
Double galvanized steel tape
Outer Sheath
PVC(Polyvinyl Chloride)
Sheath Colour
Black
Manufacturer Standard
IEC 60502-1, VDE 0276-603, IS 1516.1, IEC/EN 60228
Flame retardant
IEC/EN 60332-1
Core Identification
2 core: Brown /Blue
3 core: Brown /Blue/ Green/Yellow
4 core: Brown / Black/ Grey/ Green/Yellow
5 core: Green/Yellow /Brown /Blue/ Black/ Grey
7 core and above: Black/Green/Yellow
3 core: Brown /Blue/ Green/Yellow
4 core: Brown / Black/ Grey/ Green/Yellow
5 core: Green/Yellow /Brown /Blue/ Black/ Grey
7 core and above: Black/Green/Yellow
Application
Suitable for indoor installation, in cable trays, ducts underground, and in switchgear, power plants, and industrial settings. Ideal for harsh environments that demand strong mechanical protection.
Technical Specifications
N2XBY 0.6/1kV Low Voltage Power Cable
N2XBY Low Voltage Power Cable Technical Specifications
|
No of Cores |
Nominal Cross Section Area |
Nominal Diameter of Conductor |
Nominal Thickness of Insulation |
Nominal Thickness of Outer Sheath |
Nominal Overall Diameter |
Approximate Weight |
| mm2 | mm | mm | mm | mm | kg/km | |
| 2 | 2.5 | 1.76 | 0.7 | 1.24 | 13 | 276 |
| 2 | 4 | 2.21 | 0.7 | 1.24 | 14 | 326 |
| 2 | 6 | 2.71 | 0.7 | 1.24 | 15 | 384 |
| 2 | 10 | 3.85 | 0.7 | 1.24 | 17 | 498 |
| 2 | 16 | 4.8 | 0.7 | 1.24 | 19 | 648 |
| 2 | 25 | 5.85 | 0.9 | 1.24 | 22 | 882 |
| 2 | 35 | 6.9 | 0.9 | 1.32 | 24 | 1113 |
| 2 | 50 | 8.1 | 1 | 1.4 | 27 | 1421 |
| 2 | 70 | 9.7 | 1.1 | 1.48 | 31 | 1899 |
| 2 | 95 | 11.4 | 1.1 | 1.64 | 35 | 2462 |
| 3 | 1.5 | 1.35 | 0.7 | 1.24 | 12 | 265 |
| 3 | 2.5 | 1.76 | 0.7 | 1.24 | 14 | 342 |
| 3 | 4 | 2.21 | 0.7 | 1.24 | 15 | 417 |
| 3 | 6 | 2.71 | 0.7 | 1.24 | 16 | 501 |
| 3 | 10 | 3.85 | 0.7 | 1.24 | 19 | 704 |
| 3 | 16 | 4.8 | 0.7 | 1.24 | 21 | 938 |
| 3 | 25 | 5.85 | 0.9 | 1.24 | 24 | 1315 |
| 3 | 35 | 6.9 | 0.9 | 1.32 | 26 | 1682 |
| 3 | 50 | 8.1 | 1 | 1.4 | 29 | 2176 |
| 3 | 70 | 9.7 | 1.1 | 1.48 | 34 | 2948 |
| 3 | 95 | 11.4 | 1.1 | 1.64 | 38 | 4004 |
| 3 | 120 | 12.85 | 1.2 | 1.72 | 42 | 5215 |
| 3 | 150 | 14.4 | 1.4 | 1.88 | 47 | 6413 |
| 3 | 185 | 15.75 | 1.6 | 2.04 | 51 | 7719 |
| 3 | 240 | 18.2 | 1.7 | 2.24 | 58 | 9961 |
| 3 | 16 +10 | 4.8 | 0.7 | 1.24 | 21 | 1073 |
| 3 | 25 +16 | 5.85 | 0.9 | 1.24 | 25 | 1511 |
| 3 | 35 +16 | 6.9 | 0.9 | 1.32 | 27 | 1861 |
| 3 | 50 + 25 | 8.1 | 1 | 1.4 | 30 | 2377 |
| 3 | 70 + 35 | 9.7 | 1.1 | 1.56 | 36 | 3236 |
| 3 | 95 + 70 | 11.4 | 1.1 | 1.64 | 39 | 4634 |
| 3 | 120 + 70 | 12.65 | 1.2 | 1.8 | 44 | 5813 |
| 3 | 150 + 95 | 14.4 | 1.4 | 1.88 | 48 | 6888 |
| 3 | 185 + 70 | 15.75 | 1.6 | 2.04 | 52 | 8412 |
| 3 | 240 + 120 | 18.2 | 1.7 | 2.24 | 59 | 10679 |
| 4 | 1.5 | 1.35 | 0.7 | 1.24 | 13 | 309 |
| 4 | 2.5 | 1.76 | 0.7 | 1.24 | 14 | 369 |
| 4 | 4 | 2.21 | 0.7 | 1.24 | 16 | 469 |
| 4 | 6 | 2.71 | 0.7 | 1.24 | 17 | 577 |
| 4 | 10 | 3.85 | 0.7 | 1.24 | 20 | 821 |
| 4 | 16 | 4.8 | 0.7 | 1.24 | 22 | 1113 |
| 4 | 25 | 5.85 | 0.9 | 1.32 | 26 | 1693 |
| 4 | 35 | 6.9 | 0.9 | 1.4 | 28 | 2060 |
| 4 | 50 | 8.1 | 1 | 1.48 | 32 | 2637 |
| 4 | 70 | 9.7 | 1.1 | 1.56 | 36 | 3611 |
| 4 | 95 | 11.4 | 1.1 | 1.72 | 41 | 5355 |
| 4 | 120 | 12.65 | 1.2 | 1.88 | 46 | 6590 |
| 4 | 150 | 14.4 | 1.4 | 1.96 | 51 | 8096 |
| 4 | 185 | 15.75 | 1.6 | 2.12 | 56 | 9795 |
| 4 | 240 | 18.2 | 1.7 | 2.36 | 63 | 12585 |
| 5 | 1.5 | 1.36 | 0.7 | 1.24 | 14 | 368 |
| 5 | 2.5 | 1.76 | 0.7 | 1.24 | 15 | 432 |
| 5 | 4 | 2.21 | 0.7 | 1.24 | 17 | 543 |
| 5 | 6 | 2.71 | 0.7 | 1.24 | 18 | 679 |
| 5 | 10 | 3.85 | 0.7 | 1.24 | 21 | 981 |
| 5 | 16 | 4.8 | 0.7 | 1.24 | 24 | 1351 |
| 5 | 25 | 5.85 | 0.9 | 1.32 | 28 | 1960 |
| 5 | 35 | 6.9 | 0.9 | 1.4 | 31 | 2539 |
| 5 | 50 | 8.1 | 1 | 1.48 | 35 | 3333 |
| 5 | 70 | 9.7 | 1 | 1.48 | 39 | 4507 |
| 5 | 95 | 11.4 | 1.1 | 1.56 | 44 | 6038 |
Quality Control
N2XBY 0.6/1kV Low Voltage Power Cable
Raw Material Test
For the N2XBY 0.6/1kV Low Voltage Power Cable, raw material testing begins with copper certification for oxygen content and mechanical properties. XLPE granules are tested for crosslinking agent, contamination, and thermal endurance via hot set pre-checks. PVC compounds undergo Congo red testing, volume resistivity, and migration analysis. Steel wires are checked for galvanization mass, diameter tolerance, and breaking load. The structured process: receipt documentation review, random sampling, physical/mechanical testing (yield, elongation), chemical verification using spectroscopy, corrosion and aging simulation trials, and material release decision. This ensures defect-free inputs, providing the base for the N2XBY 0.6/1kV Low Voltage Power Cable's conductivity, insulation quality, and robust armour performance.
Process inspection
Process inspection in N2XBY 0.6/1kV Low Voltage Power Cable production involves multi-point quality assurance. Conductor stranding monitors surface defects and compactness. XLPE insulation extrusion ensures bonding with capacitance gauges. Bedding layer prepares uniform base for armouring. Steel wire application controls helical lay, tension balance, and coverage. Sheath extrusion includes online spark testing and thickness uniformity. Critical steps: pre-extrusion compound verification, parameter stabilization, real-time dimension scanning, armour wire overlap measurement, sampling for gel fraction, and defect removal protocols. This ensures the N2XBY 0.6/1kV Low Voltage Power Cable maintains precise construction, strong armour integrity, and IEC compliance throughout manufacturing.
Finished Product
Completed N2XBY 0.6/1kV Low Voltage Power Cable reels face strict factory tests. Key routines: DC resistance, high-potential AC test in water, insulation resistance, thickness, and armour DC continuity. Mechanical endurance via impact, crushing, and pulling tests. Flame propagation and heat shock evaluations follow. The sequential process: conditioning, voltage/mechanical load application, timed exposure monitoring, recovery inspection, property re-measurement, and documentation. Additional checks cover outer diameter and weight. Passing all verifies the N2XBY 0.6/1kV Low Voltage Power Cable's mechanical protection, electrical reliability, and suitability for buried low-voltage networks.
Application
Excellent for underground power distribution in chemical plants, mining areas, railways, and urban developments. Commonly direct-buried for supplying transformers, switchgear, and motors where high mechanical protection against external forces is required.
Technical Advantages
● 30+ years of manufacturing experience
● ISO and UL certified production
● Customized cable and transformer solutions
