NYBY 0.6/1kV Low Voltage Power Cable
NYBY 0.6/1kV are low voltage power cables designed according to IEC 60502-1 standard, suitable for fixed installation in indoor, outdoor, underground, cable ducts, or concrete environments, with steel tape armoring for enhanced mechanical protection.
- Characteristics Voltage Rating Uo/U 0.6/1kV
- Temperature Rating Maximum Operating: +70ºC; Maximum Short-Circuit: +160°C
- Minimum Bending Radius 15 x overall diameter
- Test Voltage 3.5kV
Construction
Technical Specifications
Quality Control
Application
Construction

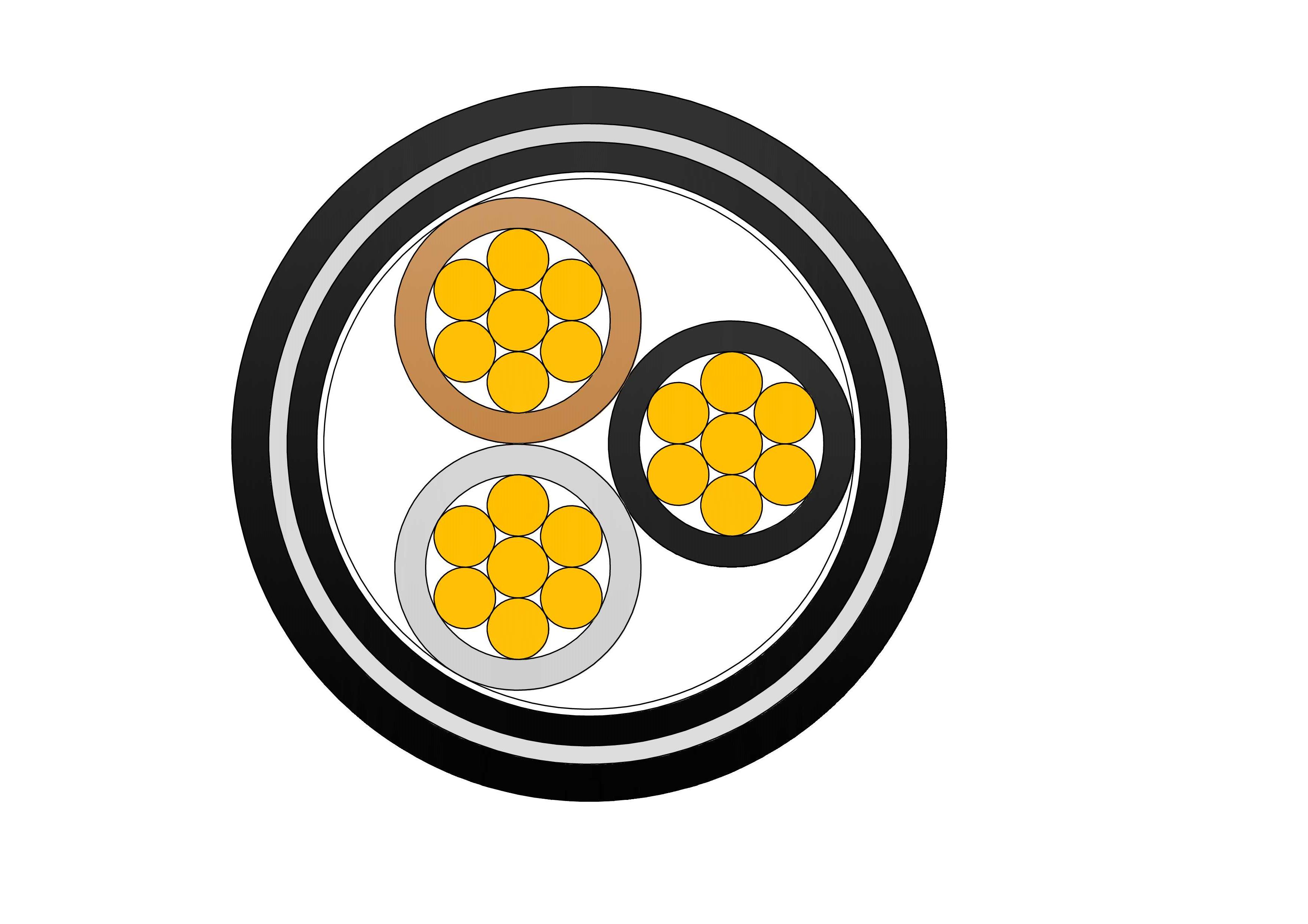

NYBY 0.6/1kV Low Voltage Power Cable Construction
Conductor
Class 2 Stranded copper
Insulation
PVC (Polyvinyl chloride)
Filler
PVC(Polyvinyl Chloride)
Armour
Double galvanized steel tape
Outer Sheath
PVC (Polyvinyl chloride)
Outer Sheath Colour
Black
Manufacturer Standard
IEC 60502-1, VDE 0276-603, IS 1516.1
Flame retardant
IEC 60332-1
Core Identification
2 core: Brown /Blue
3 core: Brown /Blue/ Grey
4 core: Brown /Blue/ Black/ Green/Yellow
5 core: Green/Yellow /Brown /Blue/ Black/ Grey
3 core: Brown /Blue/ Grey
4 core: Brown /Blue/ Black/ Green/Yellow
5 core: Green/Yellow /Brown /Blue/ Black/ Grey
Application
NYBY cables are suitable for fixed laying indoors, outdoors and underground, and are suitable for places with high requirements for mechanical protection and electrical shielding, such as industrial facilities and substations.
Technical Specifications
NYBY 0.6/1kV Low Voltage Power Cable
NYBY Low Voltage Power Cable Technical Specifications
|
No of Cores |
Nominal Cross Section Area |
Nominal Diameter Of Conductor |
Nominal Thickness of insulation |
Nominal Thickness of Outer Sheath |
Nominal Overall Diameter |
Approximate Weight |
| mm2 | mm | mm | mm | mm | kg/km | |
| 2 | 1.5 | 1.37 | 0.8 | 1.24 | 12 | 273 |
| 2 | 2.5 | 1.76 | 0.8 | 1.24 | 13 | 319 |
| 2 | 4 | 2.22 | 1 | 1.24 | 15 | 415 |
| 2 | 6 | 2.72 | 1 | 1.24 | 15 | 469 |
| 2 | 10 | 3.85 | 1 | 1.24 | 18 | 639 |
| 2 | 16 | 4.8 | 1 | 1.24 | 20 | 830 |
| 2 | 25 | 5.85 | 1.2 | 1.24 | 23 | 1154 |
| 2 | 35 | 6.9 | 1.2 | 1.32 | 25 | 1481 |
| 2 | 50 | 8.1 | 1.4 | 1.4 | 29 | 1923 |
| 2 | 70 | 9.7 | 1.4 | 1.48 | 33 | 2747 |
| 3 | 10 | 3.85 | 1 | 1.24 | 19 | 742 |
| 3 | 16 | 4.8 | 1 | 1.24 | 21 | 985 |
| 3 | 25 | 5.85 | 1.2 | 1.24 | 24 | 1403 |
| 3 | 35 | 6.9 | 1.2 | 1.32 | 27 | 1818 |
| 3 | 50 | 8.1 | 1.4 | 1.4 | 31 | 2381 |
| 3 | 70 | 9.7 | 1.4 | 1.48 | 34 | 3179 |
| 3 | 95 | 11.4 | 1.6 | 1.64 | 39 | 4249 |
| 3 | 120 | 12.65 | 1.6 | 1.72 | 42 | 5128 |
| 3 | 150 | 14.4 | 1.8 | 1.88 | 48 | 6384 |
| 3 | 185 | 15.75 | 2 | 2.04 | 52 | 7806 |
| 3 | 240 | 18.2 | 2.2 | 2.2 | 59 | 10156 |
| 3 | 16+10 | 4.8 | 1 | 1.24 | 23 | 1280 |
| 3 | 25+16 | 5.85 | 1.2 | 1.24 | 26 | 1777 |
| 3 | 35+16 | 6.9 | 1.2 | 1.32 | 29 | 2167 |
| 3 | 50+25 | 8.1 | 1.4 | 1.4 | 33 | 2853 |
| 3 | 70+35 | 9.7 | 1.4 | 1.56 | 37 | 3770 |
| 3 | 95+50 | 11.4 | 1.6 | 1.64 | 42 | 4975 |
| 3 | 120+70 | 12.65 | 1.6 | 1.8 | 46 | 6131 |
| 3 | 150+70 | 14.4 | 1.8 | 1.88 | 50 | 7288 |
| 3 | 185+95 | 15.75 | 2 | 2.04 | 55 | 8960 |
| 3 | 240+120 | 18.2 | 2.2 | 2.2 | 61 | 11377 |
| 4 | 1.5 | 1.5 | 0.8 | 1.24 | 14 | 338 |
| 4 | 2.5 | 1.76 | 0.8 | 1.24 | 15 | 391 |
| 4 | 4 | 2.21 | 1 | 1.24 | 17 | 531 |
| 4 | 6 | 2.72 | 1 | 1.24 | 15 | 539 |
| 4 | 10 | 3.85 | 1 | 1.24 | 21 | 1016 |
| 4 | 16 | 4.8 | 1 | 1.24 | 23 | 1215 |
| 4 | 25 | 5.85 | 1.2 | 1.32 | 27 | 1900 |
| 4 | 35 | 6.9 | 1.2 | 1.4 | 30 | 2435 |
| 4 | 50 | 8.1 | 1.4 | 1.48 | 34 | 3173 |
| 4 | 70 | 9.7 | 1.4 | 1.56 | 38 | 4205 |
| 4 | 95 | 11.4 | 1.6 | 1.72 | 44 | 5594 |
| 4 | 120 | 12.65 | 1.6 | 1.88 | 47 | 6761 |
| 4 | 150 | 14.4 | 1.8 | 1.96 | 53 | 8335 |
| 4 | 185 | 15.75 | 2 | 2.12 | 58 | 10146 |
| 4 | 240 | 18.2 | 2.2 | 2.36 | 66 | 13204 |
| 5 | 1.5 | 1.37 | 0.8 | 1.24 | 14 | 372 |
| 5 | 2.5 | 1.76 | 0.8 | 1.24 | 16 | 453 |
| 5 | 4 | 2.21 | 1 | 1.24 | 18 | 620 |
| 5 | 6 | 2.72 | 1 | 1.24 | 19 | 756 |
| 5 | 10 | 3.85 | 1 | 1.24 | 23 | 1123 |
| 5 | 16 | 4.8 | 1 | 1.24 | 25 | 1559 |
| 5 | 25 | 5.85 | 1.2 | 1.32 | 30 | 2241 |
| 5 | 35 | 6.9 | 1.2 | 1.4 | 33 | 2883 |
| 5 | 50 | 8.1 | 1.4 | 1.48 | 37 | 3804 |
Quality Control
NYBY 0.6/1kV Low Voltage Power Cable
Raw Material Test
NPC has always chosen raw material suppliers who have a good reputation, possess stable supply capabilities and have passed international quality system certifications (such as ISO 9001). And establish a long-term cooperative relationship with it, forming a stable and reliable raw material supply chain.
We will ensure that all raw materials are subject to strict inspection procedures upon entry to the factory, and can only be stored in the warehouse after they have been confirmed to meet the standards.
Process inspection
NPC has strict quality control procedures for each process in the cable production process.
Process documents: Develop detailed process flow and operation instructions to clarify the operating specifications and quality standards of each process.
Equipment calibration: Regularly calibrate key equipment such as wire drawing machines, stranding machines, extruders, and diameter gauges to ensure that the accuracy meets the requirements.
First piece confirmation: Before each batch of production, the first piece is trial-produced to confirm that the process parameters, product dimensions, electrical performance, etc. meet the standards before mass production can be carried out.
Finished Product
Inspectors conduct ex-factory inspections on cables according to relevant standards and corresponding product inspection specifications to ensure that each ex-factory product complies with the process regulations.
Application
NYBY cables are suitable for fixed laying indoors, outdoors, and underground, and are suitable for places with high requirements for mechanical protection and electrical shielding, such as industrial facilities and substations.
Technical Advantages
● 30+ years of manufacturing experience
● ISO and UL certified production
● Customized cable and transformer solutions
Product Packaging
Wires and Cables packaging (1)
Wires and Cables packaging (2)
Wires and Cables packaging (3)
Wires and Cables packaging (4)
Wires and Cables packaging (5)
Wires and Cables packaging (6)
Wires and Cables packaging (7)
Wires and Cables packaging (8)
Related Products
ALUMINUM CONDUCTOR STEEL REINFORCED（ACSR）
Aluminium Conductor Steel Reinforced (ACSR) is concentrically stranded conductor with one or more layers of hard drawn aluminium wire on galvanized steel wire core. The core can be single wire or stranded depending on the size. Additional corrosion protection is available through the application of grease to the core or infusion of the complete cable with grease.
N2XCH 0.6/1kV Low Voltage Power Cable
N2XCH 0.6/1kV are low-voltage power cables designed according to VDE 0276-603 and IEC 60502-1 standards, suitable for fixed installation in indoor, outdoor, and underground environments, including concrete (not exposed to vibration), where electromagnetic shielding is required.
NAYBY 0.6/1kV Low Voltage Power Cable
NAYBY 0.6/1kV are low voltage power cables designed according to DIN VDE 0276 standard, suitable for fixed installation in indoor, outdoor, underground, cable ducts, or concrete (not exposed to vibration), with steel tape armoring providing additional mechanical protection.
FAQ From Customers
-
What are the advantages of power cables and overhead lines?(1) Reliable operation, because it is installed in a hidden place such as underground, it is less damaged by external forces, has less chance of failure, and the power supply is safe, and it will not cause harm to people; (2) The maintenance workload is small and frequent inspections are not required; (3) No need to erect towers; (4) Help improve power factor.
-
Which aspects should be considered when choosing the cross section of a power cable?(1) The long-term allowable working current of the cable; (2) Thermal stability once short circuited; (3) The voltage drop on the line cannot exceed the allowable working range.
-
What are the measures for cable fire prevention?(1) Use flame-retardant cables; (2) Use fireproof cable tray; (3) Use fireproof paint; (4) Fire partition walls and fire baffles are installed at cable tunnels, mezzanine exits, etc.; (5) Overhead cables should avoid oil pipelines and explosion-proof doors, otherwise local pipes or heat insulation and fire prevention measures should be taken.
-
What should be paid attention to during the transportation and handling of cables?(1) During transportation, loading and unloading, cables and cable reels should not be damaged. It is strictly forbidden to push the cable reels directly from the vehicle. Generally, cables should not be transported and stored flat. (2) Before transporting or rolling the cable reel, ensure that the cable reel is firm, the cable is wound tightly, the oil pipe between the oil-filled cable and the pressure oil tank should be fixed without damage, the pressure oil tank should be firm, and the pressure indication should meet the requirements.
-
What inspections should be carried out for the acceptance of cable lines?(1) The cable specifications should meet the regulations, the arrangement should be neat, no damage, and the signs should be complete, correct and clear; (2) The fixed bending radius of the cable, the related distance and the wiring of the metal sheath of the single-core power cable should meet the requirements; (3) The cable terminal and the middle head should not leak oil, and the installation should be firm. The oil pressure of the oil-filled cable and the meter setting should meet the requirements; (4) Good grounding; (5) The color of the cable terminal is correct, and the metal parts such as the bracket are completely painted; (6) There should be no debris in the cable trench, tunnel, and bridge, and the cover should be complete.
