RHZ1-AL Medium Voltage Power Cable(8.7/15kV, 12/20kV, 18/30kV)
NPC Electric RHZ1-AL Medium Voltage Power Cable (8.7/15kV, 12/20kV, 18/30kV) provides economical fire safety for medium voltage networks. Built with aluminium conductors, thermosetting XLPE insulation, metallic screen, and advanced low smoke zero halogen (LSZH) sheath, it meets UNE 21123-4 and CPR requirements. During fires, it emits very low smoke and no corrosive gases, facilitating evacuation. Lightweight aluminium reduces costs and installation effort while delivering reliable current capacity. Superior partial discharge resistance, low tan delta, and thermal endurance ensure efficiency and longevity. Suitable for direct burial, ducts, or indoor use in sensitive areas, the RHZ1-AL Medium Voltage Power Cable is widely used in transportation hubs, data centers, public facilities, and infrastructure demanding reliable medium voltage cabling with enhanced fire protection, environmental compliance, and life-safety features in populated or confined spaces.
-
Voltage Rating(Uo/U)(Um)
8.7/15 (17.5) KV
12/20 (24)KV
18/30 (36)KV - Temperature Rating -40°C to +90°C
- Minimum Bending Radius 15 x overall diameter
Construction
Technical Specifications
Quality Control
Application
Construction

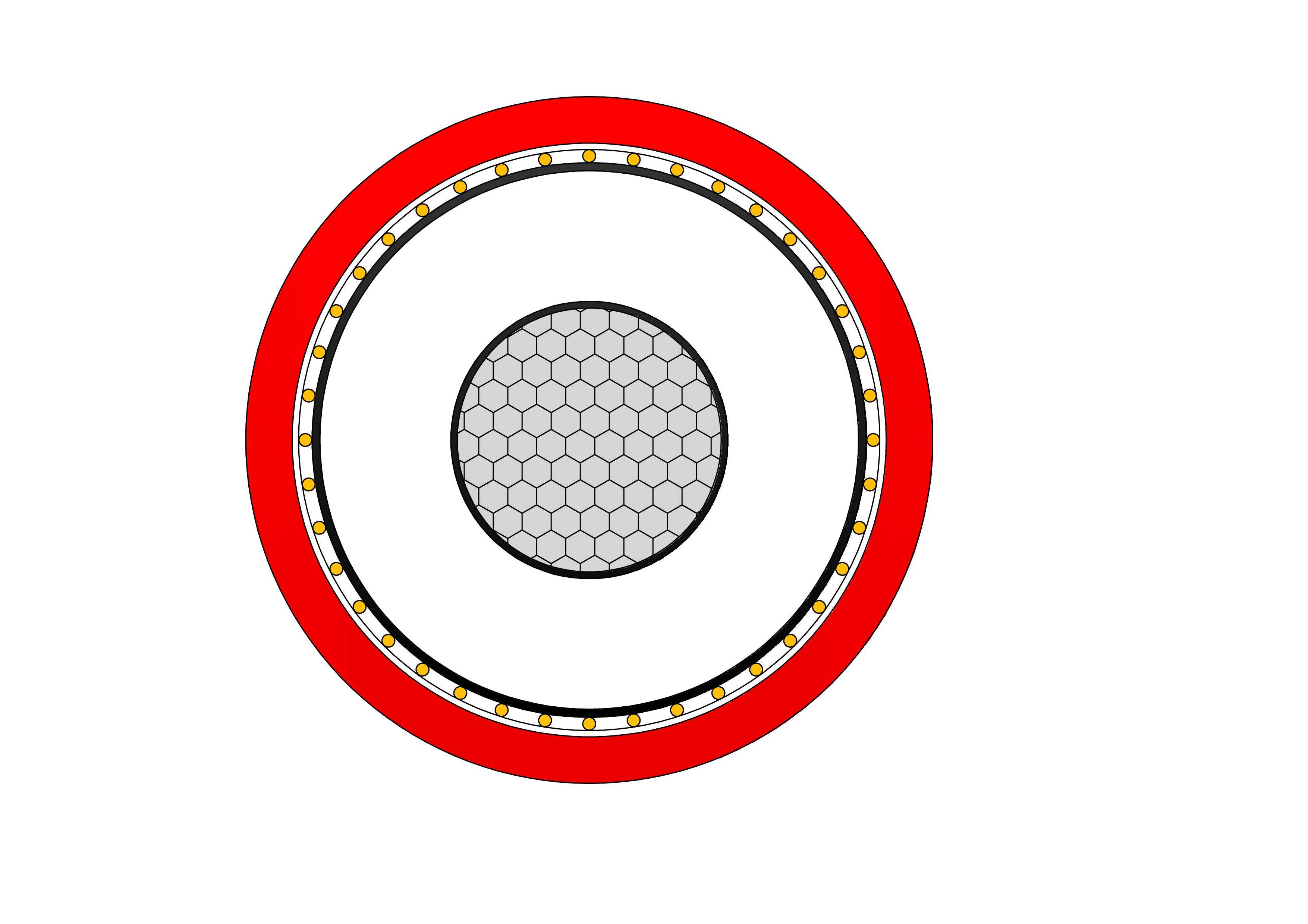

RHZ1-AL Medium Voltage Power Cable Constrution
Conductor
Class 2 stranded aluminium
Insulation
XLPE (Cross-Linked Polyethylene)
Conductor Screen
Semi-conductive material
Insulation Screen
Semi-conductive material
Screen
Copper Wires
Sheath
PO (Polylefin) DMZ1 ST7
Sheath Color
Red
Manufacturer Standard
IEC 60502-2, HD 620 10E-1
Halogen Free
IEC 60754-1/2
UV Resistant
UNE 211605, HD 605, Subclause 2.2.13
Technical Specifications
RHZ1-AL Medium Voltage Power Cable(8.7/15kV, 12/20kV, 18/30kV)
RHZ1-AL 8.7/15 (17.5) KV
RHZ1-AL 12/20 (24)KV
RHZ1-AL 18/30 (36)KV
|
No of Cores |
Nominal Cross Section Area |
Nominal Conductor Diameter |
Nominal Thickness of Insulation |
Nominal Diameter Over insulation |
Nominal Metallic Screen Cross Section |
Nominal Outer Sheath Thickness |
Nominal Outer Diameter |
Approximate Weight |
| mm2 | mm | mm | mm | mm2 | mm | mm | kg/km | |
| 1 | 50 | 8.0 | 4.5 | 18.2 | 16 | 2.5 | 28.1 | 720 |
| 1 | 95 | 11.2 | 4.5 | 21.4 | 16 | 2.5 | 31.2 | 1100 |
| 1 | 150 | 14.0 | 4.5 | 24.2 | 16 | 2.7 | 34.1 | 1440 |
| 1 | 240 | 17.9 | 4.5 | 28.1 | 16 | 3.0 | 37.8 | 1780 |
| 1 | 400 | 23.1 | 4.5 | 33.3 | 16 | 3.0 | 42.8 | 2300 |
| 1 | 630 | 29.1 | 4.5 | 39.6 | 16 | 3.0 | 50.3 | 3190 |
|
No of Cores |
Nominal Cross Section Area |
Nominal Conductor Diameter |
Nominal Thickness of Insulation |
Nominal Diameter Over insulation |
Nominal Metallic Screen Cross Section |
Nominal Outer Sheath Thickness |
Nominal Outer Diameter |
Approximate Weight |
| mm2 | mm | mm | mm | mm2 | mm | mm | kg/km | |
| 1 | 50 | 8.0 | 5.5 | 20.2 | 16 | 2.5 | 28.0 | 850 |
| 1 | 95 | 11.2 | 5.5 | 23.4 | 16 | 2.7 | 32.0 | 1100 |
| 1 | 150 | 14.0 | 5.5 | 26.2 | 16 | 3.0 | 34.0 | 1400 |
| 1 | 240 | 17.9 | 5.5 | 30.1 | 16 | 3.0 | 38.0 | 1800 |
| 1 | 400 | 23.1 | 5.5 | 35.3 | 16 | 3.0 | 43.0 | 2500 |
| 1 | 630 | 29.1 | 5.5 | 41.6 | 16 | 3.0 | 50.0 | 3500 |
|
No of Cores |
Nominal Cross Section Area |
Nominal Conductor Diameter |
Nominal Thickness of Insulation |
Nominal Diameter Over insulation |
Nominal Metallic Screen Cross Section |
Nominal Outer Sheath Thickness |
Nominal Outer Diameter |
Approximate Weight |
| mm2 | mm | mm | mm | mm2 | mm | mm | kg/km | |
| 1 | 50 | 8.0 | 5.5 | 25.2 | 16 | 2.7 | 32.0 | 900 |
| 1 | 95 | 8.0 | 5.5 | 28.4 | 16 | 3.0 | 35.0 | 1200 |
| 1 | 150 | 8.0 | 5.5 | 31.2 | 16 | 3.0 | 38.0 | 1500 |
| 1 | 240 | 8.0 | 5.5 | 35.1 | 16 | 3.0 | 43.0 | 1900 |
| 1 | 400 | 8.0 | 5.5 | 40.3 | 16 | 3.0 | 48.0 | 2750 |
| 1 | 630 | 8.0 | 5.5 | 46.6 | 16 | 3.0 | 56.0 | 3500 |
Quality Control
RHZ1-AL Medium Voltage Power Cable(8.7/15kV, 12/20kV, 18/30kV)
Raw Material Test
For the RHZ1-AL Medium Voltage Power Cable (8.7/15kV, 12/20kV, 18/30kV), raw material testing focuses on safety and conductivity. Aluminium is certified for electrical grade and ductility. XLPE granules are evaluated for contamination, thermal stability, and crosslinking efficiency via microscopy and TGA. Screen materials undergo resistivity and bonding checks. LSZH compound faces halogen-free verification, smoke opacity pre-tests, corrosivity, and flame-retardant analysis per IEC standards. The structured process: receipt inspection, random sampling, physical/mechanical testing (tensile, elongation), chemical analysis with ion chromatography, accelerated aging and fire simulation trials, and release decision. This ensures premium inputs, establishing the base for the RHZ1-AL Medium Voltage Power Cable's dielectric strength, screening reliability, low-emission fire safety, and superior performance in medium voltage fire-critical systems.
Process inspection
Process inspection during RHZ1-AL Medium Voltage Power Cable (8.7/15kV, 12/20kV, 18/30kV) production involves continuous fire-focused monitoring. Aluminium conductor forming checks uniformity and surface quality. Triple co-extrusion ensures void-free shields and insulation with real-time thickness gauges. Screen application monitors coverage and tension. LSZH sheath extrusion includes online spark testing and ovality control. Critical steps: pre-extrusion compound dryness verification, parameter stabilization, capacitance-based eccentricity monitoring, gel fraction sampling, partial discharge intermediate checks, flame-retardant additive distribution, and defect removal protocols. This multi-stage assurance maintains the RHZ1-AL Medium Voltage Power Cable's precise geometry, reliable screening, uniform LSZH sheath with optimal fire behavior, and UNE/CPR compliance throughout manufacturing.
Finished Product
Completed RHZ1-AL Medium Voltage Power Cable (8.7/15kV, 12/20kV, 18/30kV) reels are subjected to strict tests. Mandatory routines: DC resistance, high-potential AC test, partial discharge (≤5pC), screen resistance, and thickness checks. Fire performance tests include smoke production, acidity of gases, flame propagation, and heat release for CPR compliance. Extended tests cover impulse and long-duration voltage. The sequential process: sample conditioning, parameter application (voltage/heat), timed fire exposure monitoring, recovery inspection, property re-measurement, and documentation. Additional verifications ensure marking permanence and flexibility. Passing all confirms the RHZ1-AL Medium Voltage Power Cable's low smoke zero halogen safety, electrical integrity, mechanical endurance, and suitability for critical medium voltage applications in public or confined spaces.
Application
Ideal for medium voltage distribution in metro systems, theaters, hotels, data centers, and educational facilities. Commonly installed indoors, in ducts, or underground where low smoke zero halogen properties are essential for minimizing risk in high-occupancy or fire-sensitive environments.
Technical Advantages
● 30+ years of manufacturing experience
● ISO and UL certified production
● Customized cable and transformer solutions
Product Packaging
Wires and Cables packaging (1)
Wires and Cables packaging (2)
Wires and Cables packaging (3)
Wires and Cables packaging (4)
Wires and Cables packaging (5)
Wires and Cables packaging (6)
Wires and Cables packaging (7)
Wires and Cables packaging (8)
