XAI Armoured Medium Voltage Power Cable(6/10kV, 12/20kV, 18/30kV)
NPC Electric XAI Armoured Medium Voltage Power Cable (6/10kV, 12/20kV, 18/30kV) delivers protected, high-performance medium voltage transmission. Constructed with copper or aluminium conductors, thermosetting XLPE insulation, metallic screen, bedding, galvanised steel wire armour (SWA), and tough outer sheath, it meets IEC 60502-2 requirements. The SWA layer offers outstanding resistance to mechanical damage, enabling direct burial without conduits. Low transmission losses, high current rating, and excellent overload tolerance ensure optimal efficiency. Optional LSZH sheath and water-blocking for added safety and reliability. Flame-retardant and environmentally robust, the XAI Armoured Medium Voltage Power Cable is widely selected for power grids, manufacturing plants, wind/solar farms, and infrastructure demanding reliable, maintenance-free medium voltage cabling with enhanced mechanical safeguarding in challenging terrains or high-impact zones worldwide.
-
Voltage Rating(Uo/U)(Um)
3.6/6 (7.2)KV
6/10 (12)KV
8.7/15 (17.5)KV
12/20 (24)KV
18/30 (36)KV - Temperature Rating +90°C
- Minimum Bending Radius 4 or 5x diameter depending on overall diameter
Construction
Technical Specifications
Quality Control
Application
Construction

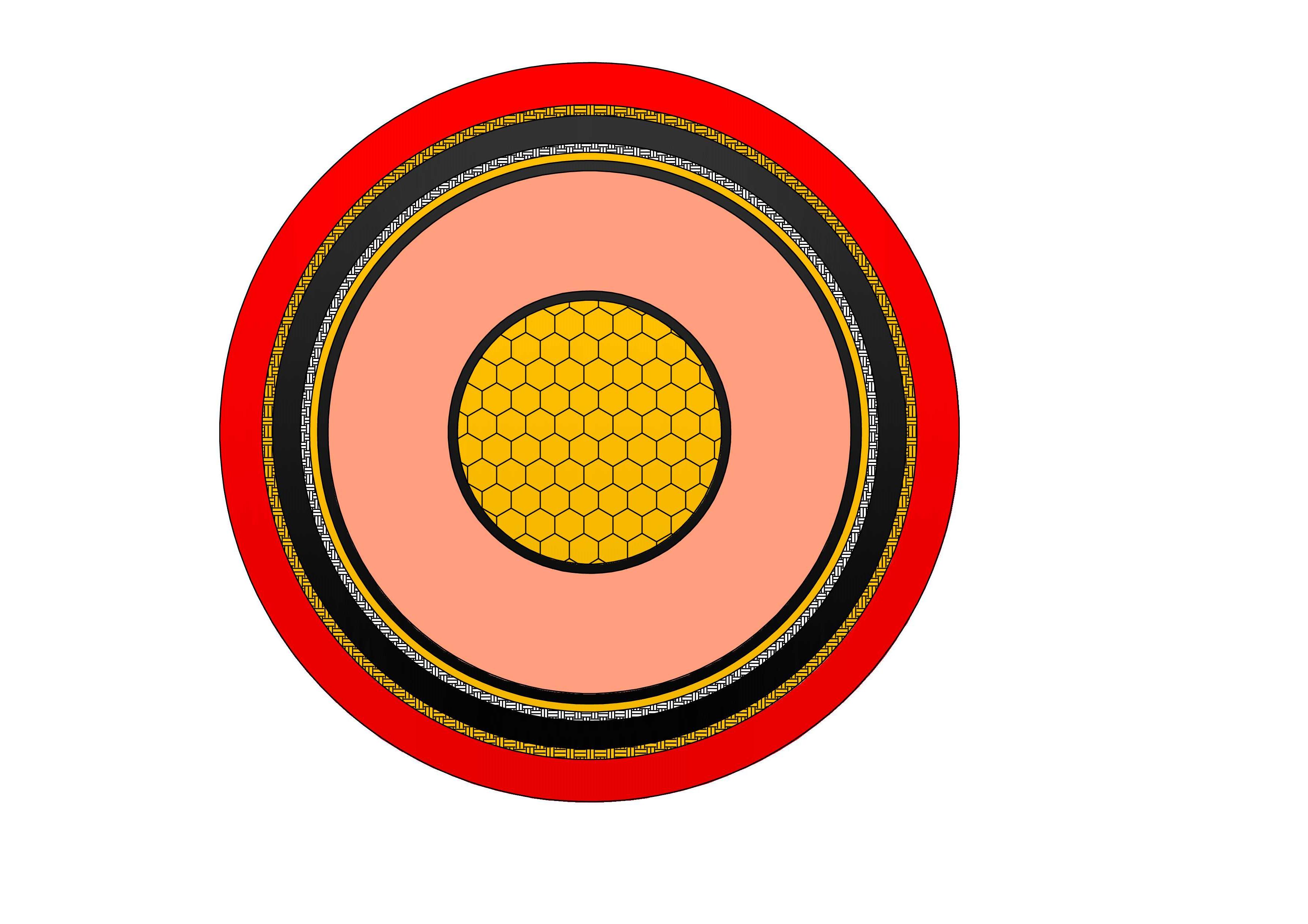

XAI Armoured Medium Voltage Power Cable Constrution
Conductor
Flexible Copper
Insulation
HEPR HF (Hard Ethylene Propylene Rubber Halogen Free) Compound
Conductor Screen
HF (Halogen Free) extruded compound
Insulation Screen
HF (Halogen Free) extruded compound
Core Screen
Plain copper tape
Bedding
Fiberglass Tape + Fiberglass Ropes (+ HEPR layer for multicores)
Inner Sheath
SHF1 compound
Armour
Plain copper wire braid
Outer Sheath
SHF1 compound
Core Identification
1 core: Off White
3 core: Off White (coloured or numbered tapes)
3 core: Off White (coloured or numbered tapes)
Outer Sheath Colour
Red
Manufacturer Standard
IEC 60092-354, IEC 60092-360
Flame retardant
IEC 60332-1-2, IEC 60332-3-22
Halogen Content & Corrosivity
IEC 60754-1 & 2, IEC 60684-2
Smoke Density
IEC 61034-1 & 2
UV Resistance
UL 1581 & 1200
Ozone Resistance
IEC 60092-360
Impact & Cold Resistance
CSA C 22.2 N° 0.3-09 & N° 38-18
Technical Specifications
XAI Armoured Medium Voltage Power Cable(6/10kV, 12/20kV, 18/30kV)
XAI Armoured 3.6/6 (7.2)KV
XAI Armoured 6/10 (12)KV
XAI Armoured 8.7/15 (17.5)KV
XAI Armoured 12/20 (24)KV
XAI Armoured 18/30 (36)KV
| No of Cores |
Nominal Cross Section Area |
Nominal Screen Cross Section Area |
Nominal Insulation Thickness |
Nominal Sheath Thickness |
Nominal Overall Diameter |
Approximate Weight |
| mm2 | mm | mm | mm | mm | kg/km | |
| 1 | 25 | 6.5 | 2.5 | 17.5 | 23 | 890 |
| 1 | 35 | 7.5 | 2.5 | 18.5 | 24 | 1020 |
| 1 | 50 | 8.4 | 2.5 | 19.4 | 25 | 1160 |
| 1 | 70 | 10.0 | 2.5 | 22.0 | 27 | 1500 |
| 1 | 95 | 11.8 | 2.5 | 23.5 | 29 | 1850 |
| 1 | 120 | 13.2 | 2.5 | 25.5 | 31 | 2130 |
| 1 | 150 | 14.6 | 2.5 | 26.5 | 32 | 2450 |
| 1 | 185 | 16.5 | 2.5 | 28.5 | 35 | 2900 |
| 1 | 240 | 19.0 | 2.6 | 31.5 | 38 | 3670 |
| 1 | 300 | 21.8 | 2.8 | 34.9 | 41 | 4370 |
| 3 | 25 | 6.5 | 2.5 | 36.5 | 43 | 2840 |
| 3 | 35 | 7.5 | 2.5 | 38.9 | 45 | 3240 |
| 3 | 50 | 8.4 | 2.5 | 40.5 | 48 | 3850 |
| 3 | 70 | 10.0 | 2.5 | 44.3 | 52 | 4780 |
| 3 | 95 | 11.8 | 2.5 | 48.2 | 56 | 5800 |
| 3 | 120 | 13.2 | 2.5 | 51.2 | 59 | 6730 |
| 3 | 150 | 14.6 | 2.5 | 54.2 | 62 | 7840 |
| 3 | 185 | 16.5 | 2.5 | 58.4 | 67 | 9180 |
| 3 | 240 | 19.0 | 2.6 | 65.2 | 74 | 11780 |
| No of Cores |
Nominal Cross Section Area |
Nominal Screen Cross Section Area |
Nominal Insulation Thickness |
Nominal Sheath Thickness |
Nominal Overall Diameter |
Approximate Weight |
| mm2 | mm | mm | mm | mm | kg/km | |
| 1 | 25 | 6.5 | 3.4 | 19.3 | 24 | 1000 |
| 1 | 35 | 7.5 | 3.4 | 21.4 | 27 | 1200 |
| 1 | 50 | 8.4 | 3.4 | 22.2 | 27 | 1360 |
| 1 | 70 | 10.0 | 3.4 | 23.6 | 29 | 1610 |
| 1 | 95 | 11.8 | 3.4 | 25.3 | 31 | 1950 |
| 1 | 120 | 13.2 | 3.4 | 27.2 | 33 | 2270 |
| 1 | 150 | 14.6 | 3.4 | 28.3 | 34 | 2600 |
| 1 | 185 | 16.5 | 3.4 | 30.3 | 37 | 3130 |
| 1 | 240 | 19.0 | 3.4 | 33.3 | 40 | 3850 |
| 1 | 300 | 21.8 | 3.4 | 36.1 | 43 | 4500 |
| 3 | 25 | 6.5 | 3.4 | 40.2 | 47 | 3300 |
| 3 | 35 | 7.5 | 3.4 | 42.5 | 50 | 3780 |
| 3 | 50 | 8.4 | 3.4 | 44.4 | 52 | 4300 |
| 3 | 70 | 10.0 | 3.4 | 48.2 | 56 | 5200 |
| 3 | 95 | 11.8 | 3.4 | 51.8 | 60 | 6300 |
| 3 | 120 | 13.2 | 3.4 | 55.1 | 63 | 7250 |
| 3 | 150 | 14.6 | 3.4 | 58.1 | 67 | 8250 |
| 3 | 185 | 16.5 | 3.4 | 63.2 | 72 | 9960 |
| 3 | 240 | 19.0 | 3.4 | 68.0 | 78 | 12270 |
| No of Cores |
Nominal Cross Section Area |
Nominal Screen Cross Section Area |
Nominal Insulation Thickness |
Nominal Sheath Thickness |
Nominal Overall Diameter |
Approximate Weight |
| mm2 | mm | mm | mm | mm | kg/km | |
| 1 | 25 | 6.5 | 4.5 | 22.6 | 28 | 1200 |
| 1 | 35 | 7.5 | 4.5 | 23.6 | 29 | 1360 |
| 1 | 50 | 8.4 | 4.5 | 24.0 | 30 | 1520 |
| 1 | 70 | 10.0 | 4.5 | 25.8 | 31 | 1800 |
| 1 | 95 | 11.8 | 4.5 | 27.9 | 34 | 2170 |
| 1 | 120 | 13.2 | 4.5 | 29.2 | 35 | 2450 |
| 1 | 150 | 14.6 | 4.5 | 30.5 | 37 | 2860 |
| 1 | 185 | 16.5 | 4.5 | 32.9 | 39 | 3420 |
| 1 | 240 | 19.0 | 4.5 | 35.3 | 42 | 4070 |
| 1 | 300 | 21.8 | 4.5 | 39.0 | 46 | 4820 |
| 3 | 25 | 6.5 | 4.5 | 45.4 | 53 | 3900 |
| 3 | 35 | 7.5 | 4.5 | 47.5 | 55 | 4350 |
| 3 | 50 | 8.4 | 4.5 | 49.1 | 57 | 4900 |
| 3 | 70 | 10.0 | 4.5 | 52.9 | 61 | 5850 |
| 3 | 95 | 11.8 | 4.5 | 56.6 | 65 | 6950 |
| 3 | 120 | 13.2 | 4.5 | 60.4 | 69 | 8100 |
| 3 | 150 | 14.6 | 4.5 | 63.3 | 73 | 9300 |
| 3 | 185 | 16.5 | 4.5 | 67.5 | 77 | 10900 |
| No of Cores |
Nominal Cross Section Area |
Nominal Screen Cross Section Area |
Nominal Insulation Thickness |
Nominal Sheath Thickness |
Nominal Overall Diameter |
Approximate Weight |
| mm2 | mm | mm | mm | mm | kg/km | |
| 1 | 35 | 7.5 | 5.5 | 25.6 | 31 | 1520 |
| 1 | 50 | 8.4 | 5.5 | 26.0 | 32 | 1640 |
| 1 | 70 | 10.0 | 5.5 | 28.2 | 34 | 1970 |
| 1 | 95 | 11.8 | 5.5 | 29.9 | 36 | 2430 |
| 1 | 120 | 13.2 | 5.5 | 31.2 | 38 | 2720 |
| 1 | 150 | 14.6 | 5.5 | 33.2 | 40 | 3100 |
| 1 | 185 | 16.5 | 5.5 | 35.1 | 42 | 3620 |
| 1 | 240 | 19.0 | 5.5 | 37.3 | 45 | 4300 |
| 1 | 300 | 21.8 | 5.5 | 40.9 | 48 | 5050 |
| 3 | 35 | 7.5 | 5.5 | 51.0 | 59 | 4920 |
| 3 | 50 | 8.4 | 5.5 | 53.5 | 61 | 5480 |
| 3 | 70 | 10.0 | 5.5 | 57.2 | 65 | 6360 |
| 3 | 95 | 11.8 | 5.5 | 62.4 | 71 | 7800 |
| 3 | 120 | 13.2 | 5.5 | 65.2 | 74 | 8820 |
| 3 | 150 | 14.6 | 5.5 | 68.2 | 78 | 10040 |
| 3 | 185 | 16.5 | 5.5 | 72.3 | 82 | 11500 |
| No of Cores |
Nominal Cross Section Area |
Nominal Screen Cross Section Area |
Nominal Insulation Thickness |
Nominal Sheath Thickness |
Nominal Overall Diameter |
Approximate Weight |
| mm2 | mm | mm | mm | mm | kg/km | |
| 1 | 50 | 8.4 | 8.0 | 31.4 | 38 | 2210 |
| 1 | 70 | 10.0 | 8.0 | 33.6 | 40 | 2580 |
| 1 | 95 | 11.8 | 8.0 | 35.3 | 42 | 2950 |
| 1 | 120 | 13.2 | 8.0 | 36.6 | 43 | 3280 |
| 1 | 150 | 14.6 | 8.0 | 38.2 | 45 | 3630 |
| 1 | 185 | 16.5 | 8.0 | 40.5 | 48 | 4230 |
| 1 | 240 | 19.0 | 8.0 | 43.2 | 50 | 4990 |
| 1 | 300 | 21.8 | 8.0 | 45.9 | 53 | 5680 |
| 3 | 50 | 8.4 | 8.0 | 65.3 | 74 | 7050 |
| 3 | 70 | 10.0 | 8.0 | 69.0 | 78 | 8030 |
| 3 | 95 | 11.8 | 8.0 | 72.7 | 82 | 9330 |
| 3 | 120 | 13.2 | 8.0 | 75.5 | 85 | 10400 |
| 3 | 150 | 14.6 | 8.0 | 79.0 | 89 | 11690 |
