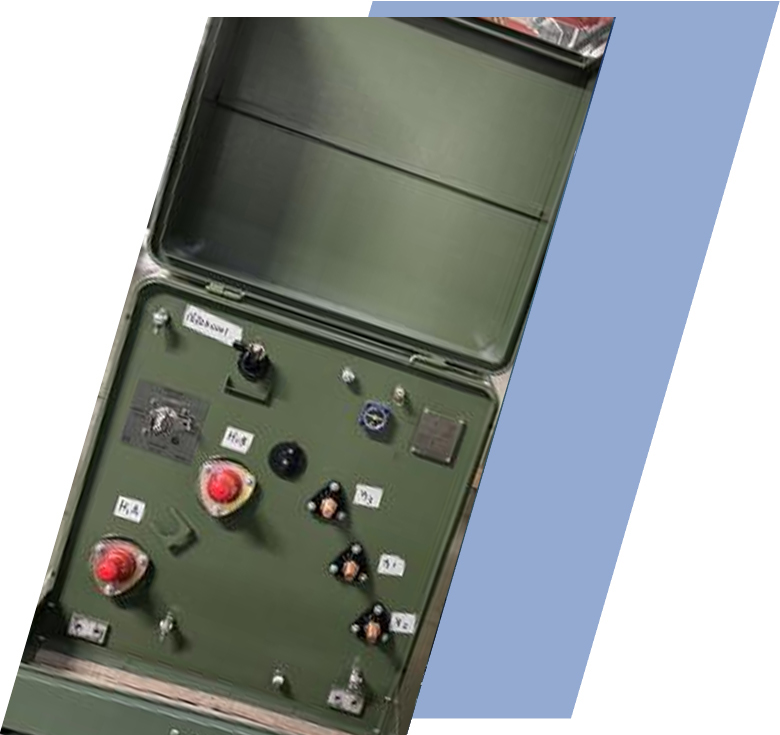

10kVA Conventional Type Single Phase Pole Mounted Transformer
NPC ELECTRIC specializes in designing and manufacturing 10 kVA single-phase pole-mounted transformers that comply with international standards, including IEEE C57.12.00, IEEE C57.12.20, DOE-2016 Efficiency, CSA C2.1 & C2.2, and CSA C802.1. Our unwavering commitment to excellence drives us to provide tailored solutions, ensuring that each transformer aligns precisely with your unique technical requirements. Regardless of the voltage level or operating environment, you can trust NPC ELECTRIC to deliver the ideal solution to meet your specific needs. Your satisfaction and the reliability of our transformers remain central to our dedication to quality.
- Primary Voltage Ratings 2.4-34.5kV
- Secondary Voltage Ratings 480-240/240-120 or customized
- H.V. Tap Range ± 2×2.5% HV taps or others
- Type Conventional Type
- BIL 30-150kV
- Standards IEEE, ANSI, NEMA, ASTM
- Application Ultility & distributionetc
- Power Rating 10kVA
- Certificate UL ,CESI ,DNV or SGS
- Cooling Method ONAN, KNAN
- Oil Minerial Oil or FR3
- Opeartion Step Down
Technical Specifications
Customization Optional
Packing and Shipping
Manufacturer Test
Routine Testing
Application
Technical Specifications
10kVA Conventional Type Single Phase Pole Mounted Transformer
Technical Specifications
Accessories
| Rated Power | 10 kVA |
| Rating Primary Voltage | 12.4-34.5kV |
| Secondary Voltage | 480-240V 240-120V 277V Customized |
| Frequency | 50/60Hz |
| Vector Group | Ii0,Ii6 |
| Winding Material | Aluminum/Copper |
| Efficiency | As IEEE,Doe 2016,CAS Std or Customized |
| Impedance Voltage | Nominal 2% or Customized 1.1-5.75% |
| Altitude | ≤1,000m or Customized |
| Color | ANSI 70 Light gray/Munsell 7GY3.29/1.5 or customized etc |
| Tank material | Mild Steel, 304 Stainless Steel |
| Insulating Oil Weight | 22 kg |
| Total Weight | 150 kg |
| Outline Dimensions（W×D×H） | 500×525×885 (mm) |
| Lifting Lug |
| Tap Changer |
| Pressure Relief Valve |
| Tank Cover and clamp |
| L.V Bushing |

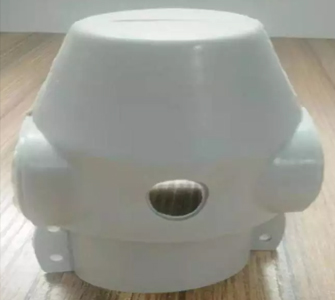

| HV Bushing |
| Ground Strap |
| Nameplate |
| Non-PCB decal |
| High Voltage Warning Signs |
| Support lug |

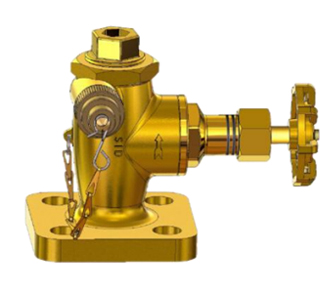

| Oil fill valve |
Customization Optional
10kVA Conventional Type Single Phase Pole Mounted Transformer
NPC ELECTRIC'S 10kVA Conventional Type Single Phase pole Mounted transformer According to different application requirements and working environments, this transformer provides a variety of optional specifications to ensure optimal operating performance and safety. Common options for the rated voltage high side include 2.4kV, 4.16kV, 7.2kV, 11kV, selected according to the grid standards of different regions. Common low voltage options on the low voltage side are 120/240V, 230/400V or customized voltage to meet different application requirements.
Optional insulation grades include Class A, Class B, Class F or Class H. Select the appropriate grade according to the working environment and use temperature of the transformer. High-grade insulation system provides better heat resistance and longer service life, especially for operation in high temperature or harsh environments.
Optional insulation grades include Class A, Class B, Class F or Class H. Select the appropriate grade according to the working environment and use temperature of the transformer. High-grade insulation system provides better heat resistance and longer service life, especially for operation in high temperature or harsh environments.
Choose mineral oil that meets IEC 60296 or ASTM D3487 standards, has good electrical insulation performance and heat dissipation capacity, and silicone oil that is suitable for environments with higher fire protection requirements and has good high temperature resistance and fire resistance.
Bay-O-Net fuses and ELSP overcurrent protection fuses are available on the high-voltage side to effectively protect the transformer from overload and short-circuit damage. Lightning arresters can be installed on the low-voltage side to effectively prevent the impact of lightning strikes and voltage mutations on the transformer.
NPC ELECTRIC'S 10kVA Conventional Type Single Phase pole Mounted transformer offers a range of flexible optional specifications to meet different application environments and work requirements. By selecting different voltage levels, insulation systems, cooling methods, enclosure protection levels, and intelligent monitoring functions, the transformer can provide stable, reliable, and efficient power supply in residential, commercial, agricultural and other scenarios.
Bay-O-Net fuses and ELSP overcurrent protection fuses are available on the high-voltage side to effectively protect the transformer from overload and short-circuit damage. Lightning arresters can be installed on the low-voltage side to effectively prevent the impact of lightning strikes and voltage mutations on the transformer.
NPC ELECTRIC'S 10kVA Conventional Type Single Phase pole Mounted transformer offers a range of flexible optional specifications to meet different application environments and work requirements. By selecting different voltage levels, insulation systems, cooling methods, enclosure protection levels, and intelligent monitoring functions, the transformer can provide stable, reliable, and efficient power supply in residential, commercial, agricultural and other scenarios.
Packing and Shipping
10kVA Conventional Type Single Phase Pole Mounted Transformer
The packaging and shipping process of NPC ELECTRIC'S 10kVA Conventional Type Single Phase pole Mounted transformer is crucial to ensure that the product is safe and intact during transportation and can cope with the special environment of sea transportation (such as salt spray, moisture, vibration, etc.).
The core components of the transformer (such as oil tank, windings, electrical connections) need to be professionally protected. First, we will wrap the vulnerable parts of the transformer with soft shockproof materials (such as foam, plastic protective film) to avoid impact and friction during transportation.

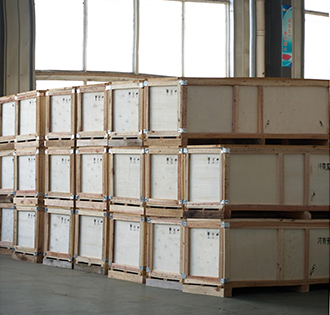

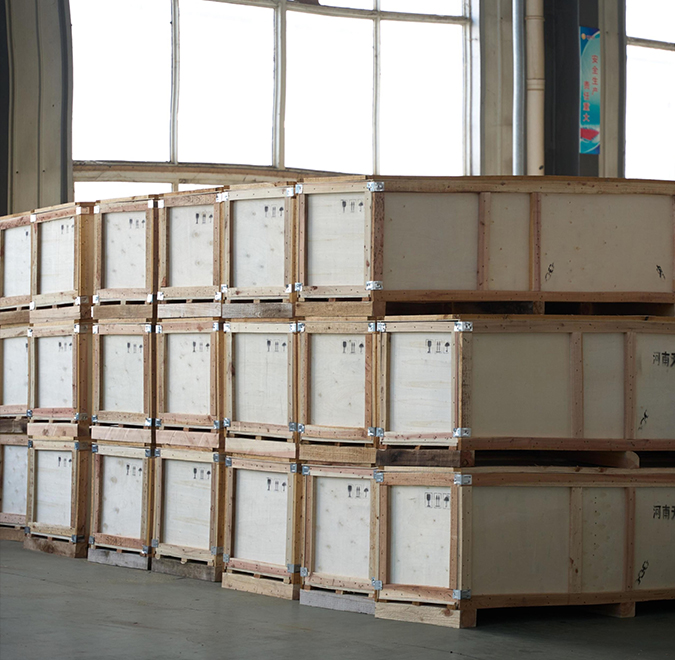

The transformer is placed in a reinforced wooden box or wooden pallet to ensure that the product is stable and easy to load and unload. The wooden box can be protected by multiple layers of shockproof foam pads, wooden pads and soft pads. The outside of the package will be marked with product information, operating requirements and shipping labels such as "fragile" and "waterproof". Anti-corrosion coatings will be used in the packaging materials, especially in environments with high humidity and salt spray, to ensure that the packaging materials will not corrode due to weather reasons.
The transformer will be firmly fixed in the container using wooden brackets or steel support frames to prevent severe vibrations during sea transportation. To prevent bumps and vibrations during transportation, the transformer will be firmly locked in the container.
In order to prevent potential risks during transportation, we will purchase transportation insurance for the transformer, including marine transportation insurance, fire insurance, theft insurance, etc., to ensure that compensation can be obtained in time in case of accidents. During the packaging and shipping of NPC ELECTRIC'S 10kVA Conventional Type Single Phase pole Mounted transformer, special attention is paid to the safety, integrity and timely delivery of the product. Through carefully designed internal and external packaging, professional transportation arrangements and strict loading and unloading processes, we ensure that the product can reach the hands of customers in the best condition.
The core components of the transformer (such as oil tank, windings, electrical connections) need to be professionally protected. First, we will wrap the vulnerable parts of the transformer with soft shockproof materials (such as foam, plastic protective film) to avoid impact and friction during transportation.
The transformer is placed in a reinforced wooden box or wooden pallet to ensure that the product is stable and easy to load and unload. The wooden box can be protected by multiple layers of shockproof foam pads, wooden pads and soft pads. The outside of the package will be marked with product information, operating requirements and shipping labels such as "fragile" and "waterproof". Anti-corrosion coatings will be used in the packaging materials, especially in environments with high humidity and salt spray, to ensure that the packaging materials will not corrode due to weather reasons.
The transformer will be firmly fixed in the container using wooden brackets or steel support frames to prevent severe vibrations during sea transportation. To prevent bumps and vibrations during transportation, the transformer will be firmly locked in the container.
In order to prevent potential risks during transportation, we will purchase transportation insurance for the transformer, including marine transportation insurance, fire insurance, theft insurance, etc., to ensure that compensation can be obtained in time in case of accidents. During the packaging and shipping of NPC ELECTRIC'S 10kVA Conventional Type Single Phase pole Mounted transformer, special attention is paid to the safety, integrity and timely delivery of the product. Through carefully designed internal and external packaging, professional transportation arrangements and strict loading and unloading processes, we ensure that the product can reach the hands of customers in the best condition.
32
32 years of industry experience
Manufacturer Test
10kVA Conventional Type Single Phase Pole Mounted Transformer
Progress Test

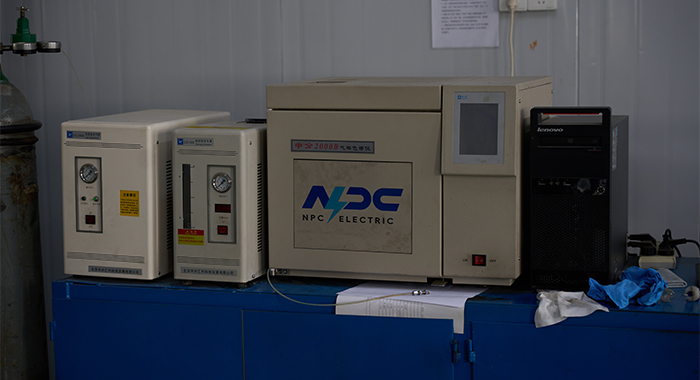

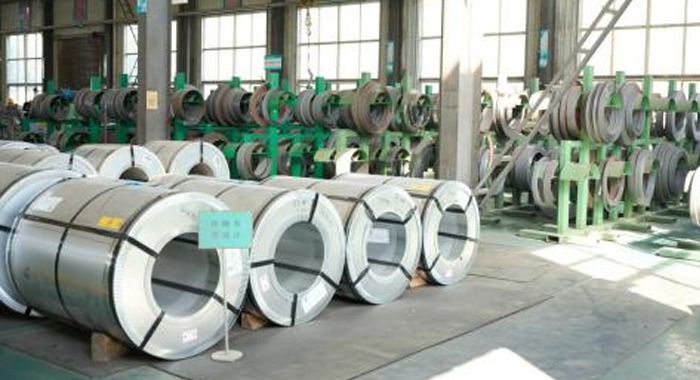

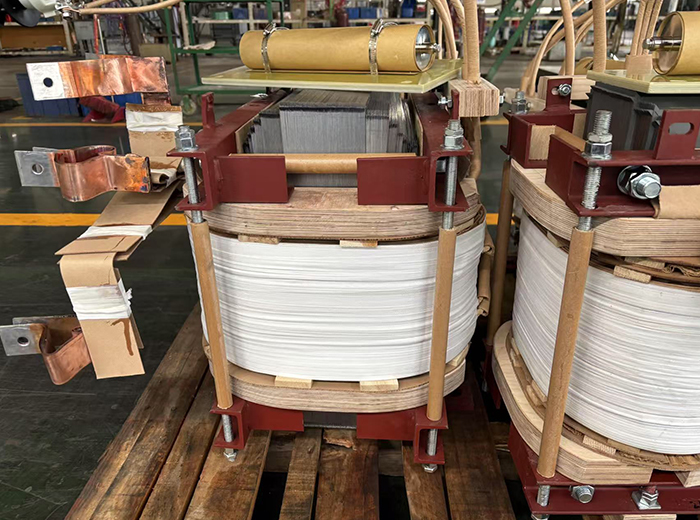

NPC ELECTRIC'S 10kVA Conventional Type Single Phase pole Mounted transformer progress test mainly includes raw material testing, coil winding and core assembly inspection to ensure that the production process meets technical standards. During the manufacturing process, insulation resistance test, winding voltage ratio test and partial discharge test will be carried out to ensure the electrical performance of the transformer and ensure that it meets the design specifications and quality requirements.
Design Tests
All transformer will be test after finished the production, test items as below:
♦ Insulation Power Factor
♦ Ratio, Polarity, and Phase Relation
♦ Winding Resistance
♦ Impulse Tests
♦ On load Loss Test
♦ No Load Loss Test
♦ Leak Test
♦ DC Insulation Resistance Test
♦ Transformer Turns Ratio/TTR (All Tap Voltages)
♦ Impedance Voltage & Load Loss (Rated Voltage)
♦ Polarity, 1-Ph
♦ Excitation & No-Load Loss (Rated Voltage)
♦ Applied Voltage
♦ Induced Voltage
♦ Lightning Impulse
♦ Insulation Resistance (Rated Voltage)
♦ Temperature Rise
♦ Dielectric Withstand (Hipot)
Transformer Factory Acceptance Test
Factory acceptance tests for NPC ELECTRIC'S 10kVA Conventional Type Single Phase pole Mounted transformer include insulation withstand voltage test, no-load and load loss test, short circuit impedance test and oil dielectric test to ensure that the transformer meets the design specifications and quality standards.
Routine Test - Winding Resistance
Purpose of Testing
The purpose of winding resistance testing is to detect the continuity and connection quality of the internal conductors of the motor or transformer windings, and to promptly detect potential faults such as open circuits, poor contact or local heating.
Testing Equipment
Winding resistance tester (e.g. OMICRON, DV Power, Raytech, Megger, ISA, etc.)
Test voltage source (commonly used are 6V, 10V, 20V, 40V or 100V, depending on the equipment model or customer requirements)
Temperature and humidity meter (used to record the ambient temperature and humidity during the test)
Test voltage source (commonly used are 6V, 10V, 20V, 40V or 100V, depending on the equipment model or customer requirements)
Temperature and humidity meter (used to record the ambient temperature and humidity during the test)
Pre-Test Preparation
Check if the instrument has been calibrated to ensure the test accuracy.
Disconnect the electrical connection between the test cable and the equipment to ensure that there is no external current or voltage interference.
Select a suitable voltage range for testing and set the test voltage according to the equipment requirements.
Disconnect the electrical connection between the test cable and the equipment to ensure that there is no external current or voltage interference.
Select a suitable voltage range for testing and set the test voltage according to the equipment requirements.
Test Progress
Connect the Test Instrument:
Connect the test equipment to the winding terminals of the device under test, making sure the connections are secure and properly grounded to avoid measurement errors.
Apply Test Voltage:
Select the appropriate test current according to the equipment specifications (such as test current for low-voltage windings, single-phase or three-phase windings).
Connect the test equipment to the winding terminals of the device under test, making sure the connections are secure and properly grounded to avoid measurement errors.
Apply Test Voltage:
Select the appropriate test current according to the equipment specifications (such as test current for low-voltage windings, single-phase or three-phase windings).
Measure and Record
Start the test and record the following parameters:
Winding resistance (usually expressed in units of "Ω")
Test current (A)
Test voltage (V)
Temperature (record the winding temperature before and after the test)
Winding resistance (usually expressed in units of "Ω")
Test current (A)
Test voltage (V)
Temperature (record the winding temperature before and after the test)
Temperature Correction
The measured winding resistance values are converted to a reference temperature (usually 20°C) based on a temperature correction formula to allow accurate evaluation and comparison.
Repeat Testing (if necessary)
Test the different windings (high voltage, medium voltage, low voltage) separately and make sure to record the resistance value of each winding.
Evaluation Criteria (Reference)
Resistance deviation is less than 5% (normal)
Resistance deviation is between 5% and 10% (warning)
Resistance deviation exceeds 10% (further inspection or corrective action is required)
Resistance deviation is between 5% and 10% (warning)
Resistance deviation exceeds 10% (further inspection or corrective action is required)
*These comprehensive tests ensure that each transformer meets performance standards and operates
reliably under various conditions.
Application
Ultility & distributionetc
Technical Advantages
● 30+ years of manufacturing experience
● ISO and UL certified production
● Customized cable and transformer solutions
Product Packaging
Transformers Packaging (1)
Transformers Packaging (2)
Transformers Packaging (3)
Transformers Packaging (4)
Transformers Packaging (5)
Transformers Packaging (6)
Transformers Packaging (7)
Transformers Packaging (8)
Related Products
100kVA Conventional Type Single Phase Pole Mounted Transformer
NPC ELECTRIC has been specialized in manufacturing 100kVA Conventional Type Single Phase pole Mounted transformer for more than 20 years, which complies with international standards such as ANSI/IEEE C57, IEC60076 and other standards. Its main function is to convert high voltage electricity (such as 11kV, 13.8kV, etc.) into low voltage electricity (such as 120V/240V), providing stable and reliable power supply to end users. It is suitable for residential, commercial, agricultural and small industrial loads.
2500kVA Three Phase Pad Mounted Transformer
NPC ELECTRIC's 2500kVA Three Phase Pad Mounted transformer adopts a fully sealed and fully insulated structure, which complies with international standards such as IEC 60076 and IEEE C57, and has the advantages of high efficiency, energy saving, and stable operation. It is widely used in industrial parks, large commercial centers, new energy projects, data centers and other scenarios with high requirements for power supply reliability. The product is suitable for 12kV to 35kV distribution systems and meets the needs of the global mainstream power market.
80kVA Dry Type Transformer
80kVA dry-type transformer launched by NPC ELECTRIC adopts advanced dry insulation technology, has the advantages of high efficiency, environmental protection, and safety, and is widely used in industrial, commercial, and residential power systems. The transformer has a compact design, strong load-bearing capacity, stable operation, and effectively reduces energy loss. The oil-free structure reduces the risk of fire, meets modern green environmental standards, and is suitable for use in environments with high requirements for power stability and low noise.
50kVA Conventional Type Single Phase Pole Mounted Transformer
The 50kVA Conventional Type Single Phase pole Mounted transformer produced by NPC ELECTRIC has a rated capacity ranging from 10kVA to 333kVA, meeting the standards of ANSI/IEEE C57, IEC60076, etc. Its main function is to convert high-voltage power (such as 10kV, 11kV, etc.) into low-voltage power (such as 220V, 240V) through the transformer for use in homes, shops, industrial equipment, etc. It is suitable for residential areas, commercial areas, rural power grids, agricultural facilities and small industrial power supply.
50kVA Completely self-protected(CSP) Single Phase Pole Mounted Transformer
50kVA Completely self-protected(CSP) Single Phase pole Mounted transformer is a robust, high-efficiency solution designed for reliable single-phase power distribution in residential, commercial, and small industrial applications. This transformer features built-in protection mechanisms, including overload, short-circuit, and over-voltage safeguards, ensuring automatic disconnection during fault conditions to protect both the transformer and the electrical system. With its pole-mounted design, it is space-efficient and ideal for installations in urban, rural, and remote areas. The transformer operates with low losses, ensuring high energy efficiency and long-term performance. Built with durable materials, it offers exceptional resilience against harsh weather conditions, ensuring reliability and longevity. This transformer is an ideal choice for any application requiring consistent, stable single-phase power.
2000kVA Dry Type Transformer
The NPC ELECTRIC 2000kVA Dry Type Transformer is a robust and efficient power solution designed to handle the electrical needs of large-scale industrial and commercial operations. With a capacity of 2000kVA, it features advanced dry-type insulation, ensuring enhanced safety, minimal maintenance, and long-lasting performance. This transformer is built to operate reliably in various environmental conditions while offering low noise levels and a reduced environmental footprint.FAQ From Customers
-
What is a Transformer?A transformer is an electrical device used to change the voltage of alternating current (AC). It works on the principle of electromagnetic induction, converting high-voltage current into low-voltage current or low-voltage current into high-voltage current. Transformers are widely used in power transmission, distribution systems, and various electronic devices.
-
What are the main uses of a transformer?The main use of a transformer is voltage conversion. Transformers are used in power transmission systems to help transfer electricity from power plants to consumers. In addition, transformers are also used in electronic devices such as chargers, televisions, power adapters, etc., to adjust the voltage to meet the requirements of different devices.
-
Do you have UL listed?Yes, our transformer has UL listed. We have exported to America many pad mounted transformer,substation transformer and HV.
