1272 MCM BITTERN ACSR Conductor Cable
The Bittern ACSR Conductor Cable is engineered for demanding overhead transmission, with 1272 MCM size and 45/7 stranding configuration. High-purity aluminum (1350-H19) surrounds a galvanized steel core, offering a DC resistance of 0.0143 Ω/1000ft and ampacity up to 1,120A at 75°C. Adhering to ASTM B230 for aluminum and B232 for assembly, it provides excellent corrosion resistance and mechanical integrity for spans up to 300m. The steel core enhances tensile strength (35,900 lbs) to control sag under heavy loads, while aluminum ensures high conductivity (61.5% IACS) and lightweight design for easier installation. Suitable for distribution voltages up to 138kV, the Bittern ACSR Conductor Cable reduces line losses and withstands extreme weather, including ice loads up to 1/2 inch. Its economical profile makes it a staple for utility expansions, renewable integrations, and grid modernization, delivering consistent power with high weather tolerance and minimal maintenance in global overhead networks.
Construction
Technical Specifications
Quality Control
Application
Construction
1272 MCM BITTERN ACSR Conductor Cable Construction
Standard
Product ASTM B232
Aluminum's application in electrical conductors has advanced significantly, driven mainly by its favorable electrical properties. For transmission lines with considerable spans, however, aluminum conductors must be provided with extra mechanical support; galvanized steel wires are commonly employed as the core component in ACSR.
Aluminum's application in electrical conductors has advanced significantly, driven mainly by its favorable electrical properties. For transmission lines with considerable spans, however, aluminum conductors must be provided with extra mechanical support; galvanized steel wires are commonly employed as the core component in ACSR.
Construction
ACSR conductors consist of concentrically stranded hard-drawn 1350-H19 aluminum wires layered over a galvanized steel core. The core structure (single or stranded) varies with conductor size, while the steel wire is protected against corrosion via Class A or B galvanization. This design allows ACSR to provide customized electrical and mechanical strength solutions for transmission/distribution lines by balancing aluminum and steel wire proportions.
Applications
Bare cable of this type is widely employed in overhead transmission lines and additionally utilized as primary/secondary cable for distribution systems.
Conditions for Ampacity Calculation
Conductor temperature = 75 °C;
Room temperature = 25 °C
Room temperature = 25 °C
Technical Specifications
1272 MCM BITTERN ACSR Conductor Cable
1272 MCM BITTERN ACSR Conductor Cable
| Construction characteristics | |
| Type of cable | Bittern |
| Type of conductor | Circular, stranded |
| Conductor material | aluminum / Steel Core |
| Conductor flexibility | Class A |
| Conductor shape | Circular non compacted |
| Dimensional characteristics | |
| Conductor cross-section | 1272 kcmil |
| Aluminium cross-section | 644.41 mm² |
| Conductor cross-section | 689.07 mm² |
| Number of aluminium wires | 45 |
| Diameter of aluminium wires | 4.27 mm |
| Number of steel wires | 7 |
| Diameter of steel wires | 2.85 mm |
| Diameter of steel core | 8.54 mm |
| Conductor diameter | 34.17 mm |
| Average geometric radius | 0.01356 m |
| Aluminium content | 1786 kg/km |
| Steel content | 348.8 kg/km |
| Approximate weight | 2135 kg/km |
| Nominal outer diameter | 34.17 mm |
| Number of cores | 1 |
| Number of round wires | - |
| Electrical characteristics | |
| Max. DC resistance of the conductor at 20°C | 0.045 Ohm/km |
| Max. electric resistance AC 60Hz 75°C | 0.056 Ohm/km |
| Inductive reactance | 0.3243 Ohm/km |
| Capacitive reactance | 0.1943 MOhm.km |
| Ampacity | 1160.0 A |
| Mechanical characteristics | |
| Rated breaking load (Class A) | 15458 kgf |
| Rated breaking load (Class B) | 15152 kgf |
| Hardness type | 1350-H19 |
| Usage characteristics | |
| Length | 1570 m |
| Reel net weight | 3345 kg |
| Packaging | Reel 210/100 |
Quality Control
1272 MCM BITTERN ACSR Conductor Cable
Raw Material Test
Raw material testing for the Bittern ACSR Conductor Cable follows ASTM B230 and B498. Aluminum ingots are analyzed for chemical purity (Si<0.1%, Fe<0.2%) and hardness using spectrometers. Steel wires undergo carbon content (0.5-0.8%), galvanization thickness (259g/m² min), and torsion cycles (min 16). Joint compounds are checked for compatibility. The structured process: vendor documentation review, sample extraction, lab testing (hardness Rockwell B80 max), mechanical verification (aluminum tensile 145 MPa), corrosion chamber exposure, and pass/fail determination. This secures high-grade materials for the Bittern ACSR Conductor Cable's balanced properties and overhead resilience.
Process inspection
Process inspection in Bittern ACSR Conductor Cable production ensures ASTM B232 adherence. Wire preparation ensures clean surfaces. The stranding machine calibrates for a 45/7 configuration with die compression. Tension control prevents loosening. Lubrication application prevents galling. Reeling checks for even winding. Key steps: input material check, machine calibration (tension 500N), in-line diameter measurement, sample pull testing, flaw detection with ultrasonics, and rework for inconsistencies. This ensures the Bittern ACSR Conductor Cable's tight stranding, even galvanization, and structural integrity for overhead use.
Finished Product
Finished Bittern ACSR Conductor Cable testing confirms ASTM B232 compliance. Key tests: rated tensile strength (35,900 lbs), conductivity, and weight verification. The process steps: end preparation, machine calibration, incremental tension to rupture, strain gauge recording, post-failure examination, and data logging. Corrosion tests: 500-hour salt spray. Additional: vibration (Aeolian) for endurance. Passing affirms the Bittern ACSR Conductor Cable's low expansion coefficient, high fatigue life, and suitability for overhead transmission in dynamic conditions.
Application
Ideal for overhead medium-voltage lines in rural utilities, wind farms, and grid extensions. Used for medium spans in moderate climates, connecting overhead transformers to consumers for efficient, low-cost electricity delivery in suburban and industrial areas.
Technical Advantages
● 30+ years of manufacturing experience
● ISO and UL certified production
● Customized cable and transformer solutions
Product Packaging
Wires and Cables packaging (1)
Wires and Cables packaging (2)
Wires and Cables packaging (3)
Wires and Cables packaging (4)
Wires and Cables packaging (5)
Wires and Cables packaging (6)
Wires and Cables packaging (7)
Wires and Cables packaging (8)
Related Products
(N)TSCGEWOU 3.6/6kV, 6/10kV, 8.7/15kV and 12/20kV ATB Cable
The (N)TSCGEWOU 3.6/6kV, 6/10kV, 8.7/15kV, and 12/20kV ATB Cable is a medium voltage flexible power cable designed in compliance with VDE 0250 standards. It features Class 5 tinned copper conductors, EPR rubber insulation, semi-conductive layers, halogen-free flame-retardant rubber sheath, and an earth detection conductor. The ATB construction ensures superior mechanical strength, oil resistance, abrasion resistance, and flame retardancy, making it ideal for open-pit mining, tunneling, and other heavy-duty mobile equipment applications under extreme mechanical stress.
ABC CABLE NFC 33-209
Aerial Bundled Cable under NPC 33-209 standard is mainly used in the field of overhead power distribution. ABC Cable, manufactured in accordance with NFC 33-209 is designed for overhead low-voltage power distribution with enhanced mechanical strength and operational safety. The cable consists of insulated aluminum phase conductors twisted around a reinforced messenger conductor, forming a compact aerial bundle. This structure reduces the risk of short circuits caused by external contact and minimizes power outages in densely populated or environmentally challenging areas. The insulation material provides excellent resistance to UV radiation, weather exposure, and thermal aging, ensuring stable electrical performance over long service periods. Compliant with NFC 33-209 requirements, the cable delivers reliable current transmission, reduced line losses, and simplified installation compared with bare conductors. ABC Cable NFC 33-209 is widely used by utility companies for modern overhead distribution networks where safety, durability, and cost efficiency are critical.
AMES AAAC Conductor Cable
AMES AAAC (All Aluminum Alloy Twisted) cables comply with ASTM B399 standards and have excellent conductivity and corrosion resistance. With 250 mm² nominal area and 19-strand design, it uses heat-treated aluminum-magnesium-silicon alloy (6201-T81) for enhanced strength (295 MPa min) and conductivity (53% IACS min). Meeting ASTM B398, B399, IEC 61089, and BS EN 50182 standards, this cable handles ampacity up to 600A at 75°C and voltages up to 33kV. The all-alloy construction avoids bimetallic corrosion, providing better resistance in harsh conditions than ACSR. Reduced weight minimizes sag and installation expenses, supporting longer spans. The Ames AAAC Conductor Cable delivers low electrical losses, high mechanical endurance, and excellent weather tolerance. Flame-retardant variants available. Perfect for urban grids, renewable projects, and coastal setups, it provides cost-effective, low-maintenance power delivery in overhead applications globally, excelling in reliability and lifespan over conventional conductors.
Instrumentation Cables—Mica Tapped, XLPE Insulated, Individual &Overall Screened, Wire Armoured LSZH Sheathed Cables(CU/GMT/XLPE/IOSCR/SWA/LSZH)
CU/GMT/XLPE/IOSCR/SWA/LSZH instrumentation cables are engineered for precise signal and control transmission in environments with high electrical noise and strict safety requirements. The mica tape layer protects the copper conductor during fire exposure, while XLPE insulation ensures stable electrical characteristics and heat resistance. Individual screening of each circuit, combined with an overall screen, provides superior protection against electromagnetic interference, enabling accurate and stable signal performance. Steel wire armour enhances mechanical durability and protects the cable from external damage. The LSZH sheath limits smoke emission and corrosive gases, making the cable suitable for enclosed and public installations. This robust design makes the cable ideal for complex industrial applications requiring both signal integrity and safety compliance.
(N)TSCGECECWOU 8.7/15kV and 12/20kV ZH Cable
The (N)TSCGECECWOU 8.7/15kV and 12/20kV ZH cable is a flexible medium voltage power cable designed and manufactured to DIN VDE 0250 standards. Engineered for demanding mining, tunneling, and mobile equipment applications, it features EPR insulation, a halogen-free flame-retardant sheath, and a concentric copper conductor to ensure exceptional mechanical strength, EMC protection, and resistance to oil, moisture, and fire. With a robust PUR outer sheath and halogen-free materials, this cable provides high flexibility and durability for reeling and trailing systems in harsh industrial environments, making it ideal for tunnel boring machines, mining conveyors, and other heavy-duty energy supply applications.

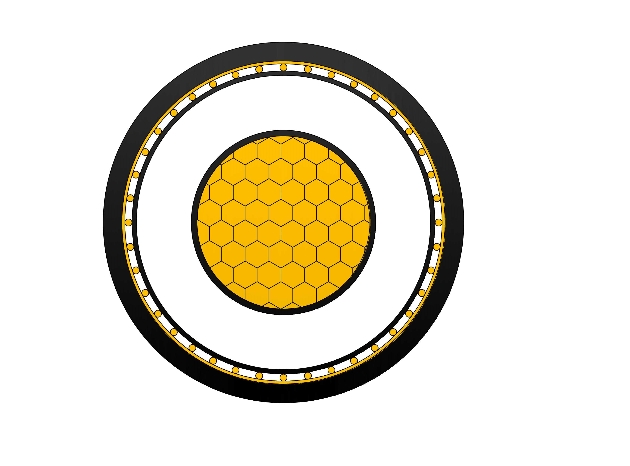

Single Core Medium Voltage Power Cable to IEC 60502
