NA2XSH Medium Voltage Power Cable(6/10kV, 12/20kV, 18/30kV)
The NA2XSH is a low-smoke halogen-free (LSZH), medium-voltage aluminum conductor cable with excellent flame-retardant properties and meets the design requirements of the IEC 60502-2 standard. Featuring stranded aluminium conductors, cross-linked polyethylene (XLPE) insulation, copper tape or wire screen, and low smoke zero halogen (LSZH) outer sheath, it complies with IEC 60502-2 and fire safety standards. In fire conditions, the LSZH sheath produces minimal smoke and no toxic halogen gases, enhancing safety in populated areas. Aluminium construction reduces weight and costs while maintaining good current capacity. With low dielectric losses, excellent partial discharge resistance, and high thermal stability, it ensures efficient, long-term performance. Suitable for direct burial, ducts, or indoor use, the NA2XSH Medium Voltage Power Cable is ideal for utilities, hospitals, schools, tunnels, and infrastructure projects requiring economical, environmentally friendly medium voltage cabling with superior fire protection and reliability worldwide.
-
Voltage Rating(Uo/U)(Um)
6/10 (12) KV
12/20 (24)KV
18/30 (36)KV - Conductor Operating Temp +90°C
- Short Circuit Temp up to 5 sec 250°C
- Minimum Bending Radius 15 x overall diameter
Construction
Technical Specifications
Quality Control
Application
Construction

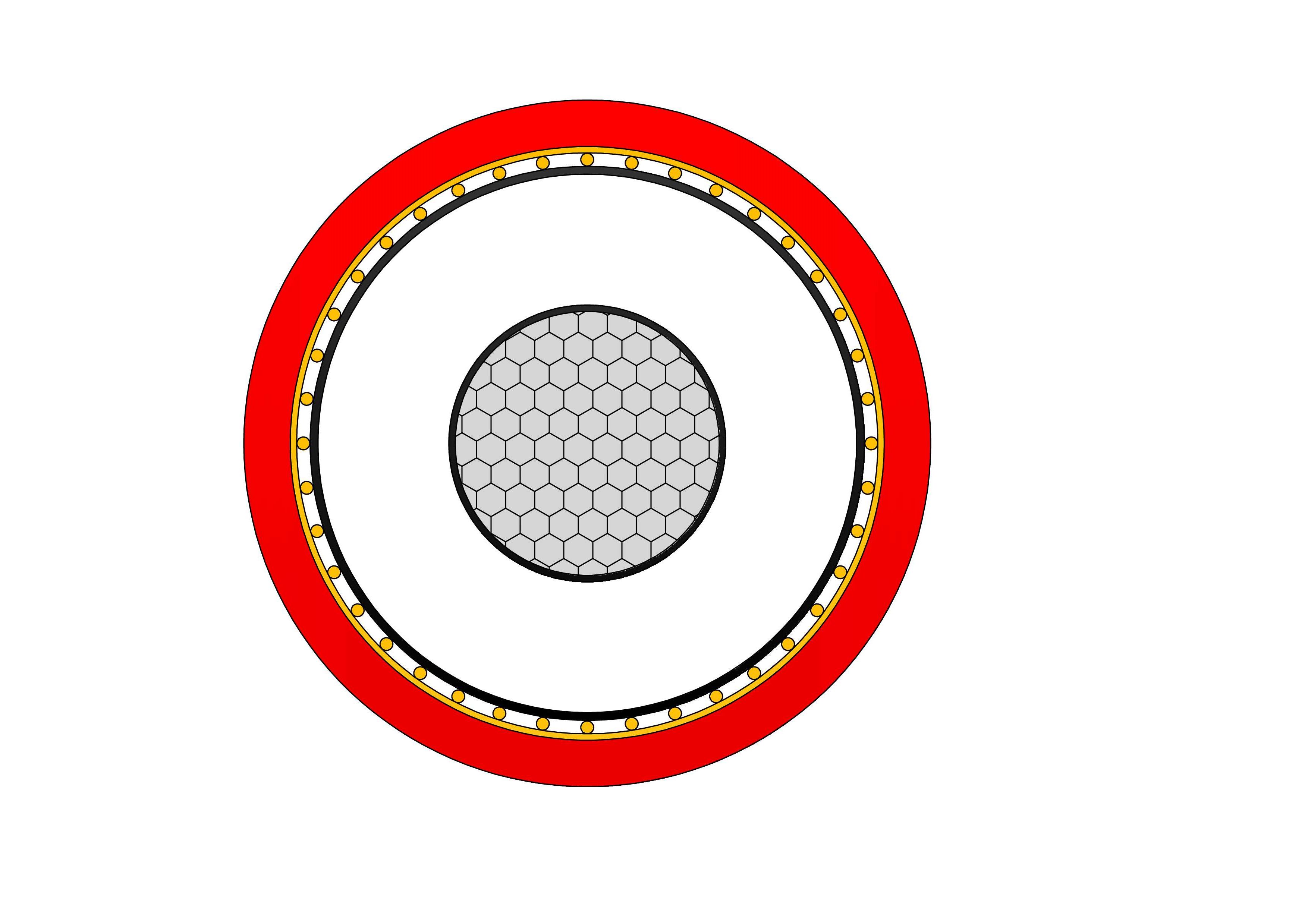

NA2XSH Medium Voltage Power Cable Constrution
Conductor
Class 2 stranded aluminium
Insulation
XLPE (Cross-Linked Polyethylene)
Conductor Screen
Semi-conductive material
Insulation Screen
Semi-conductive material
Filler
LSZH (Low Smoke Zero Halogen)
Screen
Copper Wires and Copper Tape
Sheath
LSZH (Low Smoke Zero Halogen) - UV Resistan
Sheath Color
Red
Manufacturer Standard
IEC 60502-2
Flame retardant
IEC/EN 60332-1-2
Halogen Free
IEC/EN 61034-1/2, IEC/EN 60754-1/2
Technical Specifications
NA2XSH Medium Voltage Power Cable(6/10kV, 12/20kV, 18/30kV)
NA2XSH 6/10 (12) KV
NA2XSH 12/20 (24)KV
NA2XSH 18/30 (36)KV
|
No. Of Cores |
Nominal Cross Sectional Area |
Nominal Conductor Diameter |
Number Wires Conductor |
NOM. Thickness Semi-Con. Layer |
Nominal Insulation Thickness |
Minimum Insulation Thickness |
Nominal Diameter Over Insulation |
||
| Conductor | Screen | Inner | Outer | ||||||
| mm2 | mm2 | mm | mm | mm | mm | mm | mm | mm | |
| 1 | 50 | 16 | 8.20 | 7×2.90 | 0.50 | 0.40 | 3.40 | 2.96 | 16.4 |
| 1 | 70 | 16 | 9.70 | 19×2.18 | 0.50 | 0.40 | 3.40 | 2.96 | 17.9 |
| 1 | 95 | 16 | 11.4 | 19×2.55 | 0.50 | 0.40 | 3.40 | 2.96 | 19.6 |
| 1 | 120 | 16 | 12.65 | 19×2.90 | 0.50 | 0.40 | 3.40 | 2.96 | 20.9 |
| 1 | 150 | 25 | 14.4 | 19×3.16 | 0.50 | 0.40 | 3.40 | 2.96 | 22.7 |
| 1 | 185 | 25 | 15.75 | 37×2.55 | 0.50 | 0.40 | 3.40 | 2.96 | 24.1 |
| 1 | 240 | 25 | 18.2 | 37×2.90 | 0.50 | 0.40 | 3.40 | 2.96 | 26.8 |
| 1 | 300 | 25 | 20.5 | 61×2.55 | 0.50 | 0.40 | 3.40 | 2.96 | 28.9 |
| 1 | 400 | 35 | 23.0 | 61×2.90 | 0.50 | 0.40 | 3.40 | 2.96 | 31.7 |
| 1 | 500 | 35 | 26.0 | 61×3.20 | 0.50 | 0.40 | 3.40 | 2.96 | 34.7 |
| 1 | 630 | 35 | 30.2 | 61×3.65 | 0.50 | 0.40 | 3.40 | 2.96 | 38.9 |
| No. Of Cores | Nominal Cross - Sectional Area |
Nominal Overall Diameter |
Nominal Weight | |
| Conductor | Copper Wire Screen | |||
| mm2 | mm2 | (mm) | KS/KM | |
| 1 | 35 | 16 | 27 | 800 |
| 1 | 50 | 16 | 28 | 850 |
| 1 | 70 | 16 | 30 | 950 |
| 1 | 95 | 16 | 32 | 1100 |
| 1 | 120 | 16 | 33 | 1200 |
| 1 | 150 | 25 | 34 | 1400 |
| 1 | 185 | 25 | 36 | 1600 |
| 1 | 240 | 25 | 38 | 1800 |
| 1 | 300 | 25 | 38 | 2000 |
| 1 | 400 | 35 | 43 | 2500 |
| 1 | 500 | 35 | 46 | 2900 |
| 1 | 630 | 35 | 50 | 3500 |
| 3 | 35 | 16 | 52 | 2750 |
| 3 | 50 | 16 | 55 | 3000 |
| 3 | 70 | 16 | 60 | 3500 |
| 3 | 95 | 16 | 63 | 4200 |
| 3 | 120 | 16 | 66 | 4500 |
| 3 | 150 | 25 | 70 | 5250 |
| 3 | 185 | 25 | 73 | 5800 |
| 3 | 240 | 25 | 79 | 6800 |
| 3 | 300 | 25 | 84 | 7800 |
| 3 | 400 | 25 | 90 | 9400 |
|
No. Of Cores |
Nominal Cross Sectional Area |
Nominal Conductor Diameter |
Number Wires Conductor |
NOM. Thickness Semi-Con. Layer |
Nominal Insulation Thickness |
Minimum Insulation Thickness |
Nominal Diameter Over Insulation |
||
| Conductor | Screen | Inner | Outer | ||||||
| mm2 | mm2 | mm | mm | mm | mm | mm | mm | mm | |
| 1 | 50 | 16 | 8.20 | 7×2.90 | 0.50 | 0.40 | 8.00 | 7.1 | 25.2 |
| 1 | 70 | 16 | 9.70 | 19×2.18 | 0.50 | 0.40 | 8.00 | 7.1 | 26.7 |
| 1 | 95 | 16 | 11.4 | 19×2.55 | 0.50 | 0.40 | 8.00 | 7.1 | 28.4 |
| 1 | 120 | 16 | 12.7 | 19×2.90 | 0.50 | 0.40 | 8.00 | 7.1 | 29.7 |
| 1 | 150 | 25 | 14.5 | 19×3.16 | 0.50 | 0.40 | 8.00 | 7.1 | 31.5 |
| 1 | 185 | 25 | 15.9 | 37×2.55 | 0.50 | 0.40 | 8.00 | 7.1 | 32.9 |
| 1 | 240 | 25 | 18.6 | 37×2.90 | 0.50 | 0.40 | 8.00 | 7.1 | 35.6 |
| 1 | 300 | 25 | 20.7 | 61×2.55 | 0.50 | 0.40 | 8.00 | 7.1 | 37.7 |
| 1 | 400 | 35 | 23.5 | 61×2.90 | 0.50 | 0.40 | 8.00 | 7.1 | 40.5 |
| 1 | 500 | 35 | 26.5 | 61×3.20 | 0.50 | 0.40 | 8.00 | 7.1 | 43.5 |
| 1 | 630 | 35 | 30.2 | 61×3.65 | 0.50 | 0.40 | 8.00 | 7.1 | 47.7 |
Quality Control
NA2XSH Medium Voltage Power Cable(6/10kV, 12/20kV, 18/30kV)
Raw Material Test
Raw material testing for the NA2XSH Medium Voltage Power Cable (6/10kV, 12/20kV, 18/30kV) prioritizes fire safety and performance. Aluminium conductors are inspected for conductivity, purity, and mechanical properties per IEC standards. XLPE insulation compound undergoes density, antioxidant content, and crosslinking analysis via OIT and DSC tests. Screen materials are checked for thickness and adhesion. LSZH sheath compound is strictly tested for halogen content (<0.5%), smoke density, acidity, and flame-retardant additives using IEC 60754 and EN 50399 protocols. Samples endure tensile strength, elongation, and accelerated aging/thermal trials. The step-by-step process: incoming batch certification, sampling protocol, chemical composition spectroscopy, mechanical/electrical property testing (before/after aging), fire performance pre-simulation, and material approval decision.
Process inspection
During the manufacturing of the NA2XSH Medium Voltage Power Cable (6/10kV, 12/20kV, 18/30kV), process inspection ensures safety and uniformity. Aluminium stranding is monitored for compactness with laser gauges. Triple extrusion (conductor shield, XLPE insulation, insulation shield) controls concentricity and thickness using online X-ray systems. The screen application verifies overlap and bonding. LSZH sheath extrusion includes real-time spark testing and diameter verification. Marking permanence and sheath color are inspected. Key steps: material pre-drying confirmation, extrusion/screening parameter logging (temperature, pressure), intermediate hot set tests for crosslinking degree, partial discharge monitoring, enhanced smoke/flame additive distribution checks, defect detection/correction, and post-process cooling control.
Finished Product
The finished NA2XSH Medium Voltage Power Cable (6/10kV, 12/20kV, 18/30kV) undergoes rigorous testing for fire and electrical certification. Routine tests include conductor resistance, AC high voltage withstand (up to 3.5U0), partial discharge (≤5pC), screen continuity, and thickness verification. Fire safety tests cover smoke density (IEC 61034), halogen acid gas (IEC 60754), flame propagation (IEC 60332), and heat release. Type tests include impulse withstand and thermal cycling. The process steps: sample preparation with terminations, gradual voltage ramp-up, PD monitoring, fire chamber exposure with smoke/heat measurement, environmental conditioning, post-test electrical/mechanical re-measurement, and visual inspection. Additional checks cover tan delta, capacitance, and marking durability.
Application
NA2XSH Medium Voltage Power Cable (6/10kV, 12/20kV, 18/30kV) is perfect for underground and indoor medium voltage supply in hospitals, schools, airports, tunnels, shopping centers, and high-rise buildings. Ideal where low smoke zero halogen cables are mandatory for occupant safety and reduced toxic emissions during fires.
Technical Advantages
● 30+ years of manufacturing experience
● ISO and UL certified production
● Customized cable and transformer solutions
Product Packaging
Wires and Cables packaging (1)
Wires and Cables packaging (2)
Wires and Cables packaging (3)
Wires and Cables packaging (4)
Wires and Cables packaging (5)
Wires and Cables packaging (6)
Wires and Cables packaging (7)
Wires and Cables packaging (8)
