Instrumentation Cables—XLPE Insulated,Individual &Overall Screened,Unarmoured PVC Sheathed Cables(CU/XLPE/IOSCR/PVC)
- Standard BS EN 50288-7, IEC 60502-1 (General)

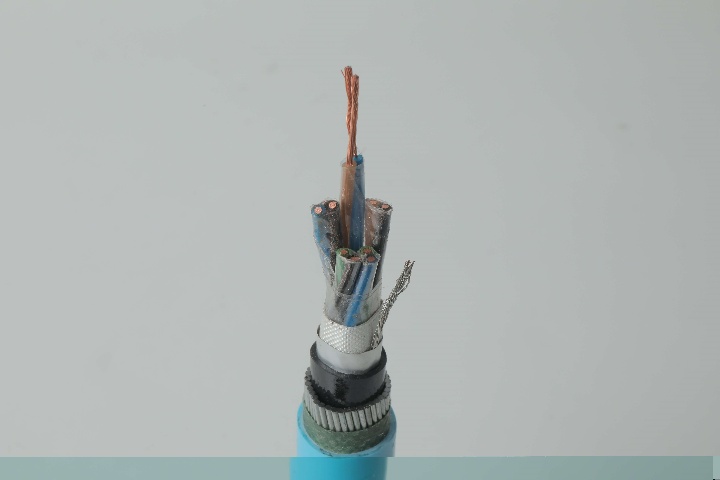

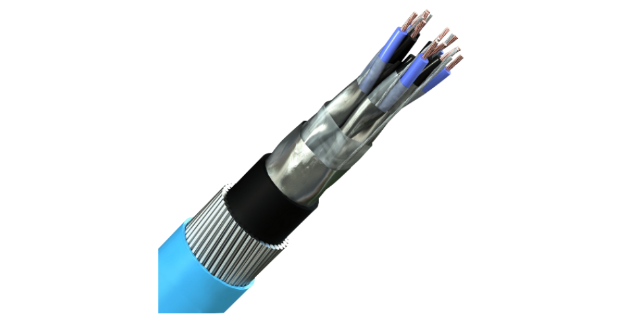

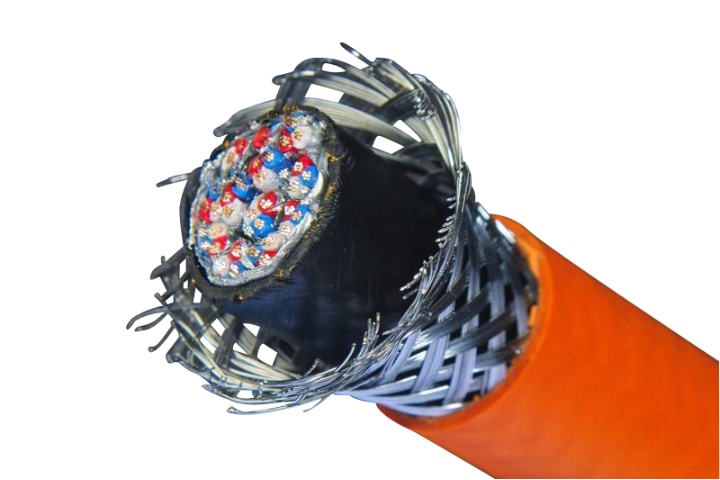

Construction
Conductor
Insulation
Individual and Overall Screen
Armour
Inner and Outer Sheath
Technical Specifications
| Conductor Size | Max. Conductor DC Resistance at 20°C for Plain Copper |
Max. Conductor DC Resistance at 20°C for Tinned Copper |
||
| Solid, Class - 1 & Stranded, Class - 2 |
Flexible, Class-5 | Solid, Class - 1 & Stranded, Class - 2 |
Flexible, Class-5 | |
| [mm2] | [Ω/km] | [Ω/km] | [Ω/km] | [Ω/km] |
| 0.50 | 36.72 | 39.78 | 37.434 | 40.902 |
| 0.75 | 24.99 | 26.52 | 25.296 | 27.234 |
| 1.00 | 18.462 | 19.89 | 18.564 | 20.4 |
| 1.50 | 12.342 | 13.566 | 12.444 | 13.974 |
| 2.50 | 7.5582 | 8.1396 | 7.7112 | 8.3742 |
| Conductor Size | Insulation Thickness | |||
| 90V | 300V | 500V | 1000V | |
| [mm2] | [mm] | [mm] | [mm] | [mm] |
| 0.50 | 0.20 | 0.26 | 0.44 | 0.70 |
| 0.75 | 0.20 | 0.26 | 0.44 | 0.70 |
| 1.00 | 0.26 | 0.26 | 0.44 | 0.70 |
| 1.50 | 0.30 | 0.35 | 0.44 | 0.70 |
| 2.50 | - | - | 0.53 | 0.70 |
| Conductor Size | Mutual Capacitance | Max. Continuous Operating Temperature | Inductance to Resistance Ratio (L/R) |
||
| XLPE | PVC | XLPE or HR - PVC | PVC | ||
| [mm2] | [nF/km] | [nF/km] | [°C] | [°C] | [μH/Ω] |
| 0.50 | 150 | 250 | 90 | 70 | < 25 |
| 0.75 | 150 | 250 | 90 | 70 | < 25 |
| 1.00 | 150 | 250 | 90 | 70 | < 25 |
| 1.50 | 150 | 250 | 90 | 70 | < 40 |
| 2.50 | 150 | 250 | 90 | 70 | < 60 |
| Number of Pair | Cable OD | Cable Weight | Drum Length | ||||||||
| 0.5mm² | 0.75mm² | 1.0mm² | 1.5mm² | 2.5mm² | 0.5mm² | 0.75mm² | 1.0mm² | 1.5mm² | 2.5mm² | ||
| [Nos] | [mm] | [mm] | [mm] | [mm] | [mm] | [kg/km] | [kg/km] | [kg/km] | [kg/km] | [kg/km] | [m] |
| 2 | 10.0 | 11.0 | 11.5 | 12.5 | 15.0 | 100 | 115 | 130 | 160 | 220 | 1000 |
| 5 | 13.0 | 14.0 | 14.5 | 16.5 | 19.5 | 180 | 215 | 245 | 310 | 440 | 1000 |
| 10 | 18.0 | 19.5 | 20.5 | 23.0 | 27.5 | 330 | 395 | 455 | 575 | 835 | 1000 |
| 20 | 23.0 | 25.0 | 27.0 | 30.0 | 36.0 | 580 | 715 | 835 | 1075 | 1555 | 1000 |
| 30 | 27.5 | 30 | 32 | 36 | 835 | 1035 | 1215 | 1560 | 2265 | 500 | |
| Number of Triad | Cable OD | Cable Weight | Drum Length | ||||||||
| 0.5mm² | 0.75mm² | 1.0mm² | 1.5mm² | 2.5mm² | 0.5mm² | 0.75mm² | 1.0mm² | 1.5mm² | 2.5mm² | ||
| [Nos] | [mm] | [mm] | [mm] | [mm] | [mm] | [kg/km] | [kg/km] | [kg/km] | [kg/km] | [kg/km] | [m] |
| 2 | 11.0 | 12.0 | 13.0 | 14.0 | 16.5 | 120 | 145 | 165 | 200 | 285 | 1000 |
| 5 | 14.0 | 15.5 | 16.5 | 18.5 | 22.0 | 225 | 280 | 330 | 415 | 595 | 1000 |
| 10 | 20.0 | 22.0 | 23.5 | 26.0 | 31.0 | 415 | 515 | 615 | 775 | 1140 | 1000 |
| 20 | 26.0 | 28.5 | 30.5 | 34.0 | 750 | 940 | 1145 | 1455 | 500 | ||
| 30 | 31.0 | 33.5 | 36.0 | 1085 | 1370 | 1650 | 500 | ||||
| Number of Quad | Cable OD | Cable Weight | Drum Length | ||||||||
| 0.5mm² | 0.75mm² | 1.0mm² | 1.5mm² | 2.5mm² | 0.5mm² | 0.75mm² | 1.0mm² | 1.5mm² | 2.5mm² | ||
| [Nos] | [mm] | [mm] | [mm] | [mm] | [mm] | [kg/km] | [kg/km] | [kg/km] | [kg/km] | [kg/km] | [m] |
| 2 | 13.0 | 14.0 | 14.5 | 16.5 | 19.5 | 145 | 175 | 205 | 255 | 365 | 1000 |
| 5 | 16.5 | 18.0 | 19.0 | 21.5 | 25.5 | 280 | 355 | 415 | 530 | 770 | 1000 |
| 10 | 23.5 | 25.5 | 27.5 | 30.5 | 37.0 | 515 | 655 | 790 | 1010 | 1490 | 1000 |
| 20 | 30.5 | 33.5 | 35.5 | 945 | 1215 | 1455 | 500 | ||||
| 30 | 36.0 | 1370 | 500 | ||||||||
Note: Cable OD and Cable weight are subject to change based on the latest manufacturing practice.
Quality Control
Raw Material Test
For the Instrumentation Cables—XLPE Insulated, Individual & Overall Screened, Unarmoured PVC Sheathed Cables (CU/XLPE/IOSCR/PVC), raw material testing aligns with BS EN 50288-7. Step 1: Confirm copper conductor purity via spectrometry to meet 99.99% per IEC 60228. Step 2: Test XLPE insulation tensile strength (≥12.5 N/mm²) and elongation (≥150%) using mechanical pull testers. Step 3: Evaluate individual/overall screening tapes for thickness, adhesion, and conductivity through micrometers and peel tests. Step 4: Assess PVC sheath flame retardancy via oxygen index (>27%). Step 5: Conduct immersion tests on XLPE/PVC in chemicals, oils, and water for 168 hours to verify resistance. Step 6: Measure drain wire diameter and resistivity with precision tools. Step 7: Perform thermal aging on XLPE at 135°C for 168 hours to check cross-linking.
Process inspection
During production of the Instrumentation Cables—XLPE Insulated, Individual & Overall Screened, Unarmoured PVC Sheathed Cables (CU/XLPE/IOSCR/PVC), process inspection follows BS EN 50288-1. Step 1: Monitor conductor stranding uniformity with gauges every 100 meters. Step 2: Scan XLPE insulation thickness (0.7mm nominal) using lasers, rejecting >5% variances. Step 3: Inspect pair/triad twisting and individual screening application visually. Step 4: Apply the overall screen and verify coverage with ultrasonic devices. Step 5: Conduct in-line capacitance, continuity, and crosstalk tests for low interference. Step 6: Check PVC sheath adhesion via peel strength (≥10 N/cm). Step 7: Sample shifts for dimensional and screening integrity checks. This step-by-step oversight minimizes defects, ensuring dual-screened high-temperature reliability and compliance.
Finished Product
The finished Instrumentation Cables—XLPE Insulated, Individual & Overall Screened, Unarmoured PVC Sheathed Cables (CU/XLPE/IOSCR/PVC) are tested per BS EN 50288-7. Step 1: Apply 1.5 kV voltage withstand for 1 minute on insulation. Step 2: Measure insulation resistance (>100 MΩ/km) with megohmmeters. Step 3: Test conductor resistance to IEC 60228 specs. Step 4: Evaluate dual screening via transfer impedance (<1 Ω/m at 1 MHz). Step 5: Perform flame tests (IEC 60332-1) and bending (10x diameter). Step 6: Assess capacitance unbalance, crosstalk, and attenuation. Step 7: Cycle temperatures (-15°C to 90°C) for 48 hours. Step 8: Conduct final electrical and visual inspections. Using calibrated equipment, 100% critical testing ensures dual-screened high-temperature performance for industrial applications.
