Pad Mounted Transformer Main Accessories

        In today’s modern electricity distribution networks, the demand for high-quality, safe, and efficient power delivery systems is higher than ever. Pad mounted transformers play a pivotal role in this ecosystem by offering reliable power, enhanced safety, and ease of installation in both urban and rural settings. To function effectively, these transformers feature a variety of essential accessories that contribute to their performance, longevity, and adaptability across diverse applications.

What Is a Pad Mounted Transformer?

        A pad mounted transformer is a type of distribution transformer that is installed on a concrete pad and fully enclosed in a tamper-proof, weather-resistant steel cabinet. These mounted transformers are designed for underground or surface distribution systems in residential neighborhoods, commercial zones, and light industrial areas.

        They are connected to primary and secondary underground cables and typically operate at medium-voltage levels such as 13.8kV, stepping it down to usable voltages like 480V or 240V. Their compact, ground-level design, and sealed construction reduce the risk of tampering and environmental damage, making them ideal for public spaces.

Key Accessories in a Pad Mounted Transformer

1. Primary Bushings

        Primary bushings are connection points for incoming high-voltage cables. They are typically installed in a dead-front configuration, where the live components are not exposed, greatly improving operator safety.

• Dead-front design: Enhances safety during maintenance
• Load-break inserts: Allow safe disconnection under load
• High-dielectric materials: Reduce the risk of electrical failure

🛠️ Function: Connects the high-voltage source to the transformer core while maintaining insulation and shielding.

2. Secondary Bushings

        Located in the low-voltage compartment, secondary bushings serve as the outgoing connection to the distribution system or the service panel.

• Copper or aluminum conductors
• Designed to withstand high current
• Compatible with various voltage transformers and protection schemes

3. Tap Changer

        The tap changer is a device used to adjust the transformer's voltage ratio by changing the winding connection points. This ensures the output voltage remains within a desired range, even if the input voltage fluctuates.

• Manual or automatic operation
• Available in ±2.5% or ±5% adjustment steps
• Helps reduce the risk of electrical undervoltage or overvoltage

⚡ Crucial for: Voltage regulation in areas with inconsistent supply.

4. Pressure Relief Device

        This safety accessory allows controlled release of pressure buildup within the transformer's tank due to internal faults or overheating. It prevents tank rupture and minimizes fire hazards.

• Spring-loaded mechanism
• Provides a visible activation indicator
• Contributes to ensuring safety during abnormal conditions

5. Bayonet Fuse

         A bayonet fuse provides protection against internal transformer faults. It is mounted inside the transformer tank and operates by interrupting the current when a short circuit or overload condition occurs.

• Works in conjunction with a current-limiting fuse
• Replaceable from outside the transformer tank
• Prevents cascading failures in the grid

6. Current-Limiting Fuse

       This fuse type complements the bayonet fuse by limiting fault current magnitude, offering an added layer of system protection.

• Fast interruption under high fault currents
• Prevents equipment damage and reduces arc energy
• Essential in mineral oil-filled transformers for fire prevention

7. Liquid Level Gauge and Thermometer

        These instruments monitor mineral oil levels and internal temperature, both of which are critical to transformer health.

• Overheating alerts to prevent insulation breakdown
• Low oil level warnings reduce the risk of fire and failure
• Allow for routine inspections and preventive maintenance

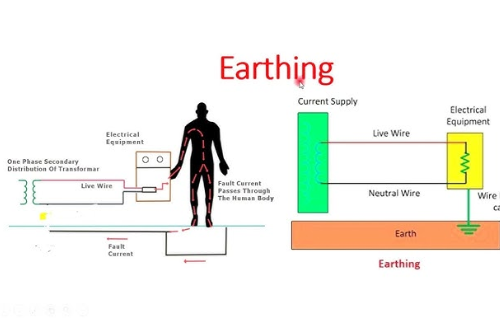

8. Grounding System

        Every pad mounted transformer includes a factory-installed grounding bar, ensuring the metallic parts are properly earthed.

• Prevents dangerous touch voltages
• Improves system fault detection
• Supports personnel safety and operational reliability

9. Drain Valve and Sampling Port

        These accessories simplify transformer maintenance and oil analysis.

• Allows safe removal of mineral oil
• Enables dielectric strength and moisture testing
• Helps in solutions tailored for predictive maintenance

10. Parking Stands and Load Break Elbows

        For systems using loop feed or redundancy design, parking stands and load break elbows are vital for making and breaking energized connections without interrupting service.

• Used during testing, switching, or maintenance
• Compatible with elbow arresters for surge protection
• Ensures safe and flexible system operation

Application in Distribution Networks

        These accessories together support the role of the pad mounted transformer in a variety of distribution networks:

• Urban developments using underground power cables
• Commercial complexes requiring reliable power and space efficiency
• Renewable energy sites (e.g., solar farms) where precise voltage regulation is needed
• Public infrastructure (e.g., campuses, hospitals) requiring solutions tailored to strict safety standards

        In summary, Pad mounted transformers are more than just metal boxes housing electrical windings. Their array of main accessories is vital for maintaining high-quality performance, ensuring safety, and delivering consistent power across diverse applications. From tap changers that regulate voltage to limiting fuses that guard against faults, each component plays a critical role in modern electricity distribution systems.

       Whether deployed in residential, commercial, or industrial settings, these mounted transformers are designed with components that ensure long-term durability, regulatory compliance, and operational reliability.
