What is a Power Line Transformer?

If you've ever looked up at the utility poles lining the street, you've undoubtedly noticed the large metal cylinders that hold the transformers that carry the power lines. These transformers safely and efficiently transmit electricity from power plants to homes and businesses.

In this article, we’ll break down what a power line transformer is, how it works, and why it plays such a crucial role in the modern electrical grid.

1. The Role of a Power Line Transformer in the Grid

Electricity is generated at power stations at relatively high voltages — often tens of thousands of volts — for efficient transmission over long distances. However, the devices in our homes, such as lights, computers, and appliances, operate at much lower voltages, typically 120V or 230V, depending on the country.

The transformer power line acts as the bridge between these two voltage levels. Its main function is voltage transformation:

• Step-down transformers reduce high transmission voltages to safer, usable levels.
• Step-up transformers (less common on distribution lines) raise voltage levels for specific industrial applications.

By adjusting voltages appropriately, transformers make it possible to deliver electricity efficiently and safely.

2. How Does a Power Line Transformer Work?

A power line transformer operates on the principle of electromagnetic induction discovered by Michael Faraday in the 19th century. Inside, you’ll find:

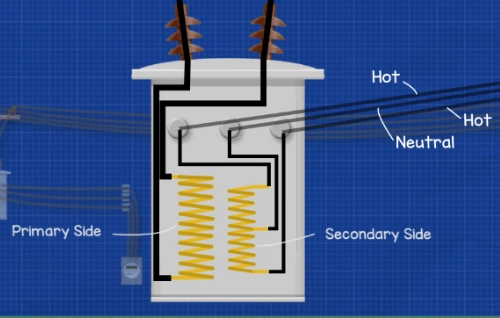

• Primary winding: Connected to the incoming high-voltage line.
• Secondary winding: Outputs the lower voltage for customer use.
• Core: Usually made of laminated steel, guiding the magnetic field between windings.

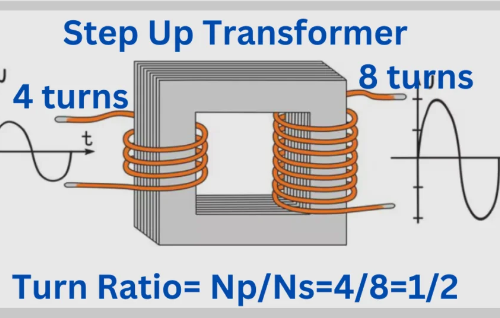

When alternating current (AC) flows through the primary winding, it generates a magnetic field in the core. This field induces a voltage in the secondary winding. The ratio of the number of turns in the primary to the secondary determines whether voltage is stepped up or down.

3. Types of Transformers on Power Lines

Not all transformers on power lines are the same. They vary depending on voltage requirements, installation environment, and service type. Common types include:

1. Pole-Mounted Transformers

• Most visible type, mounted on wooden or steel utility poles.
• Common in suburban and rural areas.
• Typically, step down from 7,200V to 120/240V for residential service.

2. Pad-Mounted Transformers

• Ground-level, housed in metal cabinets.
• Used in underground distribution systems in urban areas.

3. Three-Phase Transformers

• Handle higher loads for commercial or industrial areas.
• Can be pole-mounted or pad-mounted.

4. Liner Power Transformers(rare term; sometimes used in rail or industrial contexts)

• Specialized transformers for long linear installations, such as rail electrification or long-distance line voltage adjustments.

4. Why Transformers on Power Lines Are Essential

Without a transformer power line system, the electrical grid would face two major problems:

• Transmission losses: Sending electricity at low voltages over long distances wastes a lot of energy due to resistance in the wires.
• Safety hazards: High transmission voltages are dangerous for end users and incompatible with consumer electronics.

By stepping voltage down at the distribution stage, power line transformers ensure that electricity is both energy-efficient in transport and safe at the point of use.

5. Common Specifications and Ratings

The specifications of a power line transformer depend on the load it serves. Key parameters include:

• Primary voltage: Often 7,200–34,500V in distribution networks.
• Secondary voltage: Typically 120/240V for households, higher for industrial users.
• Power rating: Measured in kVA, representing the maximum load capacity.
• Cooling method: Oil-filled or dry-type. Oil-filled models often have cooling fins or radiators for heat dissipation.

6. Maintenance and Reliability

Transformers are designed for decades of service, but they require periodic inspection and maintenance to ensure reliability:

• Oil sampling (for oil-filled types) to check for moisture or contaminants.
• Thermal monitoring to prevent overheating.
• Bushing inspections to check for cracks or wear.

Well-maintained transformers on power lines can operate reliably for 30–40 years or more.

7. Modern Innovations in Power Line Transformers

With growing demand for energy efficiency and renewable integration, newer transformer designs include:

• Smart monitoring sensors for predictive maintenance.
• Eco-friendly insulating fluids replacing traditional mineral oil.
• High-efficiency cores to reduce no-load losses.

Some grids are also experimenting with solid-state transformers, which could one day replace traditional designs for more flexible voltage management.

8. Safety Around Transformers on Power Lines

While power line transformers are designed with safety in mind, they still handle high voltages and must be respected:

• Never approach or tamper with utility poles or transformer cabinets.
• Report unusual sounds, smoke, or damage to your utility provider.
• Keep vegetation and structures clear of transformer locations.

Final Thoughts

The power line transformer is a cornerstone of modern electricity distribution. Without it, we couldn’t enjoy the reliable, safe, and efficient energy supply we take for granted. From the towering transmission lines that carry power across states to the small gray cylinders outside your home, transformers on power lines quietly do the heavy lifting of voltage conversion — 24 hours a day, every day.
