Wires and Cables
Power Cable
Power cables are essential components in modern electrical power systems, designed to efficiently transmit electricity across low voltage (LV), medium voltage (MV), and high voltage (HV) networks. These electrical cables feature excellent conductivity, robust insulation, and superior resistance to heat and weather, making them suitable for industrial, commercial, and infrastructure applications. With advanced materials and precision engineering, power cables ensure safe, stable, and long-lasting energy transmission in diverse environments.

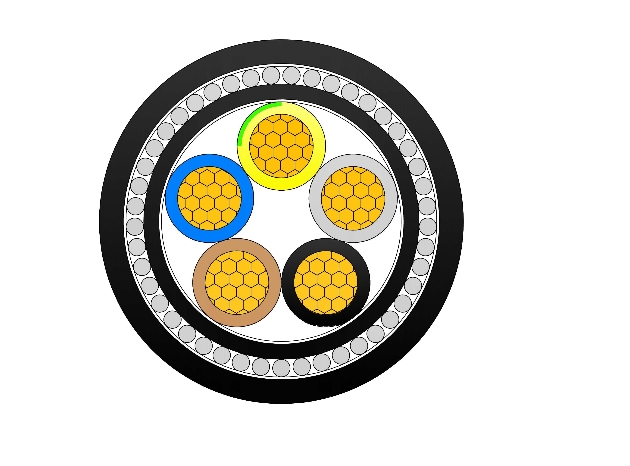

N2XRY 0.6/1kV Low Voltage Power Cable
N2XRY 0.6/1kV are low voltage power cables designed according to BS 5467 standard, suitable for fixed installation in indoor, outdoor, underground, Cable ducts ,conduits or concrete (not subject to vibration) environments,with additional mechanical protection due to steel wire armouring. Constructed with high-purity copper conductors, thermosetting XLPE insulation, PVC inner bedding, double galvanized steel tape armour, and tough PVC outer sheath, it meets IEC 60502-1 requirements. The STA armour delivers superior resistance to compression, impacts, and penetration, suitable for direct burial without conduits. Excellent electrical properties, reduced losses, and high overload capacity ensure optimal performance. Flame-retardant and environmentally stable, the N2XRY 0.6/1kV Low Voltage Power Cable is favored for factories, commercial developments, renewable energy sites, and infrastructure needing reliable, maintenance-free low-voltage cabling in challenging terrains.
N2XY 0.6/1kV Low Voltage Power Cable
N2XY 0.6/1kV is a low-voltage power cable built to IEC/EN 60228 standards, ideal for fixed installations in dry or damp environments, including indoors, outdoors, and in concrete (excluding vibration zones), without the need for additional mechanical protection. Constructed with high-purity copper conductors, thermosetting XLPE insulation, and tough PVC jacket, it meets stringent IEC 60502-1 requirements. This cable provides low dielectric losses, excellent short-circuit tolerance, and strong resistance to environmental factors like water and abrasion. Perfect for fixed installations in wet or dry locations, including direct burial without armour when mechanical protection is not critical. Enhanced bending radius and flame-retardant properties facilitate safe, easy handling.
NA2XBY 0.6/1kV Low Voltage Power Cable
NA2XBY 0.6/1kV are low voltage power cables designed according to EN 60228 standard, suitable for fixed installation in indoor, outdoor, underground, Cable ducts, conduits, or concrete (not subject to vibration) environments. Featuring stranded aluminium conductors, cross-linked polyethylene (XLPE) insulation, PVC bedding, galvanized steel wire armour (SWA), and PVC outer sheath, it complies with IEC 60502-1 standards. The lightweight aluminium reduces material and installation costs while the SWA provides robust mechanical protection against impacts and rodents, ideal for direct burial. With low dielectric losses, high thermal stability, and good moisture resistance, it ensures efficient transmission in demanding environments. Flame-retardant and durable, the NA2XBY 0.6/1kV Low Voltage Power Cable offers long service life with minimal maintenance. Perfect for industrial sites, infrastructure projects, commercial developments, and utility networks requiring reliable, protected low-voltage underground power supply.

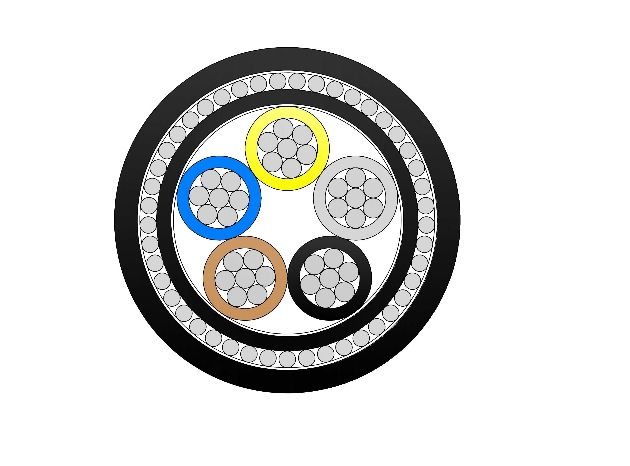

NA2XRY 0.6/1kV Low Voltage Power Cable
NA2XRY 0.6/1kV are low voltage power cables designed according to BS 5467 standard, suitable for fixed installation in indoor, outdoor, underground, or concrete (Can withstand certain mechanical forces) environments. Constructed with aluminium conductors, thermosetting XLPE insulation, PVC inner bedding, double galvanised steel tape armour, and tough PVC outer sheath, it meets IEC 60502-1 requirements. The STA armour offers outstanding resistance to compression and external forces, enabling direct burial. Lightweight aluminium lowers installation costs while ensuring good current rating and low losses. Flame-retardant and stable in harsh conditions, the NA2XRY 0.6/1kV Low Voltage Power Cable is favoured for manufacturing plants, renewable sites, commercial complexes, and infrastructure demanding reliable, low-maintenance low-voltage cabling with enhanced mechanical safeguarding.
NA2XY 0.6/1 (1.2)kV Low Voltage Power Cable
NA2XY 0.6/1 (1.2)kV is a low-voltage power cable manufactured according to IEC 60502-1, suitable for fixed installation in indoor and outdoor environments, including underground and concrete installations where mechanical stress is minimal. This lightweight cable offers excellent electrical performance, high thermal stability, and superior resistance to moisture, chemicals, and mechanical stress. Suitable for direct burial, ducts, trays, or indoor fixed installations where no additional armour is required. With low dielectric losses and good current-carrying capacity, it minimizes energy waste. Flame-retardant and environmentally robust, the NA2XY 0.6/1 (1.2)kV Low Voltage Power Cable provides long service life and low maintenance costs. Widely used in industrial plants, commercial buildings, residential networks, and infrastructure projects needing reliable, cost-saving low-voltage aluminium cabling solutions worldwide.

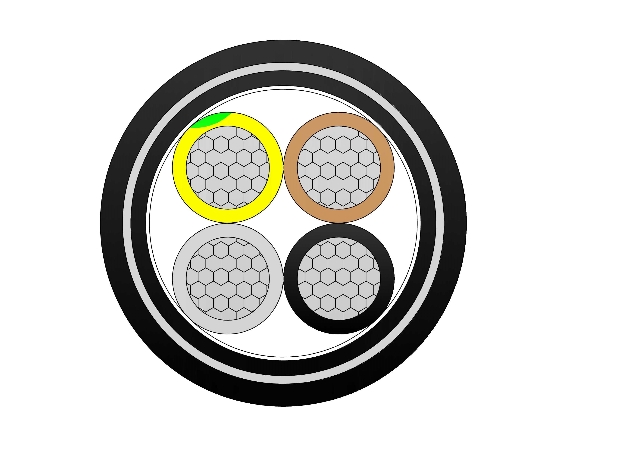

NAYBY 0.6/1kV Low Voltage Power Cable
NAYBY 0.6/1kV are low voltage power cables designed according to DIN VDE 0276 standard, suitable for fixed installation in indoor, outdoor, underground, cable ducts, or concrete (not exposed to vibration), with steel tape armoring providing additional mechanical protection. Featuring stranded or solid aluminium conductors, PVC insulation, filler, and robust PVC outer sheath, it complies with VDE 0276-603 and IEC standards. This unarmoured cable offers good electrical properties, mechanical strength, and resistance to moisture and chemicals. Lightweight aluminium design reduces installation and material costs compared to copper equivalents. Suitable for direct burial, ducts, or indoor fixed installations where mechanical protection is not critical. Flame-retardant with adequate current-carrying capacity, the NAYBY 0.6/1kV Low Voltage Power Cable ensures reliable performance with minimal losses.

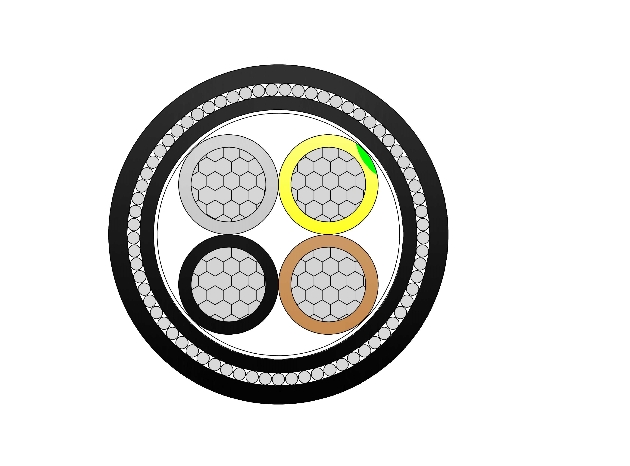

NAYRY 0.6/1kV Low Voltage Power Cable
NAYRY are low voltage power cables designed according to DIN VDE 0276-603 standard, suitable for fixed installation in indoor, outdoor, underground, or concrete (not subject to vibration and long-term underwater) environments. Constructed with aluminium conductors, PVC core insulation, filling, galvanized steel wire armour, and tough PVC outer sheath, it meets VDE 0276 and IEC requirements. The SWA layer delivers outstanding resistance to mechanical damage, enabling direct burial without conduits. Aluminium design lowers weight and costs while providing adequate current rating. Flame-retardant and stable in moist conditions, the NAYRY 0.6/1kV Low Voltage Power Cable is popular for factories, renewable energy projects, commercial sites, and infrastructure needing reliable, low-maintenance low-voltage cabling with enhanced safeguarding in aggressive soils.
NAYY-J and NAYY-O 0.6/1kV Low Voltage Power Cable
NAYY-J and NAYY-O are low voltage power cables designed according to IEC 60502-1 standard, suitable for fixed installation in indoor, outdoor, underground, or concrete (not subject to vibration) environments. Featuring solid or stranded aluminium conductors, PVC insulation, filler, and robust PVC outer sheath, they comply with VDE 0276-603 standards. NAYY-J includes a protective earth conductor (green/yellow), while NAYY-O does not. These unarmoured cables offer good electrical performance, mechanical strength, and resistance to moisture and chemicals. Lightweight aluminium design significantly reduces costs compared to copper. Suitable for direct burial, ducts, or indoor fixed installations where mechanical protection is not required. Flame-retardant with adequate current rating, the NAYY-J and NAYY-O 0.6/1kV Low Voltage Power Cables ensure reliable energy transmission with minimal losses. Widely applied in industrial facilities, commercial buildings, residential networks, and infrastructure projects needing cost-effective, maintenance-free low-voltage aluminium cabling worldwide.
NYBY 0.6/1kV Low Voltage Power Cable
NYBY 0.6/1kV are low voltage power cables designed according to IEC 60502-1 standard, suitable for fixed installation in indoor, outdoor, underground, cable ducts, or concrete environments, with steel tape armoring for enhanced mechanical protection. Constructed with copper conductors, PVC core insulation, filling, galvanized steel wire armour, and tough PVC outer sheath, it meets VDE 0276 and IEC requirements. The SWA layer offers outstanding resistance to mechanical damage, enabling direct burial without additional conduits. Copper ensures minimal losses and high current rating. Flame-retardant and stable in moist conditions, the NYBY 0.6/1kV Low Voltage Power Cable is widely used in factories, renewable energy sites, commercial complexes, and infrastructure needing reliable, long-service-life low-voltage cabling with enhanced safeguarding in aggressive soils or high-risk areas.In-Depth Analysis
NPC Electric power cables are built to deliver high efficiency, reliable performance, and advanced safety, helping businesses reduce energy costs while ensuring stable power supply. With future-ready adaptability for renewable energy and smart grid applications, they provide a sustainable and innovative solution for today’s and tomorrow’s power needs.
Comparative Analysis of Efficiency and Loss
Compared to the industry average, NPC wires and cables exhibit lower losses and higher efficiency across the entire load range.
Load Efficiency Comparison(%)
No-load Loss Comparison(W)
High Conductivity Design
High-purity oxygen-free copper or high-quality aluminum conductors are used with smooth surface and low resistance to ensure efficient power transmission and reduce energy loss.
Improved Conductivity
+20%
Reduced Energy Loss
-15%
Insulation Protection System
Use flame-retardant, wear-resistant and corrosion-resistant polymer insulation materials to meet the safe operation requirements in different environments.
Withstand Voltage Level
≥1kV
Flame Retardant Grade
VW-1 / IEC 60332-3
Weather-Resistant & Durable Technology
The outer sheath is made of UV-resistant, heat-resistant, and oil-resistant materials, making it suitable for high and low temperatures, humidity, and long-term outdoor use.
Service Life
≥ 25 Years
Operating Temperature Range
-40°C to +90°C
Safe Flame Retardant System
The multi-layered flame-retardant structure effectively slows the spread of flames and releases low-smoke, halogen-free gases during combustion, reducing secondary hazards.
Flame Retardant Performance
IEC 60332 / UL 1581 Qualified
Smoke Density
Low Smoke ≤50%
Easy Installation & Maintenance
The flexible core and flex-resistant outer sheath provide a small bend radius and high installation efficiency. Color coding and length markings reduce installation and maintenance costs.
Bend Radius
≤6D
Installation Efficiency Improvement
+30%
Intelligent Monitoring
An optional remote monitoring system is available to monitor operating status, temperature, load and other parameters in real time, and supports fault warning and remote diagnosis.
Data Collection Frequency
one times a minute
Fault Warning Accuracy
98%
Environmental Adaptability Analysis
NPC power cable have been rigorously tested and can operate stably under various harsh environmental conditions.
Temperature Range
-40℃ ~ +55℃
Can work normally in extreme high and low temperature environments
Humidity Adaptation
0 ~ 100% RH
Including condensation environment, no frost requirement
Weather Resistance Grade
UV/IEC 60811-501
The outer sheath has excellent UV resistance and aging resistance
Chemical Corrosion Resistance
Oil / Acid / Alkali
Resistant to oil, acid, alkali and some chemical corrosion environments
Why Choose Us
With 30 years of expertise, global certifications, and advanced manufacturing technology, NPC Electric delivers reliable, high-performance power cable trusted by industries worldwide.
Power Cables Manufacturer
NPC Electric is a leading power cable manufacturer, specializing in the design and production of high voltage and low voltage power cables for various industries. Our cables are engineered for optimal energy transmission, offering exceptional durability and performance in both residential and industrial applications. We provide custom cable solutions tailored to meet specific project needs, from aerial and underground power lines to specialized electrical cables for commercial use. With strict cable manufacturing processes and comprehensive testing procedures, NPC Electric ensures the highest standards of quality and reliability. Whether for power distribution, renewable energy projects, or heavy industrial use, our cables provide safe and efficient electrical solutions that stand the test of time.
High, Medium, and Low Voltage Power Cables
NPC Electric offers a wide range of power cables designed for efficient and reliable energy transmission across high voltage, medium voltage, and low voltage systems. Our high voltage power cables are engineered for long-distance transmission, ensuring minimal energy loss while maintaining safety and performance. Medium voltage power cables are used in power distribution networks to connect substations to industrial or residential areas, providing a stable and efficient power supply. Our low voltage power cables are designed for residential and commercial wiring, offering flexibility and reliability for everyday electrical systems. Each cable is constructed with advanced insulation materials like XLPE, ensuring high durability, thermal stability, and long-term performance. NPC Electric's cables are ideal for use in various electrical networks, meeting both industrial and residential needs.
Power Cable Design
The power cable design is crucial for ensuring the efficient and safe transmission of electricity across high voltage and low voltage power systems. At NPC Electric, our cable construction includes a high-quality conductor made from aluminum or copper, surrounded by insulation materials such as cross-linked polyethylene (XLPE) for excellent electrical performance and thermal stability. We specialize in custom cable design to meet specific customer needs, whether for underground cables, aerial cables, or specialized industrial applications. Each cable is designed to adhere to international electrical cable standards, ensuring superior durability, energy efficiency, and long-term performance. Our power transmission cables provide reliable, high-performance solutions for residential, commercial, and industrial power distribution.
Testing & Quality Control
At NPC Electric, we prioritize power cable testing and quality control to ensure the highest standards of reliability and performance for every product. Our comprehensive cable testing procedures include high voltage cable testing, low voltage cable testing, and insulation resistance testing to verify the electrical integrity of each cable. We follow strict quality control protocols throughout the cable manufacturing process, ensuring that each product meets international standards and exceeds customer expectations. Our quality assurance system includes routine checks for durability, performance, and safety to guarantee that our cables deliver safe, long-lasting, and efficient power transmission for both residential and industrial applications.
Product Show
Explore the detailed design and practical application scenarios of power cables
Power Cable Design
power cable core design
Low Voltage Power Cable
lv power cable design
High Voltage Power Cable
hv power cable design
Three Cores Power Cable
three cores power cable design
Medium Voltage Power Cable
mv power cable design
SWA HV Power Cable
swa high voltage power cable
Single Core Power Cable
single core power cable design
Five Cores MV Power Cable
five cores mv power cable design
Testing and Certification
Tested with precision and certified to meet international standards as
well as strict industry requirements.
Bare Cable Test Report
SGS Inspection Report
Certificate of Acceptance
ISO Quality Certificate
ISO Environmental Certificate
ISO Occupational Certificate
UL Laboratory Certificate
UL Product Certificate
Project Cases
NPC power cables have been successfully applied in many projects and have been highly praised by customers.
Peru Solar PV Project
CompletedNPC Electric Delivers Medium-Voltage Cables for Peru Solar PV Project
Country：Peru
Model：HEPRZ1(AS) 1x630 mm² 19/33kV x 6km
Chile El Project
CompletedReliable 19/33kV MV cables ensuring safe, stable, and efficient power transmission for critical projects.
Country：Chile
Model：19/33kV MV Power Cables x 5km
Dominican Edenorte Project
CompletedProvide outdoor power solutions for urban main road reconstruction projects to adapt to complex environments.
Country：Dominican
Model：NPC AAAC Cable & Triplex Cable x 10km
Technical Advantages
● 30+ years of manufacturing experience
● ISO and UL certified production
● Customized cable and transformer solutions
FAQ From Customers
-
What are high voltage power cables used for?
High-voltage power cables are designed for the transmission of electricity over long distances. They are used in high-voltage transmission lines to deliver electricity from power plants to substations. These cables are engineered to handle high electrical loads, minimize energy loss, and ensure safety in long-distance electrical power transmission. High-voltage cables are typically made with advanced insulation materials to withstand high stress and environmental factors. -
What are the differences between high, medium, and low voltage power cables?
The main difference between high, medium, and low voltage power cables lies in the voltage level and their intended applications. High-voltage cables are used for long-distance power transmission, typically ranging from 1kV to 765kV. Medium voltage cables (1kV to 35kV) are used for power distribution from substations to local areas. Low-voltage cables (up to 1kV) are used in residential, commercial, and industrial buildings for everyday power supply. -
What is the application of low voltage power cables?
Low-voltage power cables are used in residential, commercial, and industrial electrical wiring systems. These cables provide power for lighting, appliances, and smaller equipment within homes, office buildings, and factories. Low-voltage cables are commonly used for internal wiring, electrical circuits, and power distribution within the building. They are designed to carry power safely and efficiently at voltages up to 1kV. -
How are medium voltage power cables used in power distribution?
Medium voltage power cables (1kV to 35kV) are used in power distribution systems to carry electricity from substations to residential neighborhoods, commercial buildings, and industrial complexes. These cables are designed to handle higher loads than low-voltage cables, and they are ideal for situations where energy needs are larger but not as high as transmission-level power. Medium voltage cables provide stable and reliable electrical service to a wide range of users. -
What materials are commonly used in power cables for high, medium, and low voltage systems?
Power cables for high, medium, and low voltage systems are typically made with copper or aluminum conductors for excellent electrical conductivity. The insulation materials include cross-linked polyethylene (XLPE) for high performance and thermoplastic compounds like PVC for standard applications. Sheath layers are typically made of PVC or PE for mechanical protection and weather resistance. The materials are selected based on the voltage rating and the specific environmental and performance requirements of the cable.
