Transformers
Completely self-protected Single Phase Pole Mounted Transformer
nsure maximum reliability and fault protection with our Completely Self-Protected (CSP) Single Phase Pole Mounted Transformers. These advanced units integrate all necessary protective devices directly within the transformer tank, offering unparalleled safety and simplified overhead distribution systems. Our CSP Single Phase Pole Mounted Transformers include internal primary fuses, secondary circuit breakers, and lightning arresters, providing comprehensive protection against overloads, short circuits, and lightning strikes. This integrated design reduces equipment clutter on poles, lowers installation costs, and significantly minimizes power outages caused by common faults. Trust our compliant and intelligent CSP solutions for resilient, self-sufficient single-phase power delivery to modern communities.
5kVA Completely self-protected(CSP) Single Phase Pole Mounted Transformer
NPC ELECTRIC the production of the 5kVA Completely self-protected(CSP) Single Phase pole Mounted transformer is designed for reliable and efficient distribution of electrical power in residential and light commercial applications. Built to withstand harsh outdoor conditions, this transformer is equipped with a self-protection system that eliminates the need for external protection devices, offering enhanced safety and durability. The CSP feature ensures that the transformer can handle internal faults such as short circuits or overloads without causing damage to the system. This compact, oil-immersed transformer is easy to install on poles, making it ideal for overhead distribution in areas with limited space. It is designed to meet international standards, including ANSI, IEEE, and CSA, ensuring high-quality performance and long-lasting operation. The 5kVA CSP transformer is energy-efficient, providing stable voltage regulation and minimizing maintenance requirements, making it an excellent choice for both utility and commercial applications.
10kVA Completely Self-protected(CSP) Single Phase Pole Mounted Transformer
NPC ELECTRIC the production of 10 kVA Completely Self-Protected (CSP) single-phase overhead transformers, meticulously engineered to meet international standards such as IEEE C57.12.00, IEEE C57.12.20, DOE-2016 Efficiency, CSA C2.1, and CSA C2.2. The 10kVA fully self-protected (CSP) single-phase pole-mounted transformer is an efficient and reliable power equipment designed for small and medium-sized power needs. The transformer adopts advanced fully self-protection technology and has built-in overload, short-circuit and overvoltage protection functions to ensure that the transformer can automatically cut off power under abnormal conditions, avoid equipment damage and improve system safety. It has a simple design, is easy to install, saves space, and is suitable for all types of power distribution systems. This transformer is suitable for residential, commercial areas and small industrial places, providing stable single-phase power output.
15kVA Completely self-protected(CSP) Single Phase Pole Mounted Transformer
NPC ELECTRIC the production of 15 kVA Completely Self-Protected (CSP) single-phase overhead transformers, meticulously engineered to meet international standards such as IEEE C57.12.00, IEEE C57.12.20, DOE-2016 Efficiency, CSA C2.1, and CSA C2.2. These certifications underscore to delivery products that are both safe and reliable. NPC electric transformers are designed to comply with the DOE 2016 efficiency standards, ensuring optimal energy efficiency and reduced operational costs. Understanding the diverse needs of our clients, NPC Electric offers a wide range of customizable voltage levels to suit various applications. Perfect manufacturing processes enable us to maintain short production cycles, ensuring timely delivery.
25kVA Completely self-protected(CSP) Single Phase Pole Mounted Transformer
25 kVA Completely self-protected(CSP) Single Phase pole Mounted transformer is an efficient and reliable power equipment designed for small and medium-sized power needs. It is widely used in power distribution systems in residential areas, commercial areas, and small industrial facilities. The transformer adopts fully self-protection technology and has built-in multiple protection functions such as overload, short circuit, overvoltage, etc. to ensure automatic power failure under abnormal conditions, avoid equipment damage, and improve system safety. High-quality manufacturing materials and reliable performance ensure its long-term stable operation, reduce energy waste, and improve power supply efficiency.
37.5kVA Completely self-protected(CSP) Single Phase Pole Mounted Transformer
37.5kVA Completely self-protected(CSP) Single Phase pole Mounted transformer is an efficient and reliable power equipment designed to provide a stable single-phase power supply. The transformer adopts fully self-protection technology and has built-in multiple protection functions such as overload, short circuit, and overvoltage to ensure that the transformer automatically cuts off the power supply under abnormal conditions, effectively avoiding equipment damage and ensuring the safe operation of the system.
50kVA Completely self-protected(CSP) Single Phase Pole Mounted Transformer
50kVA Completely self-protected(CSP) Single Phase pole Mounted transformer is a robust, high-efficiency solution designed for reliable single-phase power distribution in residential, commercial, and small industrial applications. This transformer features built-in protection mechanisms, including overload, short-circuit, and over-voltage safeguards, ensuring automatic disconnection during fault conditions to protect both the transformer and the electrical system. With its pole-mounted design, it is space-efficient and ideal for installations in urban, rural, and remote areas. The transformer operates with low losses, ensuring high energy efficiency and long-term performance. Built with durable materials, it offers exceptional resilience against harsh weather conditions, ensuring reliability and longevity. This transformer is an ideal choice for any application requiring consistent, stable single-phase power.
75kVA Completely self-protected(CSP) Single Phase Pole Mounted Transformer
NPC ELECTRIC, the production of a 75kVA Completely Self-Protected (CSP) Single Phase Pole Mounted Transformer is a high-efficiency, reliable solution for single-phase power distribution in residential, commercial, and small industrial applications. Equipped with built-in protection features such as overload, short-circuit, and over-voltage protection, it ensures automatic disconnection during fault conditions to prevent damage to the system. Its pole-mounted design saves space and is ideal for installation in both urban and rural environments. The transformer operates with minimal energy loss, ensuring high efficiency and long-term performance, while its durable construction makes it resistant to harsh weather conditions, ensuring a reliable and safe power supply over time.
100kVA Completely self-protected(CSP) Single Phase Pole Mounted Transformer
100kVA Completely Self-Protected (CSP) Single Phase Pole Mounted Transformer is a highly efficient and reliable solution designed for single-phase power distribution in residential, commercial, and light industrial applications. It features integrated self-protection systems, including overload, short-circuit, and over-voltage protection, ensuring automatic disconnection in the event of faults to safeguard both the transformer and connected equipment. With its pole-mounted design, it offers space-saving installation and is suitable for both urban and rural environments. This transformer delivers high operational efficiency with minimal energy loss and is built to withstand harsh weather conditions, ensuring long-lasting and reliable performance. It is the ideal choice for providing safe and stable single-phase power in diverse applications.
167kVA Completely self-protected(CSP) Single Phase Pole Mounted Transformer
167 kVA Completely Self-Protected (CSP) single-phase overhead transformers, meticulously engineered to meet international standards such as IEEE C57.12.00, IEEE C57.12.20, DOE-2016 Efficiency, CSA C2.1, and CSA C2.2. It is designed for efficient, safe, and reliable power transmission. It is mainly used for power supply in residential, commercial, and small industrial areas to ensure stable power output and long-term trouble-free operation. The transformer has built-in multiple safety protection functions, including overload protection, short circuit protection, and overvoltage protection, which can effectively prevent electrical failures and ensure the safety of the transformer under extreme working conditions. The transformer adopts advanced technology and high-quality materials, with low loss and high efficiency, which can minimize energy waste and improve power transmission efficiency.In-Depth Analysis
Pole mounted transformers are built to deliver high efficiency, reliable performance, and advanced safety, helping businesses reduce energy costs while ensuring stable power supply. With future-ready adaptability for renewable energy and smart grid applications.
Comparative Analysis of Efficiency and Loss
Compared to the industry average, transformers exhibit lower losses and higher efficiency across the entire load range.
Load Efficiency Comparison(%)
No-load Loss Comparison(W)
High-efficiency Core Design
High magnetic permeability and low loss silicon steel sheets are used and processed by special process to reduce hysteresis loss and eddy current loss and improve conversion efficiency.
Improved Magnetic Permeability
+30%
Reduced Iron Loss
-35%
Multiple Protection Systems
IP65 protection grade design combines multiple protection measures such as anti-corrosion, anti-UV, anti-condensation and anti-small animal intrusion.
Waterproof Performance
IP65
Anti-Corrosion Ability
15 years+
Ultra-low Noise Technology
A special shock-absorbing structure, low-noise fans, and optimized heat dissipation design ensure operating noise is far below industry standards.
Noise Reduction
-15dB
Suitability for Residential Areas
Excellent
Intelligent Cooling System
The heat dissipation system with adaptive temperature control automatically adjusts the heat dissipation efficiency according to the load and ambient temperature to reduce energy consumption.
Heat Dissipation Efficiency
+40%
Temperature Stability
±2℃
Safety Wiring System
Insulated protective cover and anti-misoperation design ensure personnel safety during installation and maintenance and reduce accident risks
Insulation Grade
Class H
Safety Protection
IP2X
Intelligent Monitoring
An optional remote monitoring system is available to monitor operating status, temperature, load and other parameters in real time, and supports fault warning and remote diagnosis.
Data Collection Frequency
one times a minute
Fault Warning Accuracy
96%
Environmental Adaptability Analysis
Pole mounted transformers have been rigorously tested and can operate stably under various harsh environmental conditions.
Temperature Range
-40℃ ~ +55℃
Can work normally in extreme high and low temperature environments
Humidity Adaptation
0 ~ 100% RH
Including condensation environment, no frost requirement
Seismic Resistance Level
IEC 60068-2-57
Suitable for earthquake-prone areas
Altitude
≤3000m
More than special design
Why Choose Us
Discover why our Pole mounted transformers are trusted worldwide for efficiency, safety, and reliability.
Integrated Fault & Lightning Protection
NPC Electric CSP Single Phase Pole Mounted Transformers offer integrated fault and lightning protection, setting a new standard for reliability in overhead power distribution. Unlike conventional units, CSP transformers include internal primary fuses, secondary circuit breakers, and lightning arresters, all housed within the transformer tank. This comprehensive, self-contained design automatically clears most primary and secondary faults, preventing cascading failures and protecting downstream equipment. By choosing our fully protected CSP transformers, you drastically reduce localized power outages and enhance the overall resilience of your single-phase electrical network, ensuring stable and uninterrupted service for consumers.
Enhanced Grid Reliability & Reduced Outages
The inherent protection of our CSP Single Phase Pole Mounted Transformers leads to enhanced grid reliability and significantly reduced power outages. When a fault occurs, the internal protective devices isolate the affected section quickly and automatically, preventing the entire feeder line from tripping. This localized protection minimizes service interruptions for a broader customer base, improving overall customer satisfaction and operational efficiency. By deploying our reliable CSP transformers, utilities can achieve superior power quality and continuity of supply, creating a more robust and responsive single-phase distribution system even in areas prone to electrical disturbances.
Lower Installation Costs & Streamlined Aesthetics
Our CSP Single Phase Pole Mounted Transformers simplify installation and contribute to lower overall installation costs. By integrating protective devices directly into the transformer, the need for separate external fuses, cutouts, and lightning arresters on the pole is eliminated. This not only reduces the number of components to purchase and install but also streamlines the pole-top appearance, creating a cleaner and less cluttered aesthetic. Choosing our cost-effective CSP solutions reduces labor time, simplifies inventory management, and enhances the visual appeal of your overhead electrical infrastructure, offering both economic and aesthetic benefits.
Simplified Maintenance & Diagnostics
CSP Single Phase Pole Mounted Transformers are designed for simplified maintenance and diagnostics, making field operations more efficient for utility personnel. With all protective elements self-contained, troubleshooting is often quicker as fewer external components need inspection. Internal indicators can provide immediate feedback on fault conditions, facilitating faster problem identification and resolution. This integrated approach reduces the complexity of routine checks and fault-finding missions. By opting for our easy-maintenance CSP transformers, you enhance worker safety, reduce diagnostic time, and ensure quicker restoration of single-phase power, boosting operational efficiency.
Product Show
Explore the detailed design and practical application scenarios of pole mounted transformers

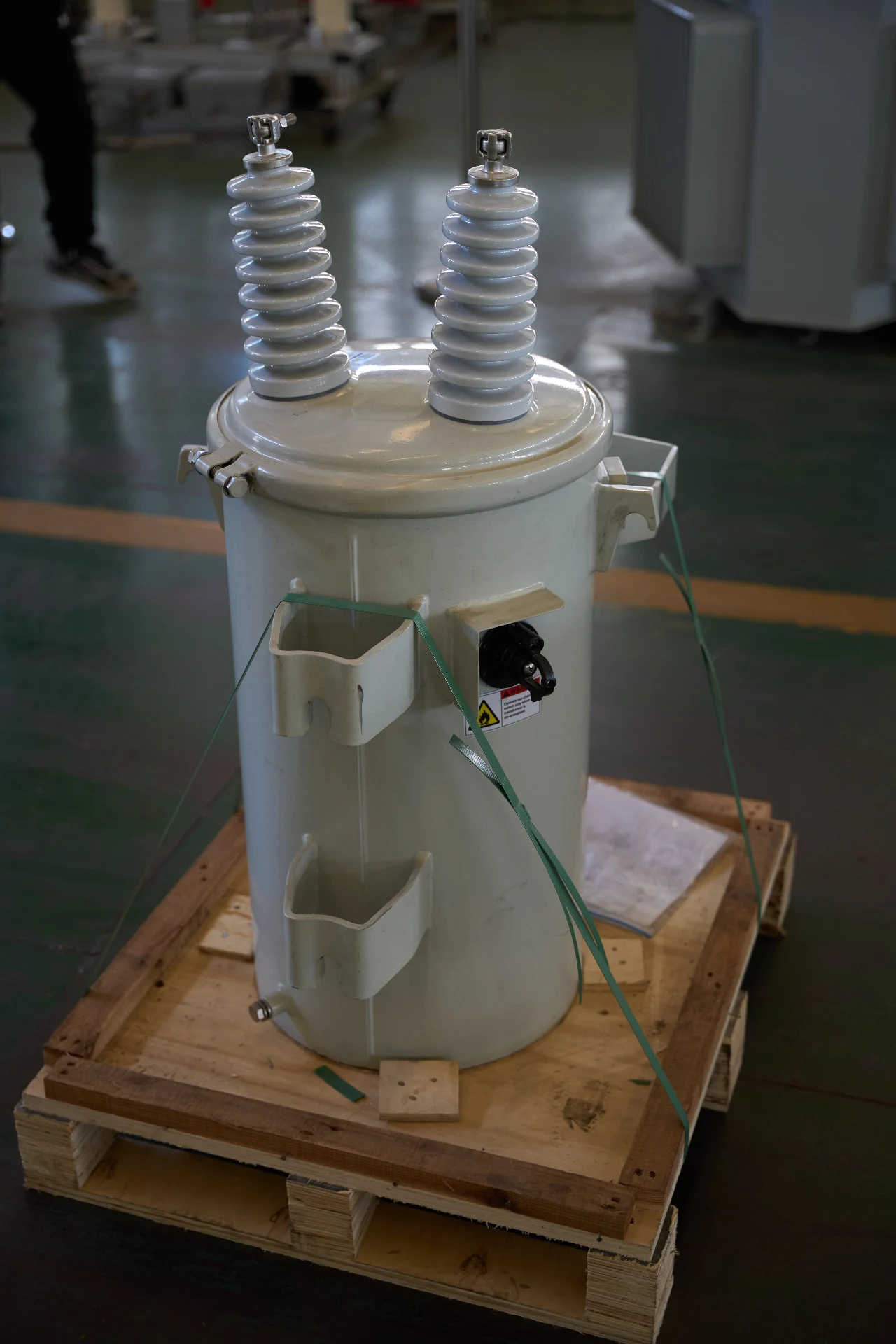

Pole Mounted Transformer Side
Transformer side structure

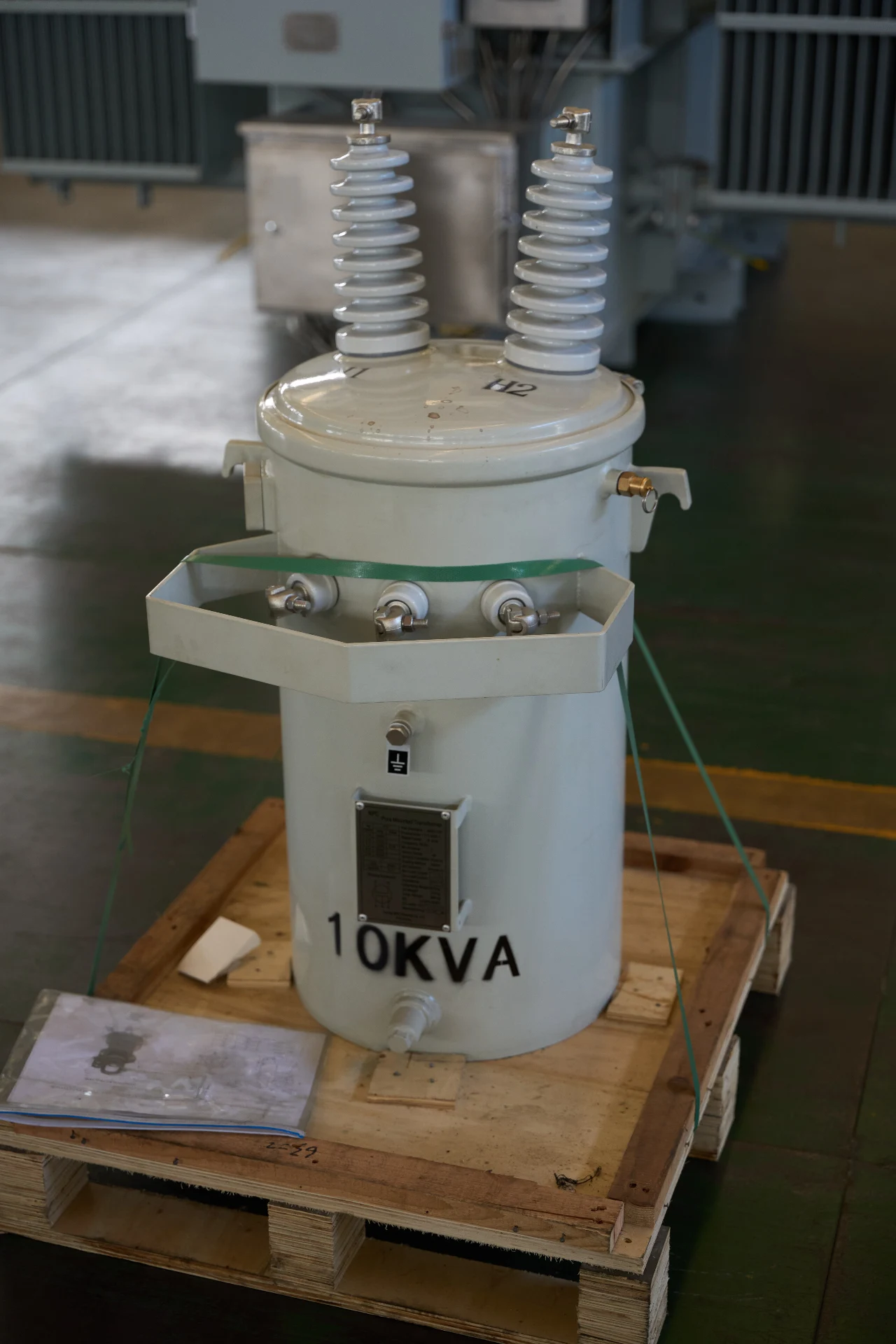

10kVA Pole Mounted Transformer
10kva transformer font view

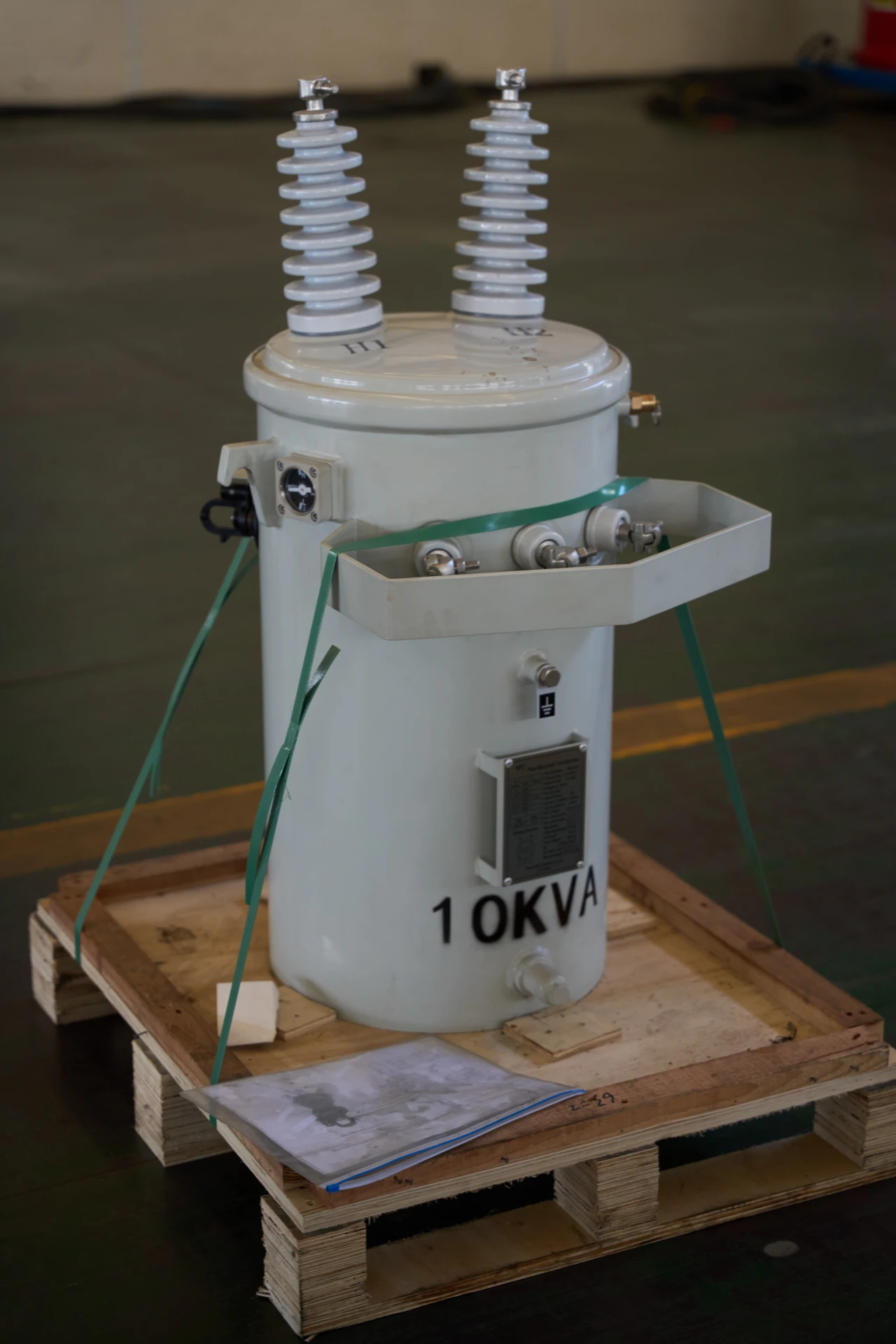

Pole Mounted Transformer Design
transformer font design

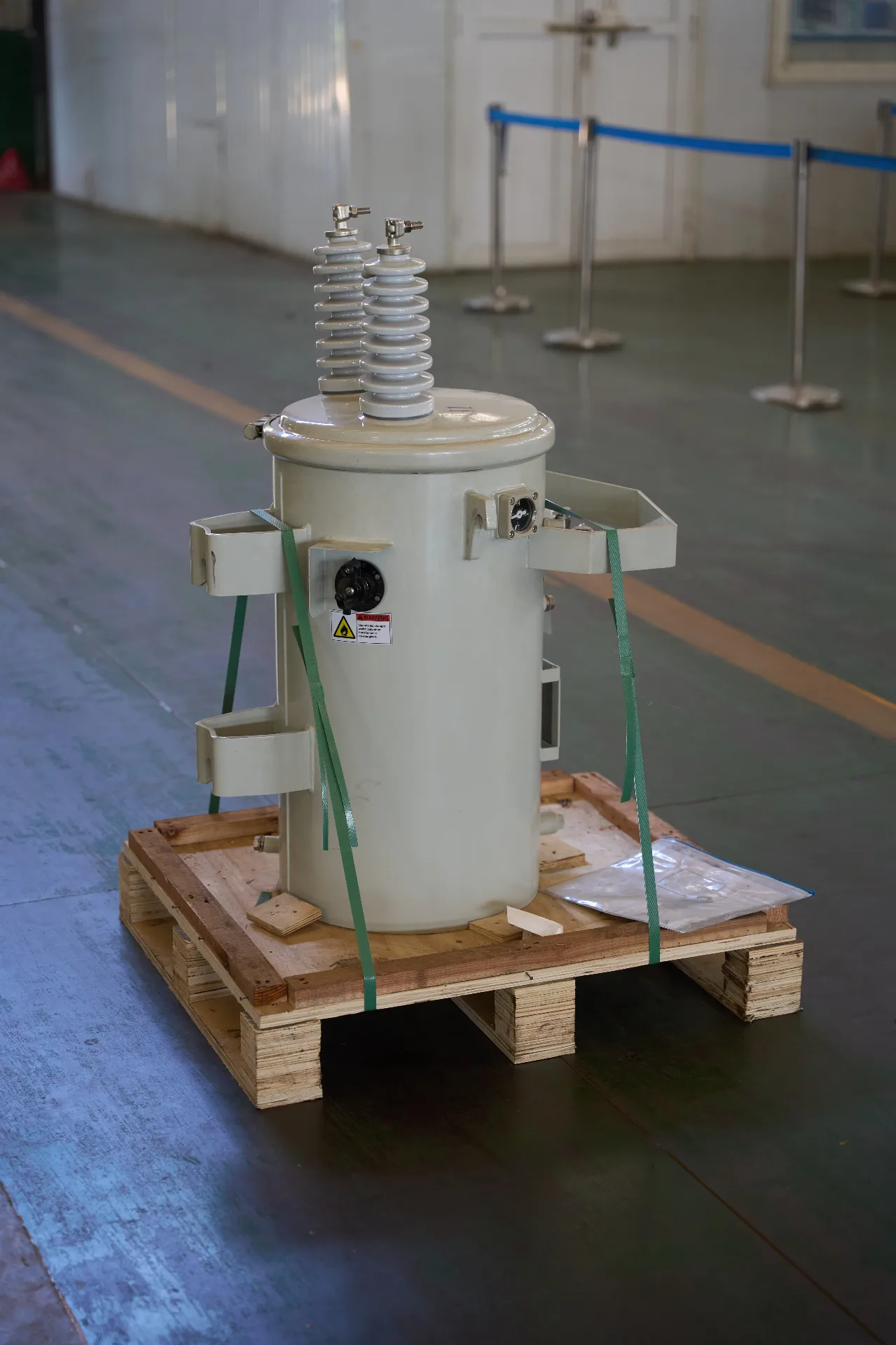

Pole Mounted Transformer Back
transformer back design
Testing and Certification
Tested with precision and certified to meet international standards as
well as strict industry requirements.
Bare Cable Test Report
SGS Inspection Report
Certificate of Acceptance
ISO Quality Certificate
ISO Environmental Certificate
ISO Occupational Certificate
UL Laboratory Certificate
UL Product Certificate
Project Cases
Pole mounted transformers have been successfully applied in many projects and have been highly praised by customers.
Mexico Residential Area
CompletedProvide stable and reliable power conversion solutions for the smart factory to meet diverse production needs.
Country：Mexico
Model：20kVA Pole Mounted Transformer x 2
Guyana Data Center
CompletedEnsure the power safety of surrounding residents and meet daily work needs
Country：Guyana
Model：167kVA Pole Mounted Transformer x 15
Colombia Factory
CompletedNPC transformers provide safe, efficient, and reliable power distribution in Surinam.
Country：Colombia
Model：75kVA Pole Mounted Transformer x 10
Technical Advantages
● 30+ years of manufacturing experience
● ISO and UL certified production
● Customized cable and transformer solutions
FAQ From Customers
-
How does a pole mounted transformer work?
A pole mounted transformer works by stepping down high-voltage electricity from overhead power lines to a lower voltage suitable for consumer use. It operates on electromagnetic induction, transferring energy between primary and secondary windings through a magnetic core. Most distribution transformers are oil immersed transformers, which provide insulation and cooling to ensure stable and efficient power delivery to homes and businesses. -
How are pole mounted transformers installed?
Pole mounted transformers are installed on utility poles using steel brackets and crossarms designed to safely support their weight. Proper installation requires grounding, surge protection, and adherence to local electrical codes. Both single phase and three phase pole mounted transformers must be positioned at safe clearances from conductors and buildings. Professional installation ensures safety, minimizes energy loss, and extends transformer service life. -
Are pole mounted transformers safe?
Yes. Pole mounted transformers are designed with robust enclosures, protective fuses, and lightning arresters to ensure maximum safety and reliability. Modern oil immersed transformers use flame-retardant insulating fluids, and completely self-protected transformers include built-in circuit breakers and relays. Regular inspection and maintenance help prevent leaks or overheating, ensuring safe operation in residential and industrial power distribution systems. -
What is the efficiency of a pole mounted transformer?
The efficiency of a pole mounted transformer typically ranges from 97% to 99%, depending on its design and load conditions. High-efficiency three phase transformers and oil immersed pole mounted transformers reduce energy losses and operating costs. NPC Electric designs transformers with optimized magnetic cores and low-loss materials to enhance performance, making them ideal for reliable distribution transformer networks. -
How do you maintain a pole mounted transformer?
Proper transformer maintenance is crucial for extending service life and ensuring reliability. Routine checks on pole mounted transformers include oil level inspection, bushing cleaning, leakage detection, and load monitoring. Oil immersed transformers require periodic oil testing for dielectric strength and moisture content. Scheduled maintenance helps prevent failures, reduces downtime, and guarantees safe operation of distribution transformers in overhead power systems.
